Max232 RS232 to TTL Serial Interface Module

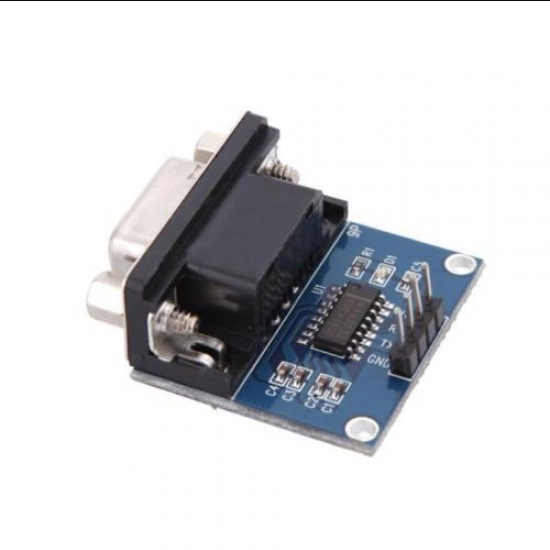

Max232 RS232 to TTL Serial Interface Module is a board with the MAX3232 transceiver integrated circuit (IC). It facilitates serial communication between TTL and RS232 ports by providing the necessary electrical signal conversion.

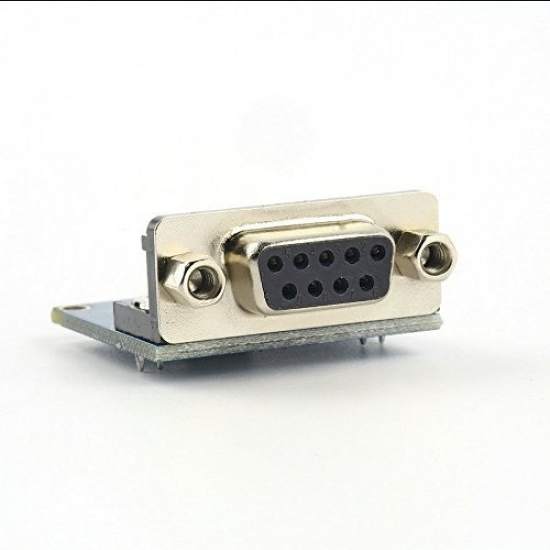

These boards have a DB9 connector soldered at one end, and four header pins with jumper cables at the other end. The jumper cables enable the user to connect the wires to a breadboard or a microcontroller project board, whilst the DB9 connects directly to a COM port of a computer. This module can be used to the serial port of microcontroller module expand DVD, router, hard drive and other equipment to upgrade.
Features :
- It is widely used in radio modification, phone flash, XBOX360 flash, GPS, vehicle detection, DVD flash, hard disk repair set-top box upgrade.
- It can be used to program STC MCU, NXP MCU, Renesas MCU, STM32 MCU, N+-2EC MCU
- Pre-assembled compact size board
- Suitable for use with most microcontrollers
- Operates up to 250 kbit/s
Specifications:
|
IC Chip |
MAX3232 |
|
Operating Voltage |
DC 3.3~5.5 V |
|
Length (mm) |
45 |
|
Width (mm) |
32 |
|
Height (mm) |
15 |
|
Weight (gm) |
12 |
Package Includes :
- 1 x Max232 RS232 to TTL Serial Interface Module
