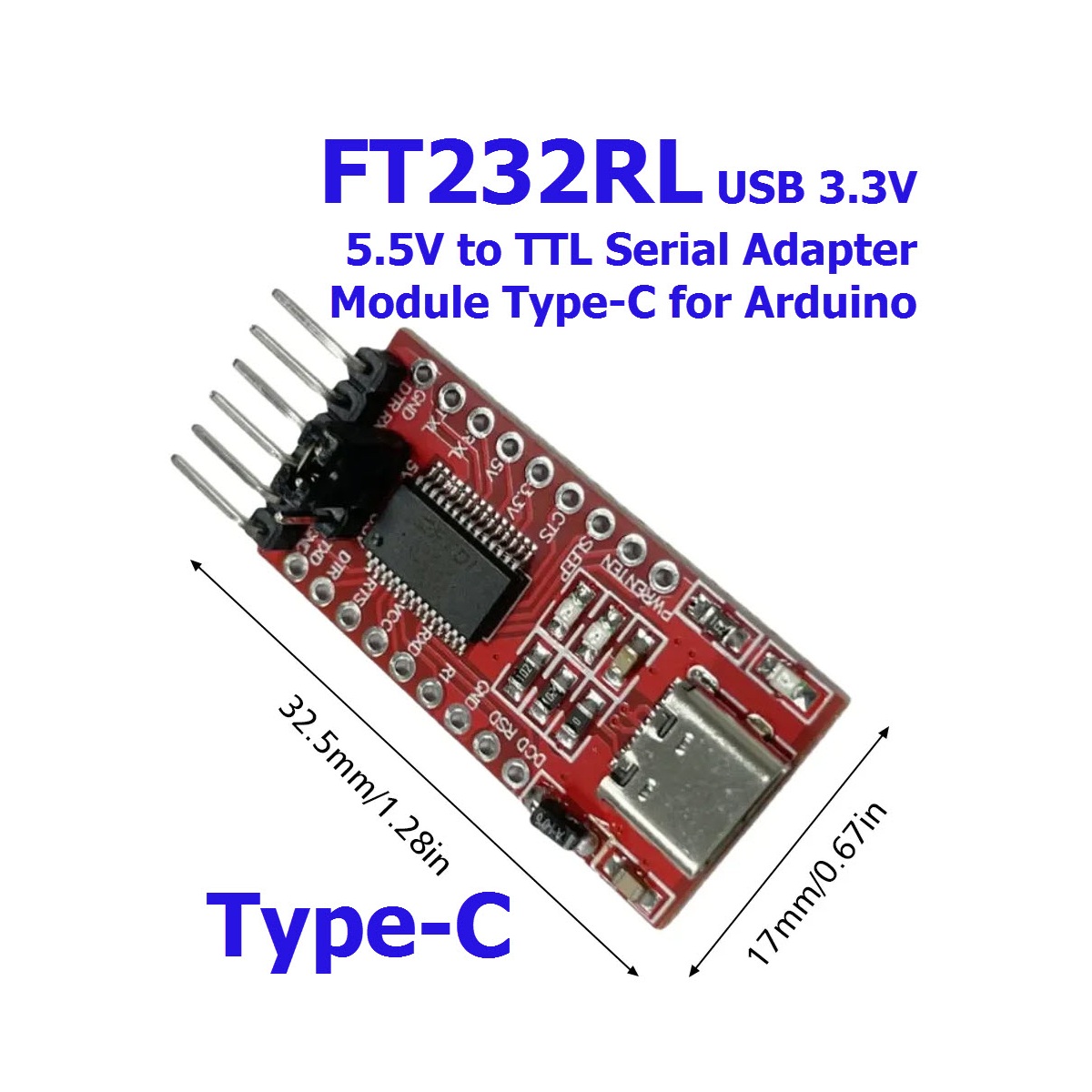

FT232RL USB to TTL Serial Converter Module Type-C

The FT232RL USB to TTL Serial Converter Module Type-C interface is a robust solution for interfacing microcontrollers, development boards, and embedded systems with computers via USB. Based on the reliable FTDI FT232RL chipset, it supports both 3.3V and 5V logic levels (jumper-selectable), ensuring compatibility with a wide range of TTL serial devices.

Featuring dedicated pins for DTR, RX, TX, VCC, CTS, and GND, this compact module facilitates seamless data transfer, programming, and debugging. FT232RL USB to TTL Type-C module offers status LEDs for power, data transmission, and reception for quick diagnostics, as well as onboard current protection for reliable and safe operation.

Features:

• FTDI FT232RL chipset for stable USB to UART (TTL) conversion.

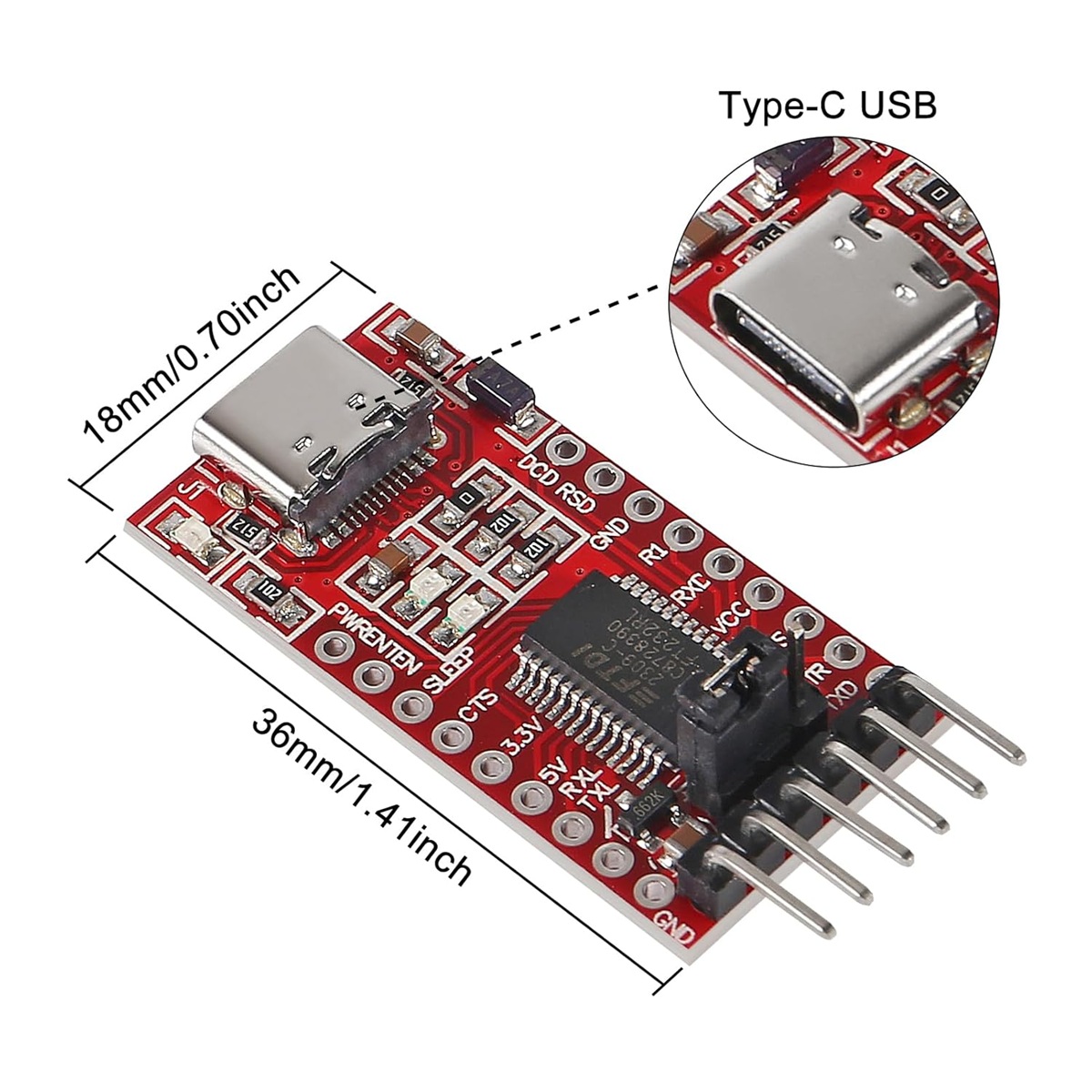

• USB Type-C interface for modern connectivity.
• Supports both 3.3V and 5V operation (jumper selectable).

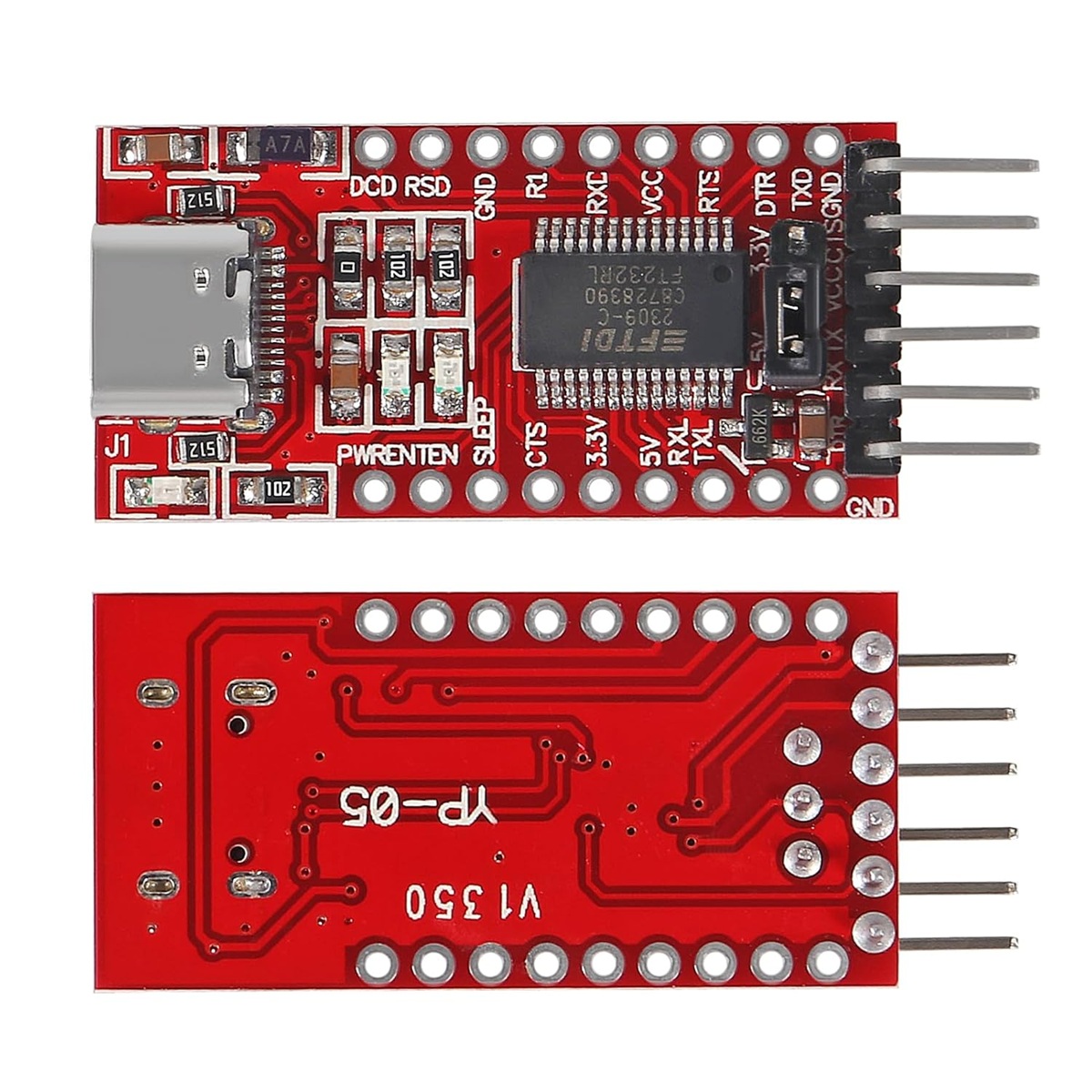

• Six-pin header: DTR, RX, TX, VCC, CTS, GND; 2.54mm pitch.
• TX/RX communication LEDs for status monitoring.
• Integrated 128-byte RX and 256-byte TX buffers for high throughput.
• Maximum data rate: up to 3Mbps.
• USB power with 500mA self-resetting fuse for overcurrent protection.

Specifications:

• Chipset: FTDI FT232RL
• Input Voltage: 3.3V / 5V (Selectable)
• Interface: USB Type-C
• Pinout: DTR, RX, TX, VCC, CTS, GND
• Data Rate: 300bps ~ 3Mbps
• Receive Buffer: 128 bytes
• Transmit Buffer: 256 bytes
• Fuse Protection: 500mA self-resetting
• Dimensions (mm): 36 x 18 (may vary slightly)
• System Compatibility: Windows, Linux, macOS

Applications:

• Programming and debugging microcontroller boards (Arduino, STM32, ESP, AVR, ARM, etc.).
• Serial communication with routers, IoT devices, embedded systems.
• USB to RS232/RS422/RS485 conversion projects.
• Upgrading legacy serial peripherals to USB.
• Data logging and hardware prototyping tasks.

Package Includes:

• 1 x FT232RL USB to TTL Serial Converter Module Type-C (3.3V/5V, 6 Pin)
