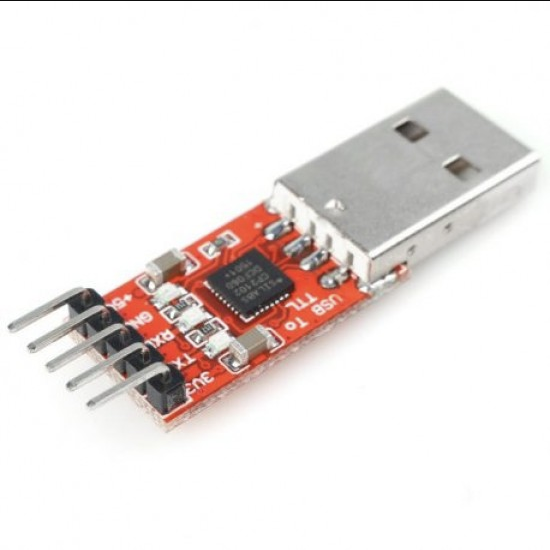

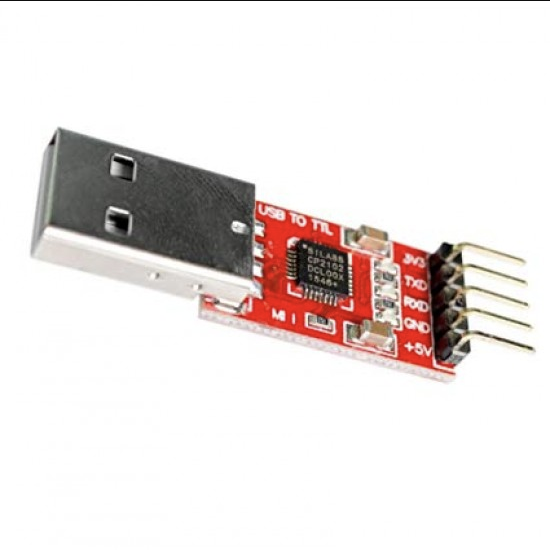

CP2102 USB 2.0 to TTL UART Serial converter Module 5 Pin

CP2102 chip is a single chip USB to UART bridge IC. It requires minimal external components. CP2102 can be used to migrate legacy serial port based devices to USB.

Features:

• Stable and reliable chipset CP2102.
• USB specification 2.0 compliant with full-speed 12 Mbps.
• Standard USB type A male and TTL 5 pin connector.
• 5 pins for 3.3V, RST, TXD, RXD, GND & 5V.
• Baud rates: 300 bps to 1.5 Mbps
• Byte receive buffer; 640 byte transmit buffer.
• Hardware or X-On/X-Off handshaking supported.
• Event character support Line break transmission.
• USB suspend states supported via SUSPEND pins.
• Temperature Range: -40 to +85.
• Size: 42 mm X 15 mm.
• Weight: 4g

Pinouts:

• TX = Connect to Transmit Pin(TXD) of Micro controller. This pin is RX pin of CP2102 on board.
• RX = Connect to Receive Pin(RXD) of Micro controller. This pin is TX pin of CP2102 on board.
• GND = Should be common to microcontroller ground.
• 3V3 = Optional output to power external circuit upto 50mA.
• 5V = Optional output to power external circuit upto 100mA

Package Includes:

• 1 x CP2102 USB to TTL UART Serial converter Module
