Cytron 10Amp 6V-24V DC Motor Driver HAT-MDD10 for Raspberry Pi (2 Channels)

Looking for high current motor driver for Raspberry Pi?

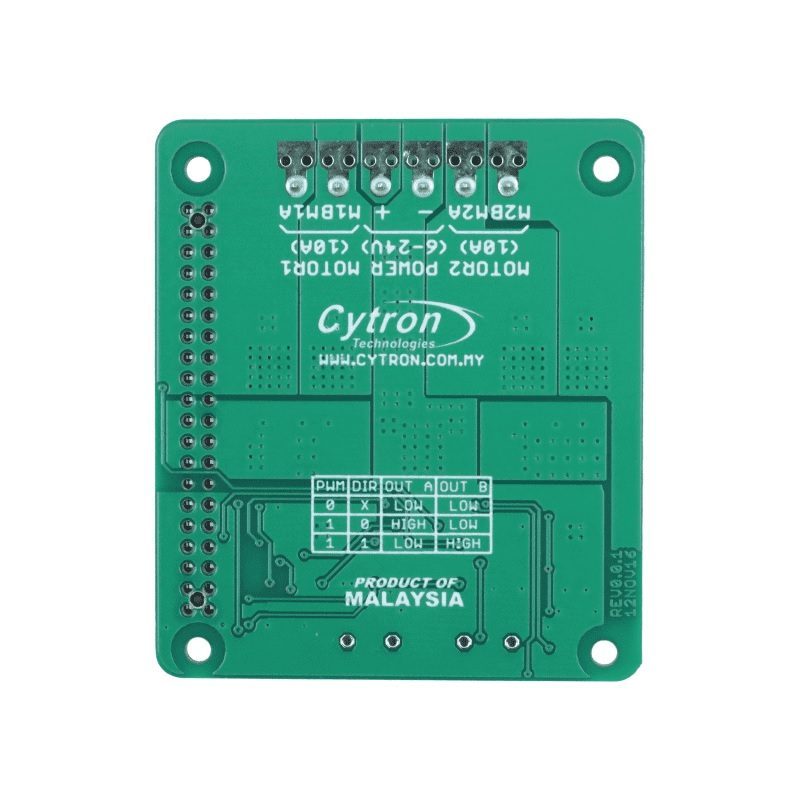

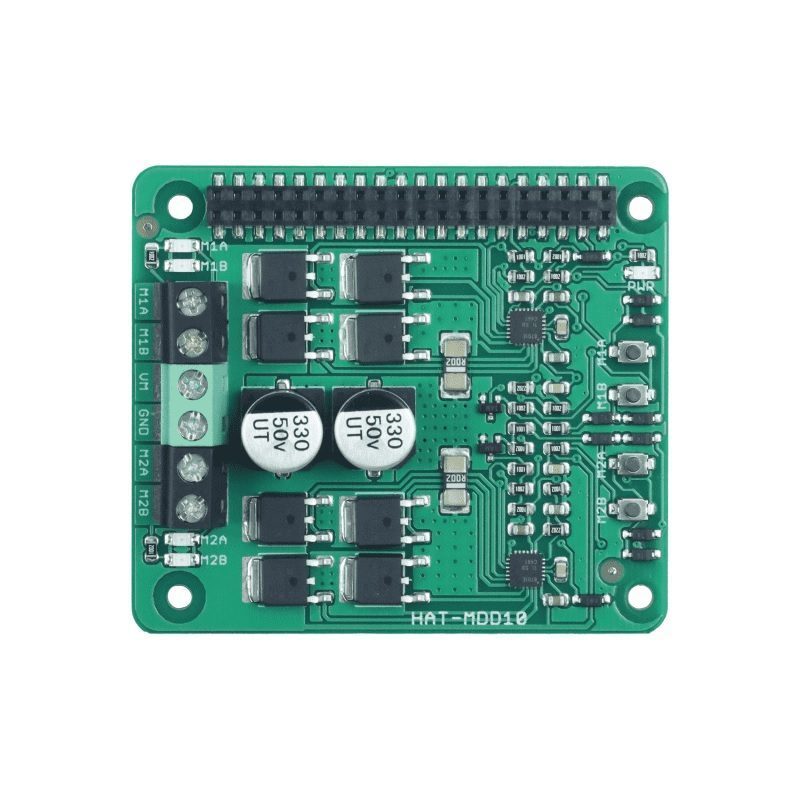

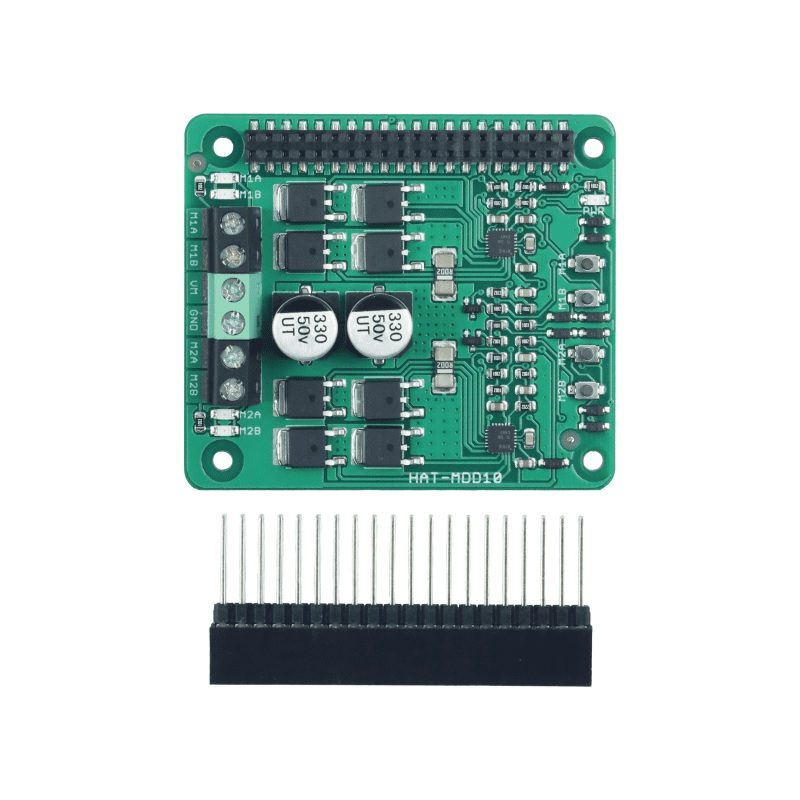

Here you go, Cytron 10Amp 6V-24V DC Motor Driver HAT-MDD10 for Raspberry Pi (2 Channels). This is a Cytron’s latest motor driver is design for Raspberry Pi, the Cytron 10Amp 6V-24V DC Motor Driver HAT-MDD10 for Raspberry Pi (2 Channels) is designed to drive two high current brushed DC motor up to 10A continuously by using Raspberry Pi as the controller. It offers signed-magnitude PWM control of direction and speed. Besides, using full solid state components which result in faster response time and eliminate the wear and tear of the mechanical relay. Not to forget there is current limiting sensor and auto cut set at 30A peak to protect the motor driver from over current.

Features:

• Bi-directional control for two brushed DC motor.
• Support motor voltage ranges from 6VDC to 24VDC.
• On board test button for manual control of motor.
• Every channel output built with LED indicator.
• Maximum current up to 10A continuous (without heatsink at 25℃) and 30A peak (10 second).
• Current limiting at 30A.
• Raspberry Pi compatible connector.
• Solid state components provide faster response time.
• Fully NMOS H-Bridge for better efficiency and no heat sink is required.
• Regenerative Braking.
• Speed control PWM frequency up to 20KHz (Actual output frequency is same as input frequency from Raspberry Pi).
• Support sign-magnitude PWM operation.
• Support TTL PWM from microcontroller, NOT PWM from RC receiver.
• Dimension:67.5mm x 59mm

Specifications:

• Driver Model: Cytron MDD10-HAT
• Operating Voltage(VDC): 6 to 24
• Peak Current (A): 30 (10 seconds)
• Continuous Current (A): 10
• No. of Channels: 2
• Operating Modes: PWM (Lock-Antiphase and Sign-Magnitude): Yes, UART: No, Analog:No, RC Servo Signal: No
• Battery Protection Mode: No
• Over-Current Protection (A): Yes
• Thermal Protection: Yes
• LED Indicator: Yes
• Test/Manual Button: Yes
• Cooling Fan: NO
• Arduino Shield: No- can be used with Wire connection
• Polarity Protection: NO
• Dimensions in mm (LxWxH): 68 x 59 x 20
• Weight (gm): 112
• Others: Extra Socket Raspberry Pi compatible connector

Useful Links:

• User’s Manual

• Sample Code for Raspberry Pi
