Cytron SmartDrive MDS160A 160Amp DC Motor Driver (Peak 190Amp)

Name: Cytron SmartDrive MDS160A 160Amp DC Motor Driver (Peak 190Amp)
Brand: Generic / Other
SKU: ANIL7030
Price: 21735.00 INR
Availability: OutOfStock

grade Be the first to review

SKU: ANIL7030 content_copy

Brand: Generic / Other

₹21,735.00 (Incl. 18.00% GST) Excl. GST: ₹18,419.49

error Currently Out of Stock

receipt_long GST Invoice with ITC Claim

inventory Wholesale & Volume Pricing Click tier to auto-select

1 – 4 pcs

₹21,735.00

Regular

5 – 9 pcs

₹20,648.25

Save 5%

10+ pcs

₹19,561.50

Save 10%

Currently Out of Stock

This component is currently unavailable. Enter your email below to be notified as soon as new stock arrives!

pin_drop Check Delivery & Shipping SLA Free Shipping > ₹2,000

local_shipping

Dispatches in 24h

From Ahmedabad Hub

verified

100% Genuine Part

Tested & Quality Checked

receipt_long

GST B2B Invoice

Input Tax Credit Eligible

support_agent

7-Day Support

Easy Defect Replacement

chat Need Technical Help? Chat on WhatsApp

memory Technical Parameters & Datasheet Summary

SKU: ANIL7030

Component Title Cytron SmartDrive MDS160A 160Amp DC Motor Driver (Peak 190Amp)

Part Number / SKU ANIL7030

Brand / Manufacturer Generic / Other

Category & Taxonomy DC Geared Motor Drivers

Applicable GST Rate 18.00% GST (Official GSTIN Invoice Provided with Input Tax Credit)

Packaging Protection Anti-Static Moisture Barrier Shielding Bag (ESD Protected)

Dispatch Hub Dispatches within 24 Hours from Ahmedabad Hub, Gujarat, India

Datasheet & Queries? chat Ask an Application Engineer on WhatsApp

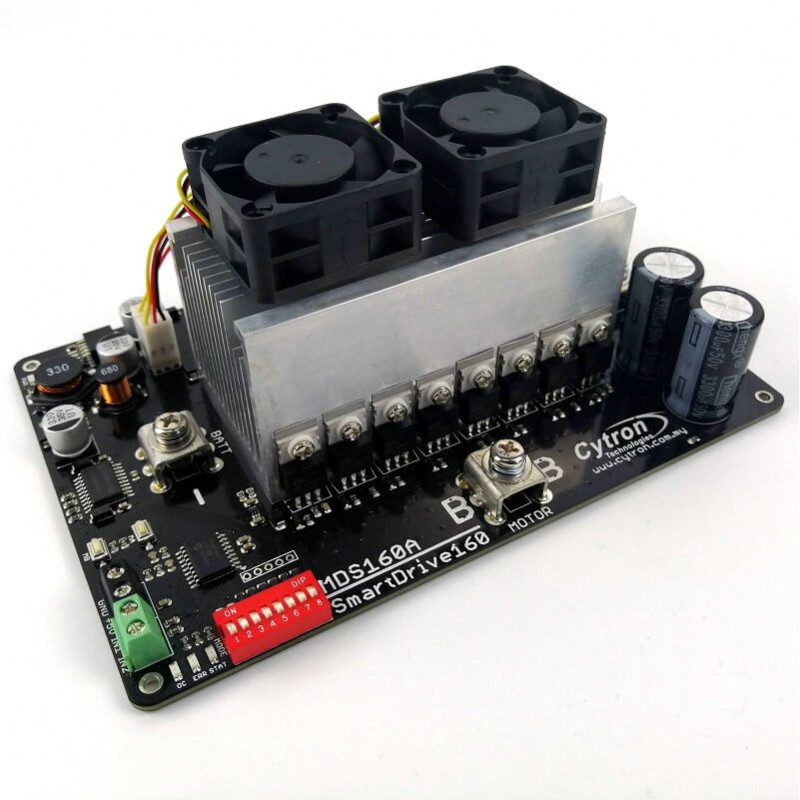

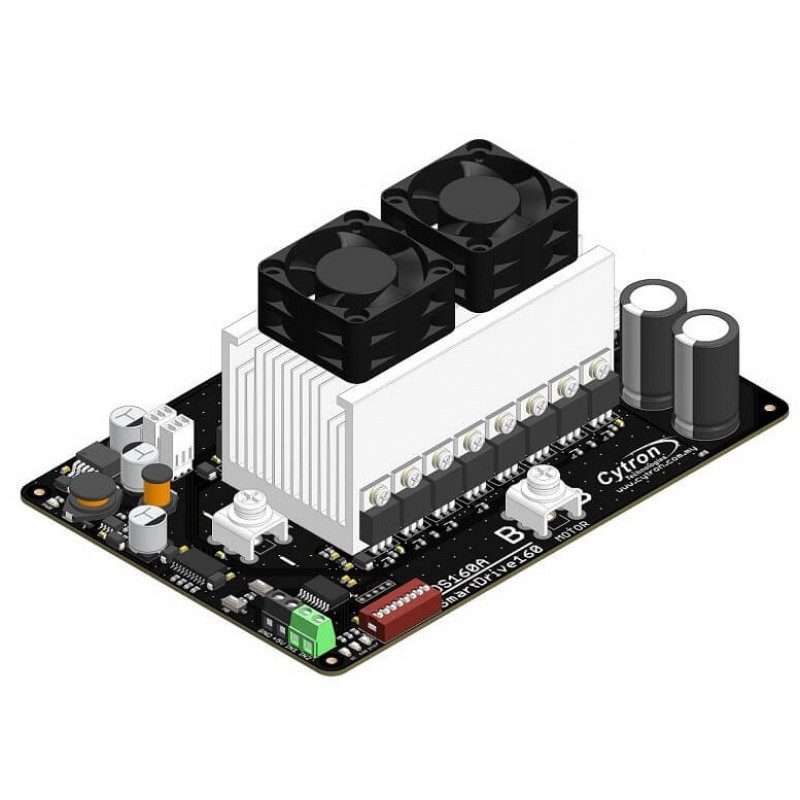

Cytron SmartDrive MDS160A 160Amp DC Motor Driver (Peak 190Amp) is one of the latest smart series motor drivers. On board high current MOSFETs are switched at 16 KHz to ensure quiet operation and no annoying whining sound. And using MOSFETs eliminate the need for additional flyback diodes. Besides, it also equipped with a microcontroller unit to provide smart features such as multiple input mode, current limiting and thermal protection. SmartDrive160 can also be hooked up with another similar unit and operates in pair. This make driving a robot with differential drive a truly plug and play experience.

We know DC brushed motor is widely used for many different applications; from conveyor, AGV (Automated Guide Vehicle), mobile robot and combat robot. One of the reasons is the ease to use it, just connect the two terminals of motor to DC power respectively, it will start rotating, so simple. Yet, to control the speed and direction from a controller, a motor driver is needed.

This is SmartDriveDuo-160. Yes! Is 160 Amperes of continuous output current!

Note: Normal wire cannot survive 160A or even 100A, so get the thickest possible wire for both the Vmotor and Motor. We are using 2 to 3 8AWG cable (Black and Red), for each terminal.

Features:

Bi-directional control for a single brushed DC motor.
Support input voltage from 8V to 28V.
Is able to deliver maximum current up to: 190A peak (1 minute), 175A (2 minutes), 160A (continuously)
16 KHz switching frequency for quiet operation.
LiPo battery low voltage warning.
Full Solid State component (MOSFETs) for switching. No additional fly back diodes needed.
Regenerative Braking.
NO Reverse Polarity Protection for Vmotor, please double check the connection!
Thermal protection.
Current limiting base on temperature.
Below 60°C : 194A, 60°C to 70°C : 175A, 70°C to 80°C : 163A
80°C to 90°C : 144A, 90°C to 100°C : 125A, 100°C to 110°C : 100A
Above 110°C : 50A
Multiple input modes (configure through the DIP switches) : RC (Radio Control), Analog (Analog voltage from Potentiometer or Joystick), PWM and DIR (3.3V and 5V compatible, Arduino or Raspberry Pi), UART (Simplified Serial and Packetized Serial)
On board push buttons for fast test and manual operation.

Specifications:

Driver Model : Cytron MDS160A
Operating Voltage(VDC) : 8 to 28
Peak Current (A) : 190
Continuous Current (A) : 160
No. of Channels : 1
Operating Modes : PWM (Lock-Antiphase and Sign-Magnitude): Yes, UART: Yes Analog: Yes, RC Servo Signal: Yes
Battery Protection Mode : Yes
Over-Current Protection (A) : Yes
Thermal Protection : Yes
LED Indicator : Yes
Test/Manual Button : Yes
Cooling Fan : Yes
Arduino Sheild : No- can be used with Wire connection
Polarity Protection : NO
Dimensions in mm (LxWxH) : 122 x 178 x 8
Weight (gm) : 601
