DB15 Male to Screw Terminal Breakout Board with Case

This DB15 Male to Screw Terminal Breakout Board with Case is a convenient interface adapter that converts a standard DB15 connector into easy-to-use screw terminals. Each pin is clearly labeled and accessible, allowing fast and secure wiring without soldering. The included protective case ensures durability and insulation, making it suitable for lab use, prototyping, and industrial applications. Ideal for connecting external devices, custom circuits, and control systems where DB15 connections are required.

Features:

• Converts DB15 Male connector to screw terminal blocks
• No soldering required – easy screw terminal connections
• Each terminal is individually labeled for clarity
• Includes a durable plastic case for protection and safe handling
• Suitable for signal transmission, testing, and prototyping
• Reusable, compact, and reliable design
• Mounting holes provided for easy fixing

Specifications:

• Connector Type: DB15 Male (D-Sub)
• Breakout Type: Screw Terminal Block
• Number of Pins: 15
• Case Material: ABS Plastic / Acrylic (depending on variant)
• Mounting: Screw terminal, case with fixing holes
• Pin Labeling: Individual pin numbers printed/marked

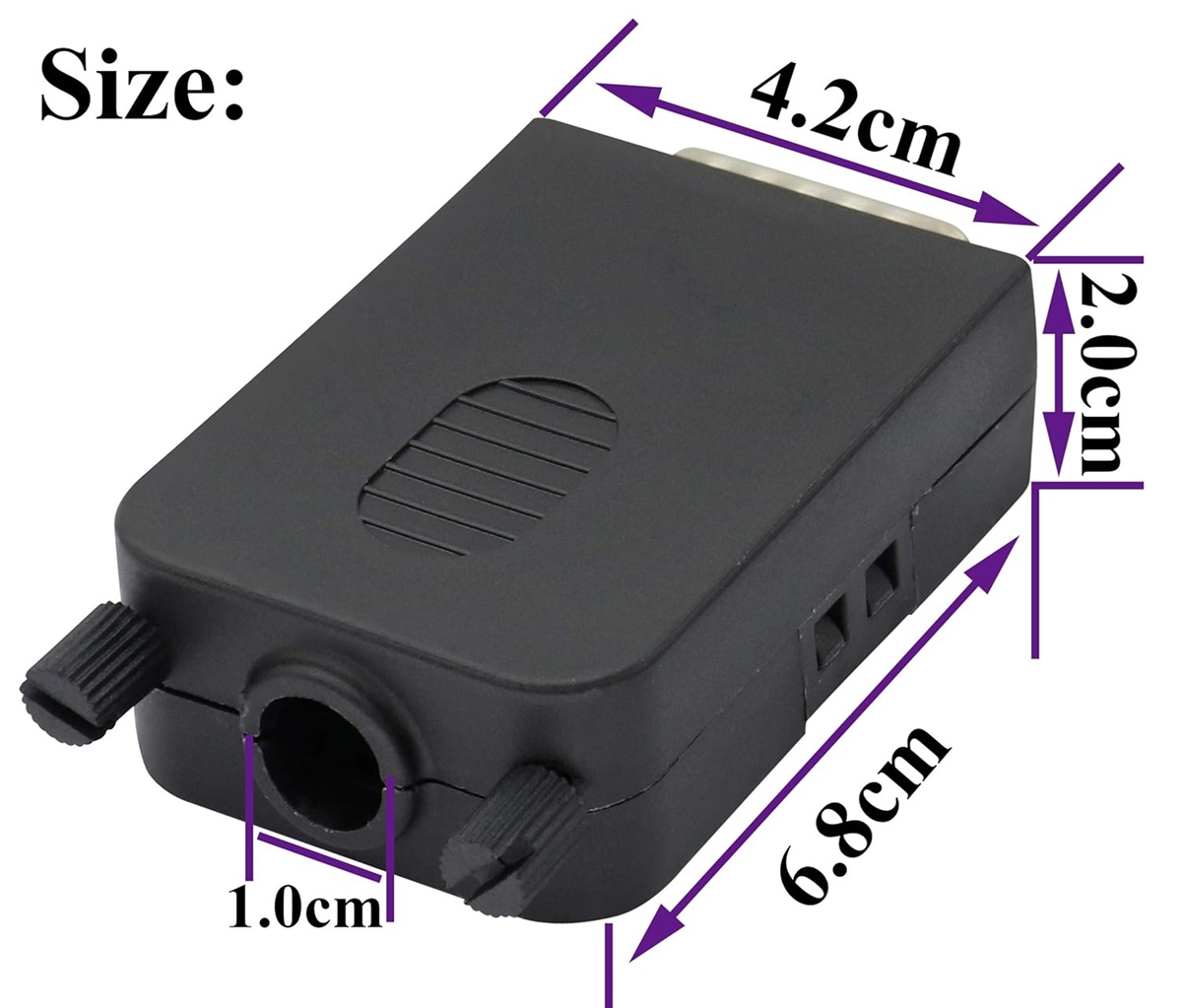

• Dimensions: ~ As per case size (typically 6–8 cm length)

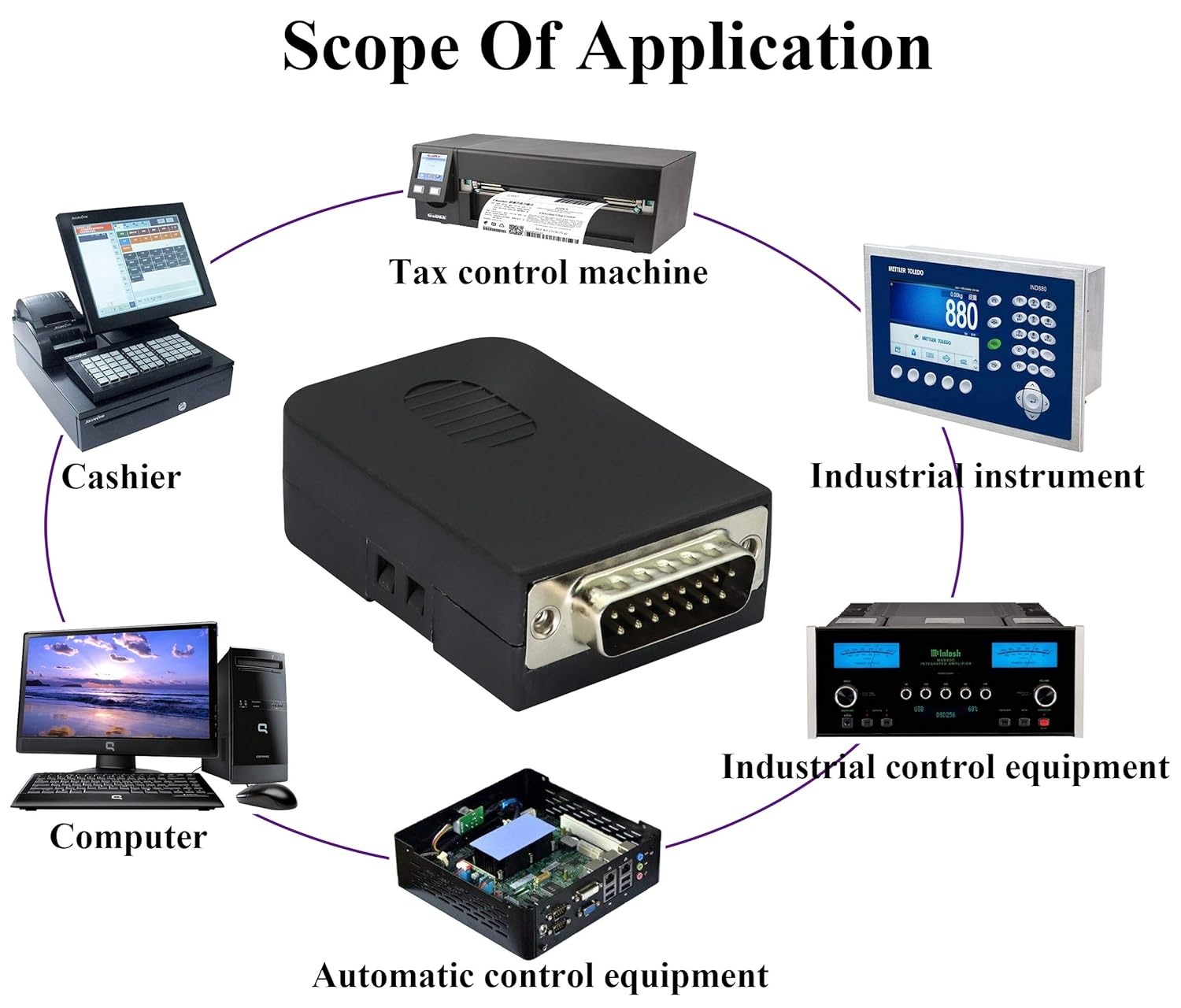

Applications:

• Prototyping and development with DB15 interfaces
• CNC machines, servo/stepper motor controllers
• Custom control panels and industrial systems
• Audio/Video signal testing and interfacing
• Laboratory projects and test equipment wiring
• Secure field wiring where DB15 connectors are required

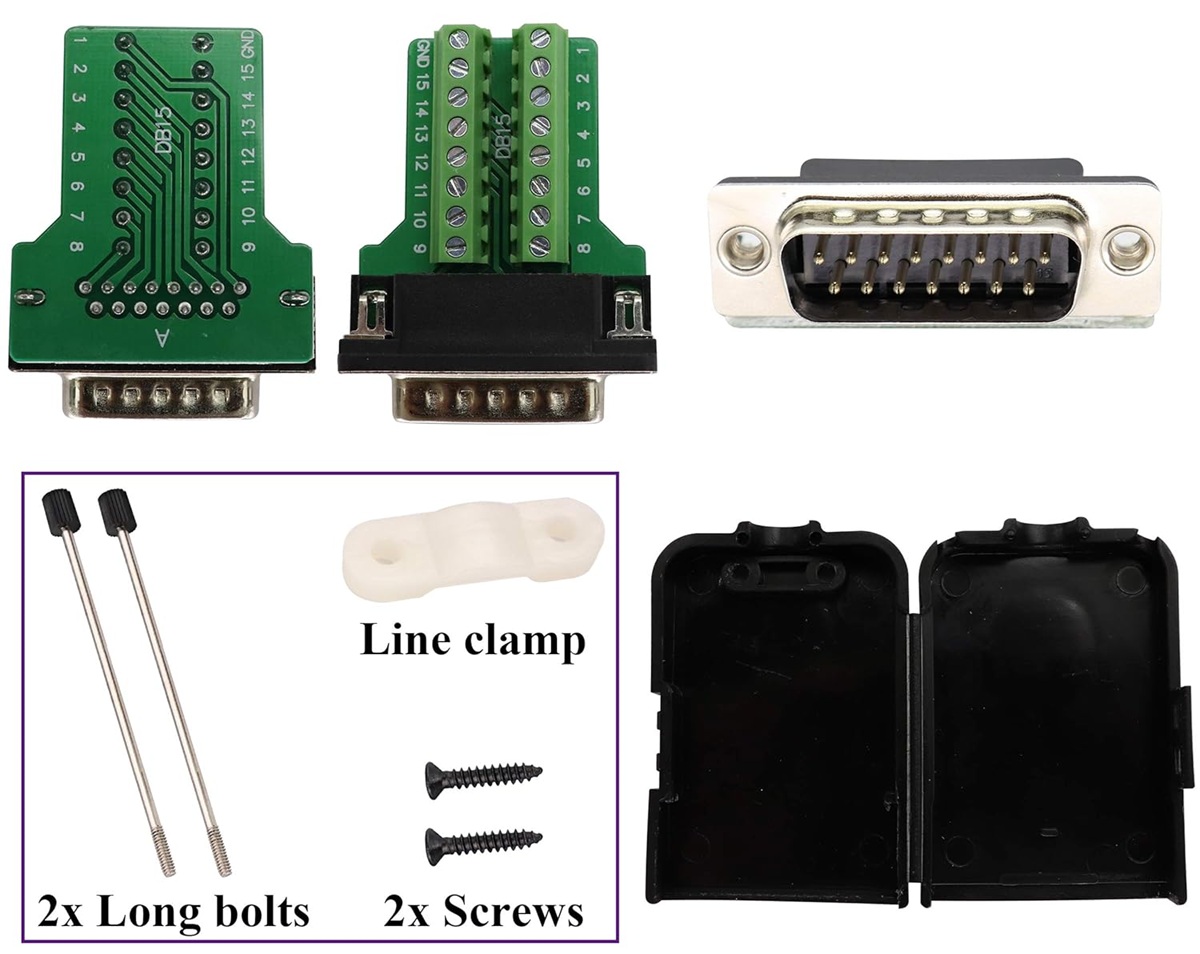

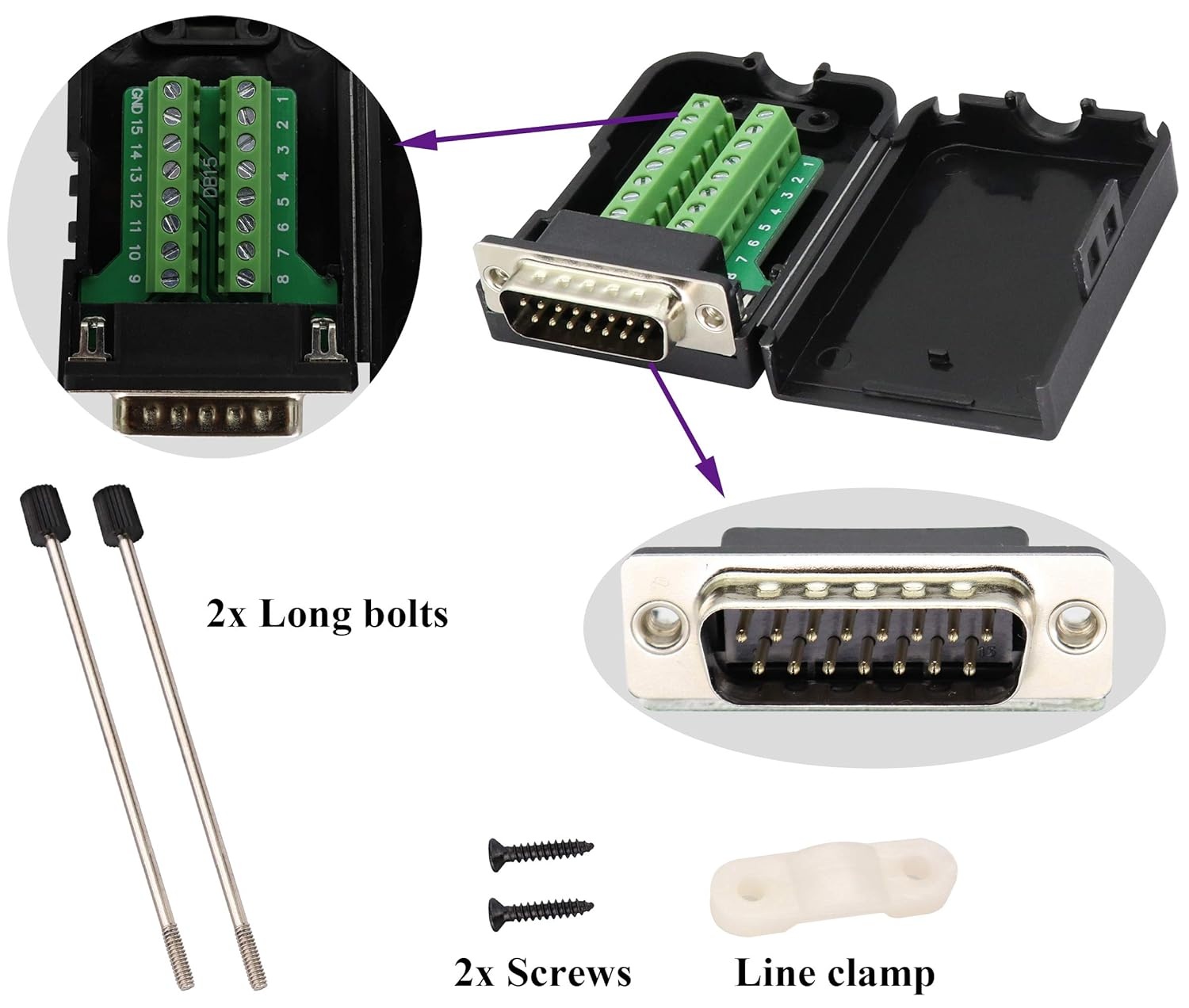

Package Includes:

• 1 × DB15 Male Breakout Board with Case
• 1 × Protective Case

Note: Image is for reference only.
