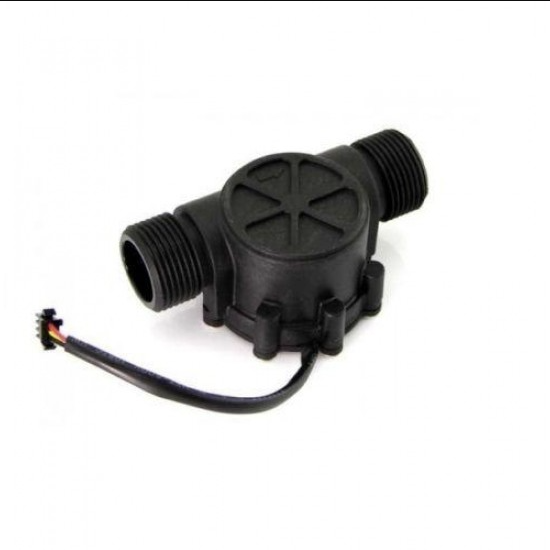

DN25 YF-G1 Large Water Flow Sensor 1 inch
DN25 YF-G1 Large Water Flow Sensor 1 inch
DN25 YF-G1 Large Water Flow Sensor 1 inch is used for flow measurement it consists of a plastic valve body, a water rotor, and a hall-effect sensor. When water flows through the rotor, rotor rolls. Its speed changes with different rate of flow. The hall-effect sensor outputs the corresponding pulse signal. This one is suitable to detect flow in water dispenser or coffee machine.
Features:
- Compact, Easy to Install
- High Sealing Performance
- High Quality Hall Effect Sensor
- RoHS Compliant
- Characteristics of Flow pulse: f=(4.8*Q) Q=L/Min
Specifications:
|
Model |
DN25 YF-G1 |
|
Minimum Working Voltage |
4.5V DC |
|
Working Voltage |
DC 5V~18V |
|
Flow Rate Range |
2~100L/min |
|
Water Pressure Resistance |
>2MPa |
|
Operating Temperature |
-20~85 DegC |
|
Insulation resistance |
>100MΩ |
|
Accuracy |
±3% |
|
Connector type |
G1 |
|
Length (mm) |
114 |
|
Width (mm) |
60 |
|
Height (mm) |
48 |
|
Weight (gm) |
7 |
Application:
- Suitable to detect flow in water dispenser, coffee machine, Industries, swimming pool, irrigation, etc.
Package Includes:
- 1 x DN25 YF-G1 large flow water sensor for industries/ swimming pool/ irrigation
