Water Flow Sensor 5-150L/min DN40 flowmeter controller 1.5 inches

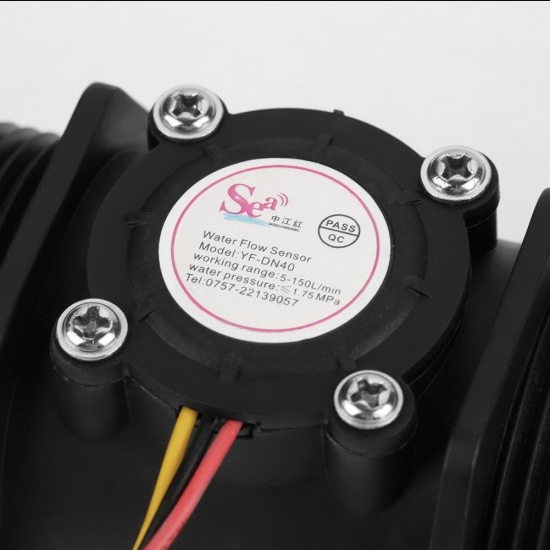

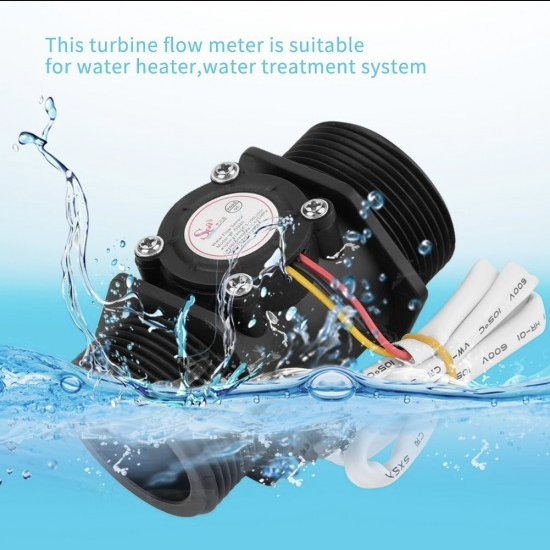

YF-DN40 is a plastic body water flow sensor that contains a water rotor and a hall-effect sensor and is used for flow measurement for industrial application . When the water flows through the rotor, rotor rolls and the speed of it changes with a different rate of flow. The hall-effect sensor outputs the corresponding pulse signal.

The output of the flow sensor is proportional to the water flow. The more the water flowing more are the pulses.

Features:

• Rated voltage DC = 5V
• Appearance of product identification clear, accurate to meet the requirements in line
• Hydrostatic pressure> 1.75MPa meet
• Operating voltage range DC5 ~ 24V comply
• Insulation resistance> 100M> 100M
• Accuracy in 1 ~ 120L / MIN  ± 2% in line
• Flow pulse characteristics F = (0.45 * Q) Q = L / Min meet
• Low temperature test at -20'C temperature placed after 72h, at room temperature for 1h, the first measurement accuracy within ± 5% value in line
• High-temperature test temperature at 85'C placed after 72h, at room temperature for 1h, the first measurement accuracy within ± 5% value

Specifications

• Product item no. :YF-DN40
• Material : Plastic
• Function : Sensor , flow rate control
• Thread size :  BSP 1 1/2”
• Size:L 92x OD46  X1.5"
• Color : Black  color

Description:

• Diameter explanation, DN40 outer diameter of about 46mm and a?1.5-inch pipe thread as big, as big DN50 outer diameter of?about 58mm and 2 inch pipe thread

Package Includes:

• 1pc DN40 DN50 1.5 inch 2 inch water flow sensors Hall turbine flowmeter
