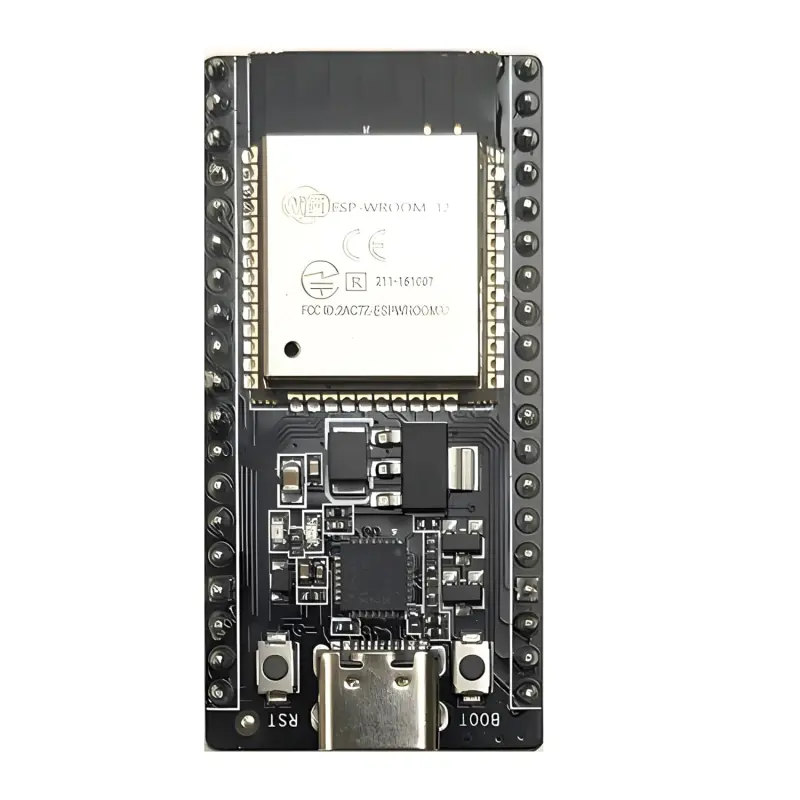

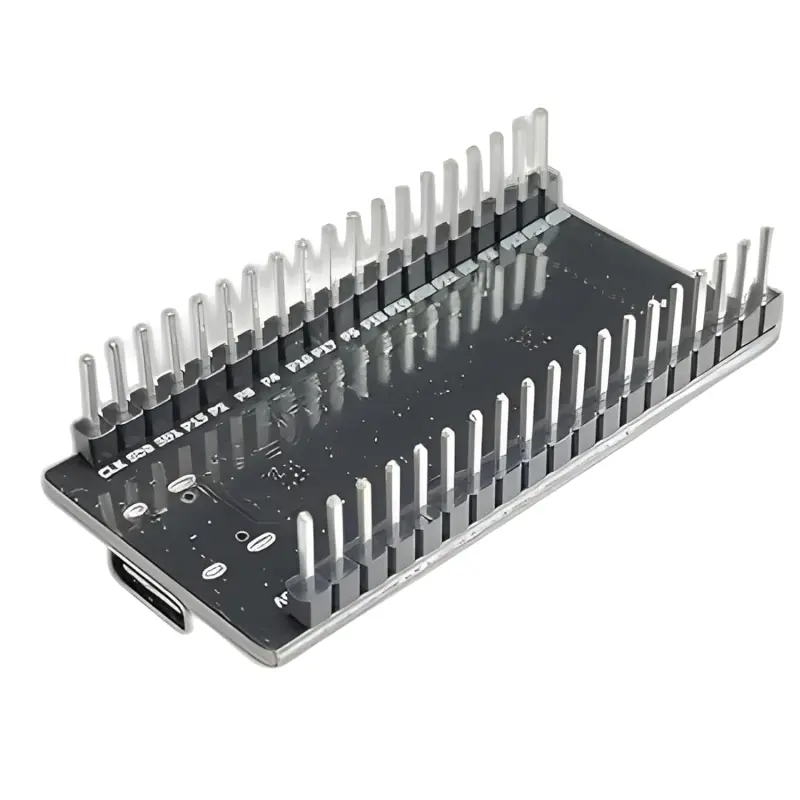

ESP32 C Type CP2102 USB Dual Core WiFi + Bluetooth 38 Pins

This is ESP32 C Type CP2102 USB Dual Core WiFi + Bluetooth 38 Pins. ESP32 WROOM-32 C Type 38 Pins is a versatile WiFi-BT-BLE MCU module designed for various applications, including low-power sensor networks, voice encoding, and MP3 decoding. Powered by the ESP32S chip, it features dual CPU cores with adjustable clock speeds (80 MHz to 240 MHz) and a low-power coprocessor. Integrated peripherals include capacitive touch sensors, Hall sensors, Ethernet, SPI, UART, SD card interface, and I2C. The module supports up to 22 dBm output, 150 Mbps data rates, Bluetooth connectivity, and Wi-Fi for internet access. With low power consumption (under 5 µA), it is ideal for battery-powered and wearable devices.

The ESP32 WROOM is a potent, all-purpose WiFi-BT-BLE MCU module that is intended for use in a wide range of jobs, from low-power sensor networks to the most difficult ones, such voice encoding, music streaming, and MP3 decoding. This module’s ESP32S chip, which is made to be scalable and adaptive, is at its heart. The clock frequency of the two CPU cores, which ranges from 80 MHz to 240 MHz, can be changed independently. The user has the option of turning off the CPU and using the low-power coprocessor to continuously check the peripherals for adjustments or the crossing of thresholds. Capacitive touch sensors, Hall sensors, and other peripherals are all integrated within the ESP32. Ethernet, high-speed SDIO/SPI, UART, low-noise sensing amplifiers, SD card interface, and I2C are other examples.

This module supports output at 22 dBm and data rates up to 150 Mbps. Users can connect to their phones or emit low energy beacons for their detection via Bluetooth. Wi-Fi allows for a wide physical range and a direct connection to the internet through a Wi-Fi router. The ESP32 chip requires less than 5 A, making it ideal for battery- or wearable-electronic applications.

Specifications:

• Microcontroller: ESP32 WROOM-32
• Interface: USB Type-C
• Serial Chip: CP2102
• Operating Voltage: 3.3V
• Connectivity: WiFi and Bluetooth
• Pin Count: 38 pins
• Processor: Dual-core processor
• Development: Suitable for IoT and embedded systems development
• Compact Design: Small form factor for easy integration
• Power Supply: Can be powered via USB or external power source
• Compatibility: Compatible with various development environments and programming languages
• Wireless Connectivity: Integrated WiFi 802.11 b/g/n and Bluetooth v4.2 (BLE + Classic)
• USB Interface: C-TYPE CP2102 USB-to-UART bridge chip for serial communication
• GPIO Pins: 38 pins including multiple ADC channels, DAC, I2C, SPI, UART, PWM, and touch sensors
• Power Consumption: Ultra-low power consumption, < 5 µA in deep sleep mode
• Programming: Compatible with Arduino IDE, MicroPython, and ESP-IDF

Application :

• Universal low power IoT sensor hub.
• Home automation.
• Universal low power IoT recorder.
• Mesh network.
• Video streaming of the camera.
• Industrial wireless control.
• OTT TV box / set-top box device.
• Baby monitor.
• Smart Socket.
• Sensor networks.
• Wi-Fi toys: Counters, toys, Anti-lost device.
• Wearable electronic products.
• Wi-Fi speech recognition device.
• Wi-Fi location-aware devices.

Troubleshooting & Overheating Issues

• Check Power Supply: Use a stable 5V, 1A power source.
• Ventilation: Ensure good airflow around the module.
• USB Cable Quality: Use a high-quality, short USB cable to prevent power drops and communication errors.

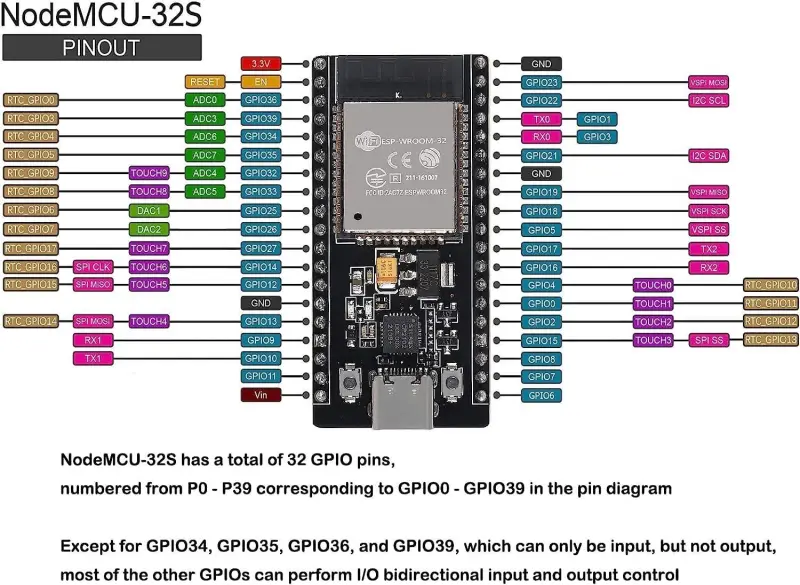

• External Hardware: To prevent issues like overheating or damaging your ESP32, ensure you know the correct pin mappings before connecting external hardware. Misconnecting components can lead to short circuits, excessive current draw, or even permanent damage to the microcontroller. Always reference the ESP32 pinout diagram for accurate pin assignments when interfacing with peripherals.
• Image is for reference only, reach to us if you have specific query.

Package Includes :

• 1 x ESP32 C Type CP2102 USB Dual Core WiFi + Bluetooth 38 Pins

Note:

• This is a programmable microcontroller board. Return/replacement is not applicable for programming issues, driver errors, firmware upload problems, or incorrect wiring.
• Only manufacturing defects or physical damage are covered as per our return policy.
• Image is for reference only.
