Full Color LED Module / 5050 RGB V2 light water for arduino

This is Full Color LED Module / 5050 RGB V2 light water for arduino. D0-D7 is a 8-pin respectively to control 8 LED, so long as the number corresponding with pin connected just fine (as long as we turn this experiment received 2 to 9 pin on OK). Also, next three pin RGB, the need connected with GND, connected with R on the bright red, bright green on connecting with the G, B is connected with the bright blue, while even up on all three lights.

As same as the digital handset control mode, a little selection of control corresponds to LED lighting, the color selection control segment through various procedures can produce a variety of color effect changes.

Features :

• Excellent PCB design.
• 8 three primary colors (red, green and blue) full-color LED, scanning control mode.
• Different colors can be generated by different procedures changing effects.
• Module Color: Red+ White+ Black

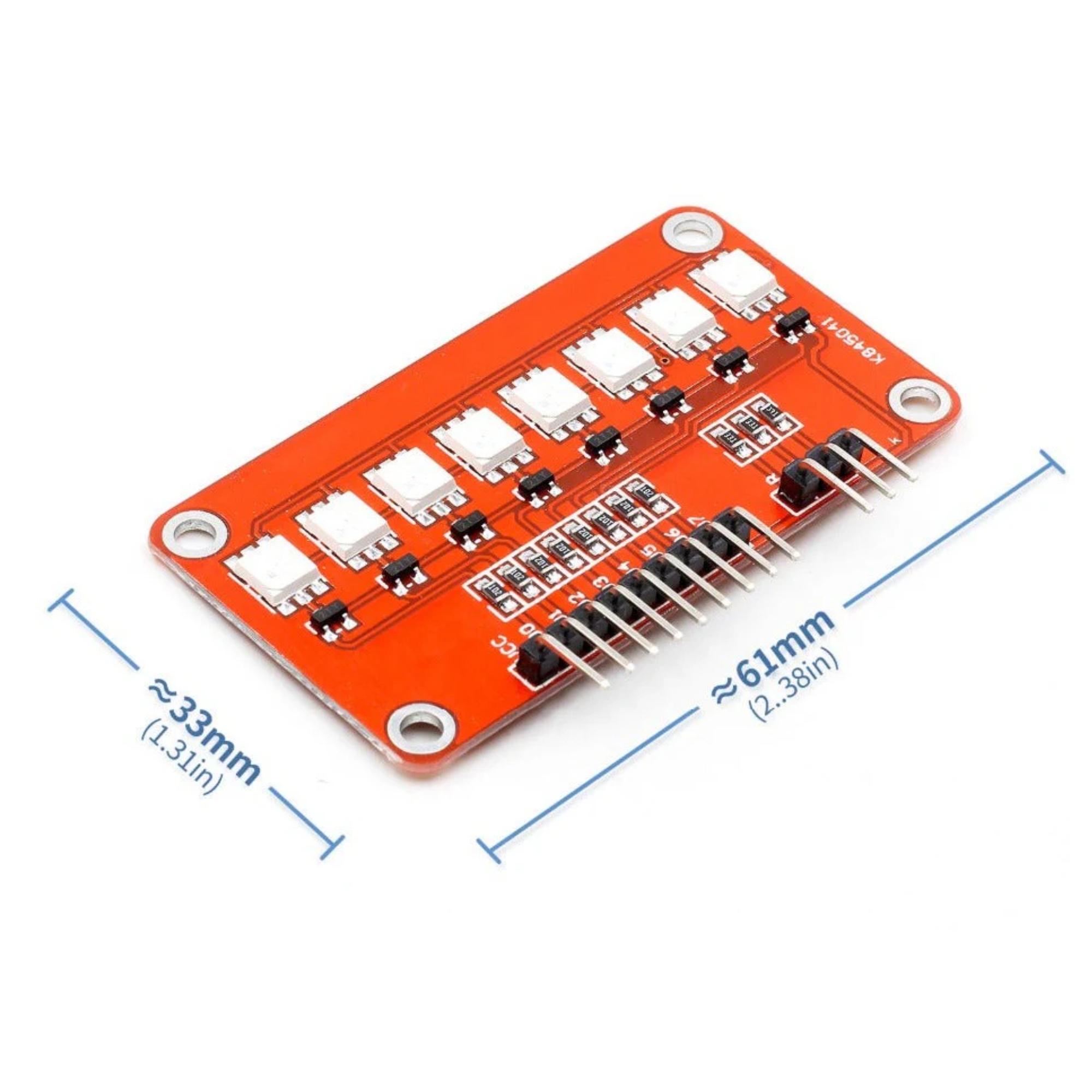

• Size: 60 x 33mm.
• D0 ~ D7 8-pin respectively to control 8 LED.
• Three pin RGB connect with GND, connected with R on the bright red; G bright green; B bright blue
• Applicable for various platforms, such as 51 / AVR / AVR / ARM / for Arduino All kinds of platforms.

Connection

• Vcc ↔ Arduino 5v
• D0 – D7 ↔ Connect these to Arduino pins 2 to 9
• R, G, B ↔ Connect these to Arduino pins 10 to 12

Package Includes :

• 1 x Full-Color LED Module / 5050 RGB V2 light water for Arduino
