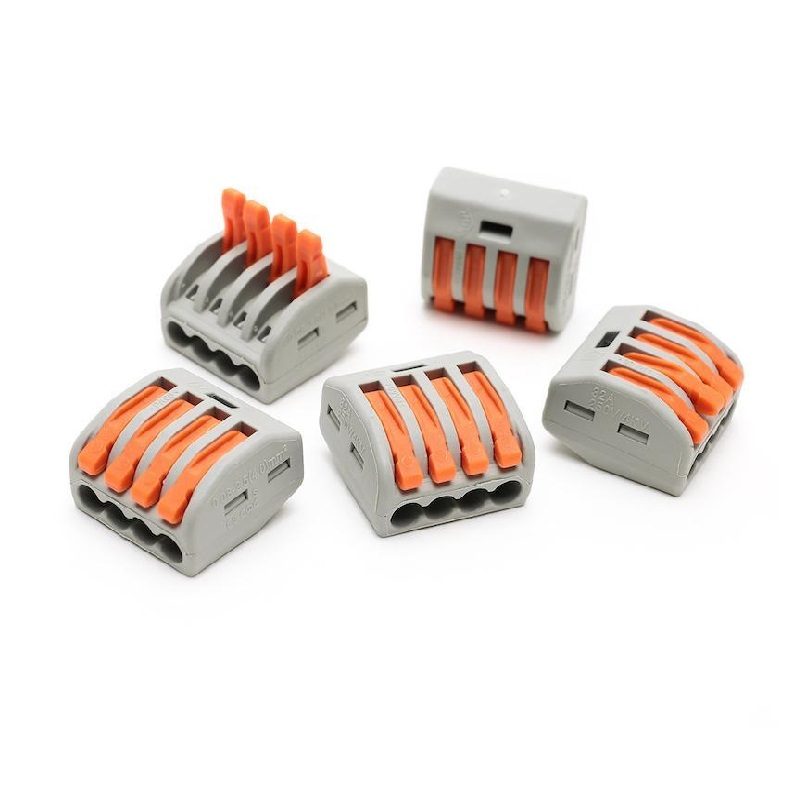

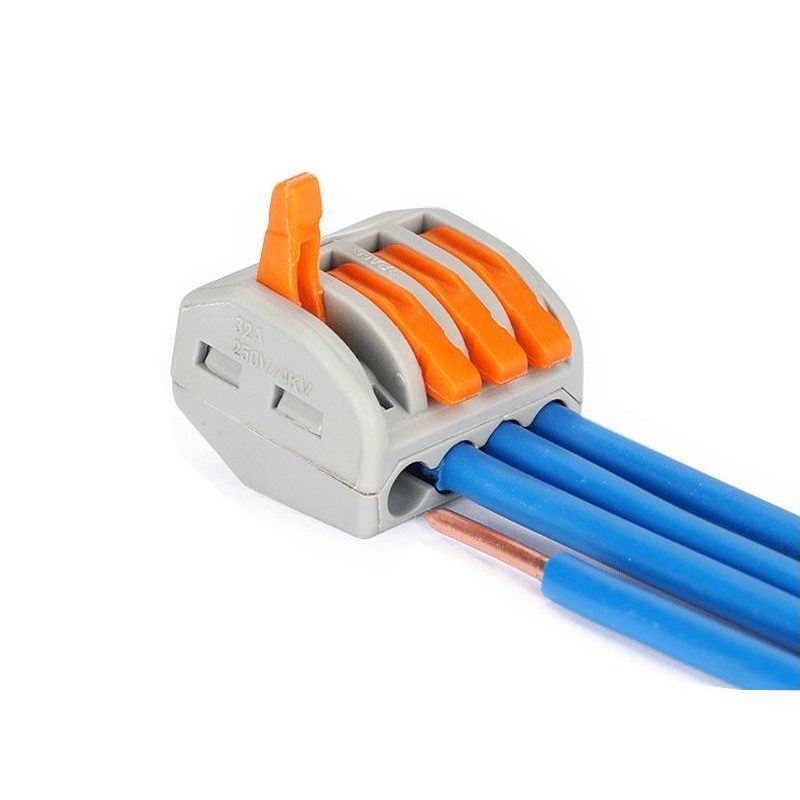

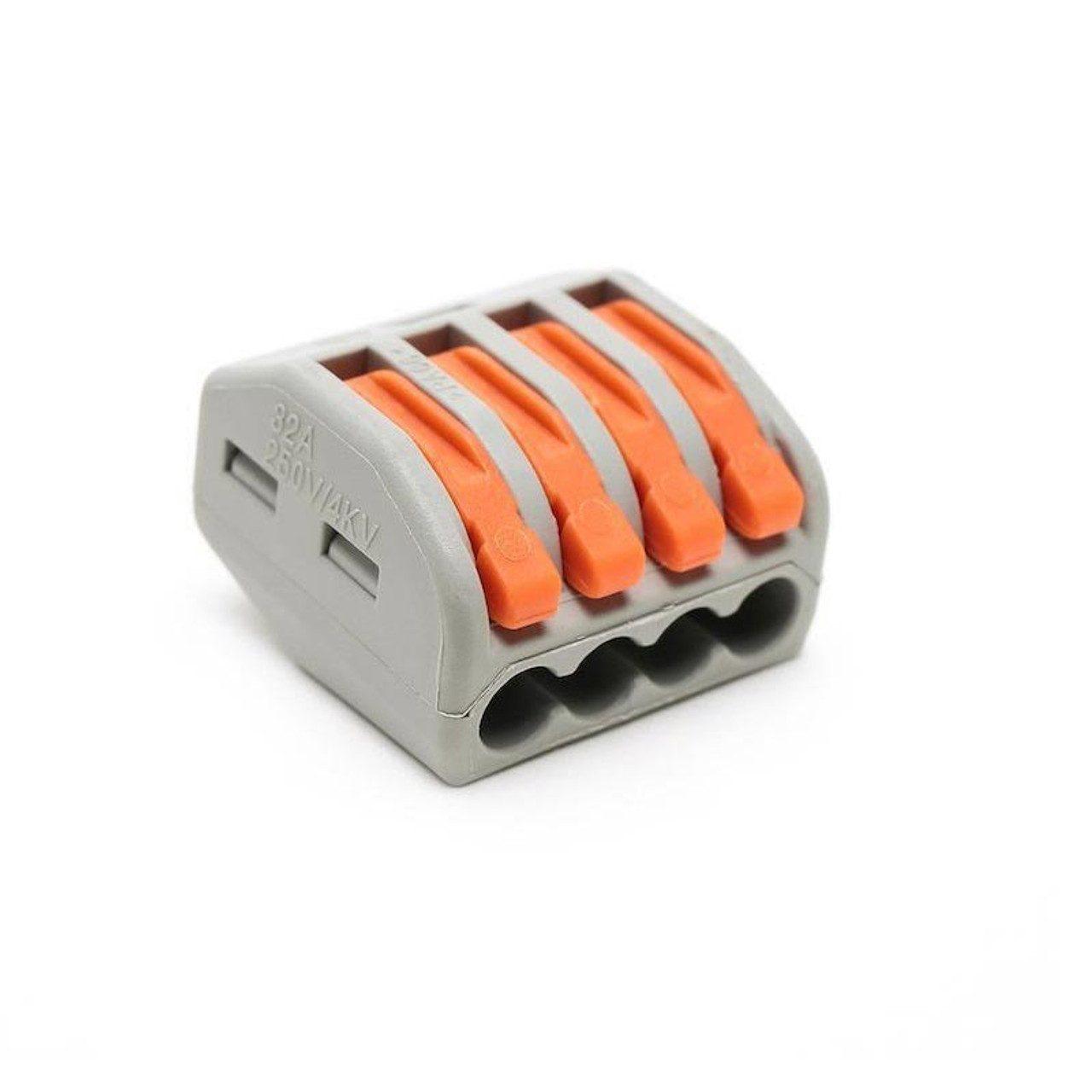

PCT-214 Splicing Connector Terminal 1 In-3 Out, Lever Splicing Connector

The PCT-214 Splicing Connector Terminal 1 In-3 Out, Lever Splicing Connector is a game-changer when it comes to electrical connections. Designed with innovation in mind, this lever splicing connector offers unmatched functionality and reliability, making it an essential tool for your wiring projects.

Featuring a 1-in 3-out lever terminal block, the PCT-214 provides a versatile and efficient solution for your cable wire connections. With a terminal block conductor and a maximum voltage rating of 250V, this connector can handle up to 4KW/32A, ensuring safe and robust electrical connections.

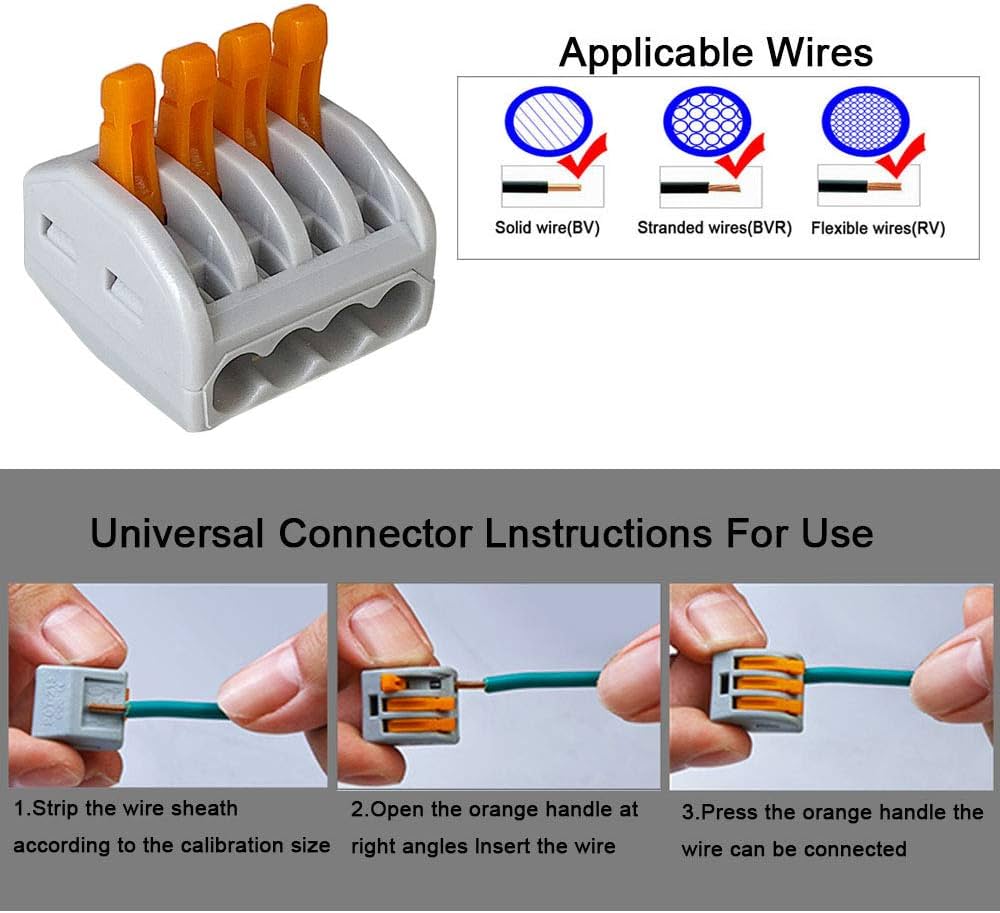

The PCT-214 Quick Terminal Connector boasts an impressive wiring range, accommodating hard wires ranging from 0.08 to 4mm2 or less, as well as soft wires ranging from 0.08 to 2.5mm2 or less. Crafted with high-quality materials like PA flame retardant engineering plastic and copper conductive strip, this connector guarantees durability and longevity.

Compact in size, measuring at 20.5×20.5×14.5mm, the PCT-214 optimizes space utilization without compromising performance. Its push-in terminal block design and spring lever wire connector enable quick and effortless installation, saving you time and effort during your wiring projects.

Features:

• High-grade Insulative Nylon Material
• Strong Spring Locking Lever
• Nickel Plated Metal Point Inside
• Good Temperature Resistance
• Compact Splicing Connector
• 4-Conductor Terminal Block
• With Operating Levers
• Max. Continuous Service Temperature 85°C

Specification:

• Item Type: PCT
• Rated Current (A) 32
• Rated Voltage (V): 250, 4k
• Allowed Wire Size (AWG): 28 ~ 12
• Color: Grey, Orange
• Model: PCT-214
• Body Material Modified Nylon (PA66)
• Contact Material Stainless Steel
• No. of Contact Points: 4
• Rated Power (W): 7 KW
• Operating Temperature (°C): -20 to 85
• Length (mm): 21
• Width (mm): 20
• Weight (g): 6
