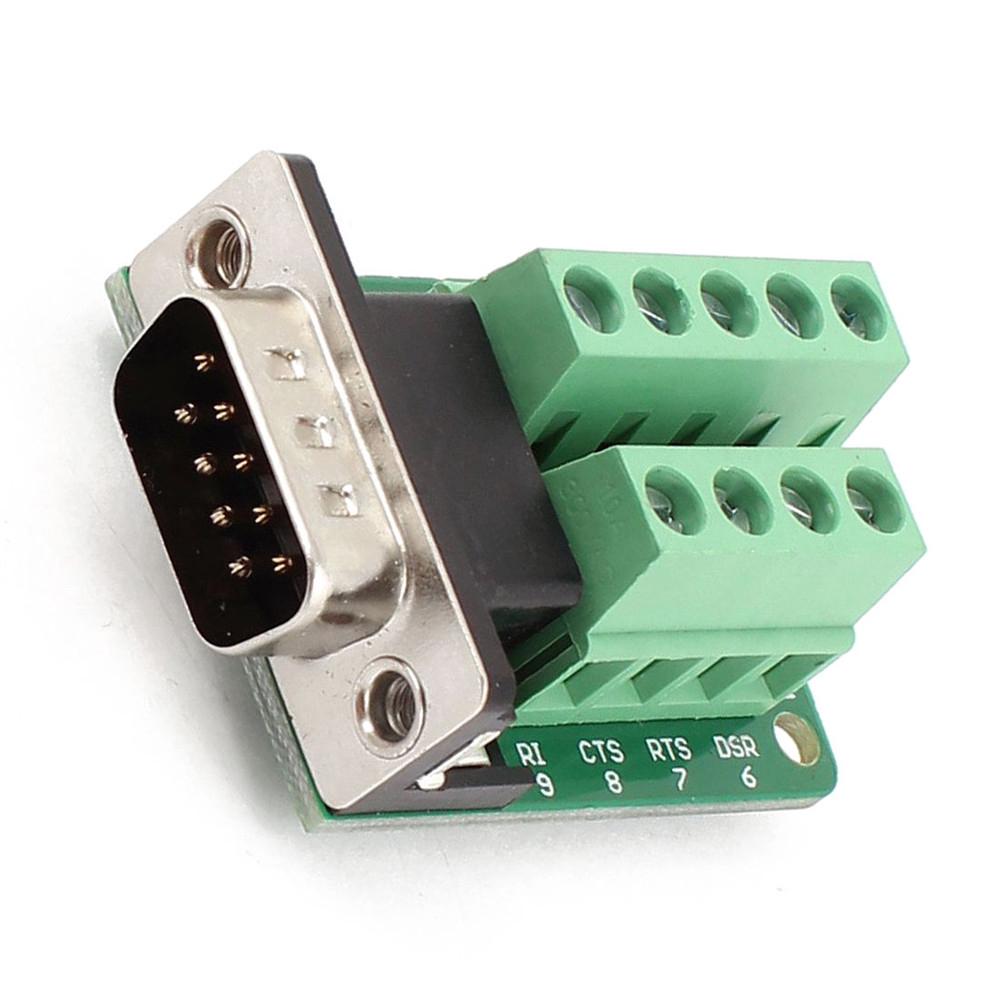

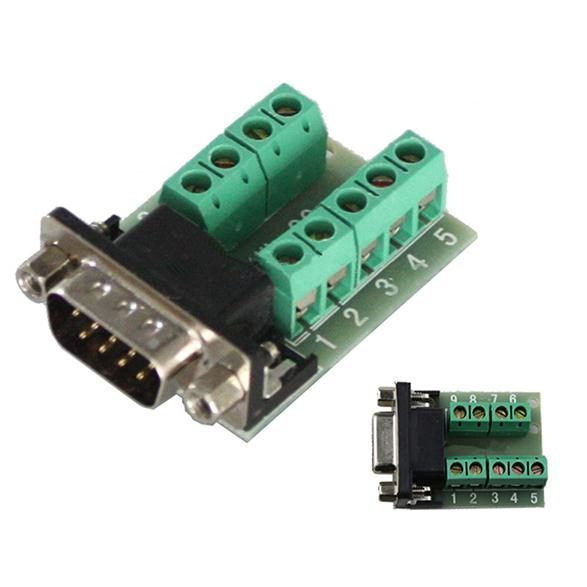

DB9 Male Screw Terminal to RS232 RS485 Conversion Board without cover

A DB9 Male Screw Terminal to RS232 RS485 Conversion Board without cover is a connector commonly used in serial communication for connecting various devices. The DB9 connector has 9 pins arranged in two rows, and it is commonly used in a wide range of devices such as computers, printers, routers, modems, and other electronic equipment. The male screw terminal version of the DB9 connector is designed for easy installation and connection, and it has screw terminals on each pin, which makes it easy to connect wires or cables.

The DB9 RS232 Connector Terminal supports two communication protocols, RS232 and RS485, which are widely used in industrial automation and control systems, among other applications. RS232 is a standard protocol for serial communication between computers and other devices, while RS485 is a standard protocol for serial communication over long distances with multiple devices connected in a network.

The DB9 to RS485 Terminal is a versatile connector that can be used in a variety of applications, from industrial control systems to consumer electronics. It is a reliable and robust connector that is easy to install and use, making it a popular choice for many engineers and hobbyists.

Features:

• Compatibility: The connector is designed to work with serial communication protocols such as RS232 and RS485.

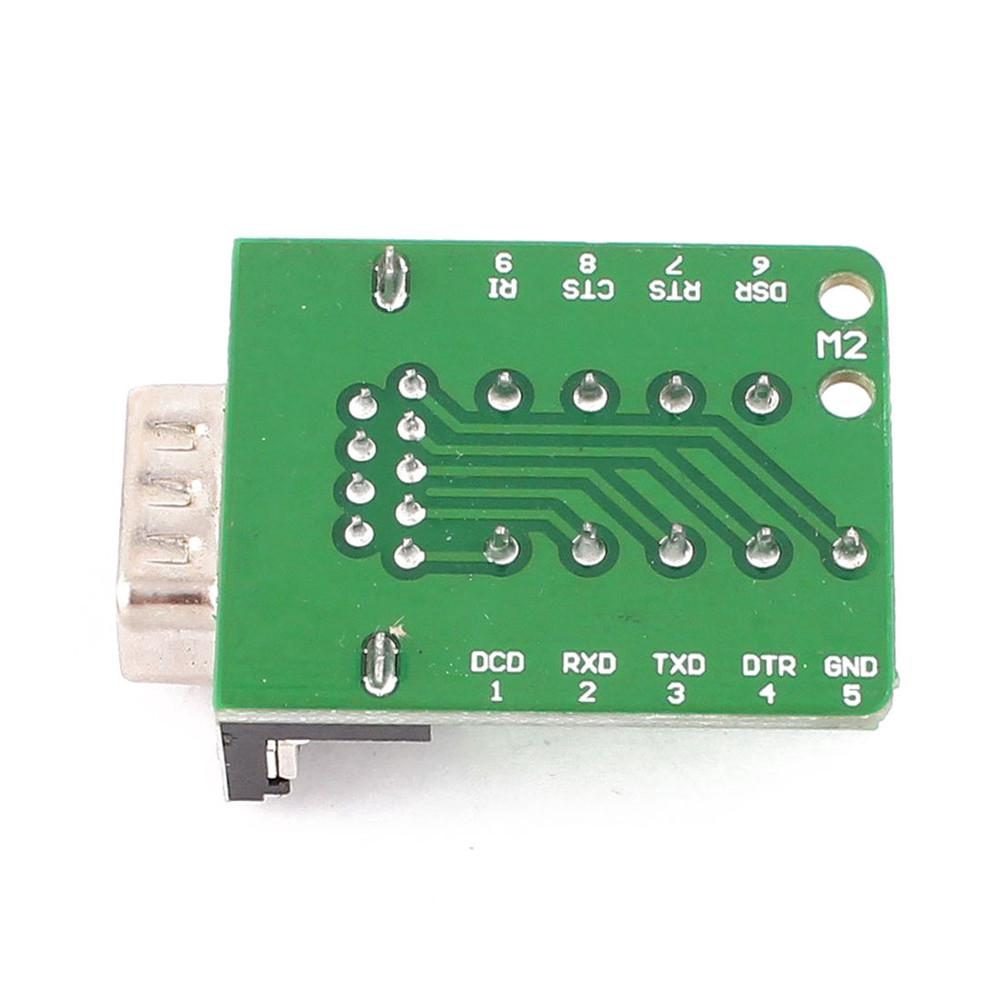

• Pin configuration: The DB9 connector has nine pins arranged in a specific configuration. Pin 1 is usually used for data transmission, while Pin 2 is used for data reception. The other pins are used for ground, handshake signals, and other control signals.
• Male terminal: The DB9 connector is a male terminal connector, which means that it has pins that protrude from the connector that are inserted into a female socket.
• Screw terminals: The connector has screw terminals, which provide a secure and reliable connection. The screws can be tightened to ensure a firm grip on the wires, preventing them from coming loose.
• Durable construction: The DB9 connector is typically made of durable materials such as metal or plastic.
• Easy installation: The screw terminals make it easy to install the connector, as wires can be connected and disconnected quickly and easily.
• Versatility: The DB9 connector is used in a variety of applications, such as connecting serial devices such as modems, printers, and scanners to a computer or other device.

Package Includes:

• 1 x DB9 Connector Male Screw Terminal to RS232 RS485 Conversion Board without cover
