DWIN HDL662B USB to FCC 10Pin connecting line Adapter

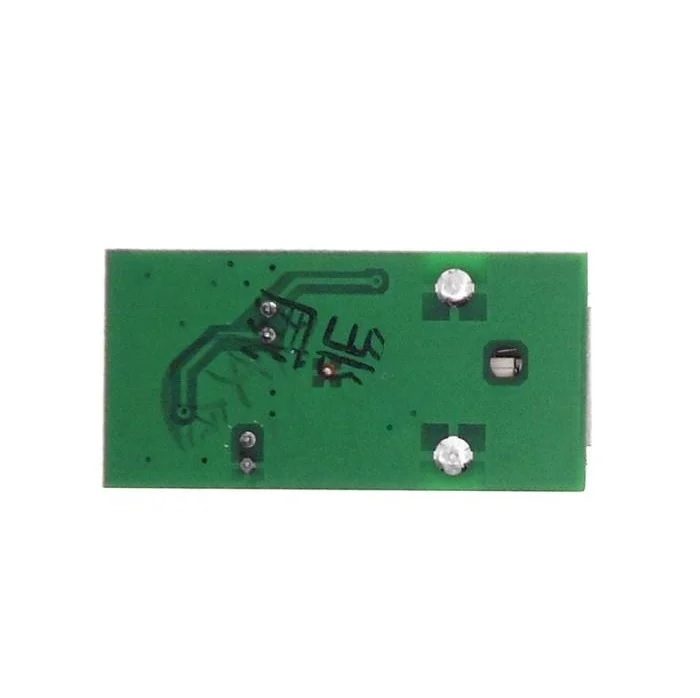

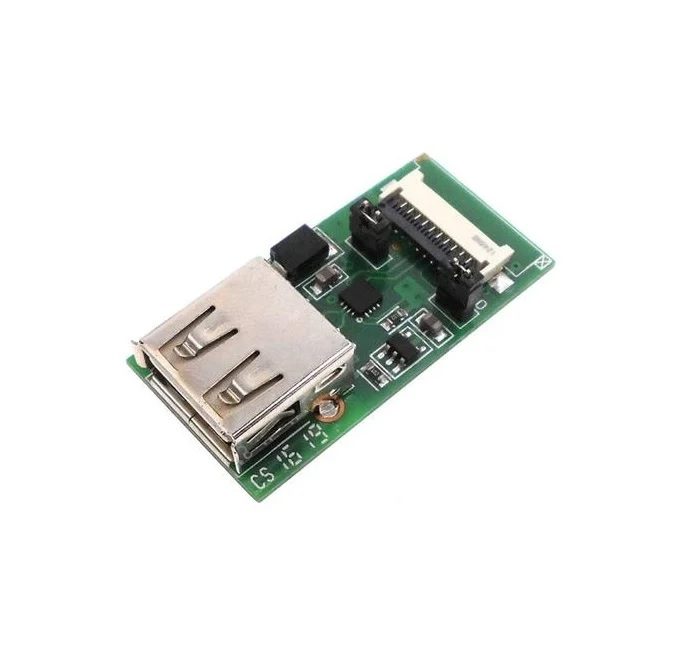

The DWIN HDL662B USB to FCC 10Pin connecting line Adapter is used to debug the LCM LCD Modules / LCD displays. The board has a USB connector on one side and 10 pins 1mm pitch FFC connector on the other side. Users can connect it through the USB interface directly to a PC without an additional power supply. A 10PIN FFC cable is needed to connect the PC and USB adapter plate when using DWIN C-series products.

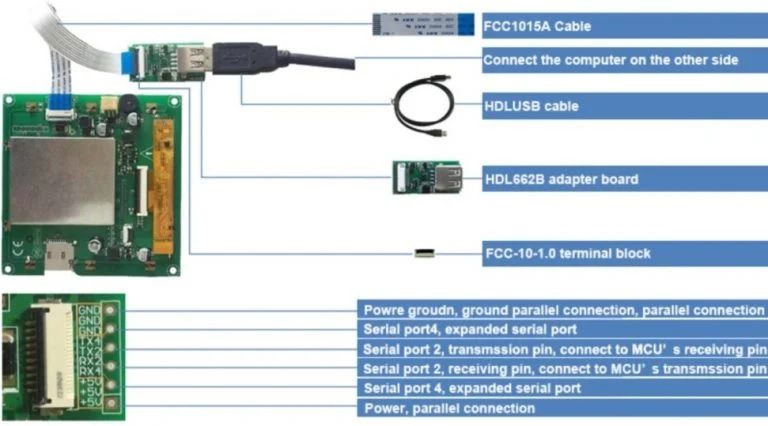

As shown in the figure, One-end of the different side FCC row line is connected to the terminal block of the screen, and the other end is connected to the DWIN HDL662B adapter board, both blue sides face up. One end of the double-male USB cable is connected to the adapter board, and the other end is connected to the computer for communication.

Package Includes:

• 1 x DWIN HDL662B USB to FCC 10Pin connecting line Adapter
