Package Includes:
- 1 x TXB0104 4 Bit Bidirectional Voltage Level Converter
Interface Converter Modules
TXB0104 4-Bit Bidirectional Voltage Level translator
star
star
star
star
star_half
136
rating
Just for you!
SKU:
ANIL2505
MRP: Rs.
138.60
Rs.
115.50
(Incl. Tax)
Rs.
103.95 / pack of 1 = Rs.
103.95 per piece
Quantity

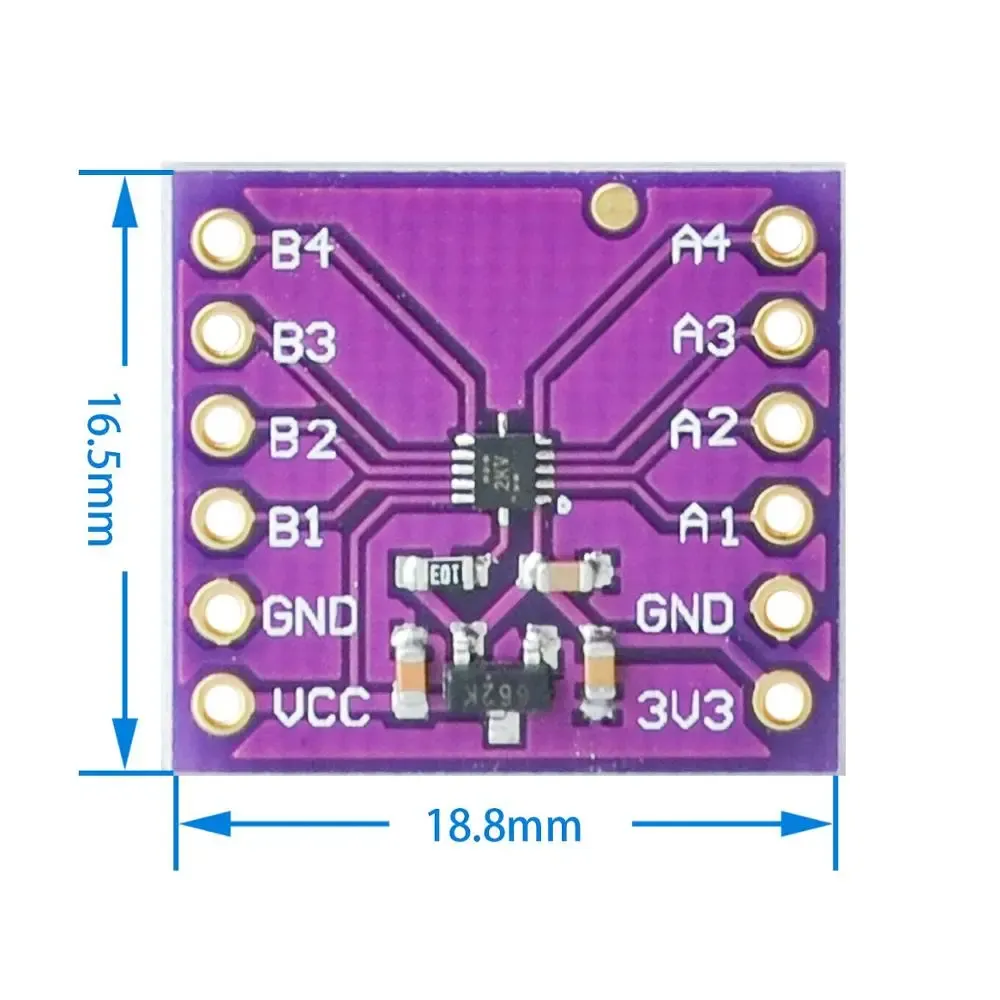

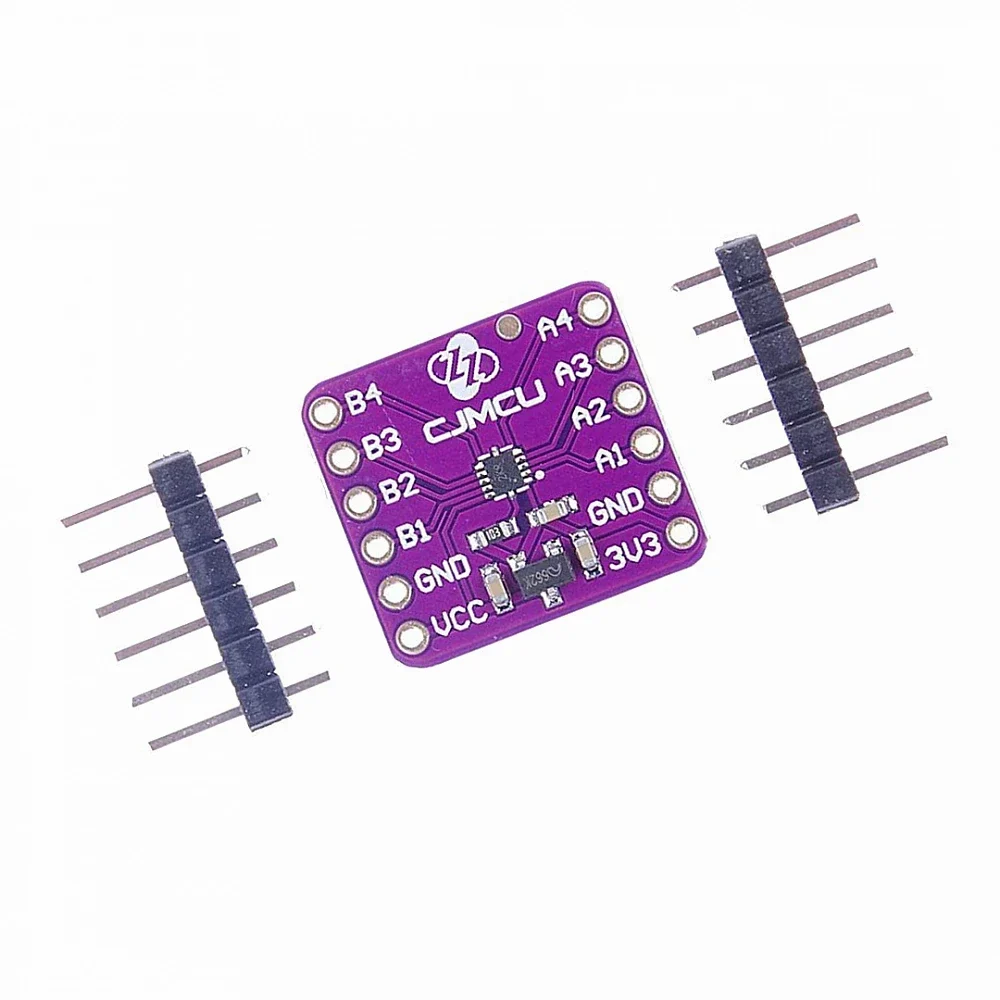

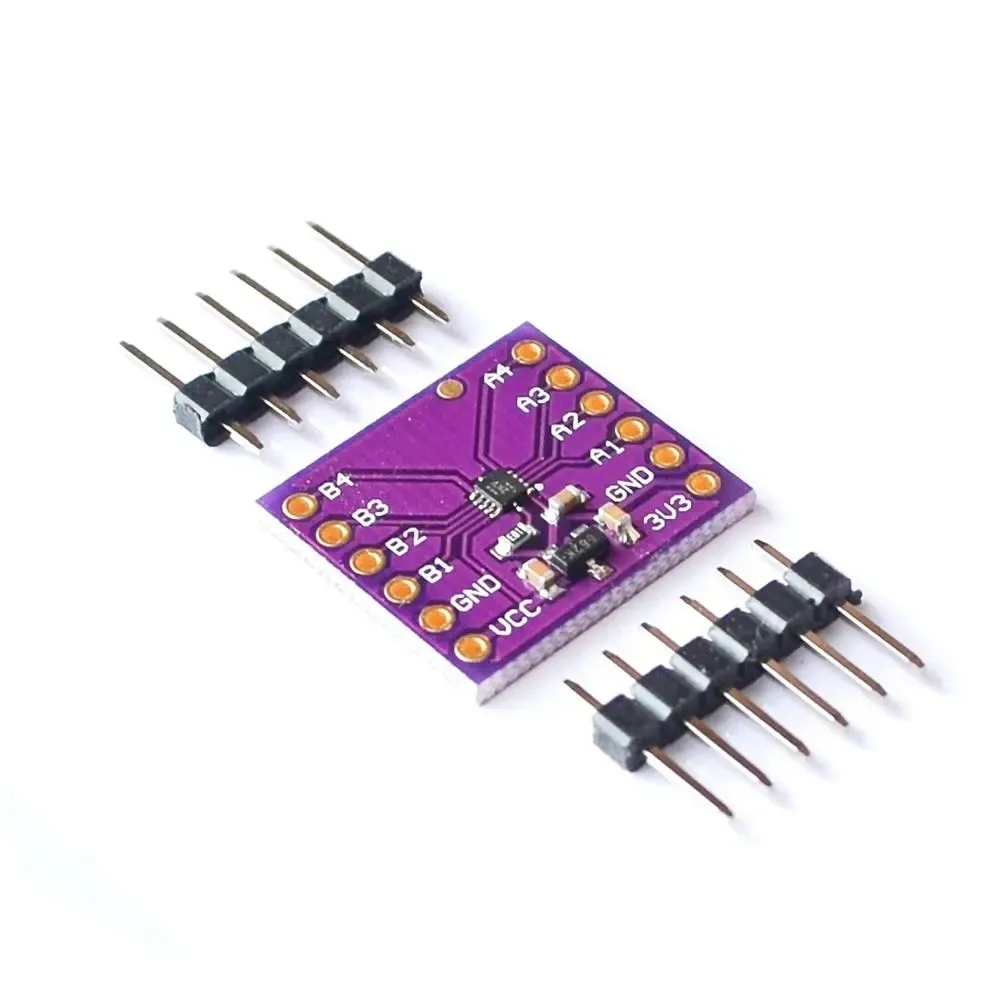

TXB0104 4-Bit Bidirectional Voltage Level translator Board is a 4-bit bidirectional voltage level translator with automatic direction sensing.
It features four channels of input/output signals and an output enable line that allows the signal lines to be placed in a high impedance mode when they are unneeded.
Features:
- 4-Bit Bidirectional
- Non-inverting translator
- It uses two separate configurable power-supply rails.
- 1.2V to 3.6V on A Port and 1.65V to 5.5V on B Port (VCCA <= VCCB)
Specifications:
- PCB Color: Purple
- Power Consumption: 5-uA

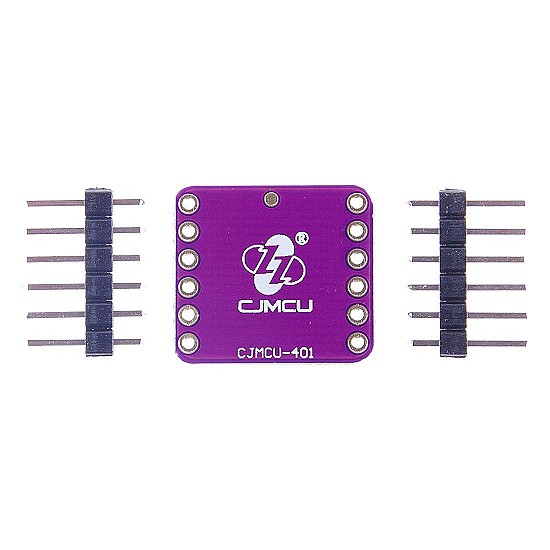

- Type: CJMCU-401 Board
- Length: 16 mm
- Height: 2.5 mm
- Width: 18 mm
rate_review
No reviews yet. Be the first to review this product!
People Also Bought
TXB0104 4-Bit Bidirectional Voltage Level translator
₹115.50
add

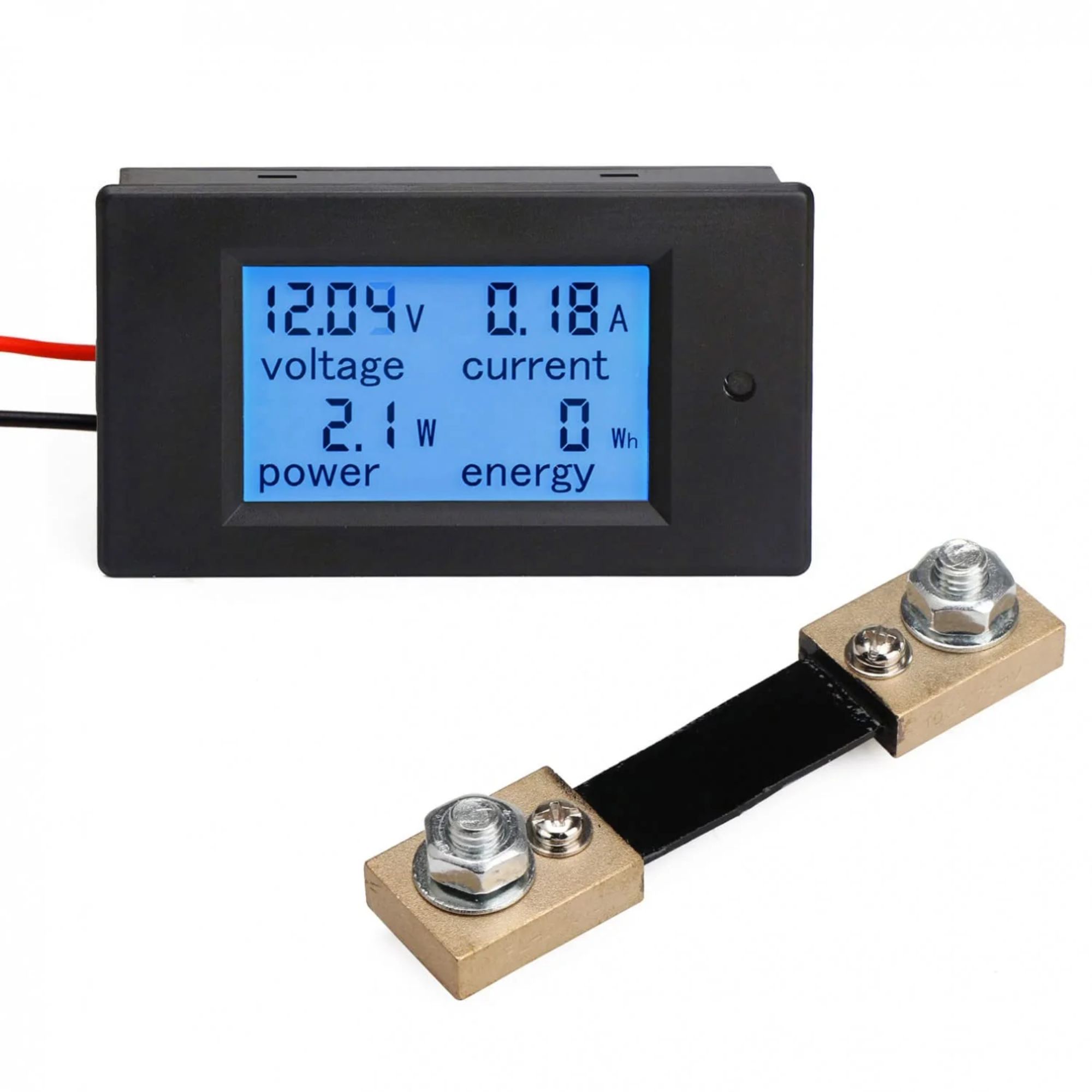

DC Energy Meter 4 in 1 6.5V-100V 100A (10kW) Power Meter Digital Display with Blue Back Light (DC 10KW Energy Meter) Corded Electric
₹1,144.50
add

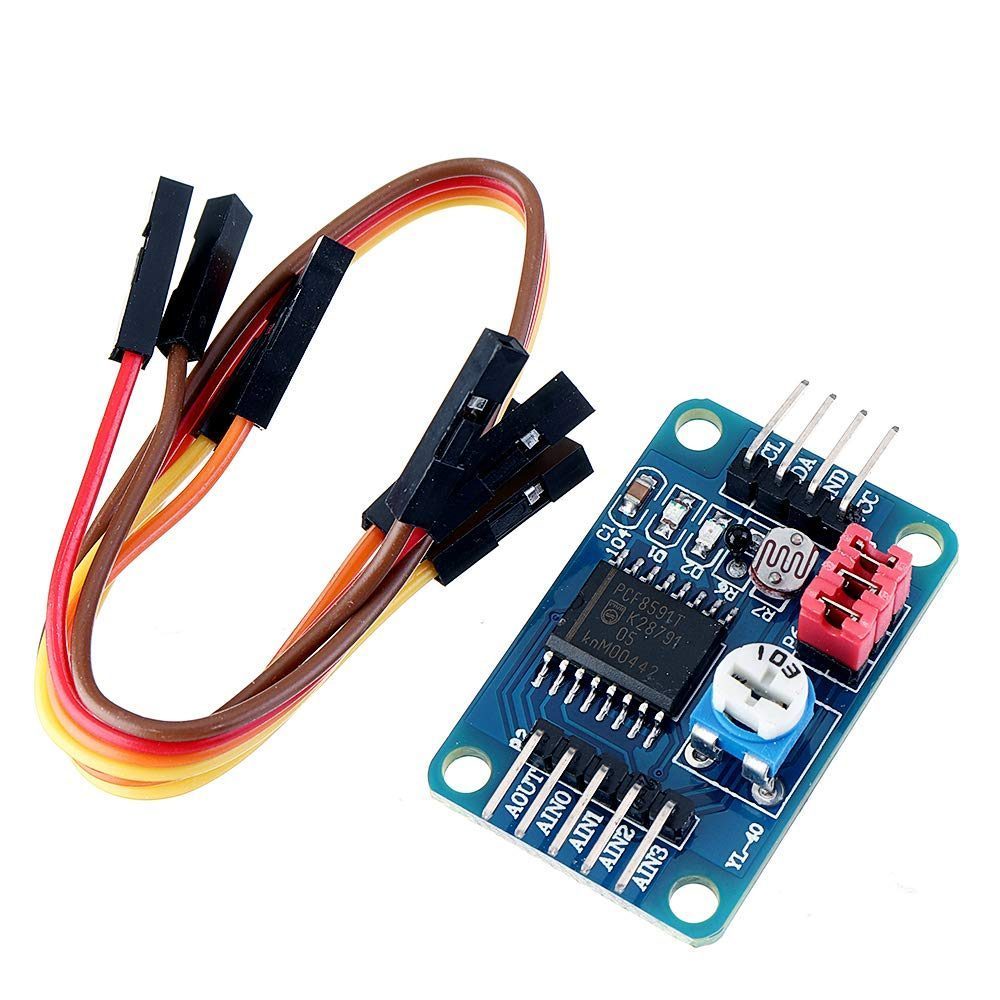

PCF8591 ADC DAC AD/DA Analog-Digital Converter Module
