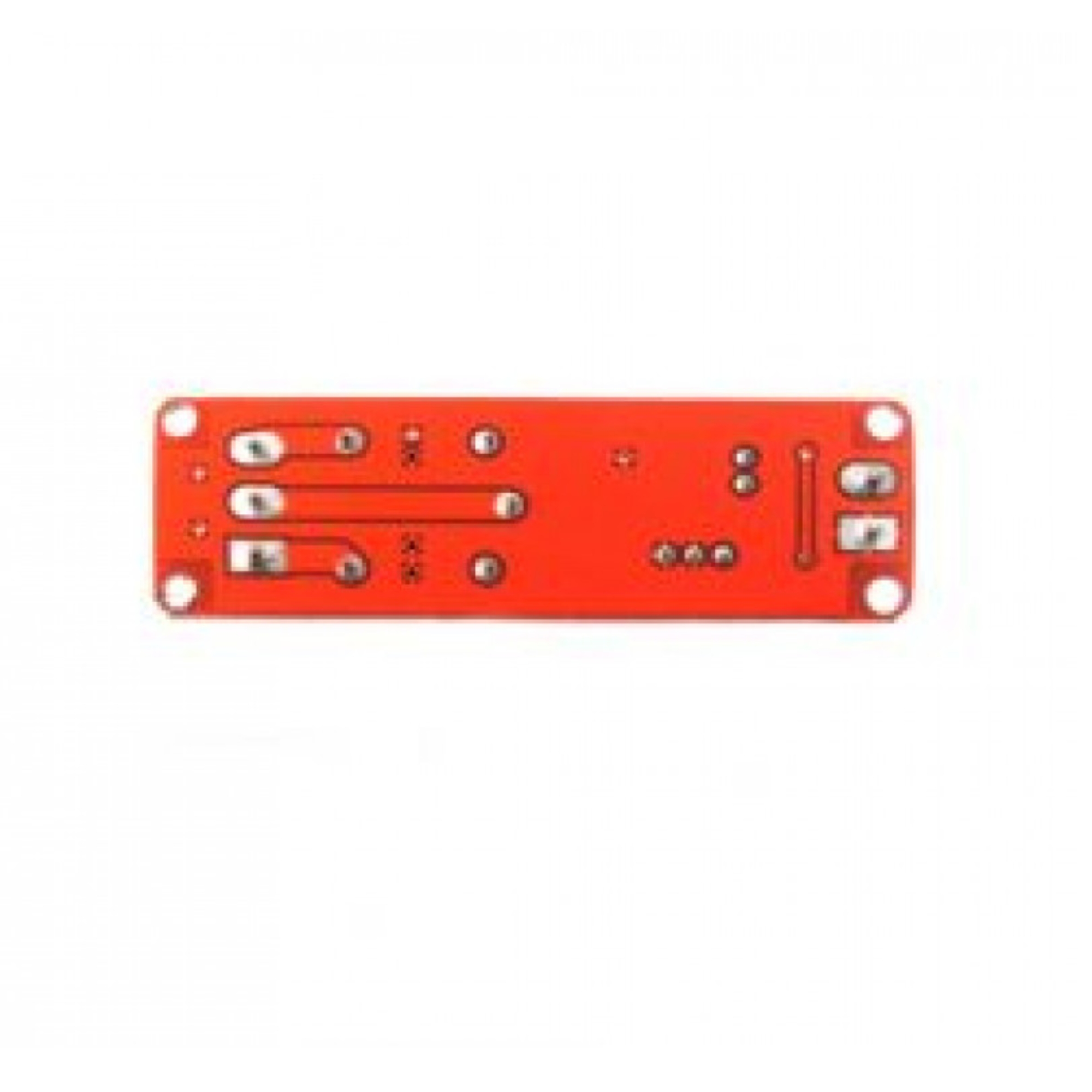

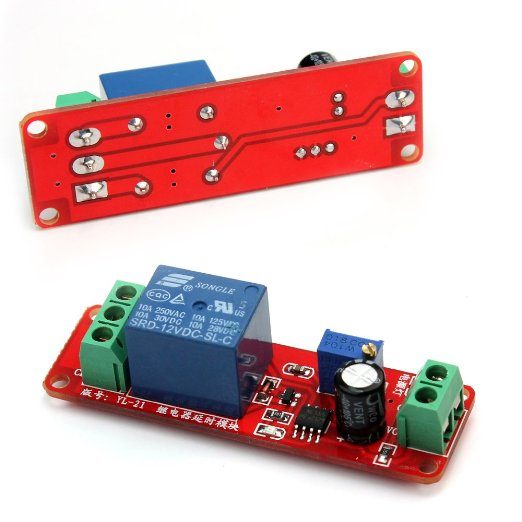

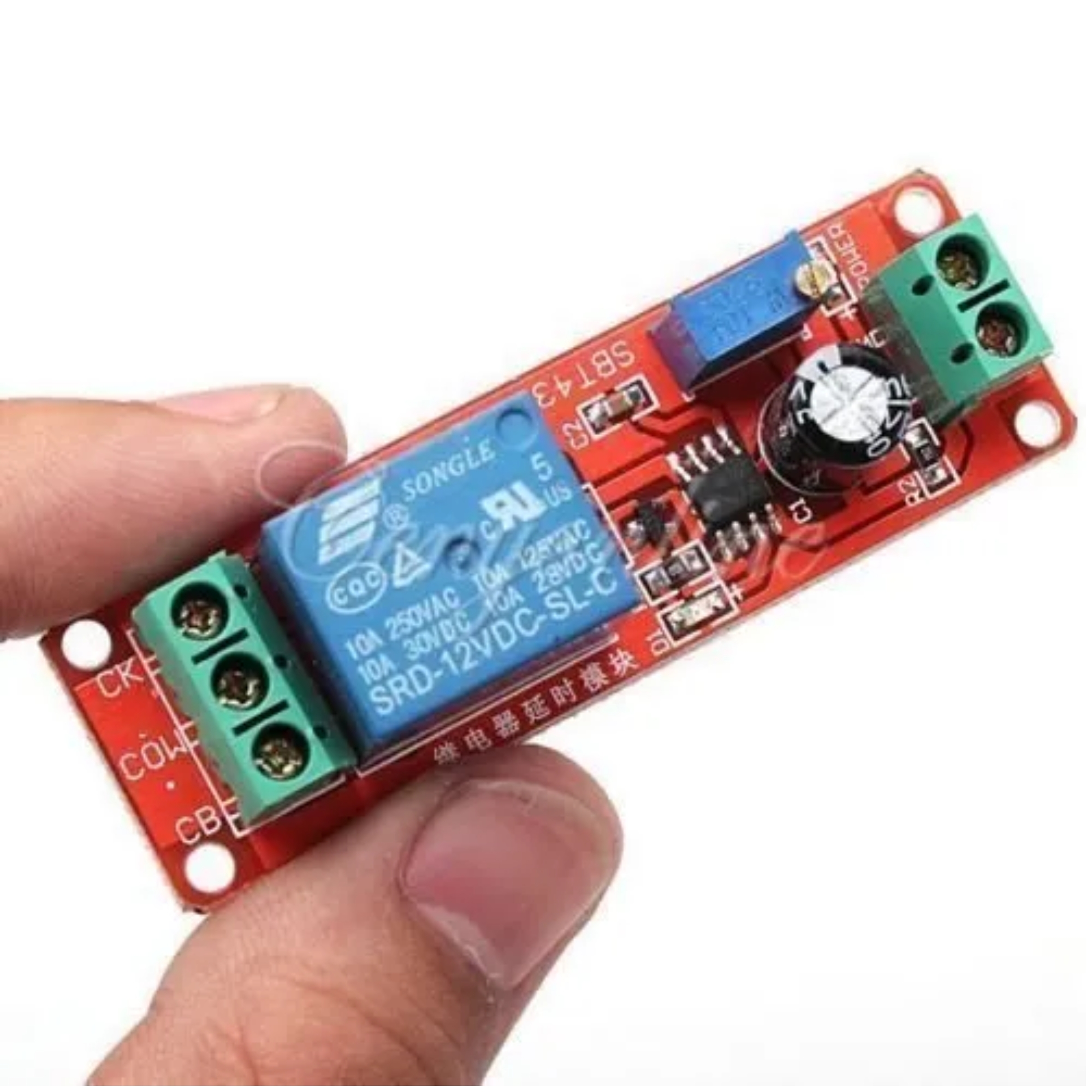

NE555 Delay Timer Switch Adjustable 0-10 Sec 12V Relay Module

This is NE555 Delay Timer Switch Adjustable 0-10 Sec 12V Relay Module. This NE555 Time Delay Monostable Switch with Electrical Relay 12V is a monostable generator based on the NE555 integrated circuit. NE555 Delay Monostable Switch Module item is a timer switch module, based on the NE555 chip, high-performance timing CPU design. The power indicator LED and switch trigger timing indication LEDs. Timing from microseconds to long hours. Applicable to vehicle equipment-delay to prevent car ignition, prevention of high sudden current to burn components and devices.

It has an adjustable delay time from 0 to 10 seconds using the potentiometer or by changing the capacitance. It is also capable of controlling the device below 220V/10A.

Features :

• Precision Pulse Generation / Timing.
• Monostable Operation.
• Standby no power consumption
• Excellent temperature stability of 0.005%/°C
• Time can be adjusted by a potentiometer, the default is 0-25 seconds.
• Module signal side design has optocoupler isolation, anti-interference ability can adapt to the high-low level two kinds of control signal application, suitable for industrial control.

Specifications:

• Chipset: NE555
• Input Voltage (V): 12
• Adjustable Time(s): 0 to 10
• AC Control Voltage: 250V @max. 10A
• DC Control Voltage: 30V @max. 10A
• Max. Load(W): 2200
• Length (mm): 68
• Width (mm): 22
• Height (mm): 18
• Weight (gm): 18

Note:

• This product is available in two relay module types: JQC-3FF-S-Z and SRD-12VDC-SL-C. We ship randomly, so you will get any one of these 2 types.

Package Includes :

• 1 x NE555 Delay Monostable Switch Module.
