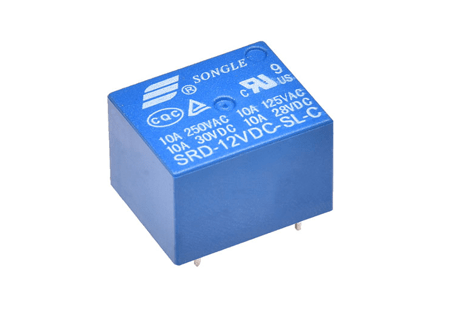

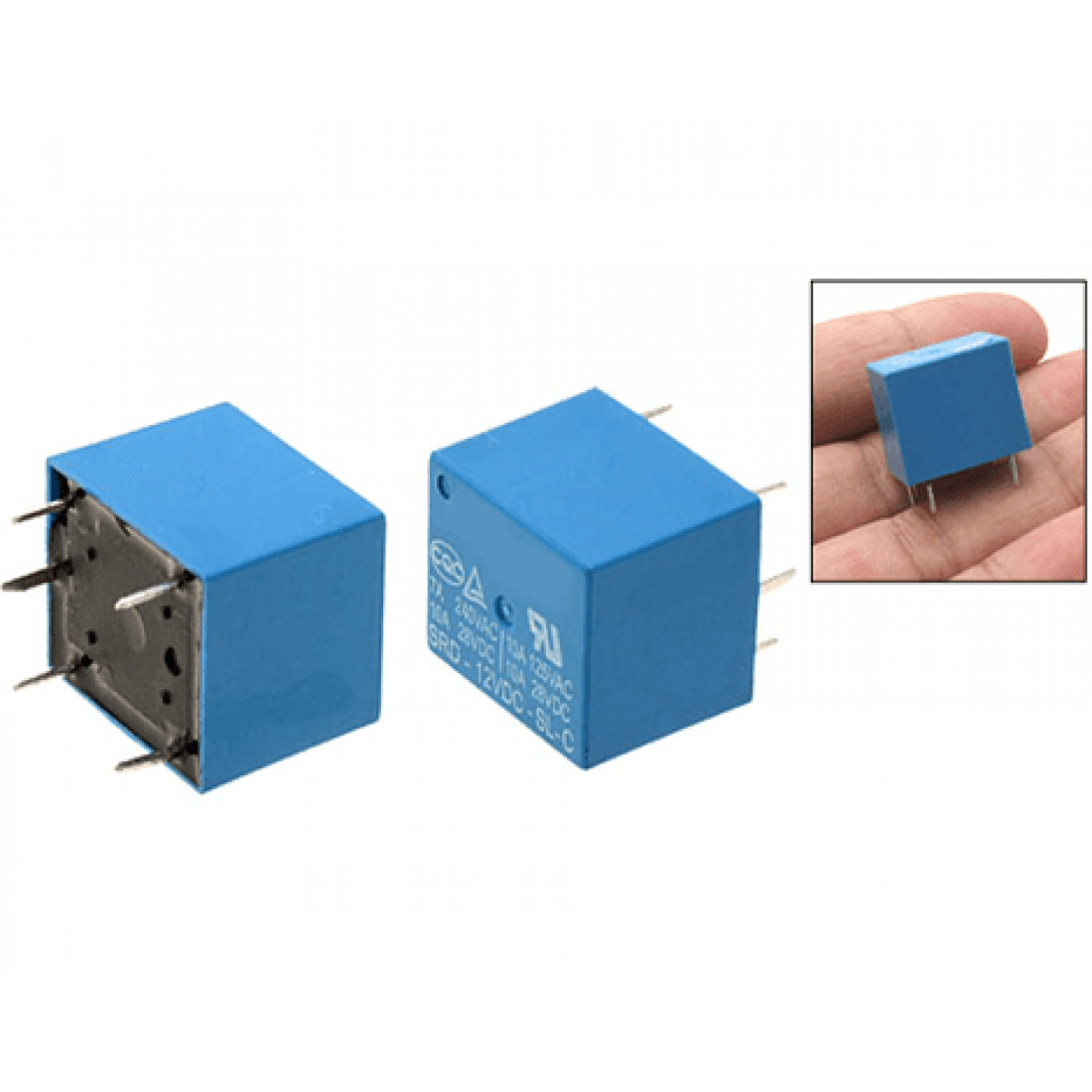

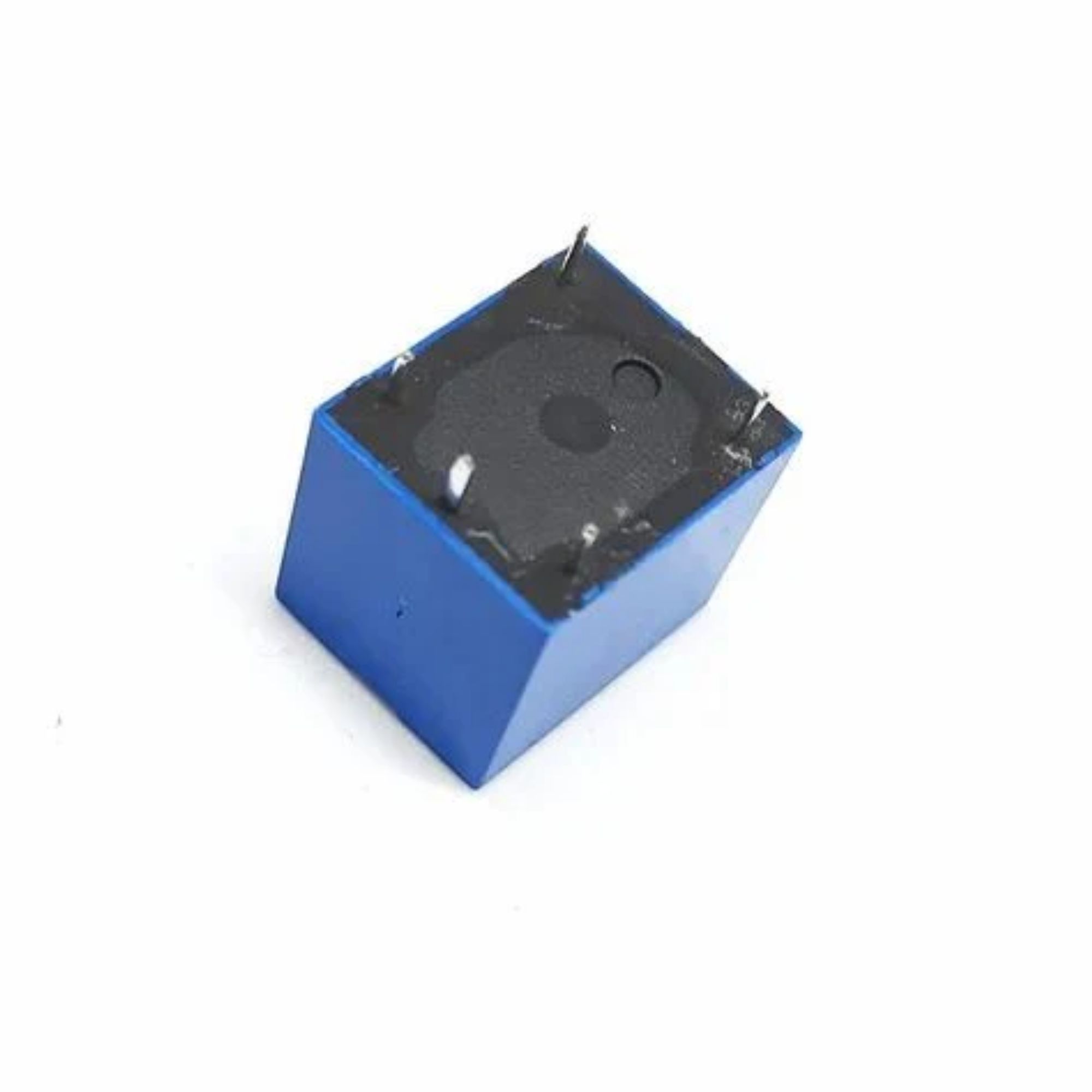

12V 10A PCB Mount Sugar Cube Relay SPDT

This is a 12V 10A PCB Mount Sugar Cube Relay SPDT. It is of T73 type. It operates on 12V DC and has max current rating of 10A. This sugar cube relay 12V PCB mount is a SPDT Relay, So, it has 3 output terminals, COM, NO, and NC.

PCB mount 12V relay Switch is an electromechanically operated switch. The 12V 10A SPDT is a single pole double throw (SPDT) relay, having a common terminal that connects to either of two others, including two for the coil, such a relay has five terminals. With a compatible voltage of 12V, it can pass a max 10A current. And for the max power rating as it is written on the product 30VDC, with 30VDC it can pass max current 10A.

Relays are generally used when it is necessary to control a circuit by low-power signal, or where several circuits must be controlled by one signal. It is a very must-have component for any electronic project where you need to control an AC device with a DC signal.

FEATURES:

• Switching capacity available by 10A in spite of small size design for highdensity P.C. board mounting technique.
• UL,CUL,TUV recognized.
• Selection of plastic material for high temperature and better chemical solution performance.
• Simple relay magnetic circuit to meet low cost of mass production.
• 10A PCB Power Relay.

Specifications:

• Product type: SPDT sugar cube relay: Max 16A at 250VAC
• Voltage: 12v: ON-OFF-ON
• Number of pins: 5: DPDT Switch
• Part Number: JQC-3FC: Panel Mount
• Brand: HL/HE: 25.2 x 21 x 16 mm
• Color: As per availability: -20 to +85°C
• Pin type: through hole: Black

* Product Images are shown for illustrative purposes only and may differ from actual product.

Package Includes:

• 1 x 12V 10A SPDT relay
