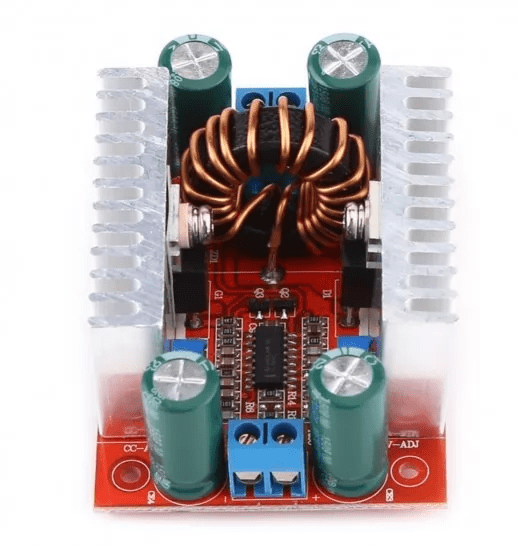

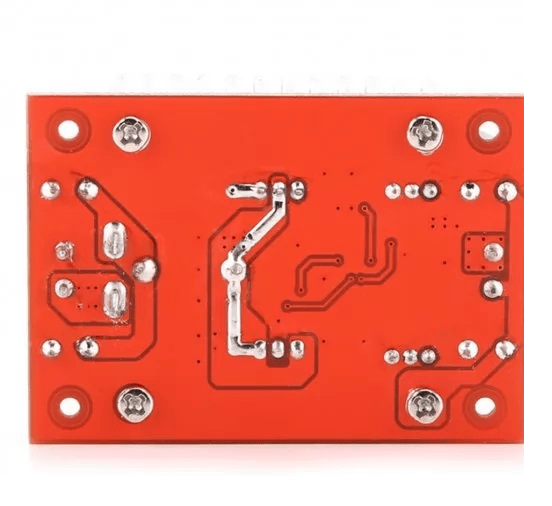

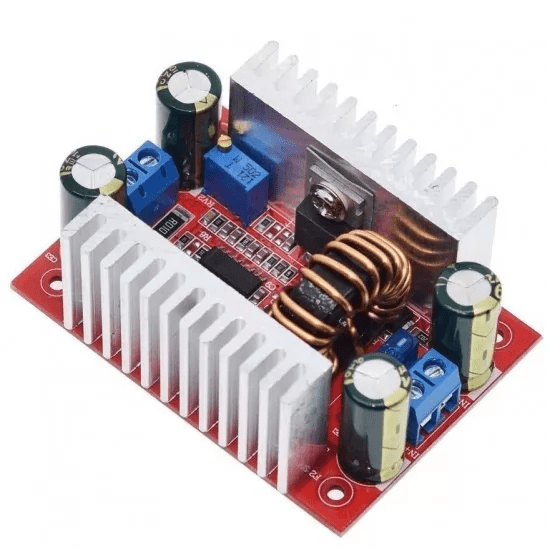

DC-DC 400W 15A Boost Converter Step-up Module Constant Current Power Supply Module

This is a great DC-DC 400W 15A Boost Converter Step-up Module for electric equipment, digital products, laptop, etc. Input and output are designed with screw terminals for convenient wire connection and disconnection. High efficiency, the maximum conversion efficiency can be 96% and efficiency is related to input/output voltage, current and voltage difference. There are 2 heat sinks that would ensure a better heat dissipation. It can also be used as a driver for high power LED lights or voltage regulator for solar panels.

This DC 400W 15A Step-Up Boost Converter can take an input voltage of anywhere from DC 8.5V-50V which can then be regulated to an output voltage between 10-60V continuously adjustable. With a wide input voltage range from 8.5V-50V, the Step-up converter can accurately adjust the output voltage and current.

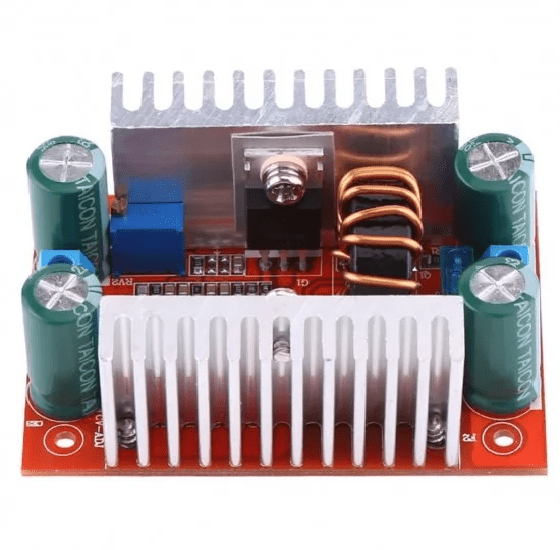

The Boost module has 2 heat sinks that could enhance heat dissipation. Wiring is convenient with these large current 15A screw terminals.

Features:

• Input and output are designed with screw terminals for convenient wire connection and disconnection.
• High efficiency, the maximum conversion efficiency can be 96% and efficiency is related to input/output voltage, current and voltage difference.
• There are 2 heat sinks that would ensure a better heat dissipation.
• It can also be used as a driver for high power LED lights or voltage regulator for solar panels.

Specifications :

• Input Voltage (V): 8.5 – 50V
• Output Voltage(V): 10 – 60 V
• Max. Input Current (A): 15
• Max. Output Current (A): 12
• Quiescent Current (mA): 10
• Constant Current Range (A): 0.2 to 12
• Operating Temperature: -40° to 85°
• Size ( L x B x W ) mm: 67 X 48 X 28

Output Voltage/Current Adjustment:

• Adjust “CV-ADJ” potentiometer clockwise to reduce voltage, counterclockwise to increase voltage.
• Adjust “CC-ADJ” potentiometer counterclockwise about 30 circles to minimize the output current before connecting to load(clockwise to increase current, counterclockwise to reduce current). Then adjust “CC-ADJ” clockwise to the current value you need. If you use the module for battery charging, connect to output after battery is fully discharged. Because if the more energy is left in battery, the less charging current will be.

Applications:

•  DIY a power supply, 12V input, and output  12-50V adjustable.
•  The power supply for your electronic device, according to your system can set the output voltage value.
•  As the car power supply for your laptop, PDA, or a variety of digital products supply.
•  DIY a mobile notebook power supply: 12V coupled with a high-capacity lithium battery pack.
•  Driving high-power LED lights.

Package Includes :

• 1 x DC-DC 400W 15A Step up Converter Module Constant Current LED Driver
