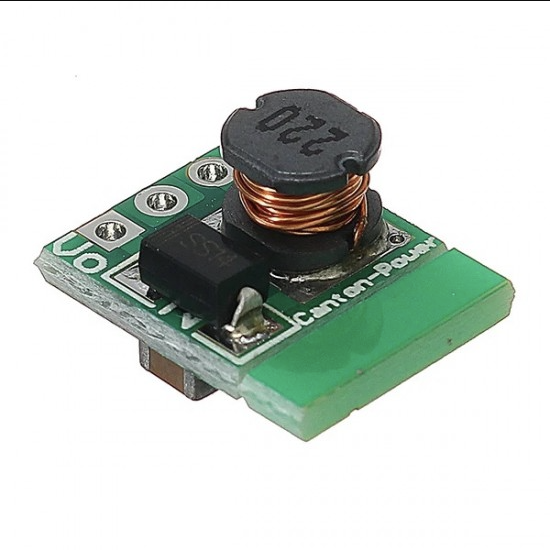

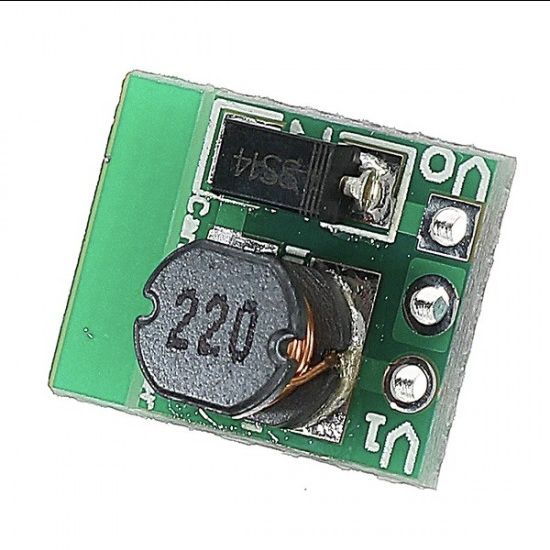

1.5V 1.8V 2.5V 3V 3.3V 3.7V 4.2V to 5V DC-DC DC Boost Converter Module Step Up Board

This is the voltage boost converter module provides 5V DC stable voltage output at various input range between 1.5V to 5V. This small tiny circuit boosts the voltage level and provides the amplified stabilized 5V output. For the different input range, it consumes a different amount of current to produce a balanced output.

Features:

• Small in size.
• Light-weight.
• Different power consumption for different voltages.

Specifications:

While using this module one must comply with the following conditions

• Input voltage cannot be greater than the nominal voltage, otherwise, it will burn out the module
• Input power must be greater than the output power, otherwise, the output voltage will be less than the nominal voltage.
• Output load cannot be greater than the nominal load, otherwise, the output voltage will be less than the nominal voltage.

Starting voltage 0.8V, the output current 7mA

• Input 1-1.5V, output 5V 40-100mA;
• Input 1.5-2V, output 5V 100-150mA;
• Input 2-3V, output 5V 150-380mA;
• Input more than 3V, output 5V 380-480mA;

DC-DC boost converter modules operates at frequency 150KHZ, the typical conversion efficiency is 85%.

Package Includes:

• 1 x 1.5V 1.8V 2.5V 3V 3.3V 3.7V 4.2V to 5V DC-DC DC Boost Converter Module Step Up Board
