XL6009 DC-DC Adjustable 5-35V Step-up Boost Power Converter Module
star
star
star
star
star_half
154
rating
Just for you!
SKU:
Anil339
MRP: Rs.
104.00
Rs.
69.00
(Incl. Tax)
Save Rs.
35.00
(34%
off)
Rs.
62.10 / pack of 1 = Rs.
62.10 per piece
Quantity
local_shipping
Free delivery above ₹2000
lock
100% secure payment
assignment_return
7-day return policy
receipt_long
GST invoice provided
Check Delivery Availability

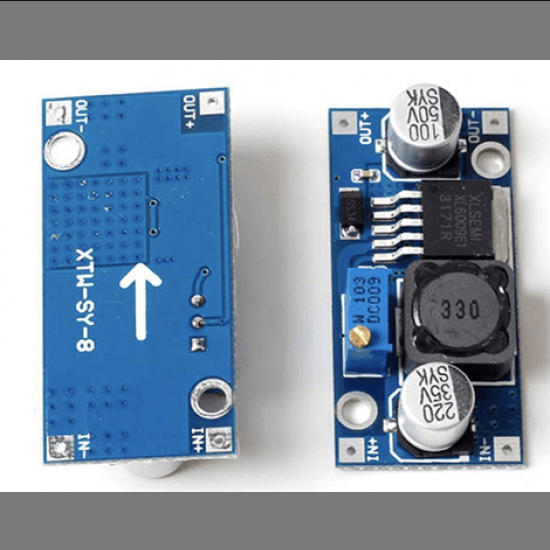

XL6009 DC-DC Adjustable 5-35V Step-up Boost Power Converter Module
This XL6009 DC-DC Adjustable 5-35V Step-Up Boost Power Converter Module is a non-isolated step-up (boost) voltage converter featuring adjustable output voltage and high efficiency.
It equips 4A high-efficiency MOSFET switches, so as to provide a conversion efficiency of up to 94%. High switching frequency 400KHz, you can use a small -capacity filter capacitors that can achieve very good results, the ripple is smaller and smaller.
Features :
- The performance is much higher than LM2577.
- Non-isolated Boost converter.
- It has a non-synchronous rectifier.
- Small and Handy voltage regulator module.
Specifications:
| Input Voltage (V) | 3 to 32 |
| Input Current(A) | 4 |
| Output Voltage(V) | 5 to 35 |
| Output Ripple(mV) | 50 |
| Efficiency | 94% |
| Switching Frequency(KHz) | 400 |
| Load Regulation | ±0.5% |
| Voltage Regulation | ±0.5% |
| Length (mm) | 43 |
| Width (mm) | 20 |
| Height (mm) | 12 |
| Weight (gm) | 12 |
Pins
- IN+ input positive
- IN- input negative!
- OUT+ output positive
- OUT- output negative
Package Includes :
- 1 x XL6009 DC-DC Adjustable 5-35V Step-Up Boost Power Converter Regulator Module
