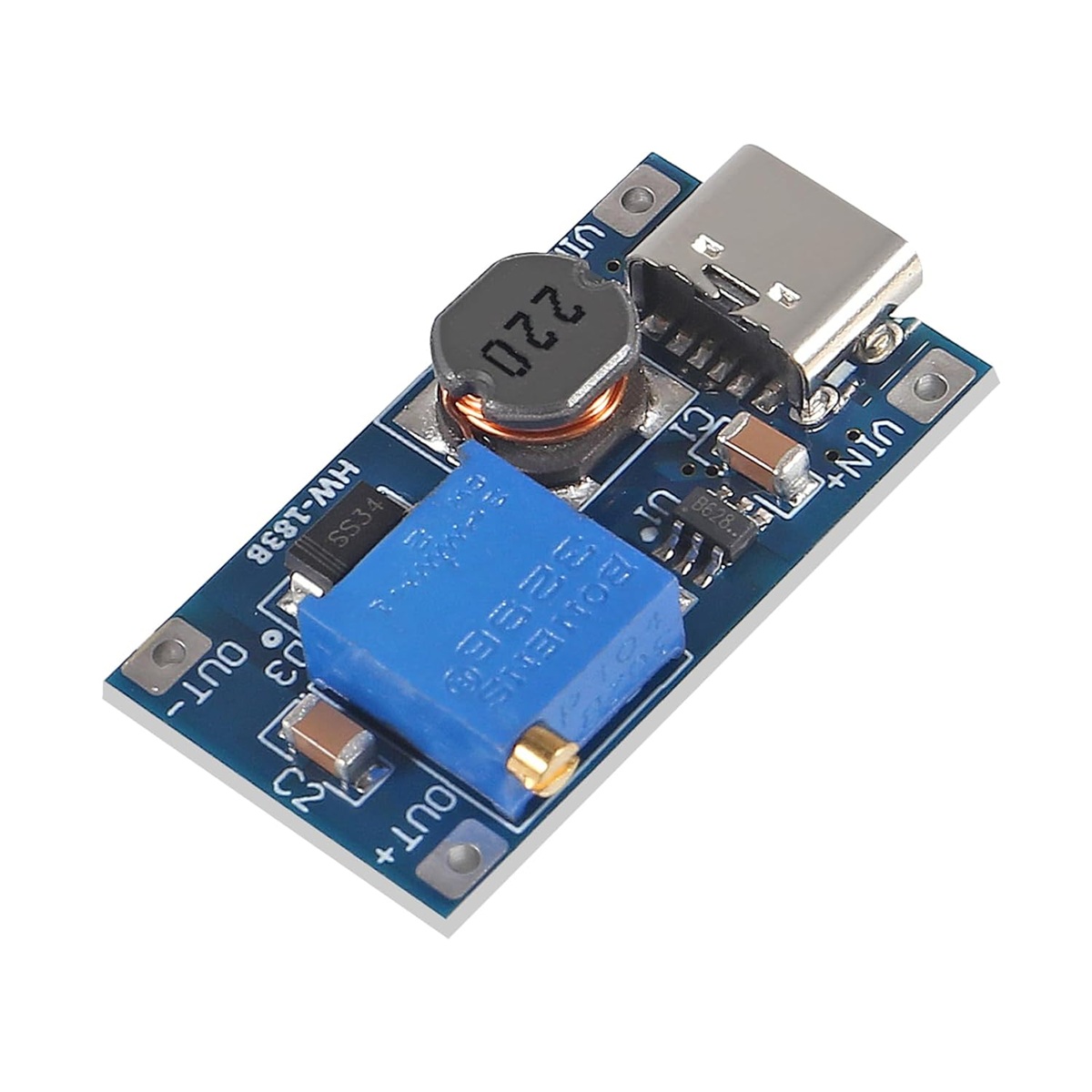

MT3608 USB Type-C 2A Step Up Adjustable Converter Module DC 2-24V

The MT3608 USB Type-C 2A Step Up Adjustable Converter Module DC 2-24V is a compact and versatile boost module designed for reliable power conversion in a wide range of electronics projects.

MT3608 USB-C boost converter features a USB-C input and delivers an adjustable output voltage from 2V to 28V at up to 2A current, making it ideal for DIY, battery-powered devices, Arduino and ESP8266 systems and portable charging applications. The onboard potentiometer allows easy voltage adjustments, and the module’s high efficiency and protected design (over-current and thermal limiting) ensure dependable operation for professional and hobbyist use alike.

Features:

• Wide input voltage: 2V to 24V DC for universal compatibility.
• Adjustable output: 2V to 28V DC, tailored using onboard potentiometer.
• Output current: Up to 2A (depending on conditions).
• USB-C connector: Modern connectivity for cable compatibility and ease of use.
• High efficiency: Up to 96% conversion rate for minimal energy loss.
• Over-current and thermal protection: Safeguards module from damage under heavy loads.
• Compact and lightweight design: Easy integration into various projects.

Specifications:

• Input Voltage: 2V – 24V DC
• Output Voltage: 2V – 28V DC
• Output Current: Up to 2A max
• Efficiency: Up to 96%
• Connector Type: USB-C
• Dimensions: ~31.5mm x 17mm x 6mm
• Weight: 3 grams
• Adjustable Output: Yes, via potentiometer

Application:

• Power banks and portable chargers
• Battery powered projects and devices
• Arduino and ESP8266 development boards
• DC motor drivers
• Consumer electronics DIY
• Custom voltage regulation in prototyping

Package Includes:

• 1 x MT3608 USB-C 2A DC-DC Step Up Adjustable Converter Module

Note:

• This module is a boost module, the output voltage should be greater than the input voltage.
• Peaks current output current not more than 2A.
