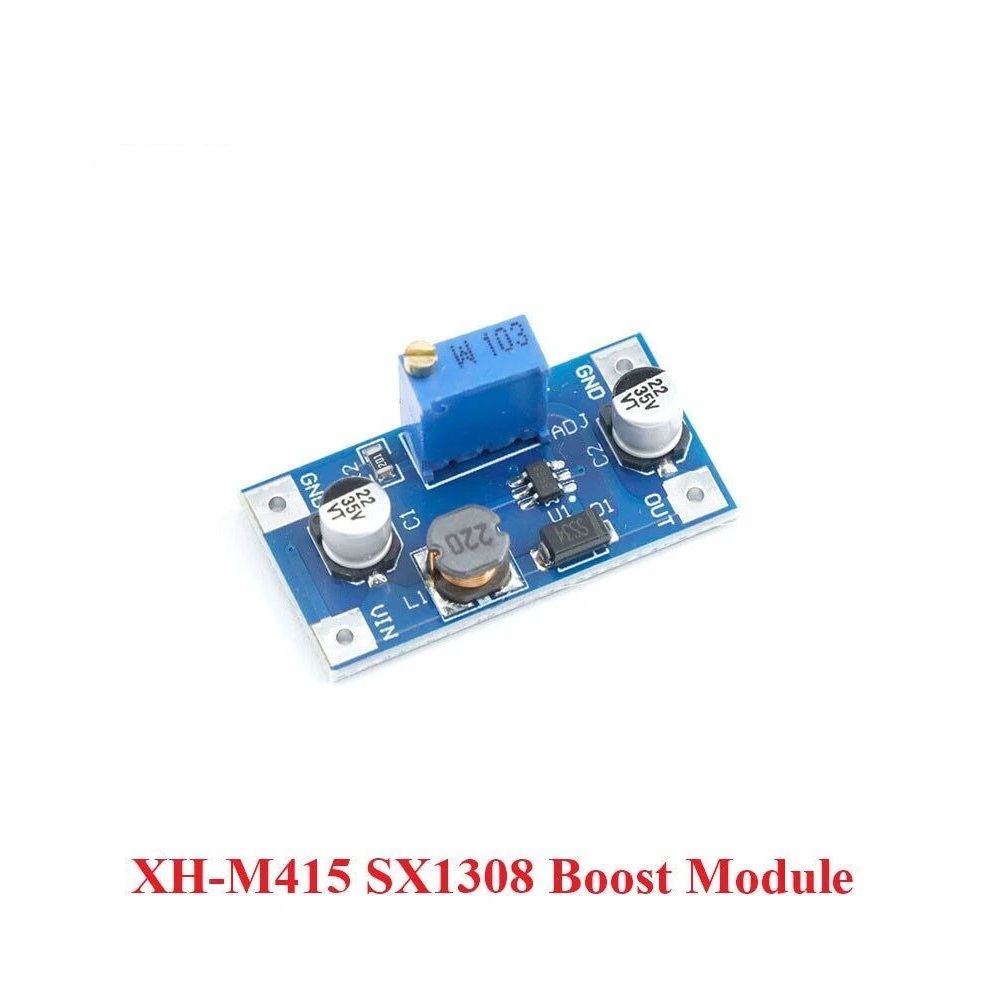

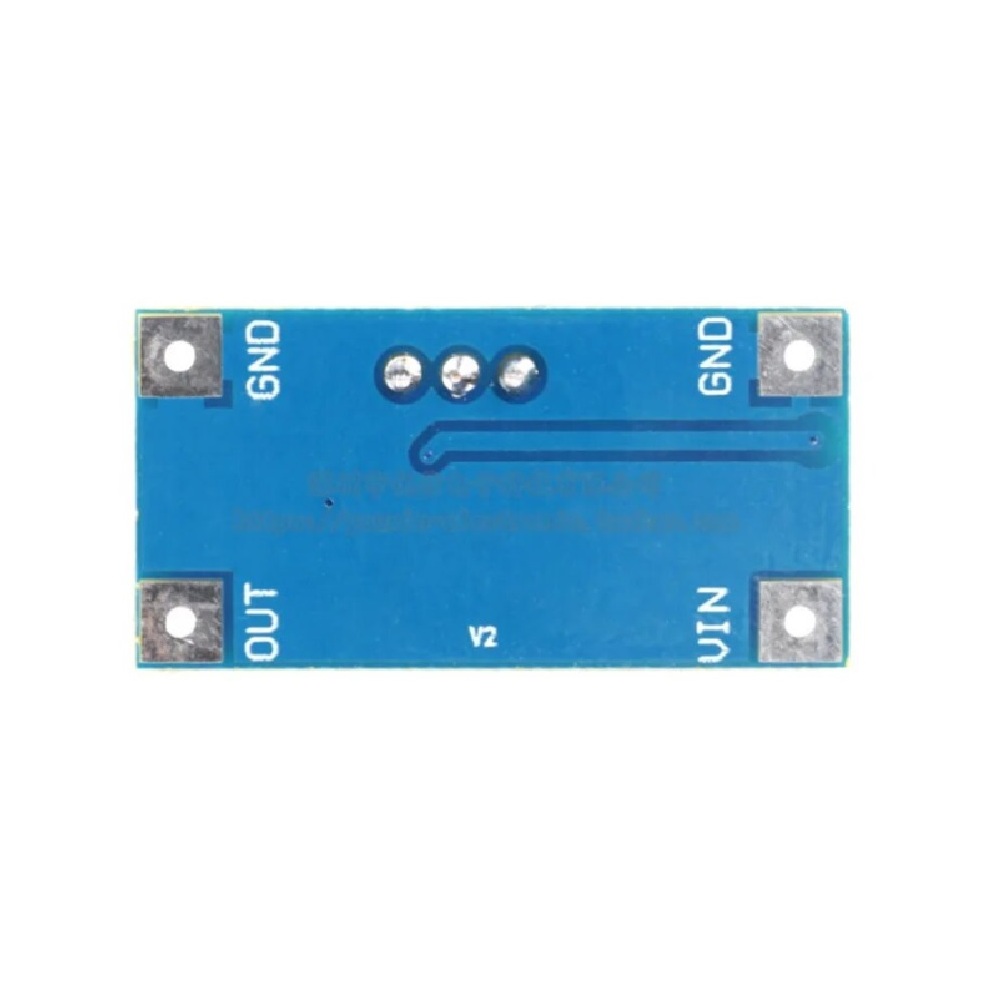

XH-M415 SX1308 Micro Boost Module DC-DC Voltage Step Up Converter (2-24V Input, 3-28V Output, Peak 2A)

The XH-M415 SX1308 Micro Boost Module, powered by the SX1308, is a compact DC-DC step-up voltage converter designed to efficiently increase low input voltages (2V–24V) up to a selectable output range (3V–28V). With its stable performance, portable size, and high conversion efficiency, this module by Techtonics is perfect for powering various electronic devices, sensor modules, and DIY projects. The onboard potentiometer allows precise voltage adjustment, making it ideal for applications requiring custom voltage levels without the need for bulky power supplies or multiple batteries.

Features:

• Wide Input Voltage Range: 2V to 24V DC.
• Adjustable Output Voltage: 3V to 28V DC (max).
• High Efficiency: Up to 94% conversion efficiency.
• SX1308 IC: Provides stable and reliable boost conversion.
• Peak Output Current: 2A (short duration).
• Compact PCB Size: Easy integration into small devices.
• Onboard Potentiometer: Convenient voltage adjustment.
• Low Quiescent Current: Energy-efficient operation.

Specifications:

• Model XH-M415
• IC Chip SX1308
• Input Voltage 2V – 24V DC
• Output Voltage 3V – 28V DC (adjustable)
• Maximum Output Current 2A (peak); 1A (continuous)
• Conversion Efficiency Up to 94%

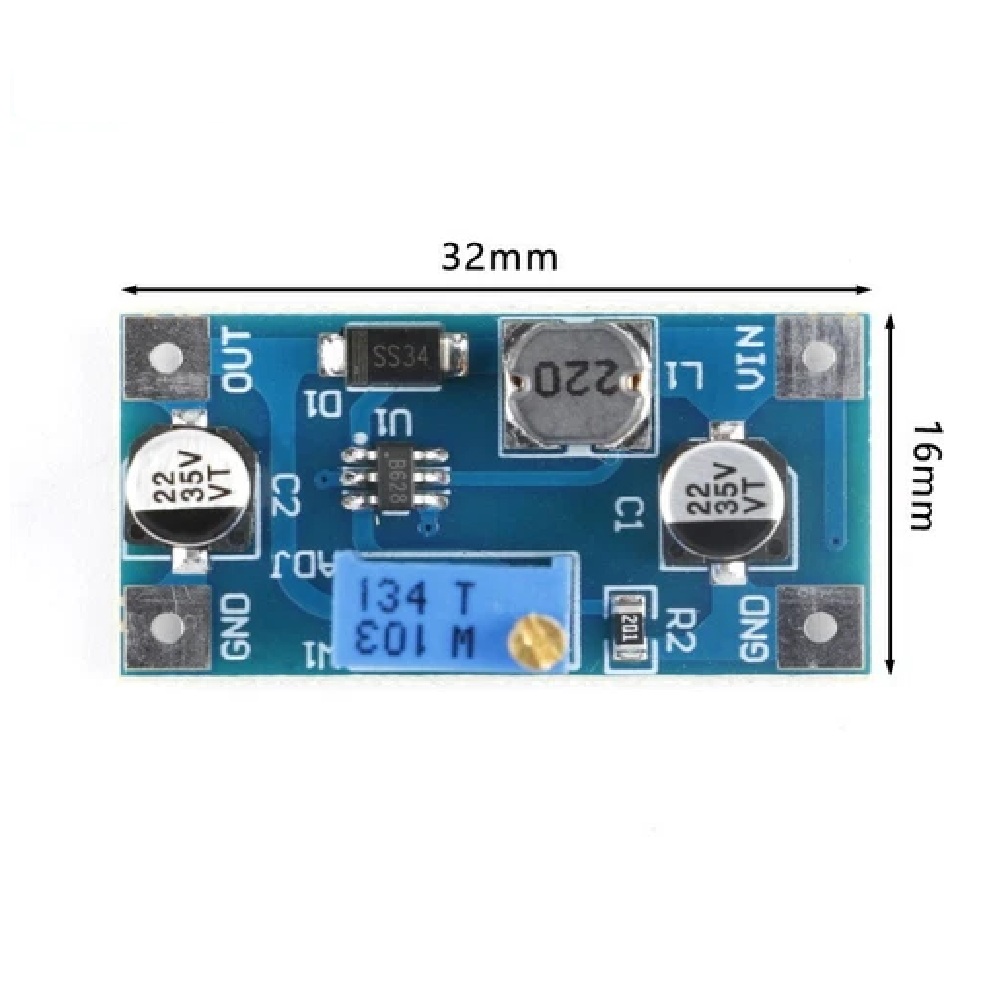

• PCB Size Approx. 36 x 17 x 14 mm
• Adjustable Output Via onboard potentiometer
• Protection No short-circuit protection

Application:

• Power supply for microcontrollers (Arduino, Raspberry Pi)
• DIY electronics projects and prototyping
• Battery-powered device voltage boosting
• LED strips and small display modules
• Sensor and module voltage adaptation
• Robotics and motor drivers

Package Includes:

• 1 x XH-M415 SX1308 Boost Converter Module DC-DC Step Up Converter

*Image is for reference only.
