MCX Edge Mount For PCB Mount Female Connector 180 Degree Gold Plating

MCX Edge Mount For PCB Mount Female Connector 180 Degree Gold Plating are designed to match industry-standard 50 ohm and 75-ohm cables with longer life.  This connector is a miniature quick connect/disconnect radio frequency connector used for wide range of applications like GPS and Network connectivity applications.

A wide range of standard connectors is listed in the category. Explore the Category for more cable mount as well as PCB/Panel Mount RF connectors that suits your needs  Click Here

Features:

• MCX Connector, Female/Jack, Straight/180°,Offset Type, PCB Mount, 50Ohm, Gold Plating
• 30% smaller than SMB with same contact and insulator size, make MCX connector lighter and work in smaller space;
• Snap-on Interface ideal for quick Installation and discount;
• High cost-effective with excellent broadband performance and low reflections.
• High-Quality product

Characteristics:

Electrical Characteristics

• Impedance：50 ohm
• Frequency Range: 0~6 Ghz
• VSWR: Straight type ≦ 1.3max / R/A type ≦ 1.5max
• Dielectric Withstanding Voltage: 1000 V rms
• Working Voltage: 335 V rms
• Center Contact Resistance ≦ 5.0 mΩ  (Milliohms max.)
• Outer Contact Resistance  1.0 mΩ  (Milliohms max.)
• Insultation Resistance ≧ 1000 mΩ

Mechanical Characteristics

• Coupling: Snap-on/Snap-off
• Contact Retention: 4 lbs min.
• Mating Durability: ≧500 cycles (For Beryllium Copper Contact)

Environmental Characteristics

• Environmental Characteristics: Teflon -65°C ~ +155°C
• Vibration: MIL-STD-202 Meth.204
• Corrosion Resistance: MIL-STD-202 Meth. 101

Specifications:

• Orientation: Straight
• Gender: Female
• Mounting Type: PCB Mount
• Termination Style: Solder Type
• Mounting Feature: Surface Mount / Offset Type
• Function: Other
• Polarity: Standard
• Body Material: Copper Alloy
• Body Plating: Gold Plating
• Impedance (Ω): 50
• Shield Termination: NA

Applications:

• Consumer Electronics: GPS, HDTV, Wireless Internet TV and Audio, smartphone antenna port,
• Aerospace and Defense: GPS and Hand-held Device
• Medical: Telemetry
• Telecommunications: GPS tracking, positioning and navigation devices, Telecommunications networks, Wireless Base Station, Wireless-LAN
• Data/Communications: Wireless-LAN, Wireless-PAN(Bluetooth), Wireless-WAN
• Industrial: Machine to machine communications

Package Includes:

• 1 x MCX Gold Plated PCB Edge Mount Female Connector

Note:

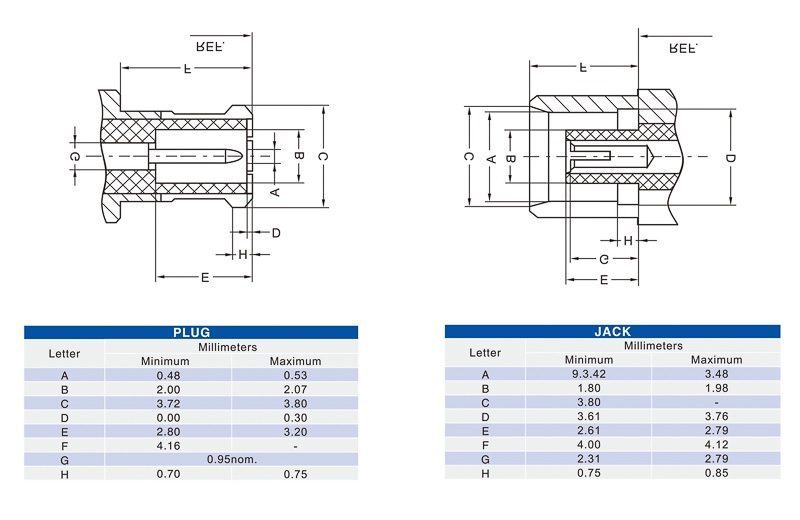

• Refer Schematic Image for Dimensional Details
