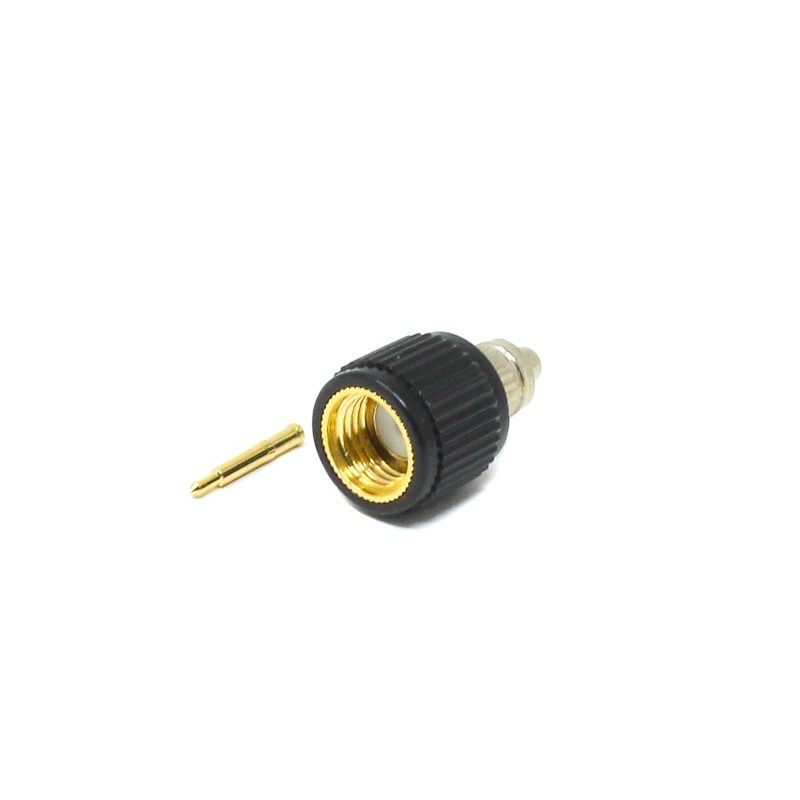

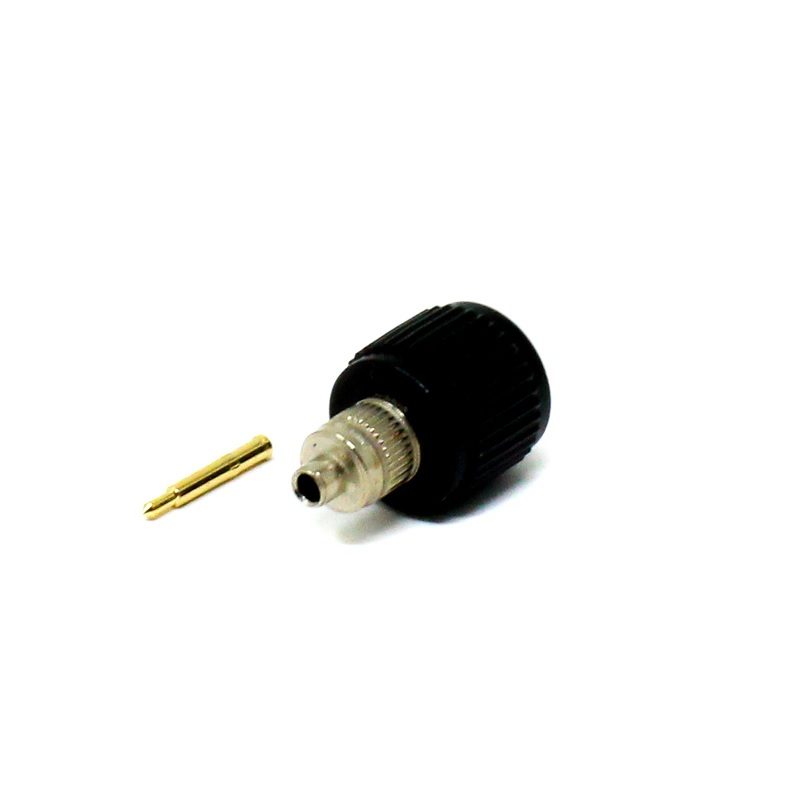

50 Ohm Male SMA Connector Black Plastic Shell Solder Type

Name: 50 Ohm Male SMA Connector Black Plastic Shell Solder Type
Brand: Generic / Other
SKU: ANIL1973
Price: 170.00 INR
Availability: InStock

grade Be the first to review

SKU: ANIL1973 content_copy

Brand: Generic / Other

₹170.00 (Incl. 18.00% GST) Excl. GST: ₹144.07

In Stock (5 units ready to dispatch from Ahmedabad Hub)

receipt_long GST Invoice with ITC Claim

inventory Wholesale & Volume Pricing Click tier to auto-select

1 – 4 pcs

₹170.00

Regular

5 – 9 pcs

₹161.50

Save 5%

10+ pcs

₹153.00

Save 10%

Qty

pin_drop Check Delivery & Shipping SLA Free Shipping > ₹2,000

local_shipping

Dispatches in 24h

From Ahmedabad Hub

verified

100% Genuine Part

Tested & Quality Checked

receipt_long

GST B2B Invoice

Input Tax Credit Eligible

support_agent

7-Day Support

Easy Defect Replacement

chat Need Technical Help? Chat on WhatsApp

memory Technical Parameters & Datasheet Summary

SKU: ANIL1973

Component Title 50 Ohm Male SMA Connector Black Plastic Shell Solder Type

Part Number / SKU ANIL1973

Brand / Manufacturer Generic / Other

Category & Taxonomy SMA Connectors

Applicable GST Rate 18.00% GST (Official GSTIN Invoice Provided with Input Tax Credit)

Packaging Protection Anti-Static Moisture Barrier Shielding Bag (ESD Protected)

Dispatch Hub Dispatches within 24 Hours from Ahmedabad Hub, Gujarat, India

Datasheet & Queries? chat Ask an Application Engineer on WhatsApp

50 Ohm Male SMA Connector Black Plastic Shell Solder Type are designed to terminate to industry-standard 50 ohm and 75-ohm cables with longer life, perfect designs and durable industry-grade Standards and finish. A range of standard items is listed in the category RF Connectors. Explore the Category for more cable mount as well as PCB/Panel Mount RF connectors which suits your needs.

Features:

SMA Connector,50 Ohm, Male, Solder Type, Cable Connector, Straight/180°
Excellent electrical performance up to 18GHz with low reflection;
Thread type coupling mechanism ensure small loss and high security in a compact design;

Specifications:

Orientation: Straight
Gender: Male
Mounting Type: Cable
Termination Style: Solder Type
Polarity: Standard
Body Material: Copper
Body Plating: Nickel Plating
Impedance (Ω): 50
Shield Termination: Solder

Characteristics:

Electrical Characteristics

Impedance：50 ohm
Frequency Range: 0~6 GHz
VSWR: Straight type ≦ 1.3max / R/A type ≦ 1.5max
Dielectric Withstanding Voltage:1000 V rms min for RG142, RG405
750 V rms min. for RG316, RG402
500v rms min. for RG178
Working Voltage: 500 V rms max. for RG142, RG405
375 V rms max. for RG316, RG402
170 V rms max. for RG178
Center Contact Resistance ≦ 6.0 mΩ (Milliohms max.)
Outer Contact Resistance ≦ 2.0 mΩ (Milliohms max.)
Insultation Resistance ≧ 5 x 10³ mΩ (Megohms min.)

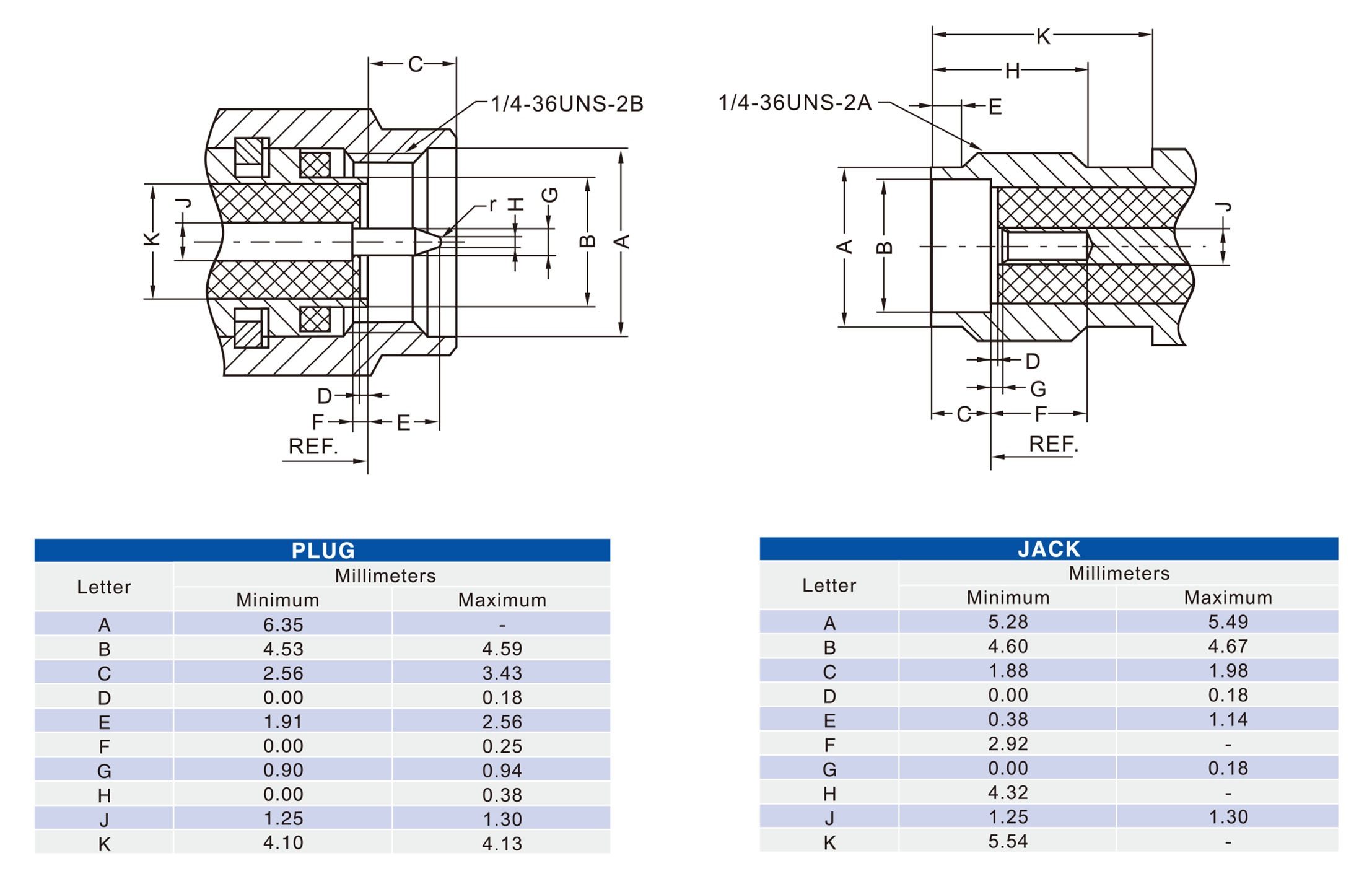

Mechanical Characteristics

Coupling: 1/4-36 thread
Contact Retention: 15 in-lbs min.
Coupling nut torque: 30 in-lbs. min.
Durability(mating) ≧ 500 cycles (For Beryllium Copper Contact)

Environmental Characteristics

Temperature Range: -55°C ~ +155°C
Vibration: MIL-STD-202 Meth.204
Corrosion resistance: MIL-STD-202 Meth. 101

Applications :

Aerospace and Defense: Hand-held field Device and Instrumentation
Medical: Instrumentation
Commercial Vehicle: Bluetooth and GPS
Telecommunications: Wireless Base Stations, Cellular Mobile System
Data/Communications: Wifi, WiMAX
Industrial: Active and passive components, instrumentation, M2M Communications, Vehicle Tracking System

Package Includes:
