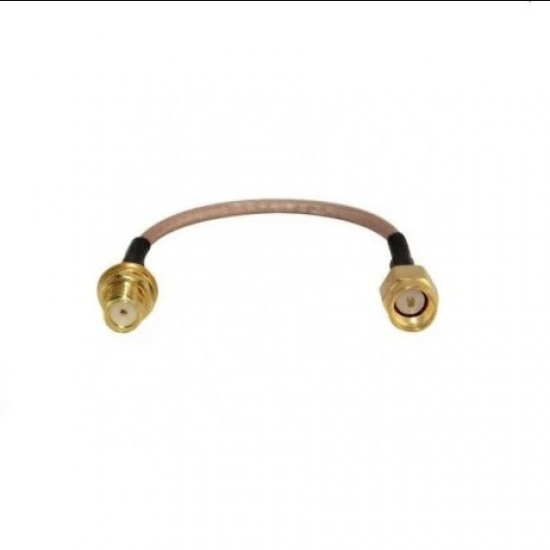

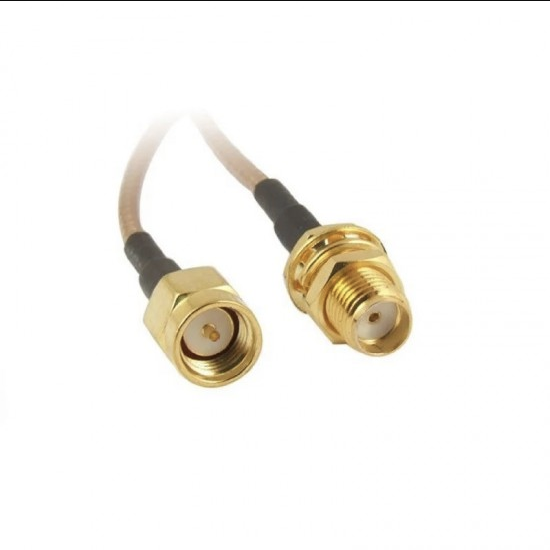

RG316 Coaxial Cable 10cm Pigtail WLAN Network RF Antenna
RG316 Coaxial Cable 10cm Pigtail WLAN Network RF Antenna
RG316 Coaxial Cable 10cm Pigtail WLAN Network RF Antenna is a antenna adapter can connect your phone to the antenna to provide better reception in no signal areas. This SMA male to female Pigtail RF antenna is used widely for router, booster, and WLAN Wi-Fi Antenna conversion. High-frequency low-loss antenna extension cord. RG316 military standard Teflon silver plated wire feeder with acid corrosion resistant high temperature and other characteristics.
Features :
- High-Quality SMA Connectors On Both Ends
- High efficiency
- Uses RG316 Coaxial Cable
Specifications:
|
Metal |
copper |
|
Cable length |
10cm |
|
Impedance |
50 Ohm |
|
Application |
RF |
|
Type |
SMA |
|
Gender |
Male to Female |
|
Frequency Range |
DC-6GHz |
|
VSWR |
1.5 Max |
|
Insertion Loss |
1.8db |
|
Insulation Resistance |
≧5000MΩ |
|
Power Handing |
2W |
|
Working Temperature |
-40°C to +85°C |
Package Includes :
- 1 x SMA Male to Female Pigtail RF Antenna – 10cm
