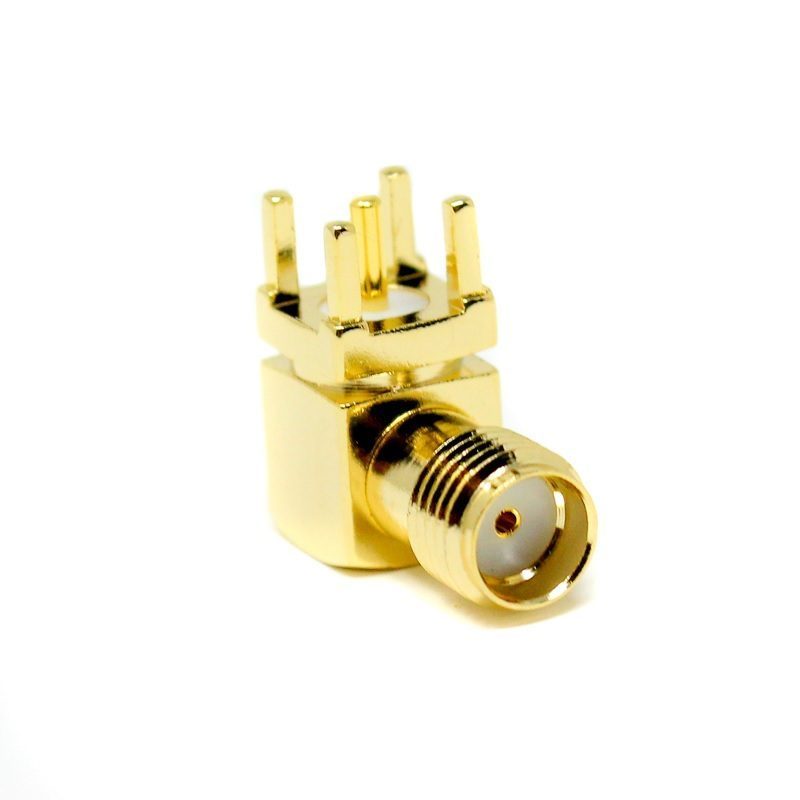

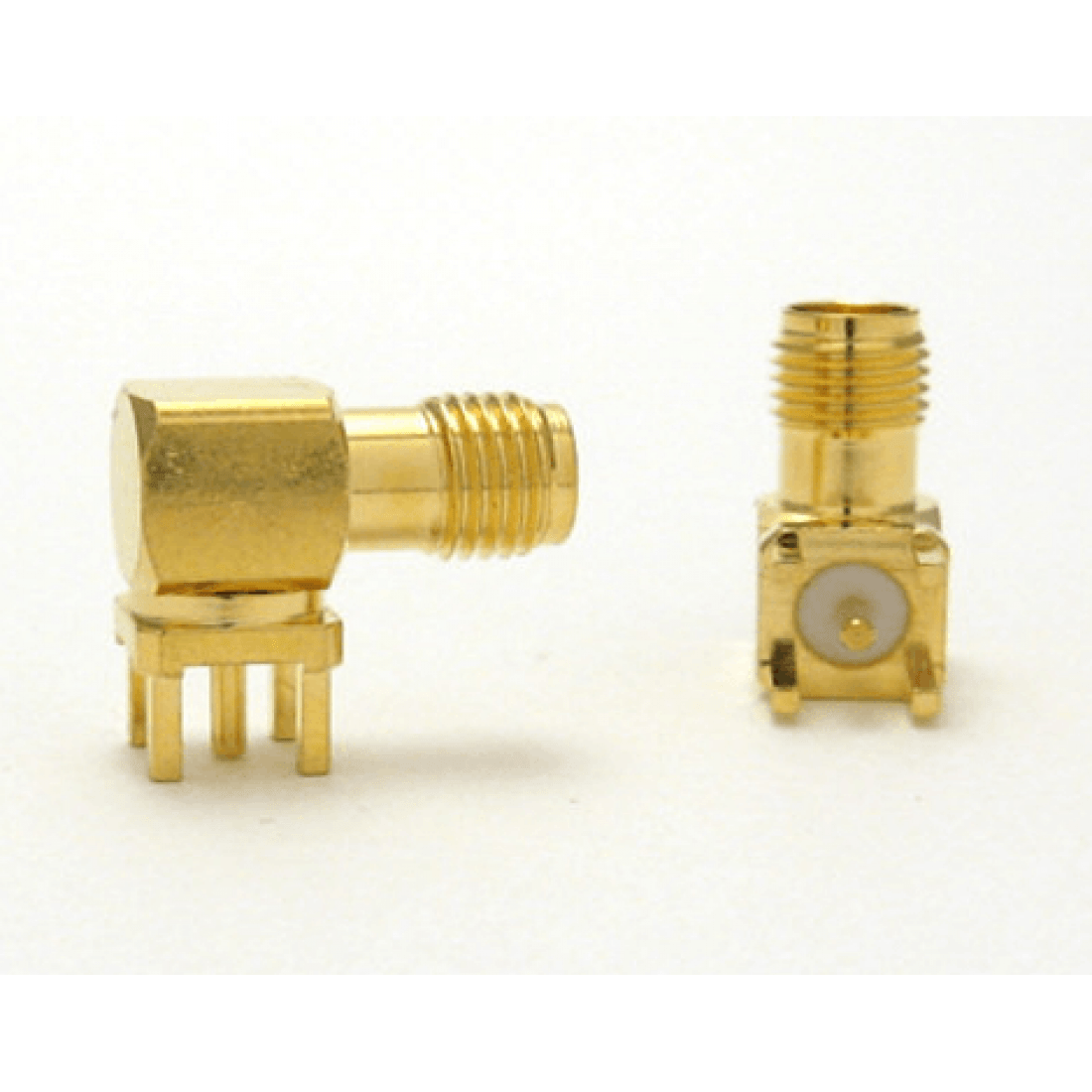

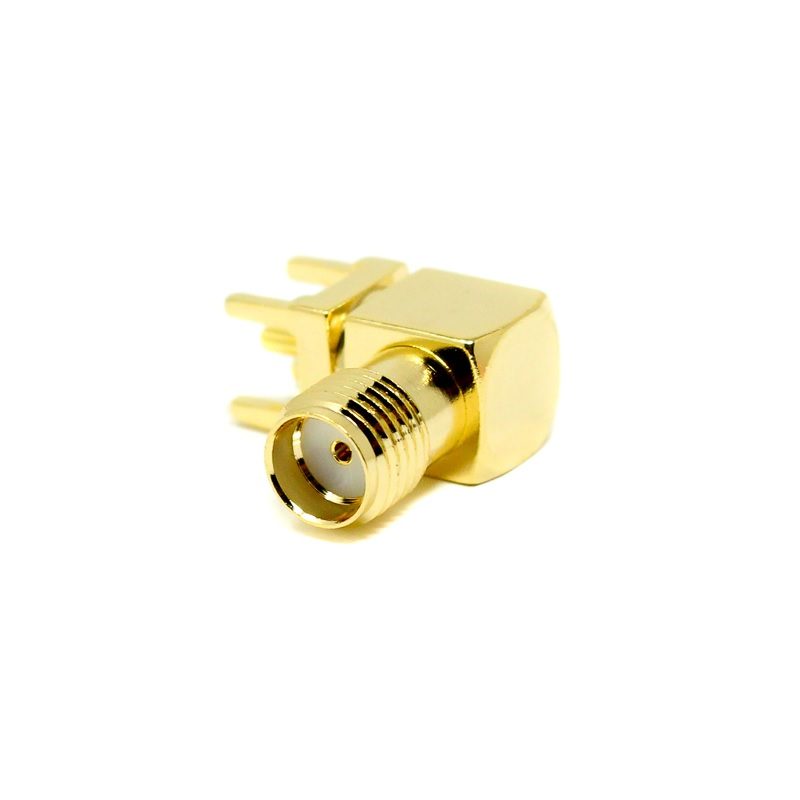

SMA Female Connector Right Angle Through-Hole for PCB Mount

This is a SMA Connector Female Right Angle, highly suitable for prototyping with the cellular devices and GPS that needs an antenna connection. The female signal pin present in this right angle connector correctly mate with the original SMA type antenna.

Features:

• Through Hole, Pcb Mount, Jack/female, Angled/90°, 50Ω;
• Excellent electrical performance up to 18GHz with low reflection;
• Thread type coupling mechanism ensure small loss and high security in a compact design;
• High Quality with 30 days 100% Money back;
• From the OEM Original Factory, same quality with much better price.

Specifications:

Electrical Characteristics

• Impedance：50 ohm
• Frequency Range: 0~6 GHz
• VSWR: Straight type ≦3max / R/A type ≦ 1.5max
• Dielectric Withstanding Voltage:1000 V rms min for RG142, RG405
• 750 V rms min. for RG316, RG402
• 500v rms min. for RG178
• Working Voltage: 500 V rms max. for RG142, RG405
• 375 V rms max. for RG316, RG402
• 170 V rms max. for RG178
• Center Contact Resistance ≦0 mΩ  (Milliohms max.)
• Outer Contact Resistance ≦0 mΩ  (Milliohms max.)
• Insultation Resistance ≧ 5 x 10³ mΩ (Megohms min.)

Mechanical Characteristics

• Coupling: 1/4-36 thread
• Contact Retention: 15 in-lbs min.
• Coupling nut torque: 30 in-lbs. min.
• Durability(mating) ≧ 500 cycles (For Beryllium Copper Contact)

Environmental Characteristics

• Environmental Characteristics: -65°C ~ +165°C
• Vibration: MIL-STD-202 Meth.204
• Corrosion resistance: MIL-STD-202 Meth. 101

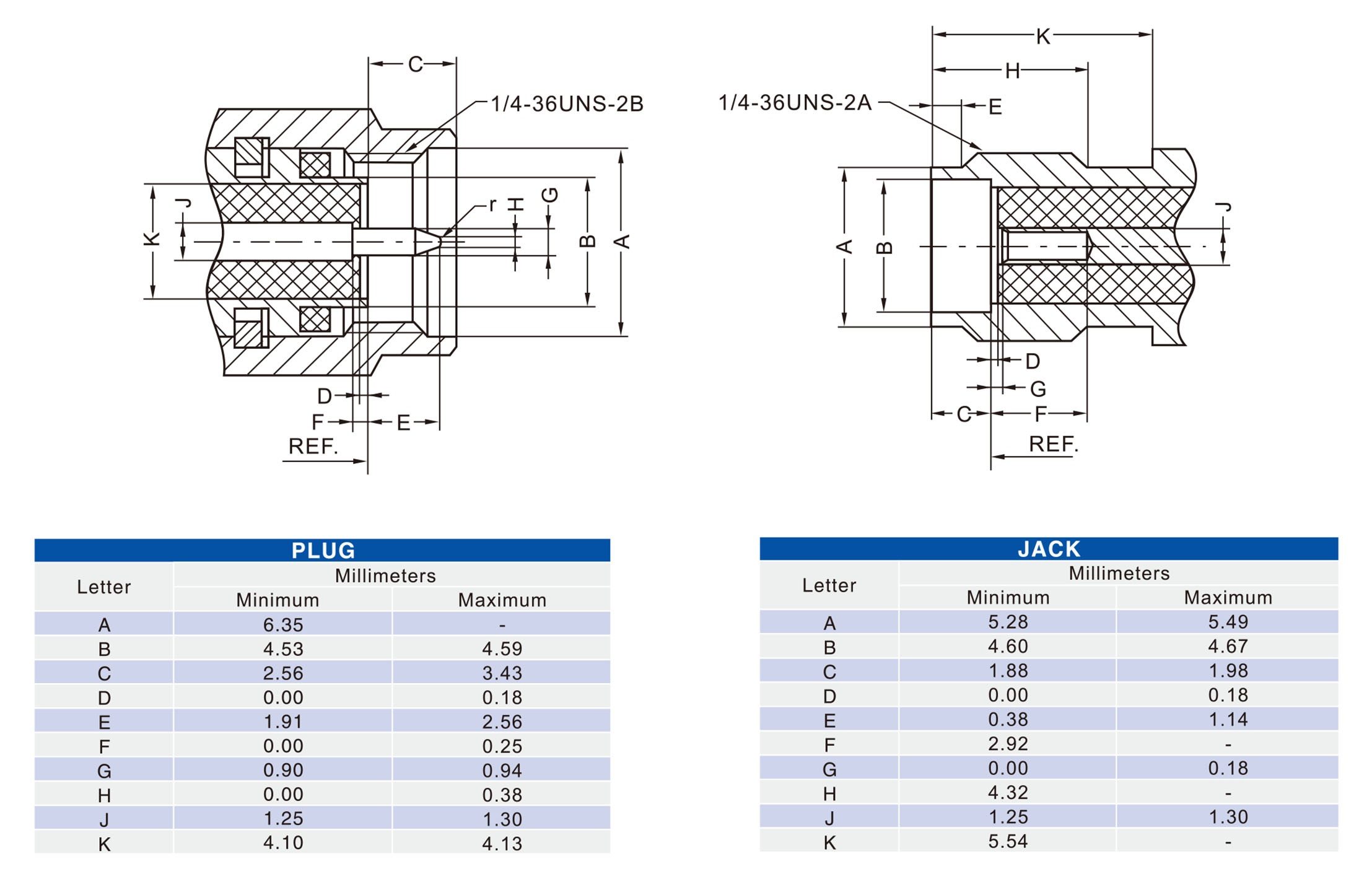

Note: Refer Schematic Image for Dimensional Details

Application:

• Aerospace and Defense: Hand-held field Device and Instrumentation
• Medical: Instrumentation
• Commercial Vehicle: Bluetooth and GPS
• Telecommunications: Wireless Base Stations, Cellular Mobile System
• Data/Communications: Wifi, WiMAX
• Industrial: Active and passive components, instrumentation, M2M Communications, Vehicle Tracking System

Package Includes:

• 1 x SMA Female Connector Right Angled Through-Hole for PCB Mount
