1 Channel 5V Relay Module Solid State High Level SSR DC Control 250V 2A with Resistive Fuse

This is a 1 Channel 5V Relay Module Solid State High Level SSR DC Control 250V 2A with Resistive Fuse. A solid-state relay (SSR) is just what it sounds like; an IC that acts like a mechanical relay. They allow you to control high-voltage AC loads from lower voltage DC control circuitry. They accomplish this by using infrared light as the ‘contact,’ a solid-state relay is really just an IR LED and a photo Triac sealed up into a little box. Solid-state relays have several advantages over mechanical relays.

A Solid State Relay is similar to 1 Channel 5V Relay Module Solid State High-Level SSR DC Control 250V 2A with Resistive to a mechanic relay where it can be controlled through a digital signal. Solid State Relay generates no noise and has a much longer lifespan compared to the traditional mechanic relay.

When the input logic voltage is applied to the coil, the NC will disconnect from the COM breaking the conductivity between the two. At the same time, the NO will connect with the COM allowing conductivity between them. Depending on your wiring this will turn on or off the connected load.

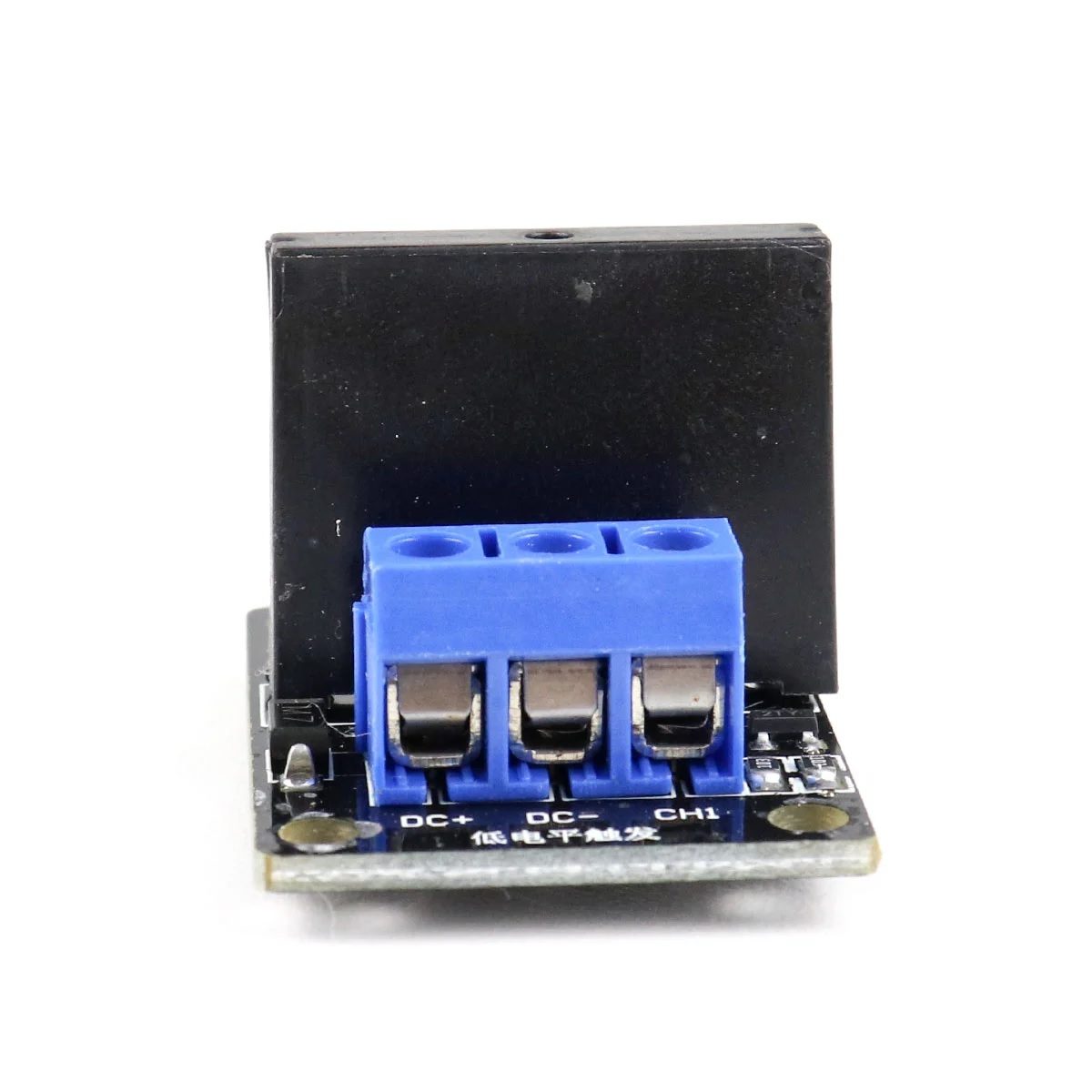

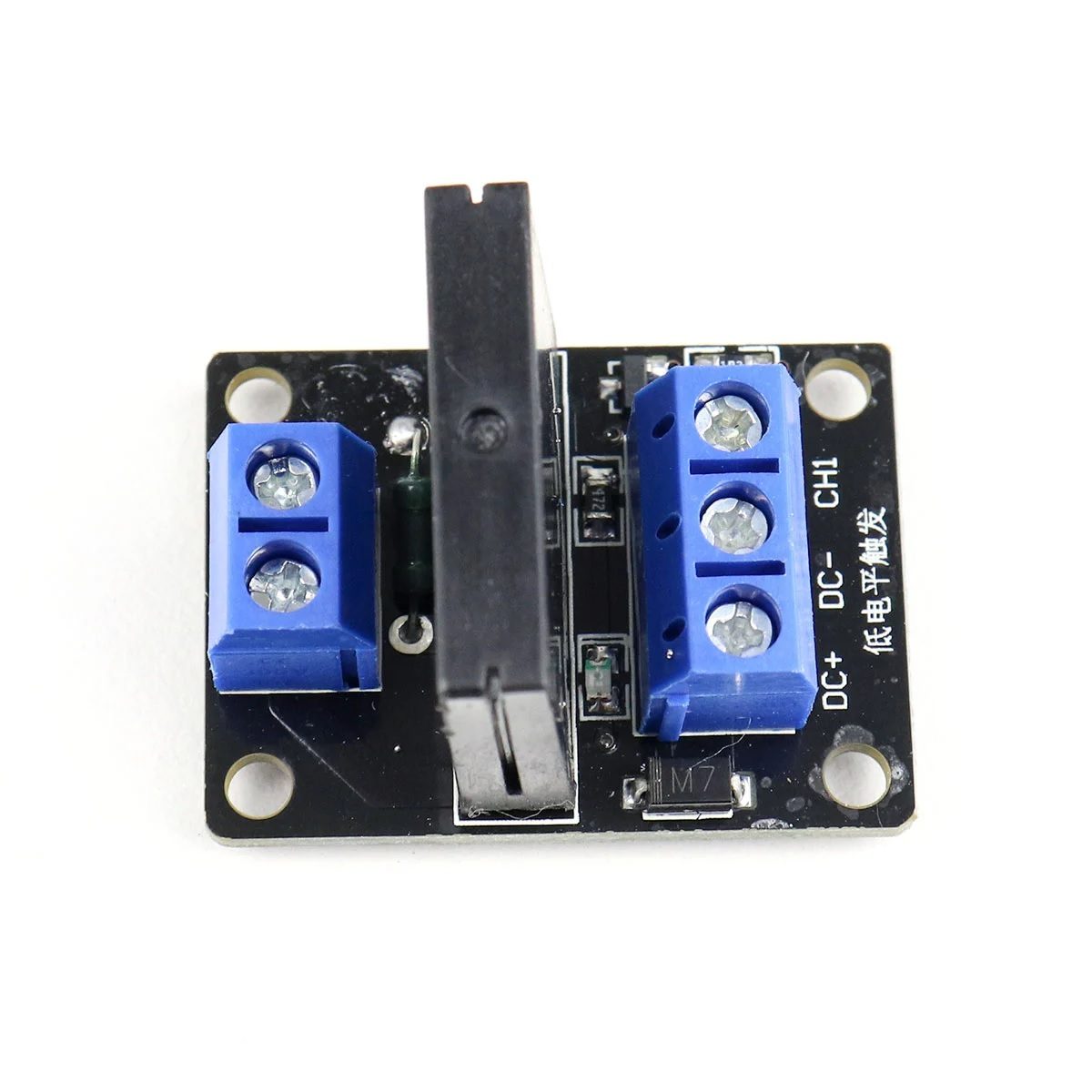

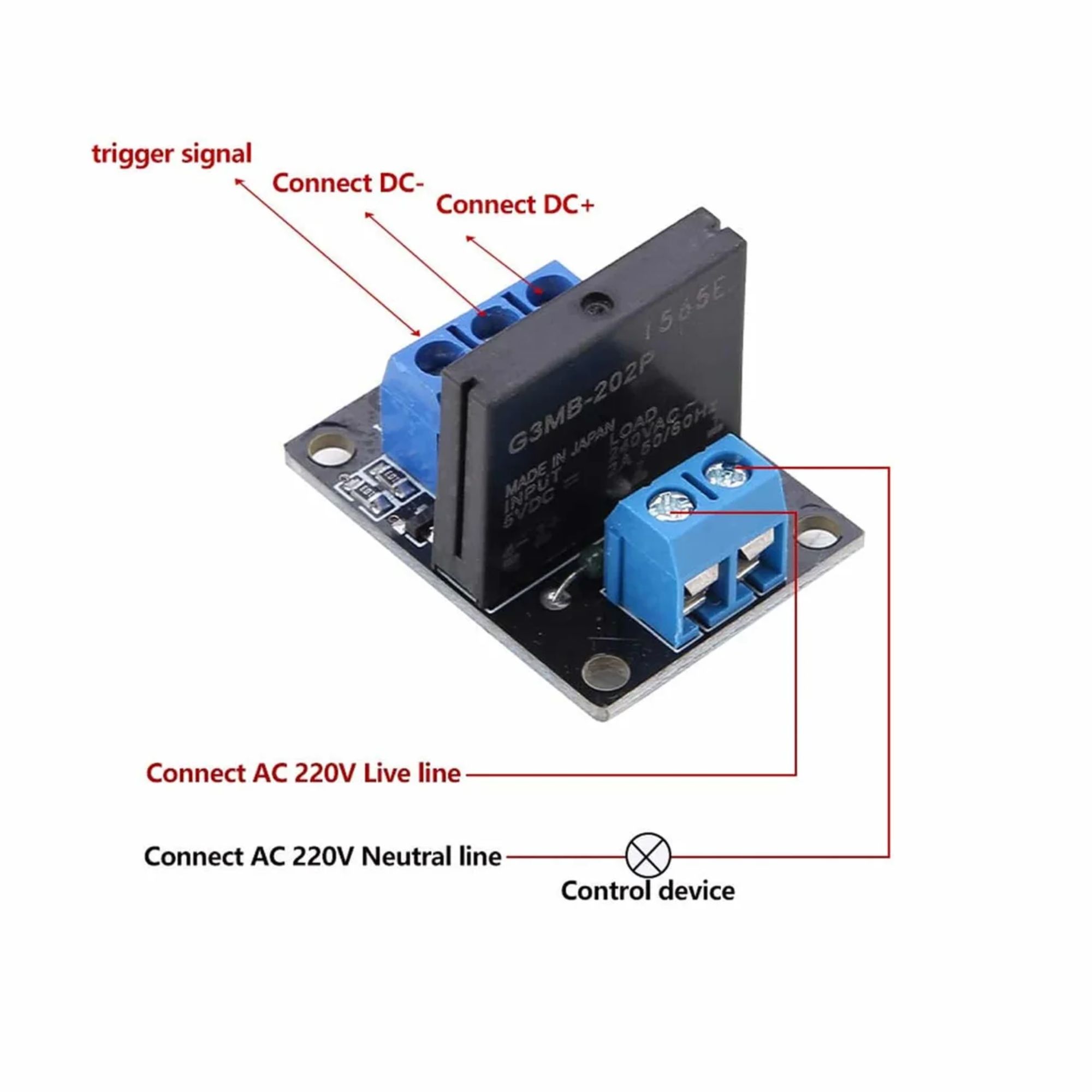

Input parts :

• DC+: connect power positive
• DC-: connect power negative
• CH1: relay module signal trigger point (Effective low-level trigger)

Note: Power must be DC voltage and need to be consistent with the voltage relay.

Features :

• Has been assembled, and the electrical test passed.
• It can be controlled directly by Microcontroller
• Input control signal voltage:
• 0-2.5V status low level, relay OFF
• 3-5V status high level, relay ON

Specifications:

• Brand: Omron
• Part Number: G3MB-202P
• Voltage(V): 5
• Working Current(mA): 12.5
• Trigger voltage(V): 0 to 1.5
• Trigger current(mA): 2
• Max. Load: 2A @240V AC
• Length (mm): 25
• Width (mm): 34
• Height (mm): 25
• Weight (gm): 13

Package Includes :

• 1 x 5V 1 Channel SSR G3MB-202P Solid State Relay Module 240V 2A Output
