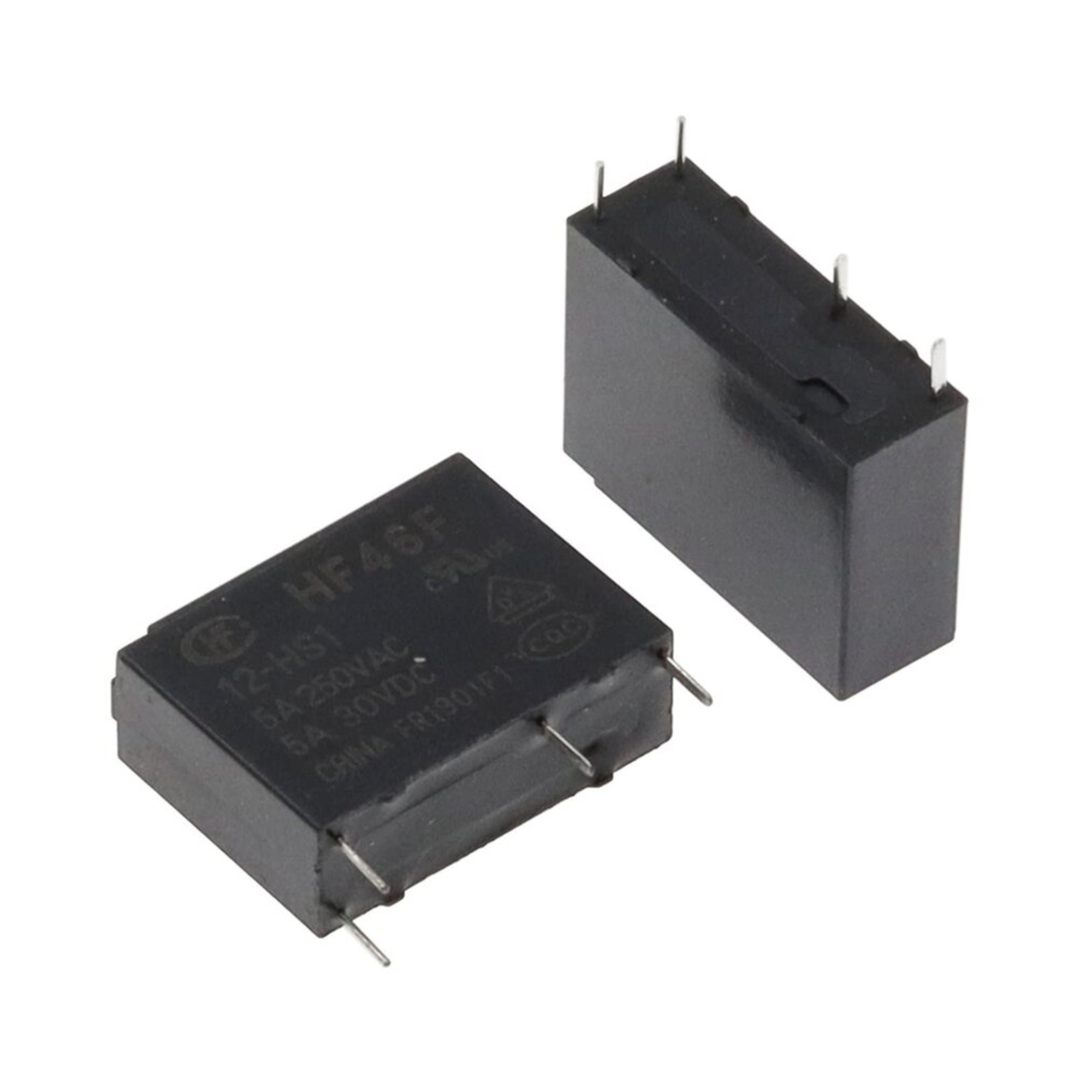

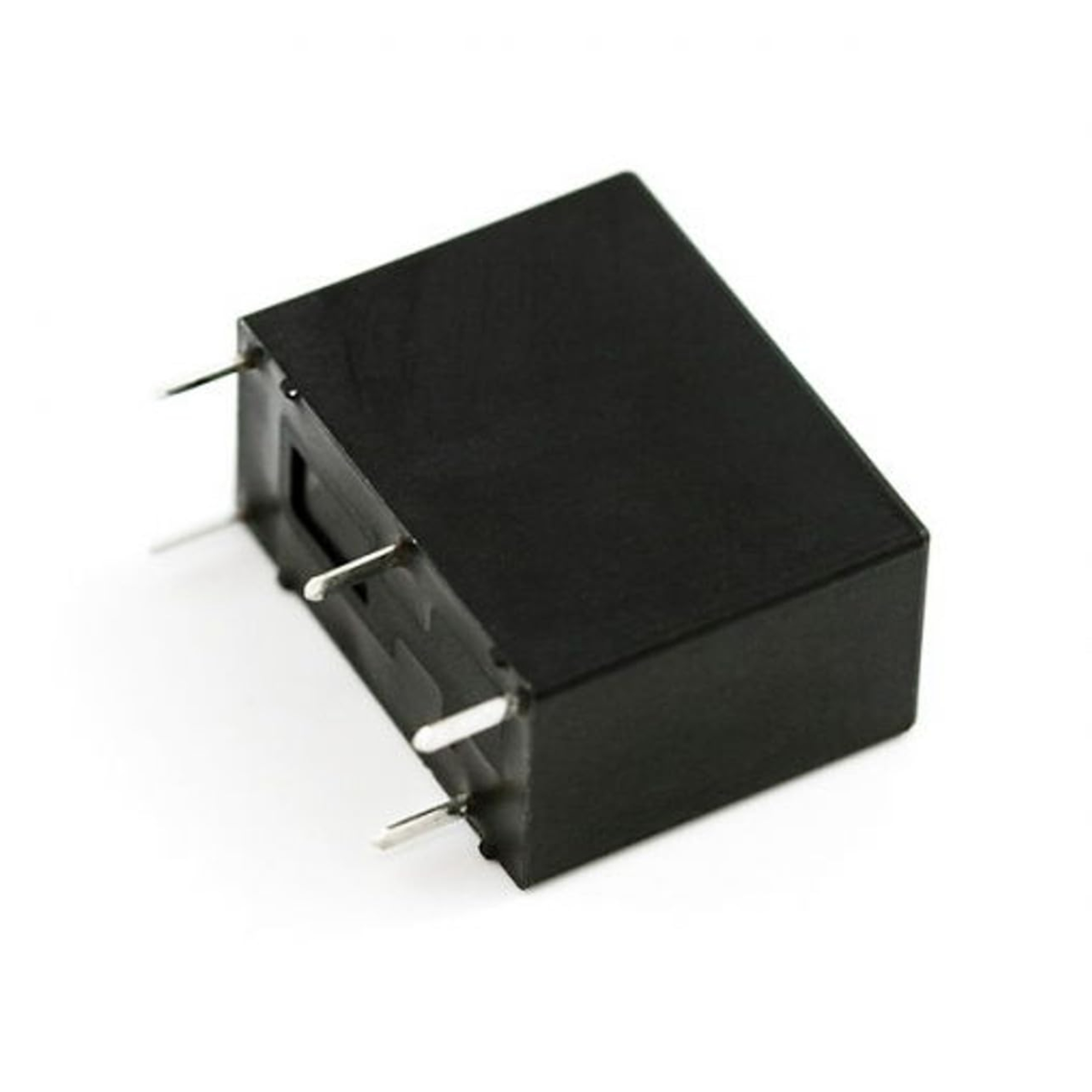

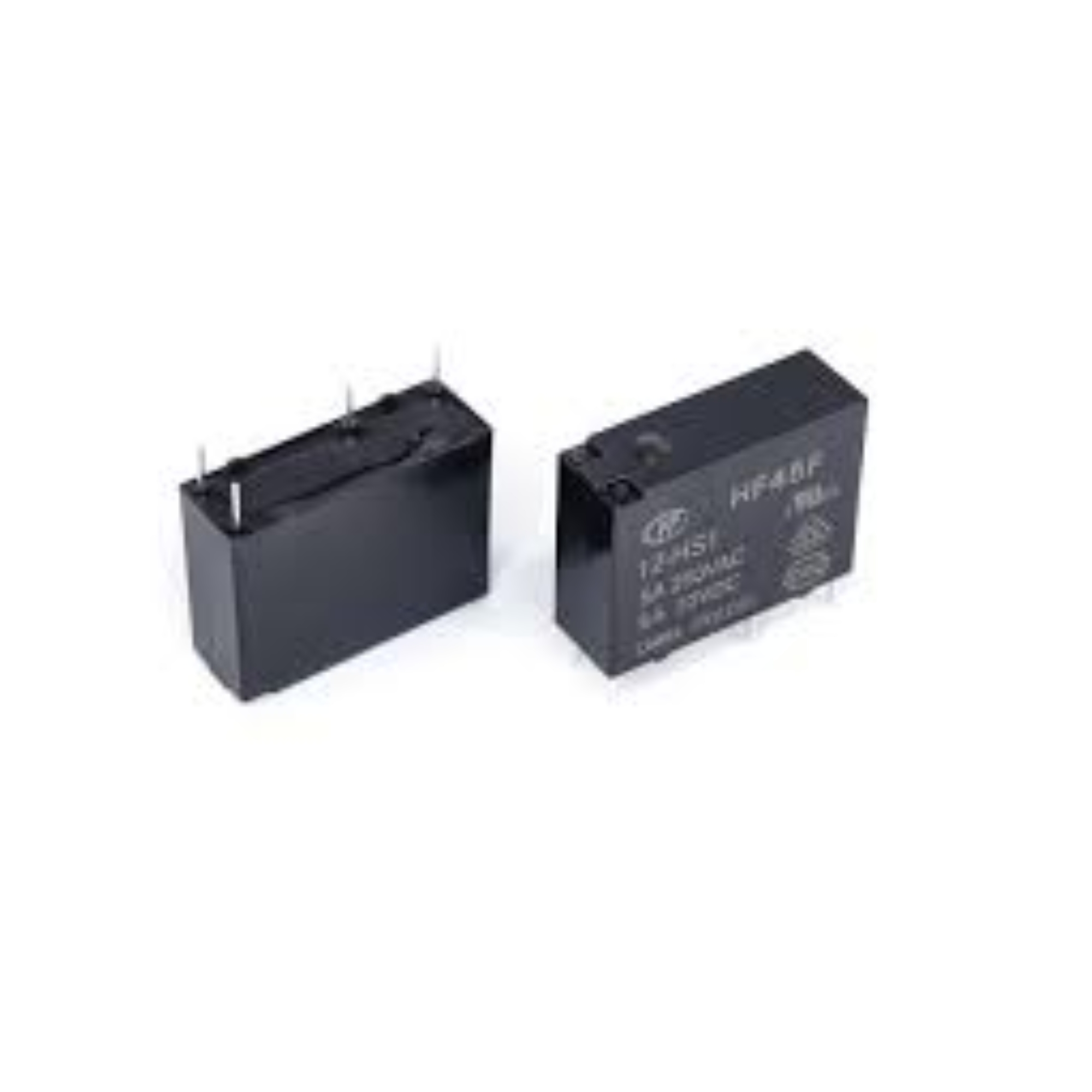

Hongfa HF46F Series 5A SPST 12VDC Sealed Subminiature Intermediate Power Relay
grade
Be the first to review
SKU: ANIL2004
content_copy
Brand:
Generic / Other
₹45.00
(Incl. 18.00% GST)
Excl. GST: ₹38.14
error
Currently Out of Stock
receipt_long
GST Invoice with ITC Claim
inventory
Wholesale & Volume Pricing
Click tier to auto-select
1 – 4 pcs
₹45.00
Regular
5 – 9 pcs
₹42.75
Save 5%
10+ pcs
₹40.50
Save 10%
Currently Out of Stock
This component is currently unavailable. Enter your email below to be notified as soon as new stock arrives!
pin_drop
Check Delivery & Shipping SLA
Free Shipping > ₹2,000
local_shipping
Dispatches in 24h
From Ahmedabad Hub
verified
100% Genuine Part
Tested & Quality Checked
receipt_long
GST B2B Invoice
Input Tax Credit Eligible
support_agent
7-Day Support
Easy Defect Replacement
memory Technical Parameters & Datasheet Summary
SKU: ANIL2004
Component Title
Hongfa HF46F Series 5A SPST 12VDC Sealed Subminiature Intermediate Power Relay
Part Number / SKU
ANIL2004
Brand / Manufacturer
Generic / Other
Category & Taxonomy
Switches and Relays
Applicable GST Rate
18.00% GST (Official GSTIN Invoice Provided with Input Tax Credit)
Packaging Protection
Anti-Static Moisture Barrier Shielding Bag (ESD Protected)
Dispatch Hub
Dispatches within 24 Hours from Ahmedabad Hub, Gujarat, India
Datasheet & Queries?
chat
Ask an Application Engineer on WhatsApp
Hongfa HF46F Series Subminiature Intermediate Power Relay (5A switching capability) has a highly efficient magnetic circuit for high sensitivity. HF46F/12-HS1 is a subminiature intermediate power relay. This relay’s coil...
Hongfa HF46F Series Subminiature Intermediate Power Relay (5A switching capability) has a highly efficient magnetic circuit for high sensitivity. HF46F/12-HS1 is a subminiature intermediate power relay. This relay’s coil is rated up to 12V. The contacts are rated up to 5A (@250VAC, 30VDC).
Features:
- 5A switching capability
- Meets VDE 0700, 0631 reinforce insulation
- Highly efficient magnetic circuit for high sensitivity: 200mW
- Extremely small footprint utilizing PCB area
Specifications:
- Brand: Hongfa
- Coil Voltage (DC): 12 V
- Contact Arrangement: 1 Form A
- Contact Current Rating: 5A
- Termination: PCB
- Mounting: PCB-THT
- Contact capacity: AgSnO2In2O3
- Insulation standard: Class B
- Dielectric strength (between coil & contacts): 4000VAC 1min
- Rated voltage: 250VAC
- Coil power: Approx 0.2W
- Operate time: < 10ms
- Release time: < 10ms
- Creepage Distance: 5mm
- Insulation resistance: 1000MOhm
- Max Switching Current (AC): 5AC
- Electrical Distance: 5mm
- Mechanical endurance: 5000000
- Ambient temperature: -40~85C
- Max Switching Voltage (VAC): 277VAC
- Weight: Aporox. 3g
- Max Switching Voltage (VDC): 30VDC
- Electrical endurance: 100000
- Size: 20.5x7x15.3mm
Package Includes:
- 1 x Hongfa HF46F Series 5A SPST 12VDC Sealed Subminiature Intermediate Power Relay
