STM8S 8L TSSOP20 Burning Testing Holder Downloader Offline Programmer

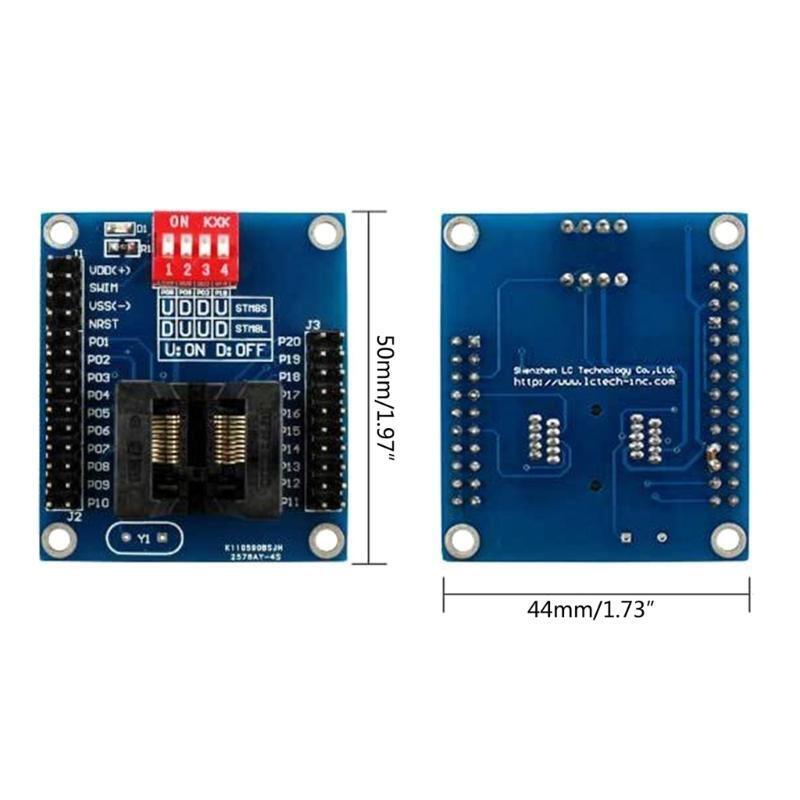

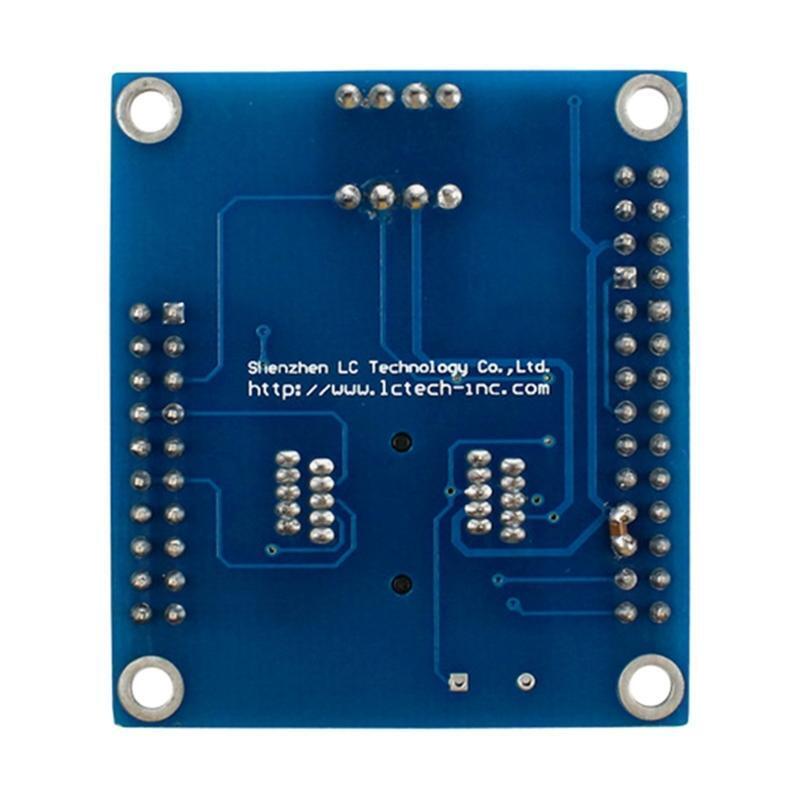

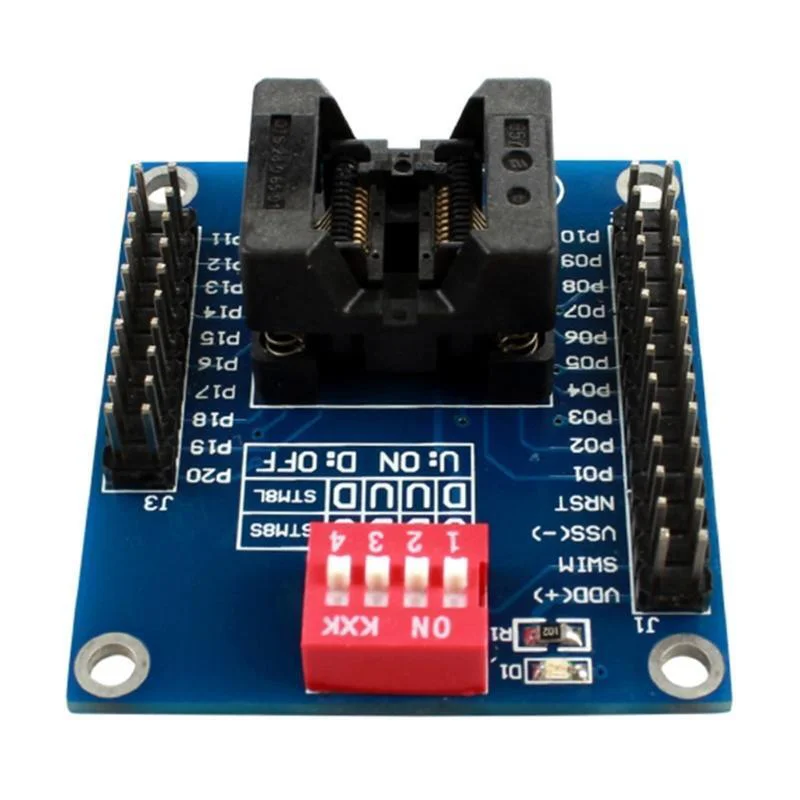

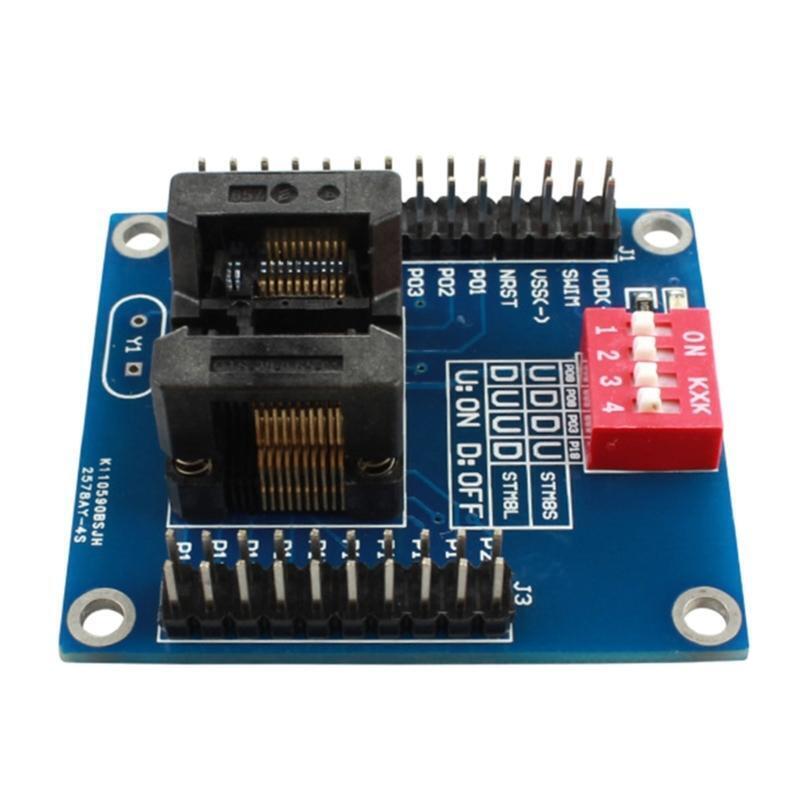

STM8S 8L TSSOP20 Burning Testing Holder Downloader Offline Programmer is a Imported gold-plated chip carrier, stable and reliable performance. It can package most of the TSSOP20 pin spacing of 0.65 mm STM8L and STM8S series chips of the burning, testing, operation, convenient and practical.

Features:

• The onboard high quality imported gold-plated chip carrier;
• By SWIM interface, directly related to type of chip test, burning;
• Crystals can be free replacement by the user;
• All I / 0 by 2.54 mm double row needle derivation, convenient for the user to build circuit;
• Through the selection of four dial the code switch STM8S or STM8L burning.

Instructions

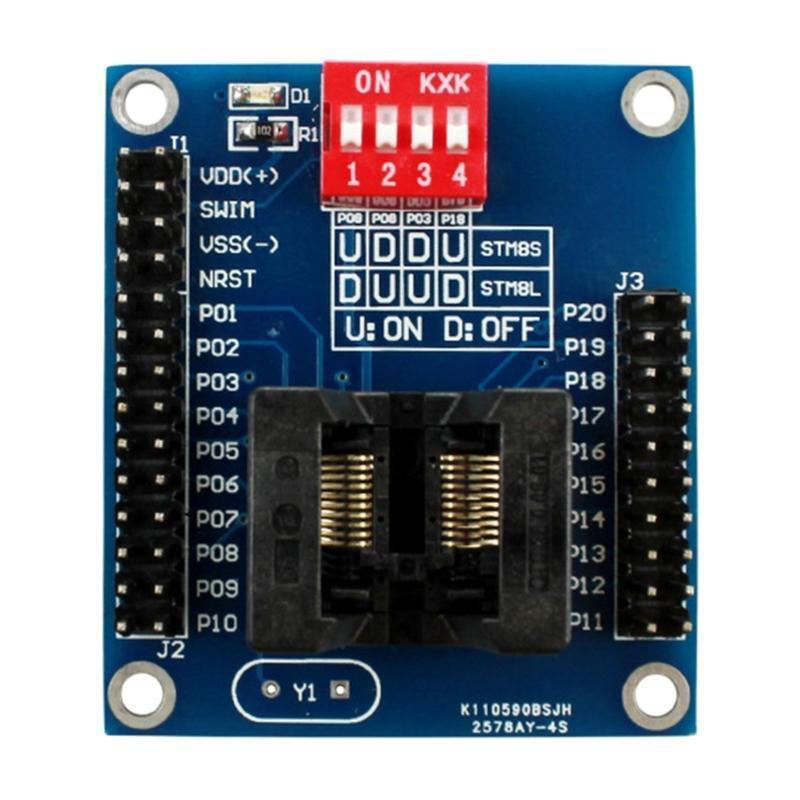

• Based on the chip to hit four dial the code switch into the corresponding location, chip for STM8S series, switch position for U D D U. Chip for STM8L series, switch position for D U U D, which U dial up, D represents to stir. The 3.3 V ,SWIM, GND, RST foot in ST-LINK respectively connect with VDD (+), SWIM, VSS (-), NRST foot of the board and then burning, support model for S003, S903, S103, L101, L151, L051 encapsulation for TSSOP20 STM8 series single chip microcomputer.

Package Includes:

• 1 x STM8S 8L TSSOP20 Burning Testing Holder Downloader Offline Programmer
