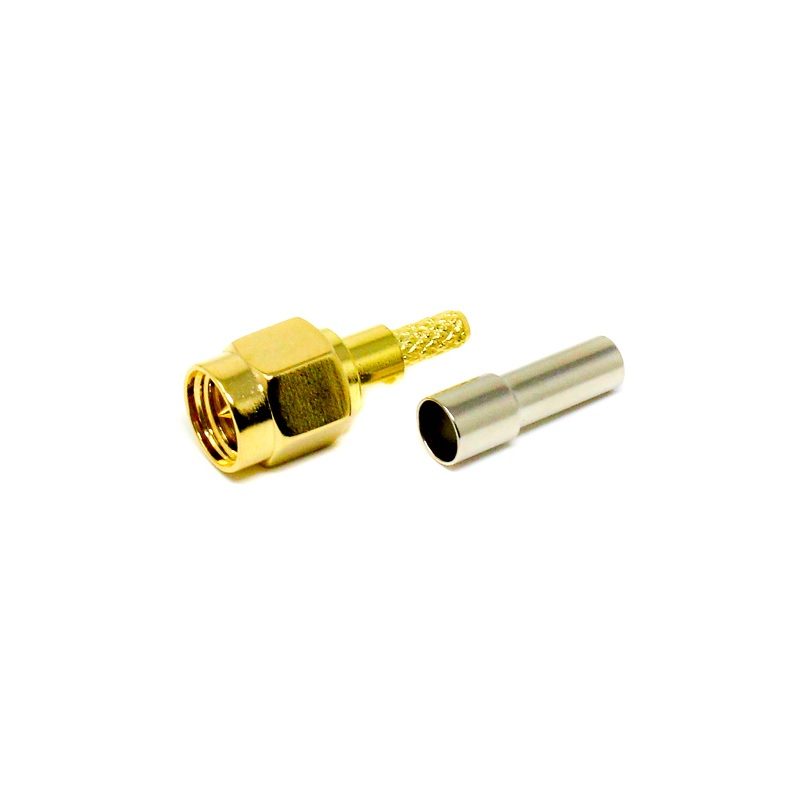

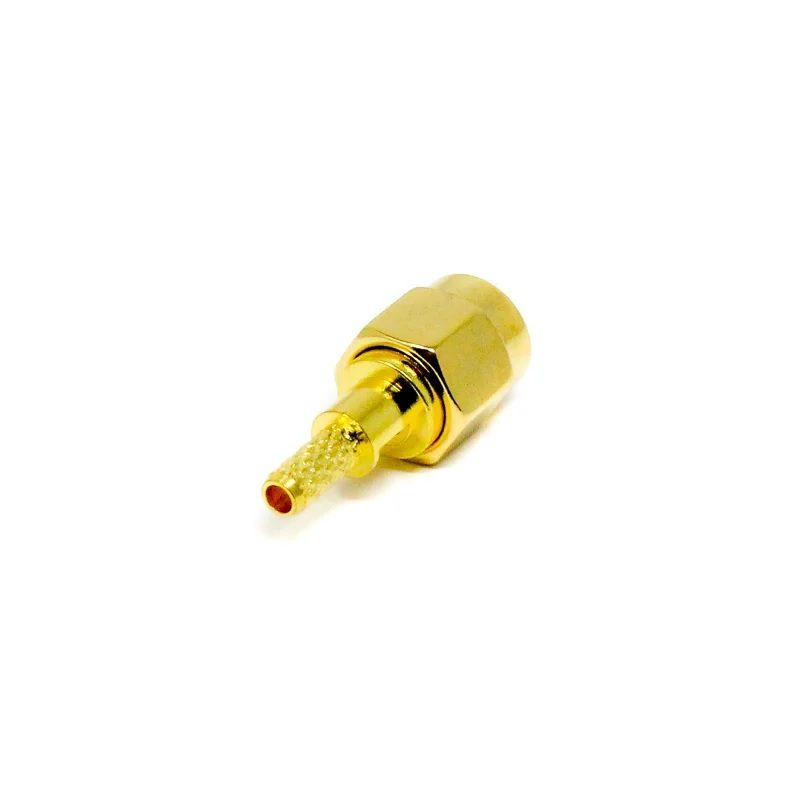

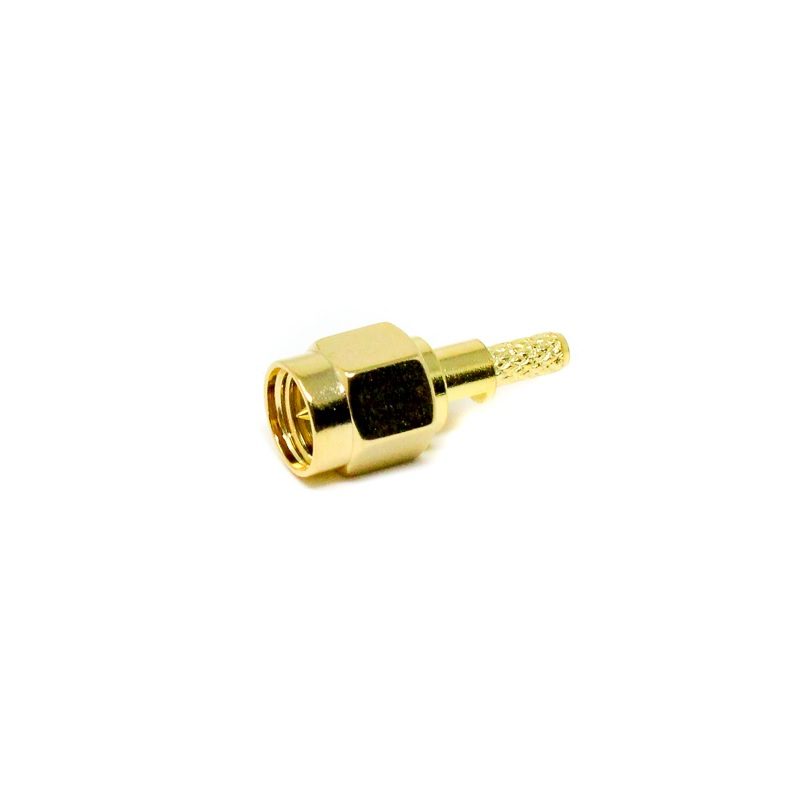

SMA Male Crimp Connector 180 Degree Plug Coaxial RF Connector

SMA Male Crimp Connector 180 Degree Plug Coaxial RF Connector are designed to match industry-standard 50 ohm and 75-ohm cables with longer life.  This RF connector is a miniature quick connect/disconnect radio frequency connector used for a wide range of applications like GPS and Network connectivity applications.

Features:

• SMA Connector, Male/Plug, Crimp Window Solder, Coaxial Cable;
• Excellent electrical performance up to 18GHz with low reflection;
• Thread type coupling mechanism ensure small loss and high security in compact design;

Specifications:

• Orientation: Straight
• Gender: Male
• Mounting Type: Cable
• Termination Style: Solder Type
• Mounting Feature: None
• Function: Other
• Polarity: Standard
• Body Material: Copper
• Body Plating: Gold Plating
• Impedance (Ω): 50
• Shield Termination: Crimp Window Solder

Characteristics:

Electrical Characteristics

• Impedance：50 ohm
• Frequency Range: 0~6 GHz
• VSWR: Straight type ≦ 1.3max / R/A type ≦ 1.5max
• Dielectric Withstanding Voltage:1000 V rms min for RG142, RG405
• 750 V rms min. for RG316, RG402
• 500v rms min. for RG178
• Working Voltage: 500 V rms max. for RG142, RG405
• 375 V rms max. for RG316, RG402
• 170 V rms max. for RG178
• Center Contact Resistance ≦ 6.0 mΩ  (Milliohms max.)
• Outer Contact Resistance ≦ 2.0 mΩ  (Milliohms max.)
• Insultation Resistance ≧ 5 x 10³ mΩ (Megohms min.)

Mechanical Characteristics

• Coupling: 1/4-36 thread
• Contact Retention: 15 in-lbs min.
• Coupling nut torque: 30 in-lbs. min.
• Durability(mating) ≧ 500 cycles (For Beryllium Copper Contact)

Environmental Characteristics

• Temperature Range: -55°C ~ +155°C
• Vibration: MIL-STD-202 Meth.204
• Corrosion resistance: MIL-STD-202 Meth. 101

Applications:

• Aerospace and Defense: Hand-held field Device and Instrumentation
• Medical: Instrumentation
• Commercial Vehicle: Bluetooth and GPS
• Telecommunications: Wireless Base Stations, Cellular Mobile System
• Data/Communications: Wi-Fi, WiMAX
• Industrial: Active and passive components, instrumentation, M2M Communications, Vehicle Tracking System

Package Includes:

• 1 x Coaxial Crimp SMA Male Connector for Cables
