7 Pin GX16 Male Female Panel Mount Circular Aviation Connector Plug Socket

7 Pin GX16 Male Female Panel Mount Circular Aviation Connector Plug Socket, also known as circular shell connector. It is a panel-mount type connector with a male end mounted on the panel and a female connector usually plugs into it. It is used in places where a watertight connection is required.

Features:

• Simple to install.
• Male is panel mountable and female is cable mountable.
• It has separate male and female pins.

Specifications:

• Color: Silver
• Connector Type: GX16
• Current Handling Capacity: 5A
• Gender: Male-Female Pair
• No. of Contact Points: 7
• Operating Temperature Range: -20°C to 85°C
• Plug Type: Aviator Plug
• Rated Operating Voltage: 250 V
• Material: Metal & Bakelite

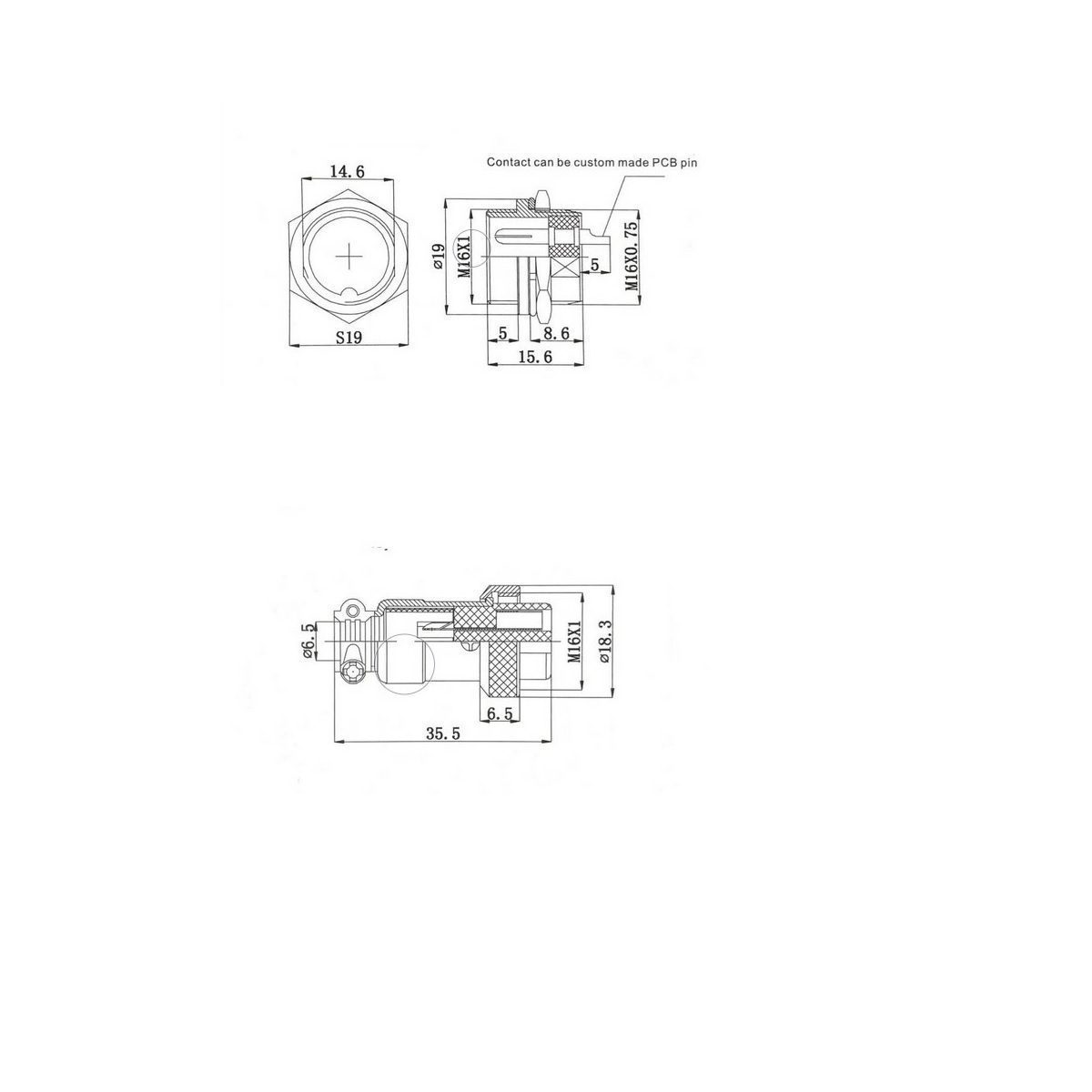

• Length: Male: 20.5mm, Female: 36mm
• Width: Male: 21mm (Body diameter), : Female: 17.5mm (Body diameter)


Applications:

• It is widely used in aviation, data acquisition systems, inclinometer, computer automation measurement and control systems,  audio/video, test and measurement, communications, etc.

Package Includes:

• 1 x 7 Pin GX16 Male Female Panel Mount Circular Aviation Connector GX16 Plug Socket
