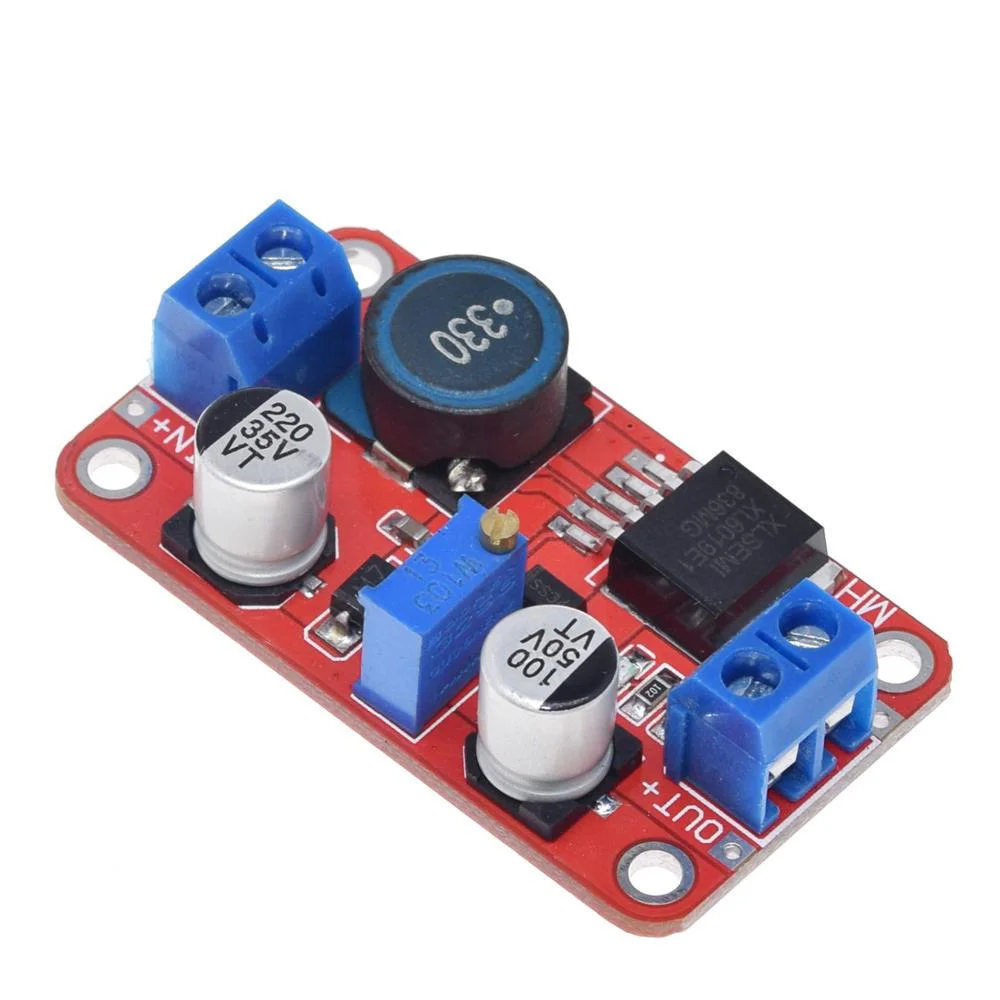

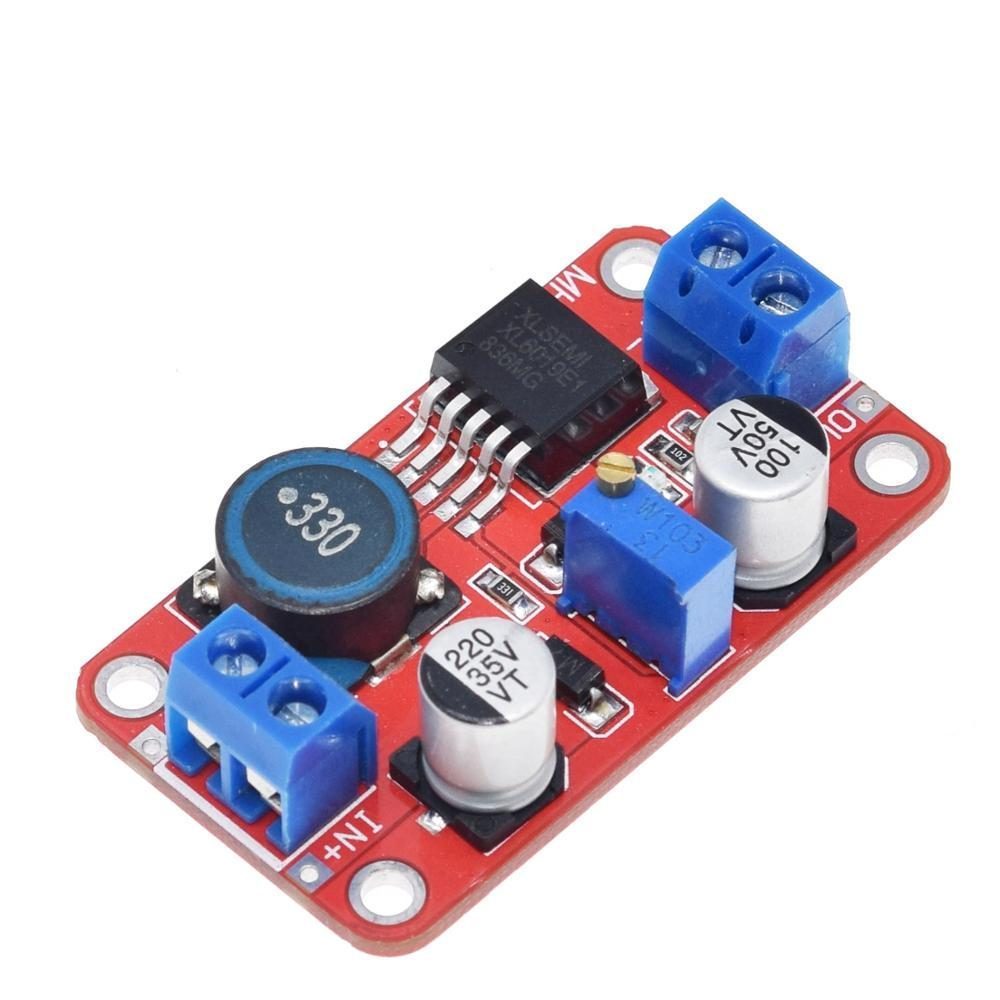

XL6019 DC-DC 5A Adjustable Boost Power Supply Module

XL6019 DC-DC 5A Adjustable Boost Power Supply Module is based on the upgraded XL-Semi XL-6019, offering up to 5A switching current and conversion efficiency of  up to 97%.

Features:

• With reverse connect protection, output 5V / 12V / 24V adjustable, beyond LM2577 performance. The built-in thermal protection, over-current protection reliability.
• Wide input voltage range, the input voltage up to 35V.
• Adjustable output voltage, maximum support 40V.
• The built-in thermal protection, over-current protection full reliability protection circuit, high reliability.
• System conversion efficiency can achieve 90% above, convenient thermal design.
• TO263-5 l standard packaging, suitable for booster application within 30W.

Specifications:

• Negative Output Voltage: DC 5-40V (Adjustable)
• Input Current: 5A (MAX)
• Input Voltage: DC 3-35 V Switching
• Frequency: 220 kHz
• Output ripple: 100mv (MAX)
• Load regulation: ± 0.5%
• Conversion efficiency: 94% (MAX)
• Working Temperature: Industrial (-40 ° C to + 85 ° C)

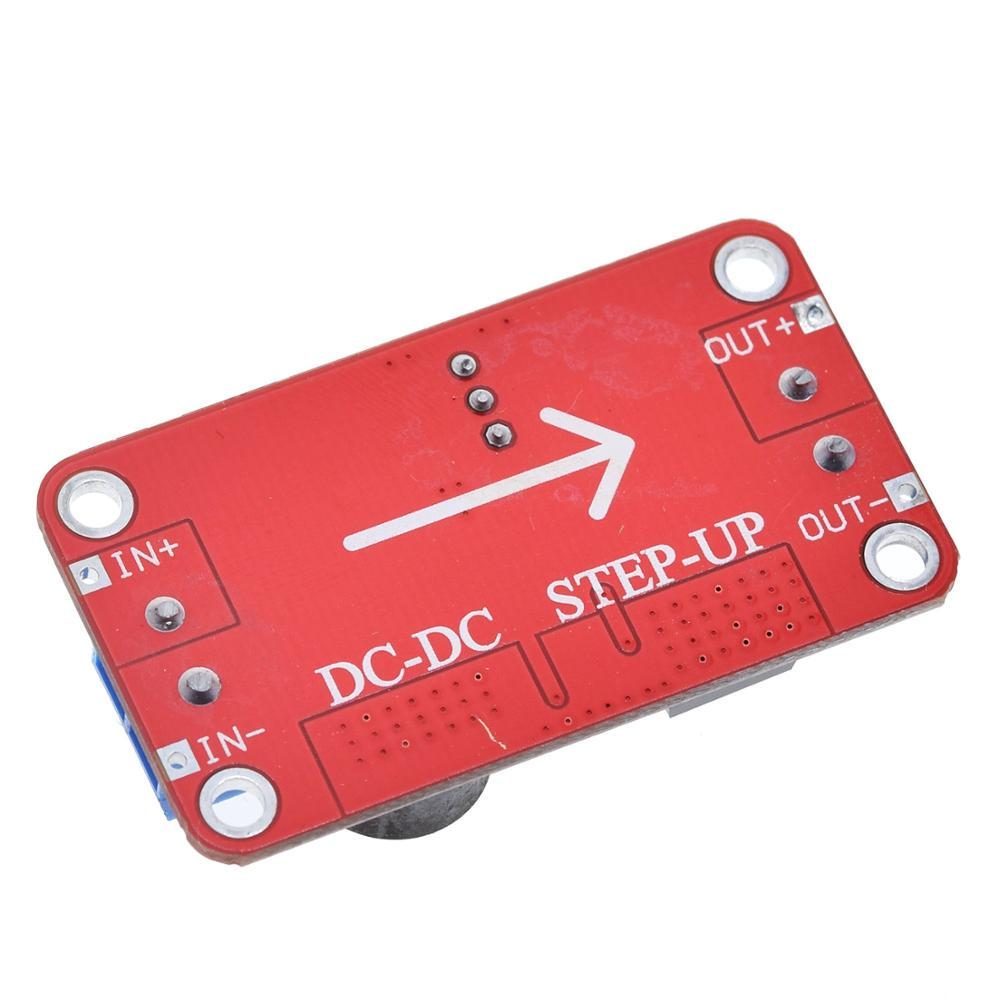

• Voltage regulation: ± 0.5% MS + -> Positive; IN —> Negative; OUT + -> Positive; OUT —>

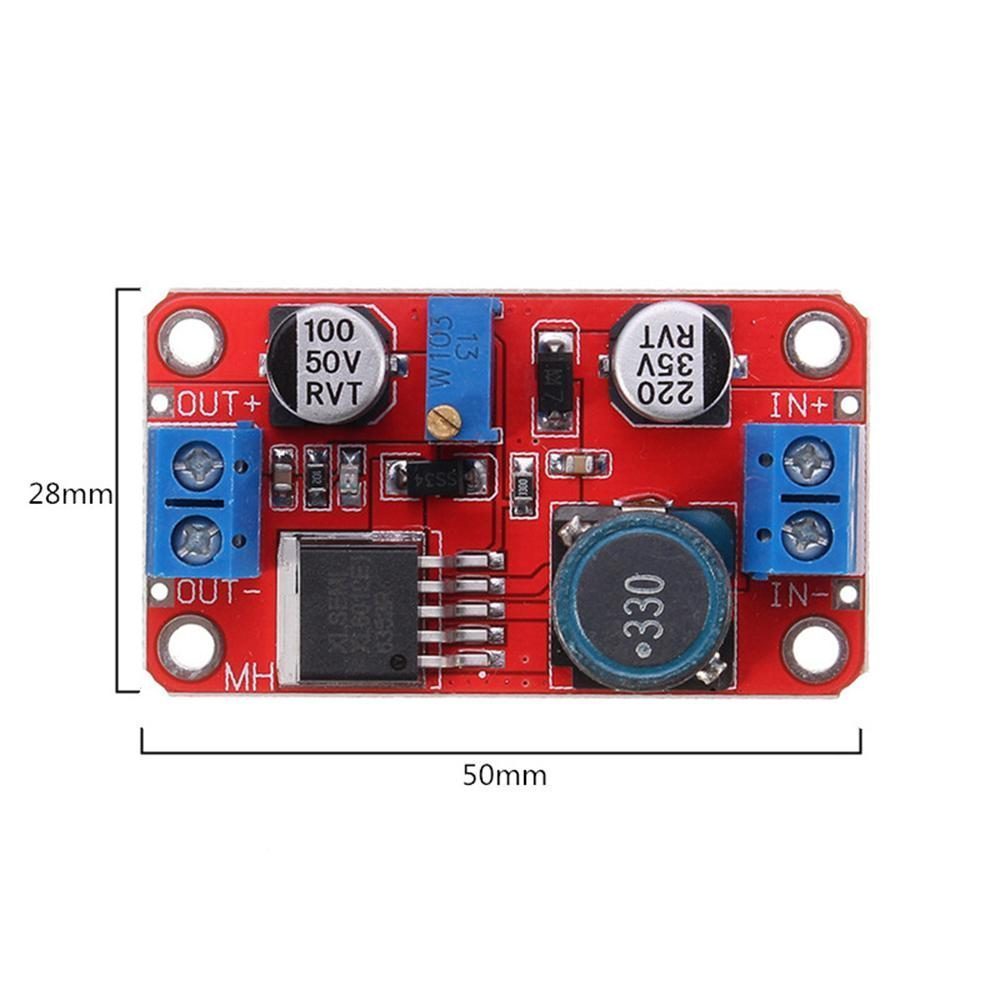

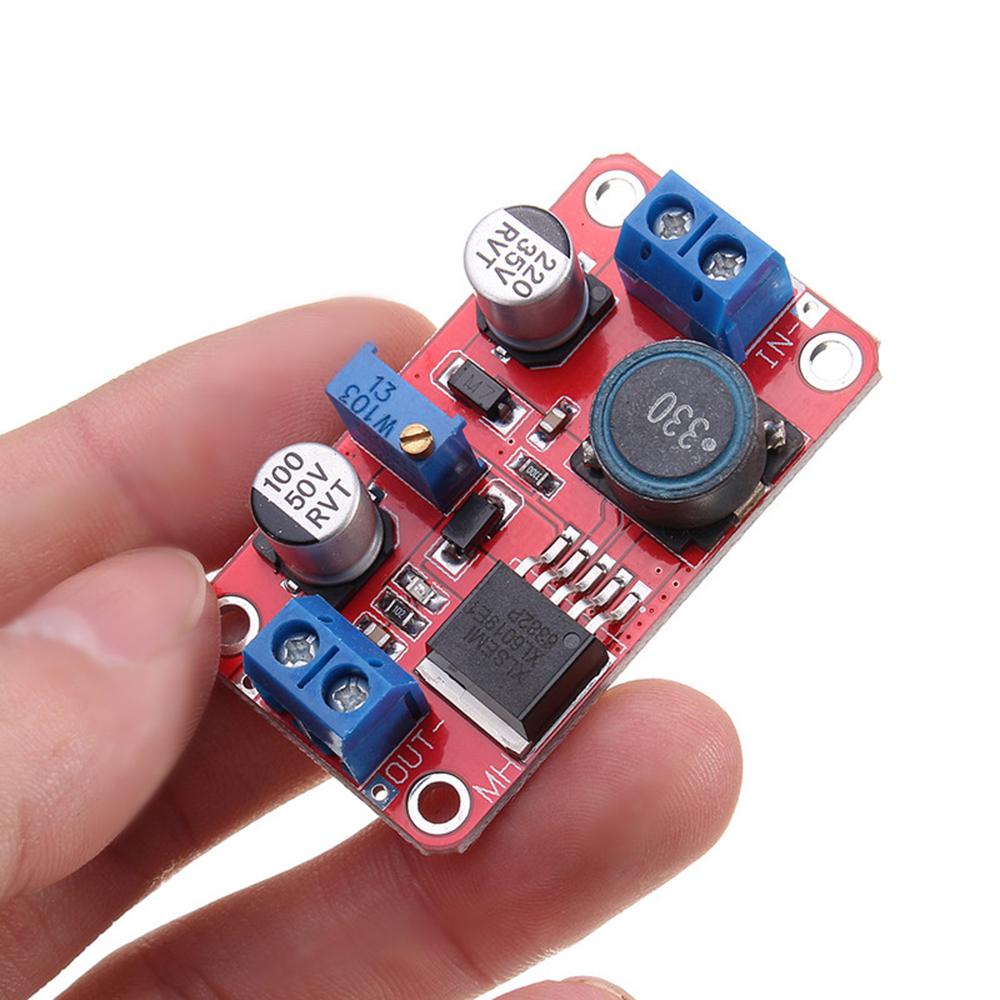

• Boost Module Size: Approx. 50 * 28 * 13mm (L * W * H)

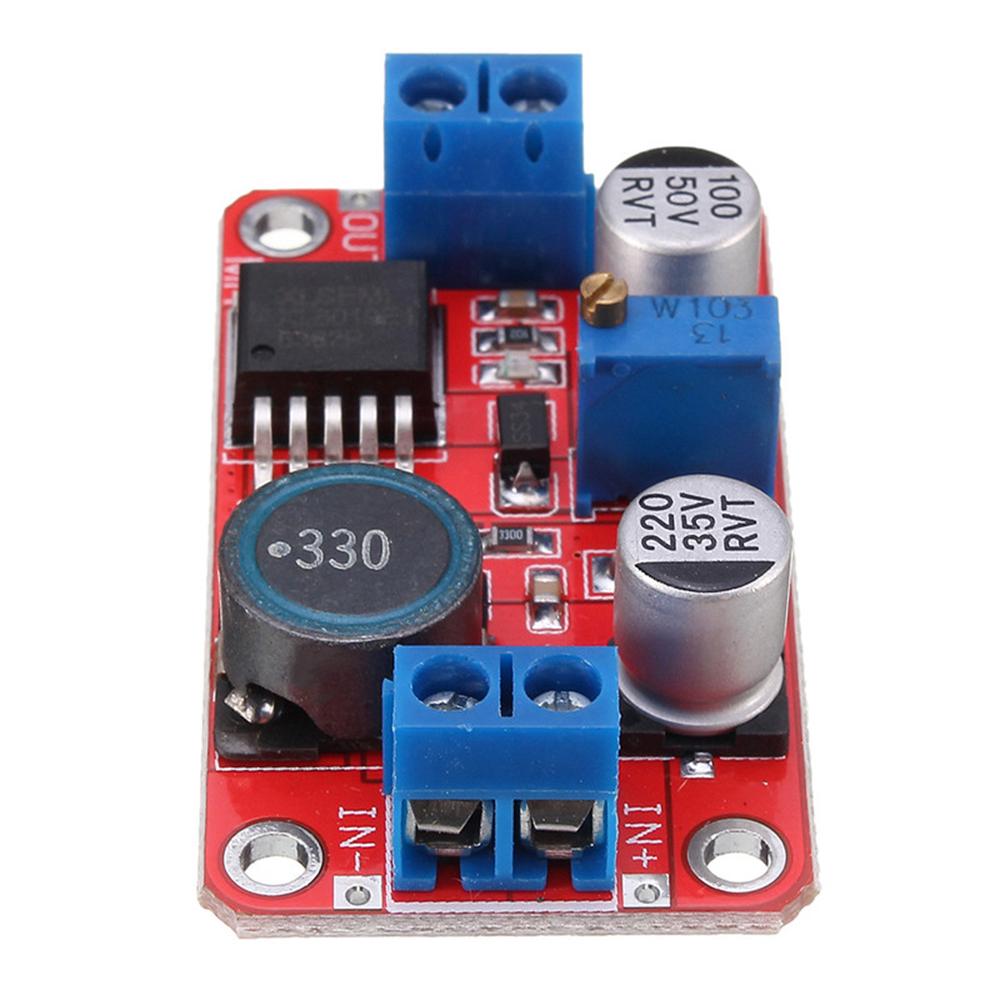

Instructions:

• Input and Output must be connected correctly
• Conventional Constant Voltage Output BOOST Fully Integrated Solutions, Integrated MOSFET, Fewer External Components, Smaller Cos System
• Built-in over temperature protection, full set overcurrent protection circuit reliability, high reliability
• Power (3-35 V), power indicator light, module is working properly.
• Adjust the blue knob of the potentiometer (counterclockwise general impulse, buck clockwise rotation) and with a multimeter to monitor the output voltage reaches the required voltage

Package Includes:

• 1 x XL6019 Module

Notes:

• Long hours working current is recommended for use at less than 2.5 M, while adding heatsink mass (10 W output above); Because it is boosting the module, in order to ensure stable output, please keep the minimum differential 1.5 V.
