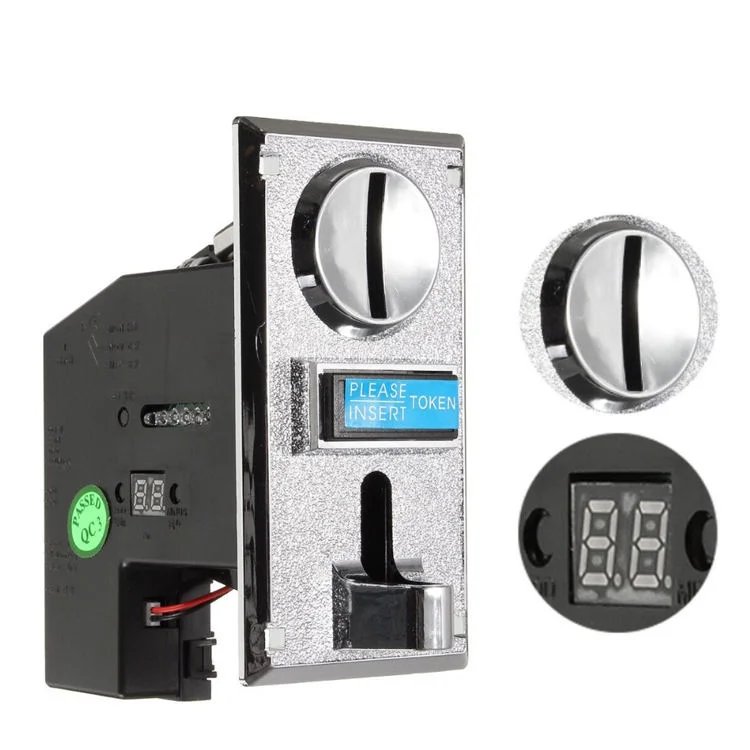

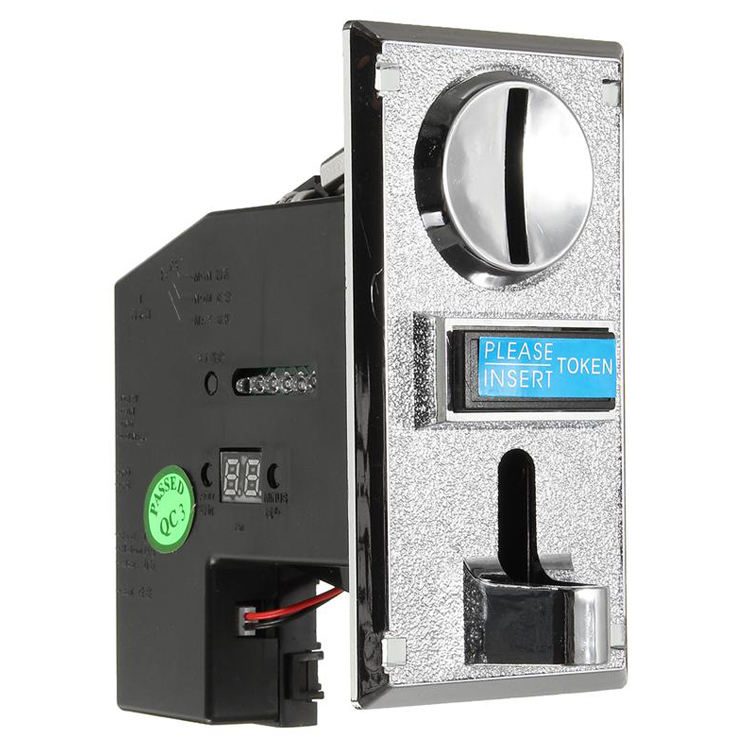

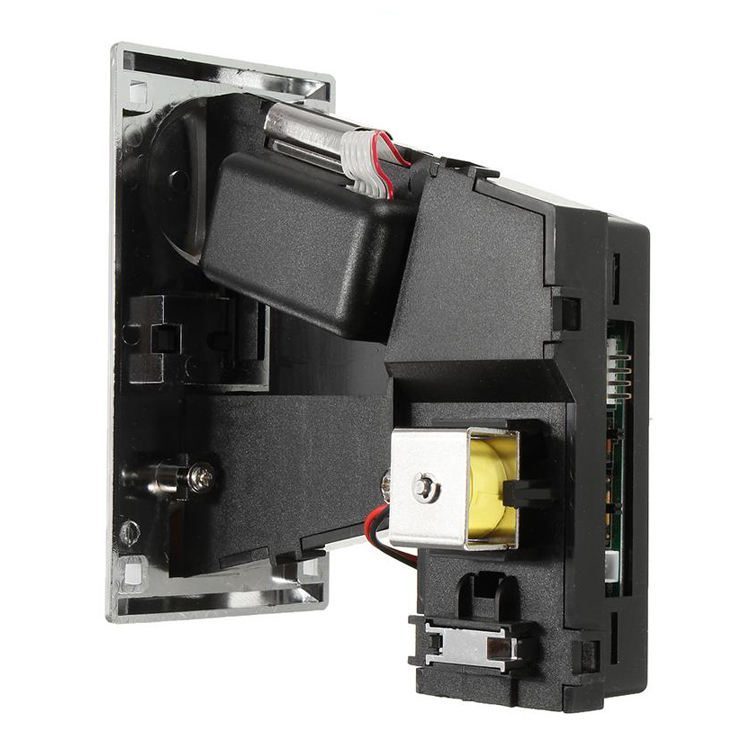

HX-916 Multi Coin Acceptor Programmable for Vending Machines

The HX-916 Multi Coin Acceptor Programmable for Vending Machines is compatible to be best fit in vending toy machine or vending food machines.

Features:

• The multi coin acceptor machine is capable of accepting upto 6 types of all worldwide Coins and Tokens.
• It is integrated with an intelligent CPU software control for high accuracy.
• It adapts self programming features.
• It prevents any electrical shocks and electromagnetic interference.

Specifications:

• Model Name/Number: HX 616
• Machine Type: Fully Automatic
• Coin Diameter: 20 – 30 mm
• Coin Thickness: 1.7 – 2.5 mm
• Working Voltage: DC 12V
• Working Current: 60 mA
• Work Temperature: -15 Degree C to +70 degree C
• Size: 66 x 150 x 133 mm (W x D x H)
• Number of Coins: 616 Coin

Steps to set-up multi coin acceptor:

• Pressing the setting key(8), and then you will see the letter E (choosing several currency system).
• After that you can press the accurate key or broaden key to increase or decrease the numerical value.
• After setting up, please press the setting key to confirm.
• Appearing the letter H (the quantity of sampling for various currency value).
• Appearing the letter P (the numerical value for signal output of various currency value).
• Appearing the letter F (the precision of various currency value).
• By parity of reasoning , setting is finished with your chosen currency.
• When the letter E is shown, please turn off the power and it will reopen again.

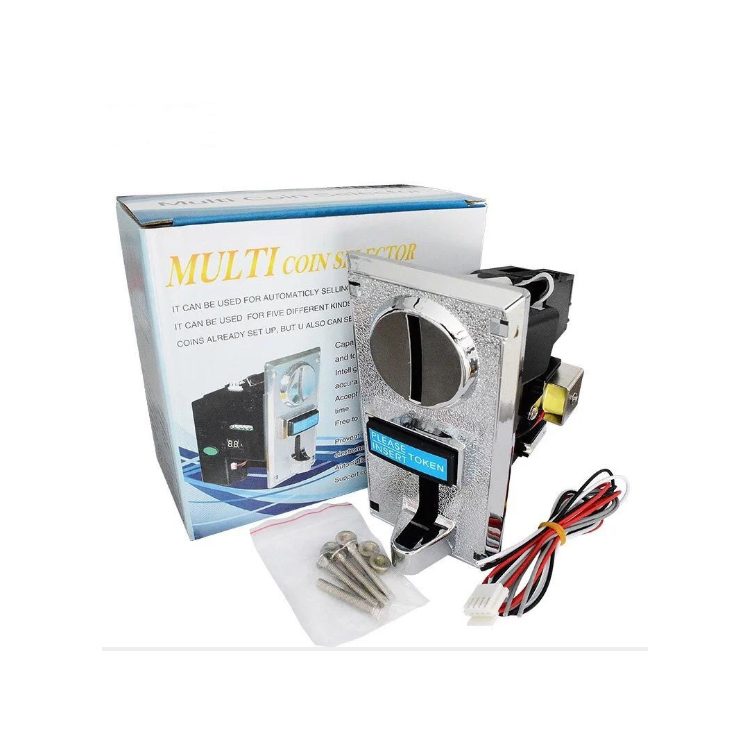

Package Includes:

• 1 x Multi Coin Acceptor Programable for Vending Machines
