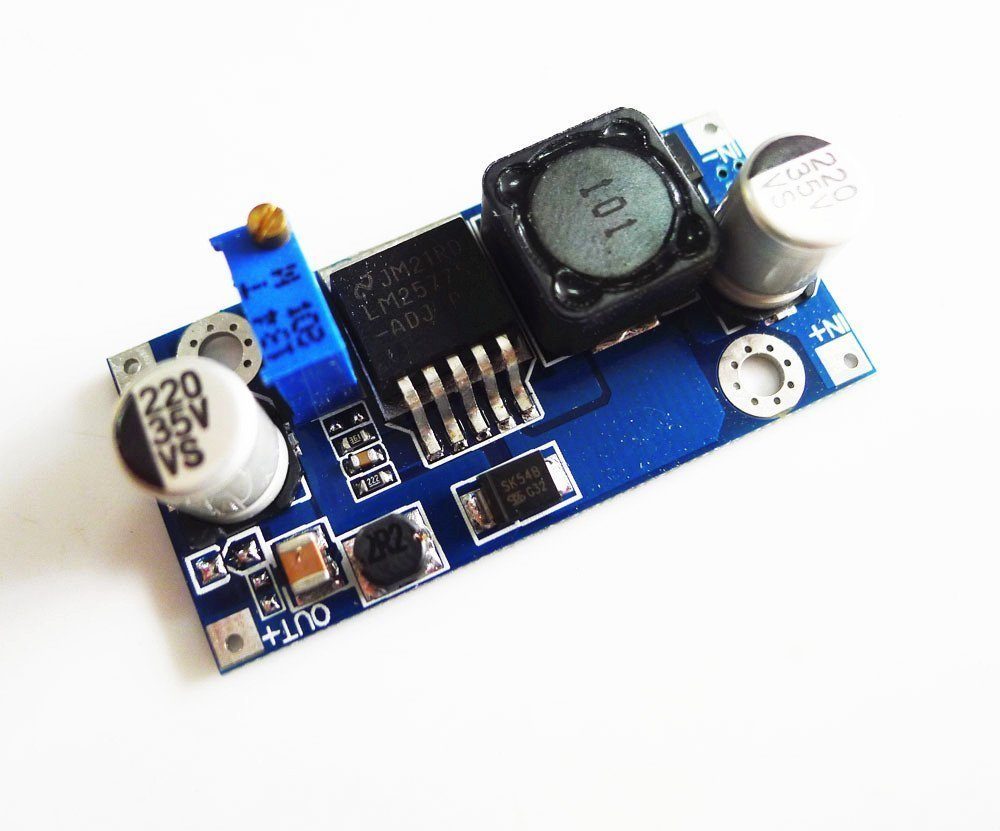

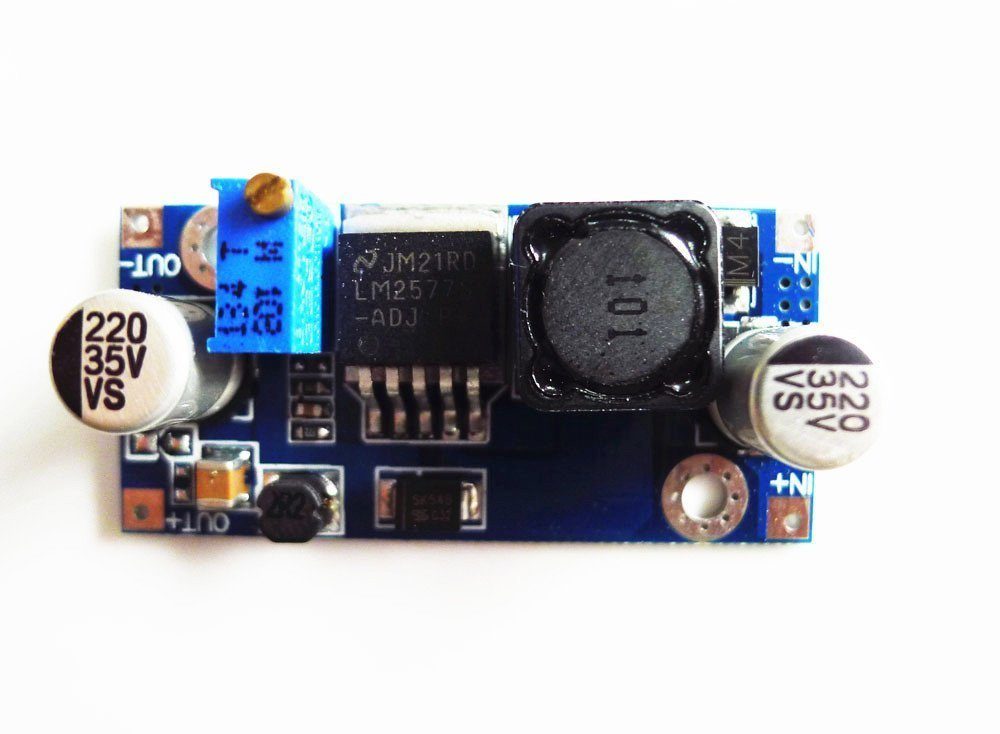

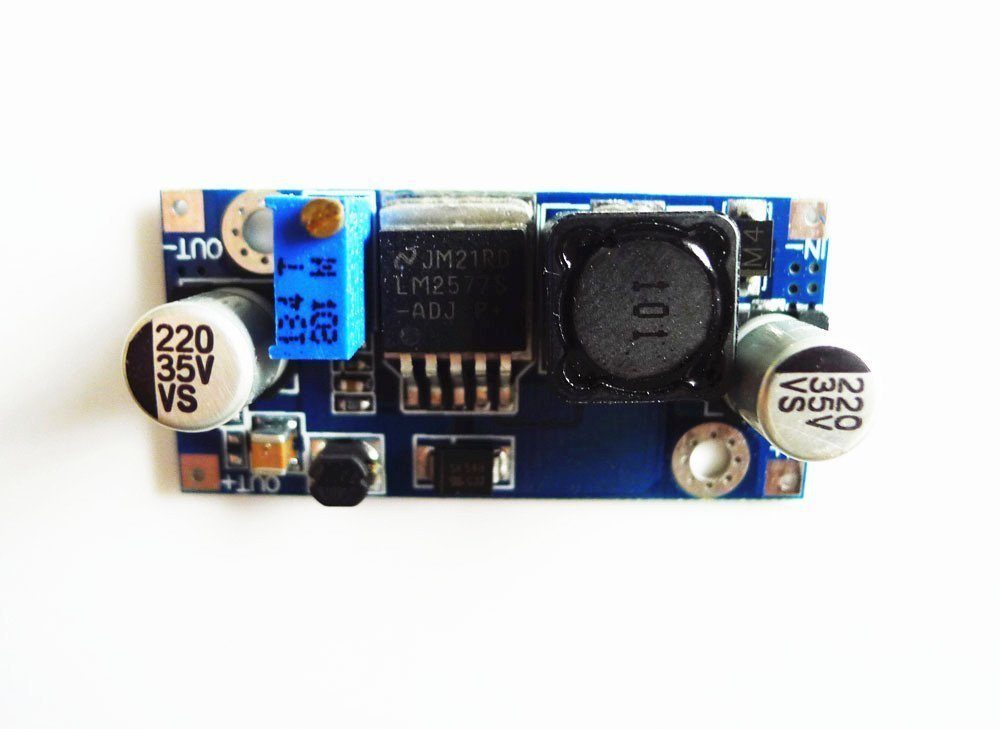

LM2577 DC-DC Step-Up Power Converter Module

LM2577 DC-DC Step-Up Power Converter Module is a switching regulator, adjustable +1.25 to 30vdc output, up to 3A.  The LM2577 is really designed to step up +5 to 10vdc to +12vdc at < 1A.  The maximum step-up voltage and current available depends on the input voltage, so if you input +5vdc you could expect to get 12vdc output at  < 1A.

Ideal for battery-operated projects requiring a regulated power supply. It has a low output ripple due to extra filtering. It has an Adjustable Power Supply Step-up Module, maximum input current 3A, the highest conversion efficiency 92%. It very suitable for DIY a mobile power, Boost charger.

Features:

• Wide Input voltage: 3.5V-35V
• Output Voltage: 4-35V (Adjustable)
• Output current: rated current 3A MAX ( Heat-sink Needed)
• Conversion efficiency: Up to 92% (output voltage higher, the higher the efficiency)
• Switching Frequency: 50KHz
• Rectifier: Non-Synchronous Rectification
• Short circuit protection: current limiting, since the recovery
• High-quality PCB FR4 Grade with FPT Certified

Specifications:

• Wide Input voltage: 3.5V-35V
• Output Voltage: 4-35V
• Output current: Rated current 3A MAX
• Conversion efficiency: Up to 92%
• Switching Frequency: 50KHz
• Operating temperature: -40 to +85 C
• Load regulation: ± 0.5%
• Voltage regulation: ± 0.5%
• Length(mm): 52
• Width(mm): 22
• Height(mm): 20
• Weight(g): 13

Package Includes:

• 1 x LM2577 DC-DC Step-Up Power Converter Module
