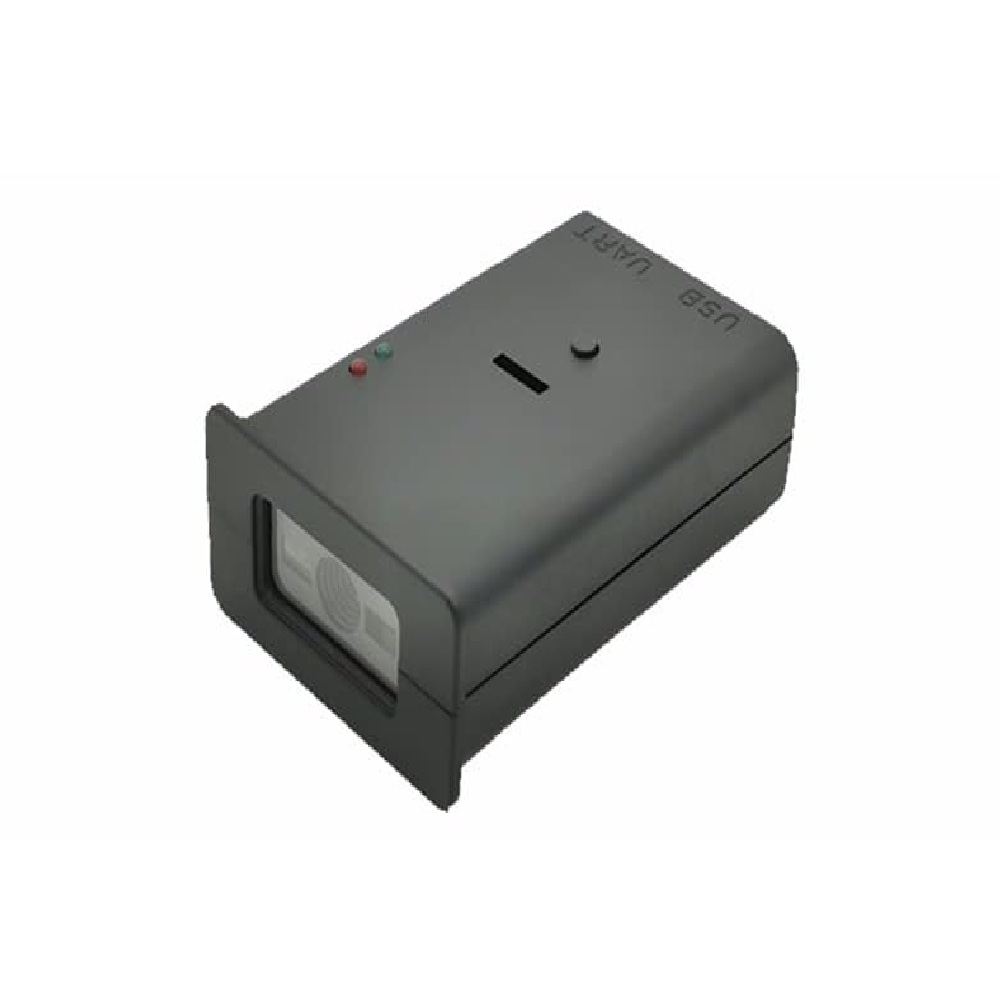

GROW GM66 1D 2D Barcode Scanner Module with USB & UART Interface

The GROW GM66 1D 2D Barcode Scanner Module is a high-performance, compact scanner capable of reading both 1D and 2D barcodes, including QR codes, with rapid and accurate decoding. Equipped with USB 2.0 and UART interfaces, it offers seamless connectivity and easy integration into various applications.

It has advanced image recognition algorithm ensures stable operation in different lighting and temperature conditions, making it an ideal solution for retail, logistics, industrial automation, and inventory management tasks.

Features:

• Supports scanning of both 1D and 2D barcodes
• High resolution scanning at 0.10mm (4mil) precision
• Dual interface support: USB 2.0 and UART
• LED illumination with 617nm LED aimer and 6500K white LEDs for optimal visibility
• Buzzer and bi-color LED indicator for scanning status feedback
• Compact and lightweight design (31g) with dimensions 62.3 x 42.5 x 24.5 mm
• Wide operating temperature range (-20°C to 55°C) and storage temperature (-40°C to 65°C)
• Over 180 configurable settings for customization including macros and programmable outputs
• Capable of scanning barcodes on paper, labels, mobile screens, and computers
• Fast read speed with stable performance even under low light or extreme conditions

Specifications:

• Model: Grow GM66
• Type: 1D 2D Barcode Reader Module

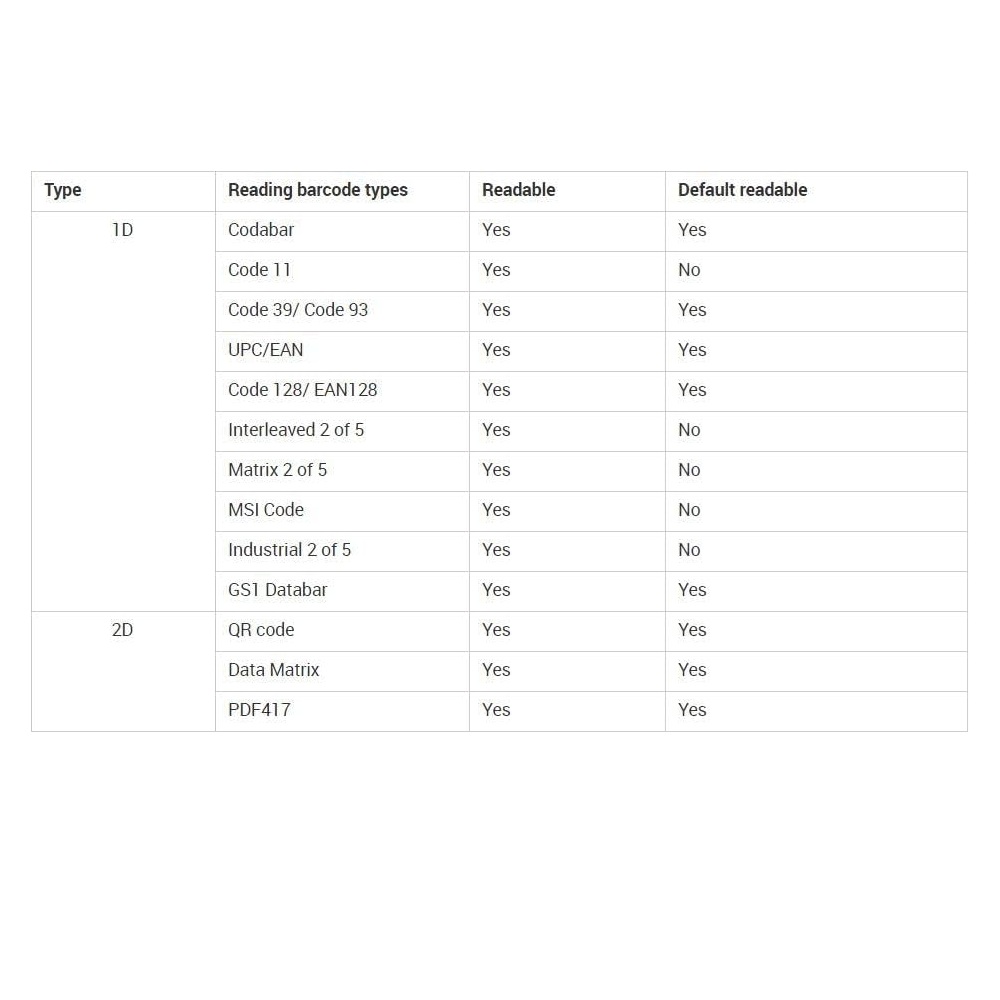

• Decoding Ability: 1D- EAN-8, EAN-13, UPC-A, UPC-E, Code 39, Code 93, Code 128, EAN128, Codebar, Industrial 2 of 5, Interleave 2 of 5, Matrix 2 of 5, MSI, Postal Code, etc.
  text, 2D: PDF417, QR Code, Data Matrix, etc.

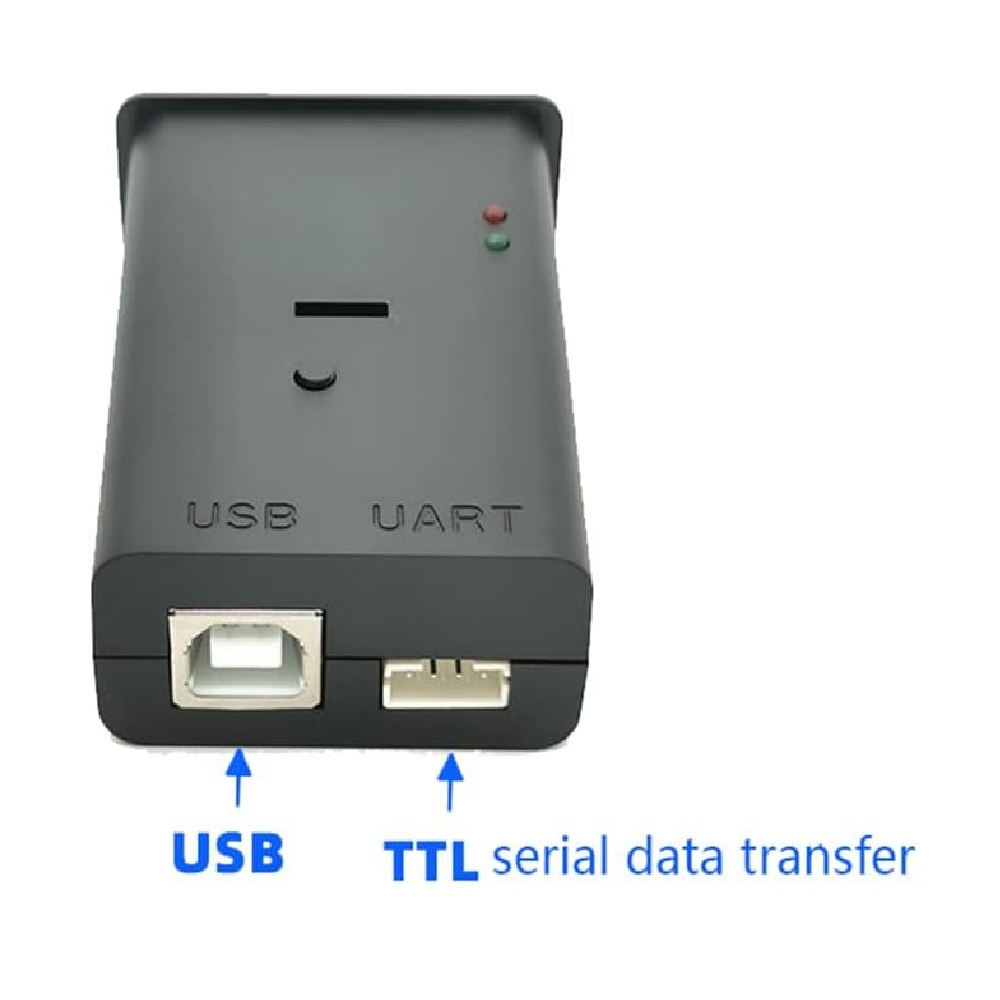

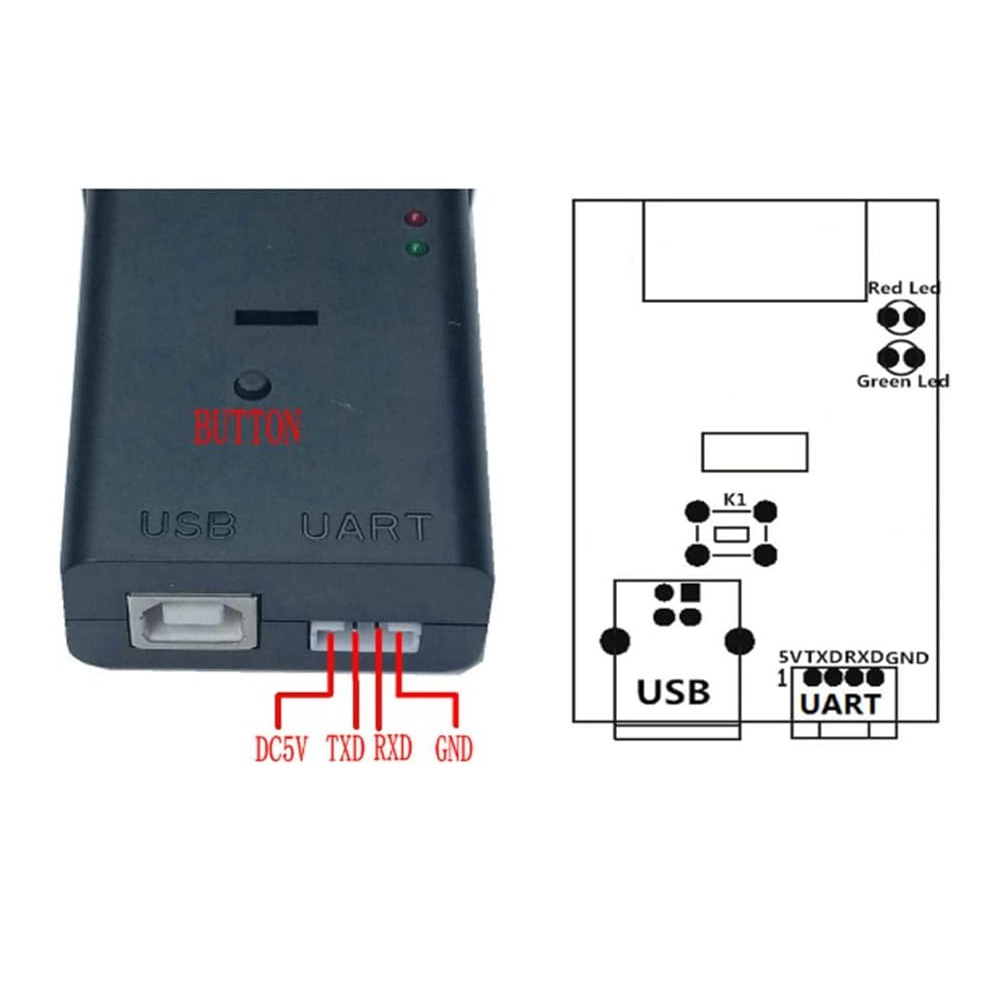

• Interface: USB 2.0, UART
• Resolution: 0.10 mm (4 mil)
• Operating Voltage: 5V DC
• Operating Current: 120mA
• Illuminant: 617nm LED (Aimer), 6500K LEDs (Illumination)
• LED Indicator: Buzzer and Bi-color LED (Red – Power, Blue – Scan Success)
• Scan Angle: Roll: 0-360°, Pitch: ±65°, Yaw: ±60°
• Scanning Angle: Inclination 34°, Elevation 26°
• Print Contrast: Minimum 30% reflective difference
• Reading Distance: 25 – 250 mm
• Weight: 31 g

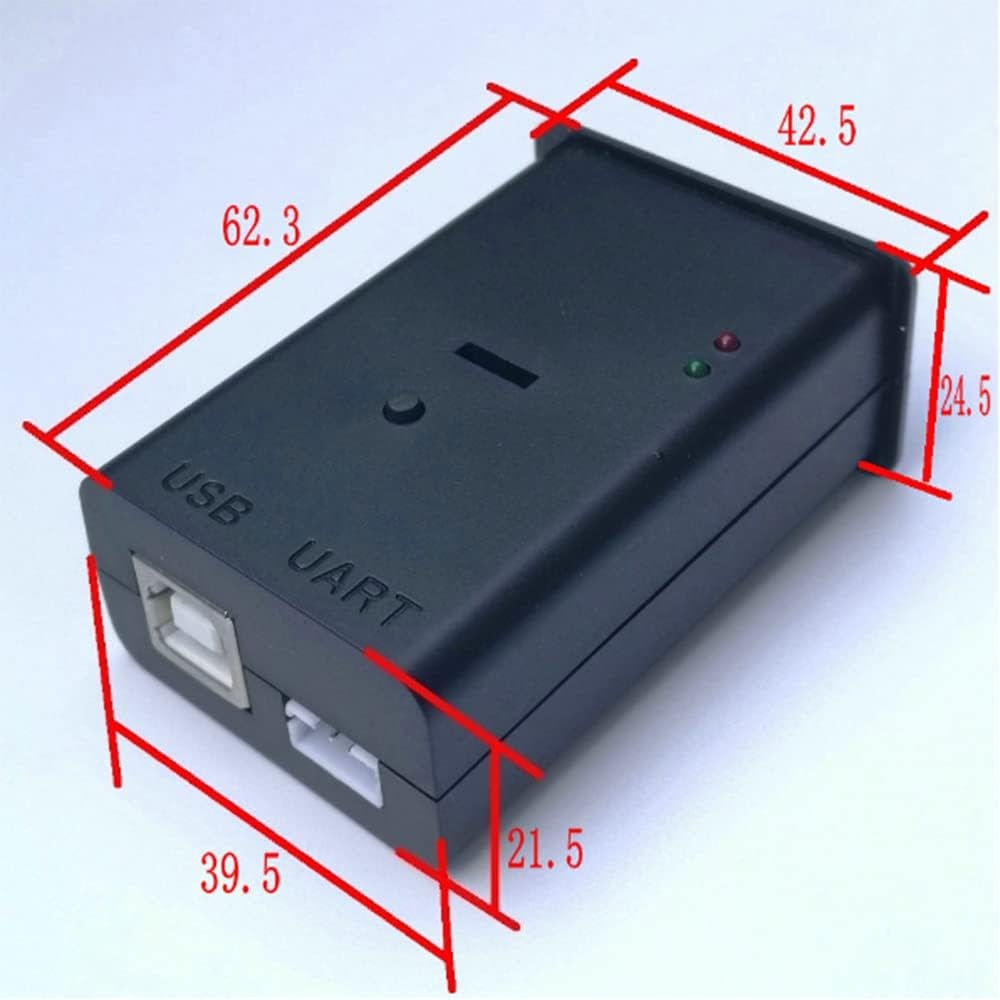

• Dimensions: 62.3 x 42.5 x 24.5 mm

Application:

• Retail point of sale systems
• Warehouse and logistics management
• Inventory tracking and control
• Access control and ticketing systems
• Asset management and industrial automation
• Mobile device barcode scanning

Package Includes:

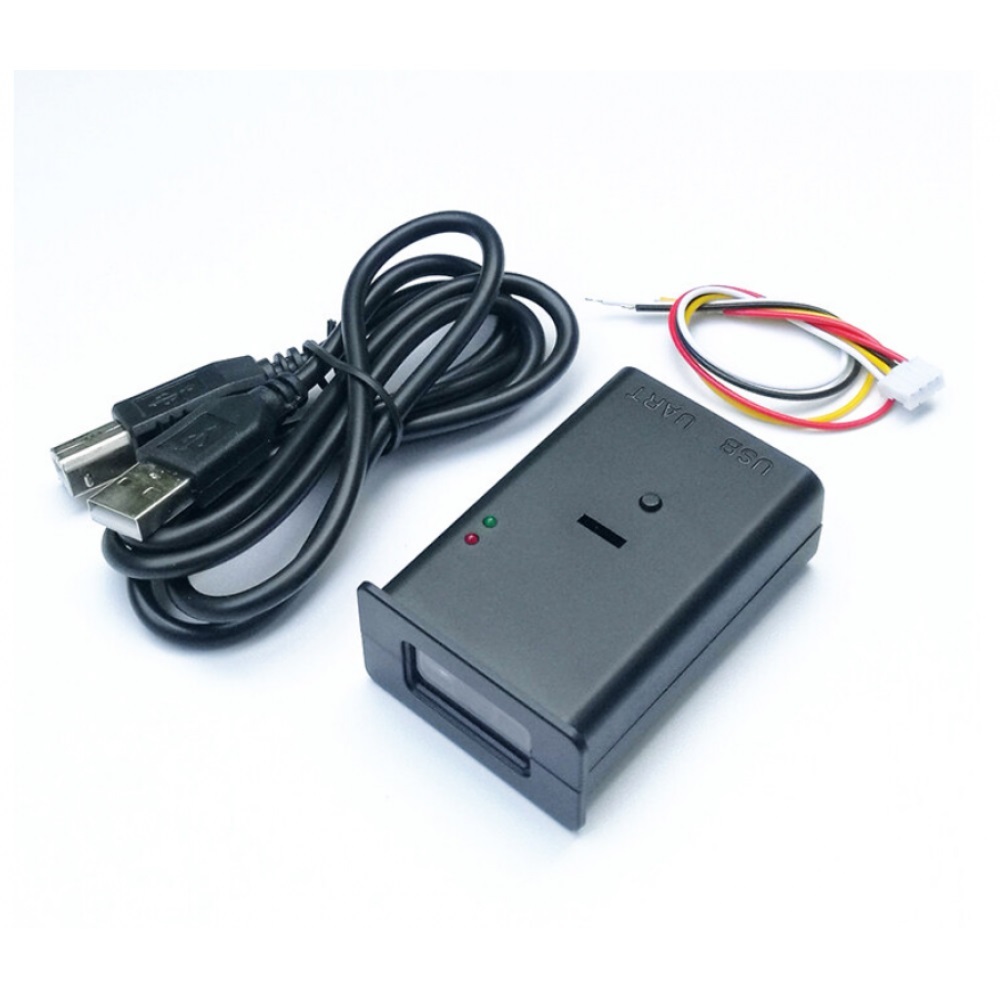

• 1 x GROW GM66 1D 2D Barcode Scanner Module

Useful Links:

• GROW GM66 Barcode Scanner Module User Manual
