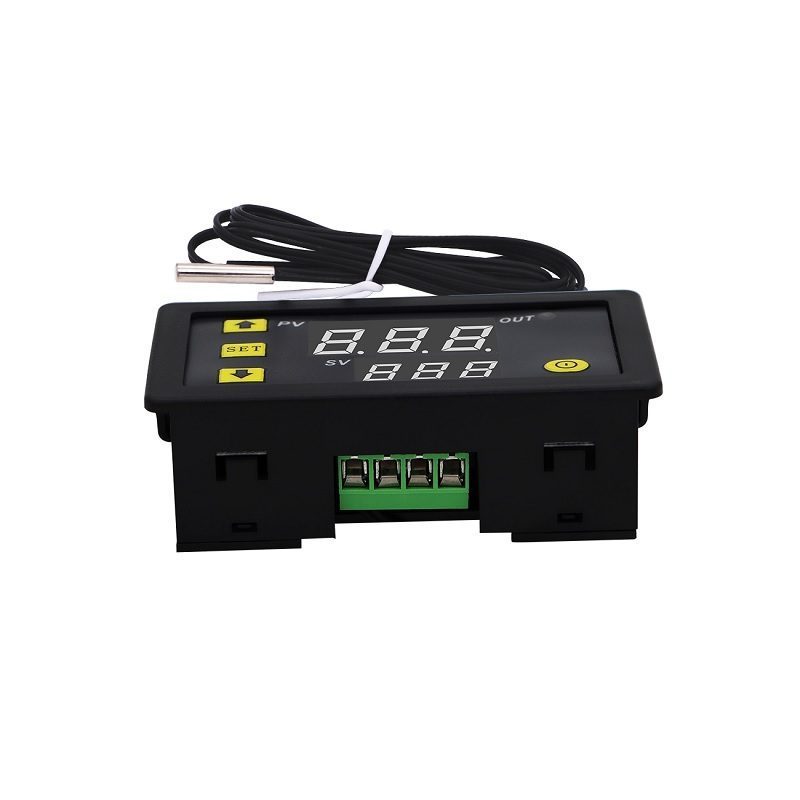

W3230 DC12V Digital Temperature Controller Microcomputer Thermostat Switch

This W3230 Digital Temperature Controller Microcomputer Thermostat Switch features an NTC 10K waterproof temperature sensor. When the temperature of the object reaches a certain set temperature at that time the microcomputer switches on the relay, in turn switching on the device connected to the output terminals.

Features:

• Mini temperature controller.

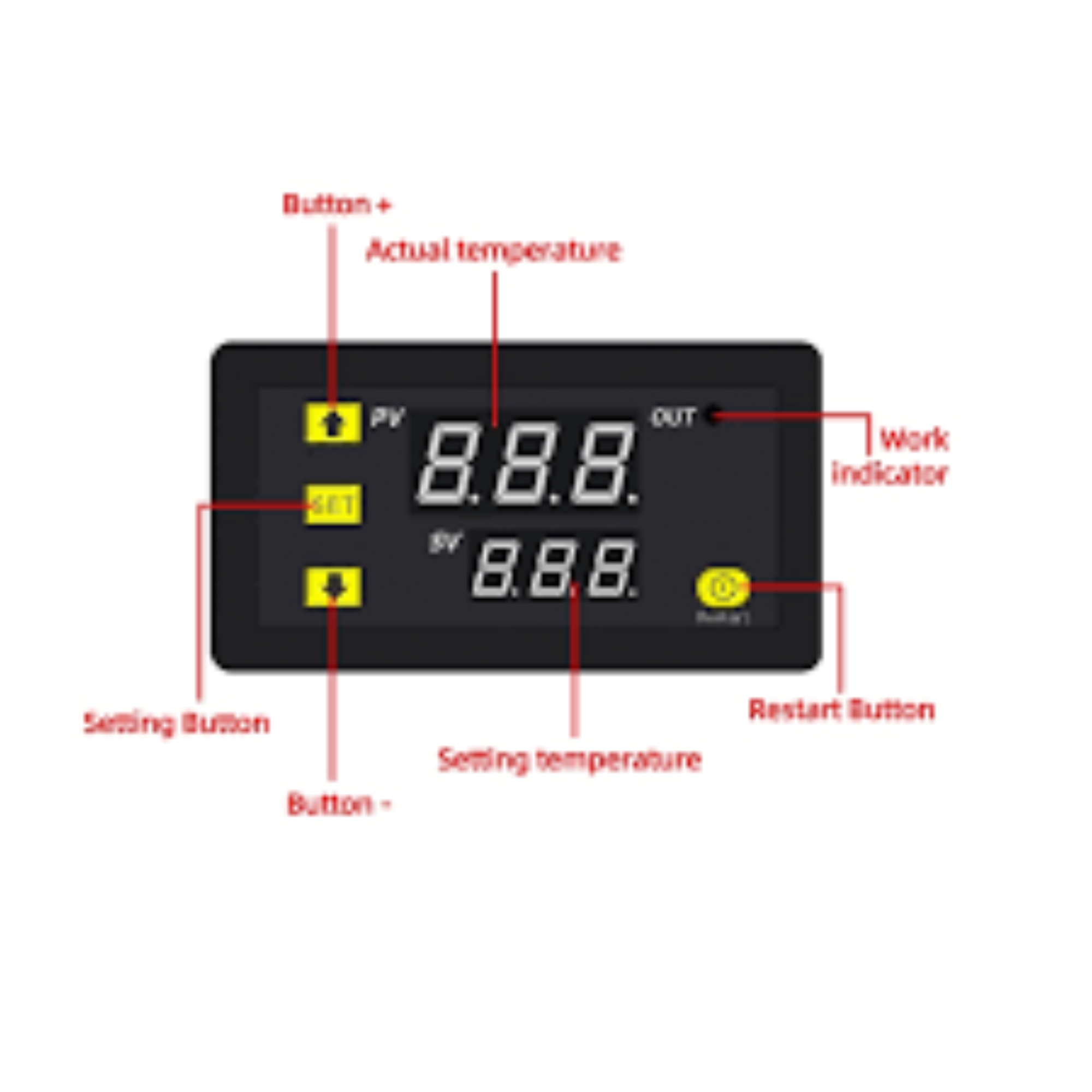

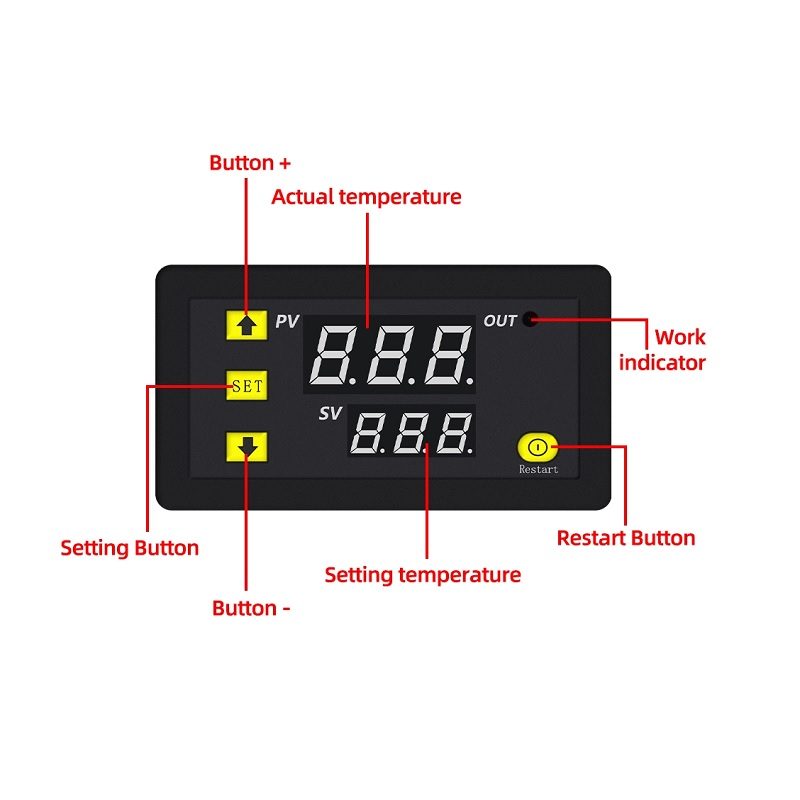

• With a clear LED display for better readability.
• Wide temperature measuring range.
• Heating or cooling control.
• All parameters set can be saved after a short circuit.
• Relay output.
• High Control precision 0.1 centigrade

Specifications:

• Model: W3230
• Input Supply Voltage (VDC): 12
• Output Relay Contact Capacity: 10A 220V / 20A 12V / 20A 24V
• Temperature Control Range (°C): -55 ~ 120
• Display Color: red/blue
• Resolution Ratio: 0.1°C(-9.9-99.9)
• Control Accuracy: 0.1°C
• Measurement Accuracy: ±0.1°C
• Temperature Sensor: NTC10K Waterproof sensor
• Working Temperature Range (°C): -10 ~ 60
• Working Humidity Range: 20%~85%
• Length (mm): 71
• Width (mm): 39
• Height (mm): 26
• Weight (gm): 44

Applications:

• Outdoor use uses involving potential chemical contamination or electrical interference
• Nuclear energy control systems, combustion systems, railroad systems, aviation systems
• Medical equipment, amusement machines, vehicles, safety equipment, and installations subject to separate industry or government regulations
• Systems, machines, and equipment that could present a risk to life or property
• Domestic freezer, water tanks, refrigerator, industrial chiller, steamer, industrial equipment, and another temperature-controlled system.

Package Includes:

• 1 x W3230 DC12V Digital Temperature Controller Microcomputer Thermostat Switch
