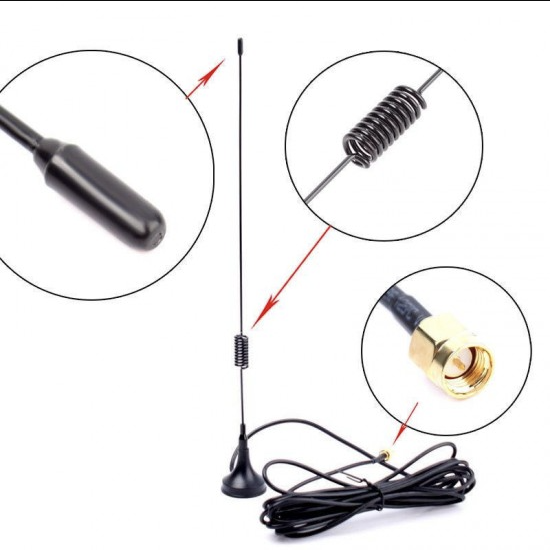

GSM Magnetic Antenna 6dBi SMA with 3mtr cable
This component is currently unavailable. Enter your email below to be notified as soon as new stock arrives!
memory Technical Parameters & Datasheet Summary
SKU: Anil385GSM Magnetic Antenna 6dBi SMA 900/1800MHz with 3mtr Long cable designed for GSM & GPRS at 900 (i.e. 800 MHz To 960 MHz) as well as 1800 (1780 -1930 MHz) band of communication terminal system.
It's structure is compact and convenient for easy installation. Majorly used in GSM repeater, GSM sensor, GSM module & GSM modems. Also widely used in UV5R/Plus, UV5RA/Plus, UV5RE/Plus, UV5RB, UV5RC, UV5RD, UV3RPlus, BF-320, BF-480, BF-490, BF-520, BF-V6, BF-V8 etc.
Specification:
Electronic specifications:
- Frequency Range
- 800MHz
- 960MHz
- 1780MHz
- 1930MHz
- for V.S.W.R ≤ 2.0 Gain-dBi 6.0
- Polarization Vertical Impedance- Ω 50
Mechanical specifications:
- Connector SMA male
- 3 Meter Wire Length
- Radome material Metal
- Radome color black
- Operation Temperature- -30~60
- Humidity-% 5~95
- Magnetic Base
Package Includes:
- 1 x GSM Magnetic 6dBi Antenna SMA 900/1800MHz with 3mtr Long cable
