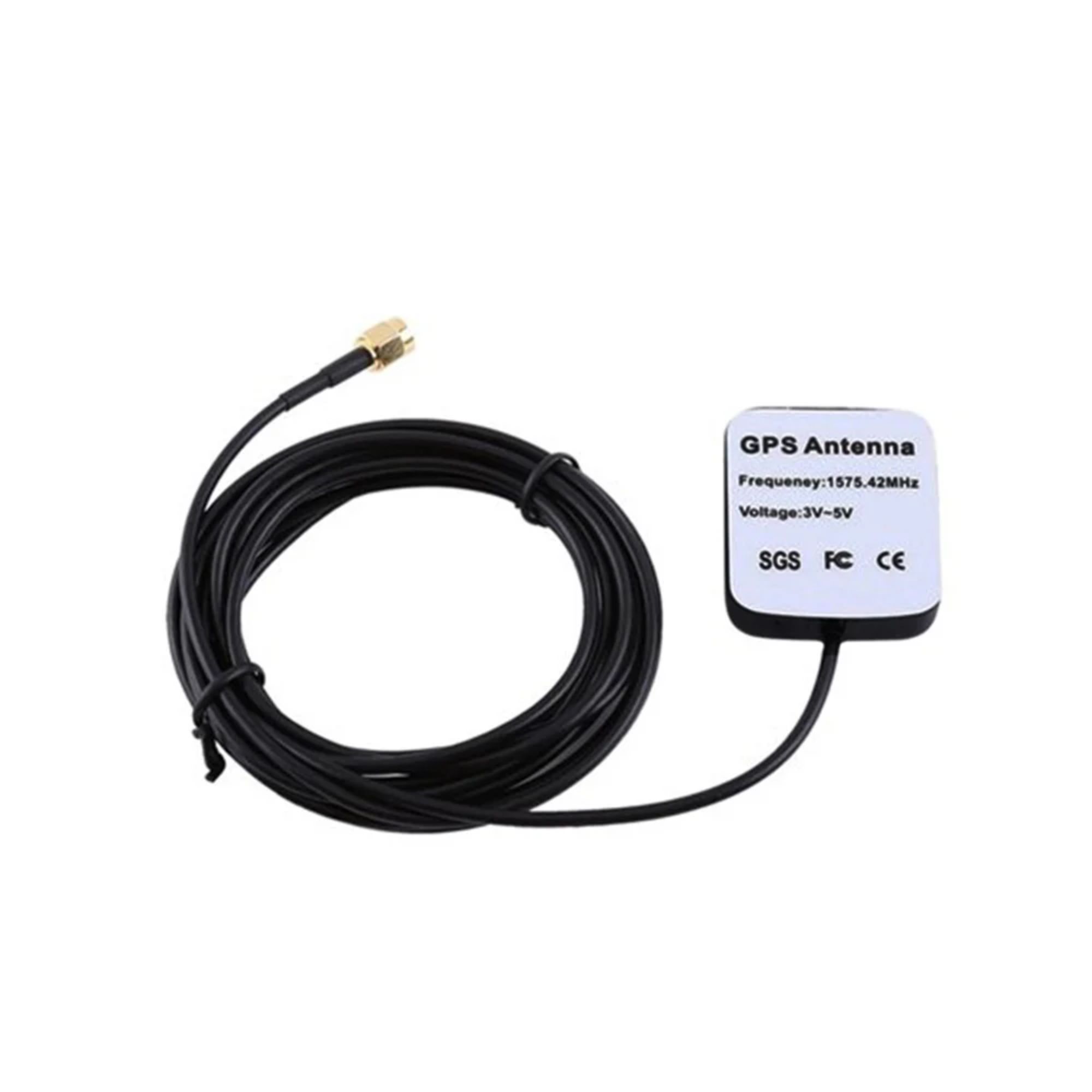

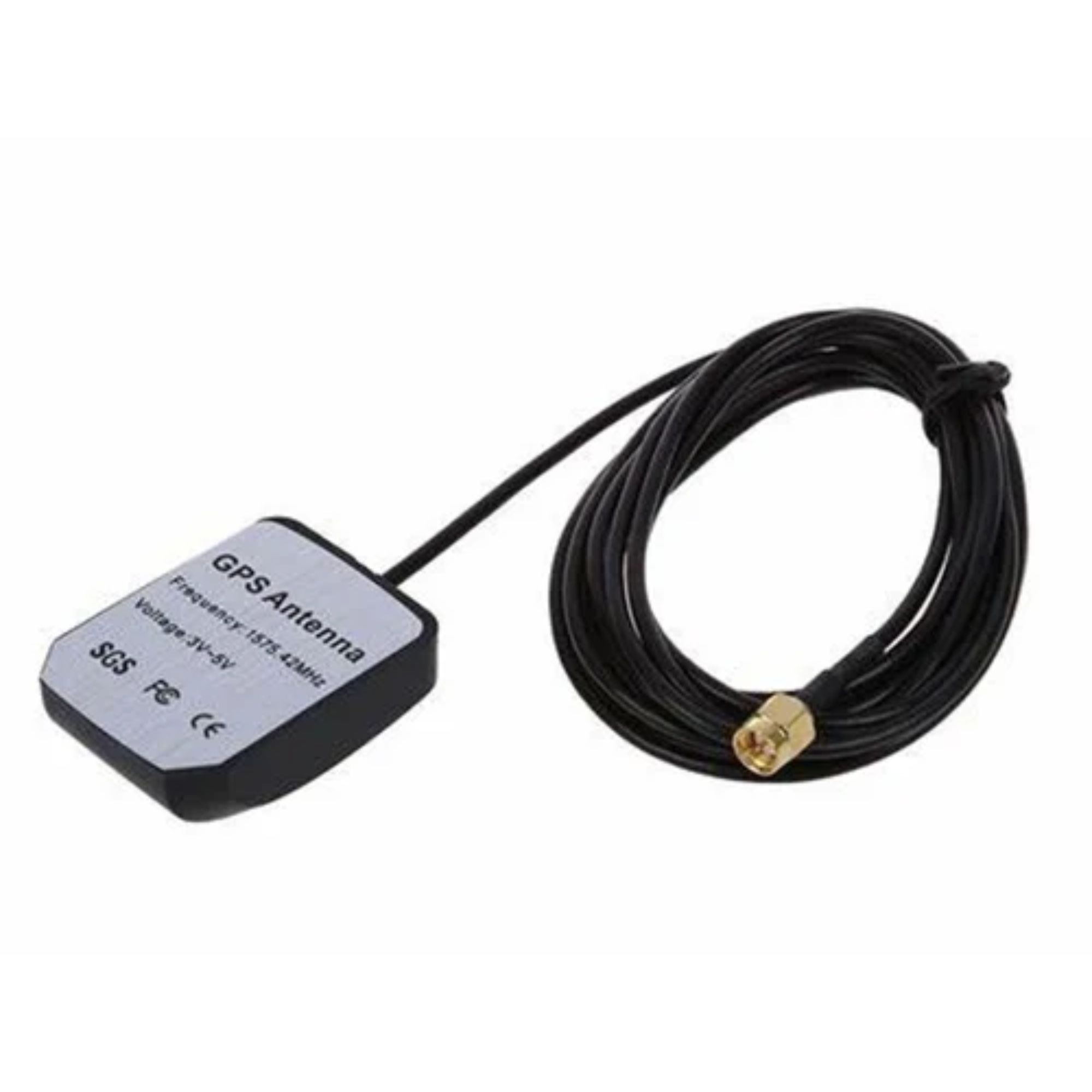

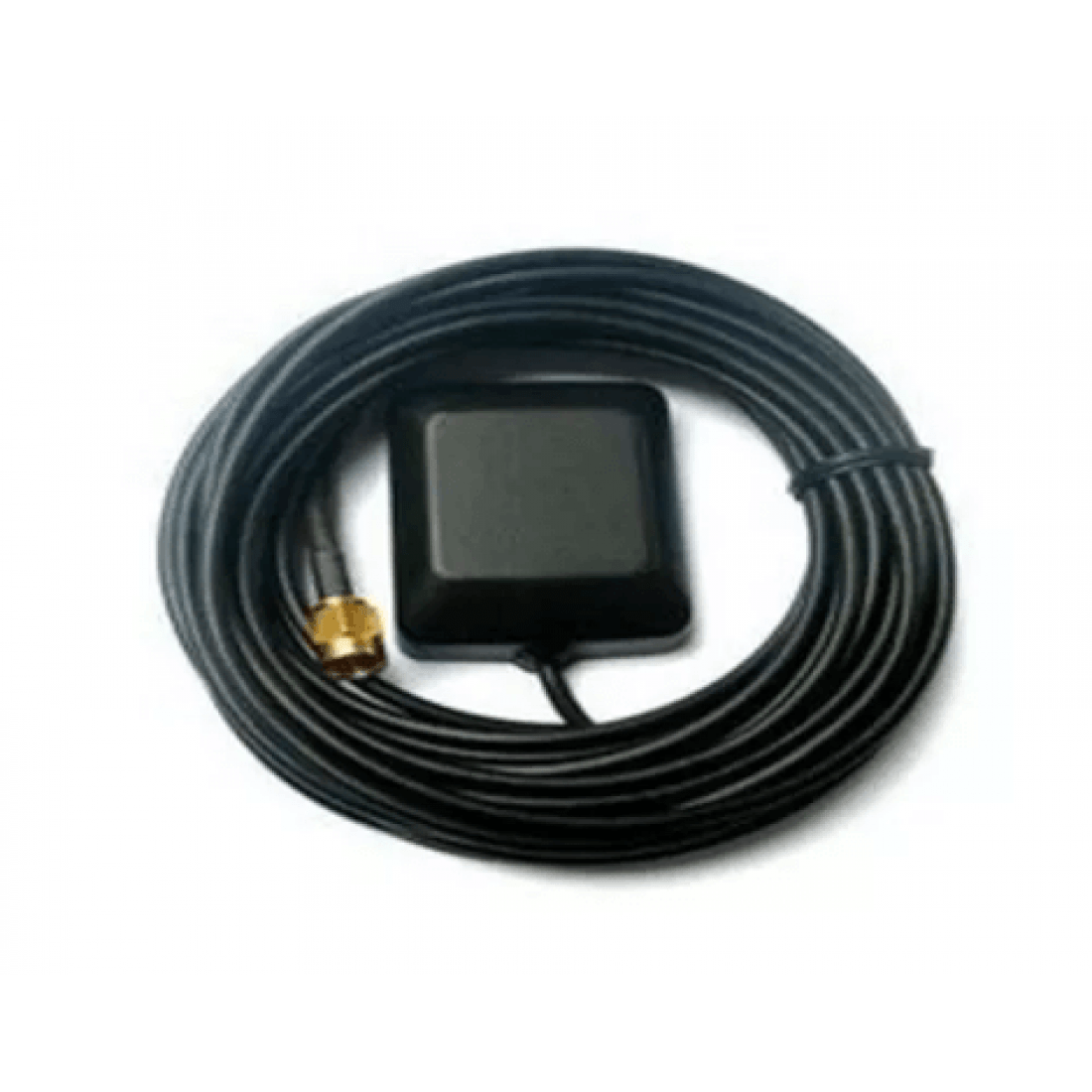

1575 Mhz GPS Antenna for GPS and GSM module with 3 Meter Cable

1575 Mhz GPS Antenna for GPS and GSM module with 3 Meter Cable is designed to work in perfect harmony with MTK GPS module. Featuring water proof design for use in tough terrain and environment, it maximizes the potential of GPS module by bringing exceptional GPS signal reception performances. This module comes in SMA connector format with 2 meter length. In addition, they come with embedded magnet at the bottom for easy mounting on top of automobiles.

This GPS/GLONASS GNSS Antenna is designed for applications that require high positioning accuracy by combining signals from GPS, GLONASS, systems. The tiny size of this antenna allows it to be used in very space-restricted environments. With 3-meter long cable, one can use this antenna to enhance the GPS Signals in an indoor project with GPS and GSM modules as well as Raspberry Pi HAT or Arduino Shield. The Antenna has a flat magnetic surface to keep it steady at one place temporarily, or it can permanently stick to any surface with help of Double Sided Tape.

Features:

• Central Frequency: 1575.42 MHz / GPS External Active Antenna- 2 MHz
• Polarization: R.H.C.P
• Input Voltage: 3 V to 5 V
• Gain: 27 dB / 01 dB
• Embedded Magnet for easy mounting
• Water-Proof Design
• 2.5 M Cable with SMA Connector

Specifications:

• Central Frequency fo: 1575.42 MHz /- 2MHz
• Operating Temperature: 20 to 85 ?C
• Bandwidth (min.): 9 MHz
• Storage Temperature: 50 to 120 ?C
• Relative Humidity: 0 % to 100 %Transmitter & Receiver

Package Includes:

• 1 x 1575 Mhz GPS Antenna for GPS and GSM module with 3 Meter Cable
