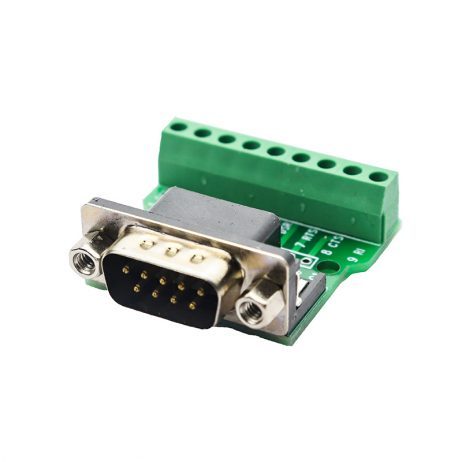

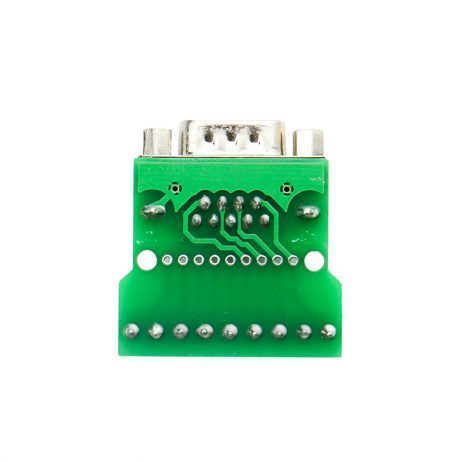

DB9 Male Screw Terminal to RS232 RS485 Conversion Board

This is a DB9 Male Screw Terminal to RS232 RS485 Conversion Board module, RS232 Serial DB9 9-pin to 9 Position Screw Terminal Block. Connector DB9 adapter terminals to facilitate commissioning equipment of project. The wire size range of the 9 Positions Screws Terminal Block is 22-14 AWG. All-copper DB9 Socket, anti-oxidation, contact better.

The terminal pitch is 3.96mm, screw hole diameter is 2mm, need to use a slotted screwdriver width 2mm be removable. DB9 Male Adapter Plate Signal Module, Connector DB9 adapter terminals are to facilitate the project, site commissioning equipment.

DB9 male screw terminal To RS232 RS485 Conversion Board head turn a terminal and row needles. The DB9 male head above the Allen screw with protruding, terminal and row needles have Numbers corresponding, the terminal with high strength pressure is picking terminal.

The common terminal which can ratio, long service life, contact with reliable and the DB9 terminals and the revolution of the row needles.

Features :

• Perfect for experimentation and prototype work
• Brings all 9 pins of a DB9 connector to screw terminal blocks
• Adapter used for communication debug
• 9 pcs signal line was all lead out, name and number clearly labeled;
• All-copper DR9 seat, anti-oxidation, better contact;
• Military board, three anti-paint sprays an entire board, corrosion-resistant;
• Terminal spacing 3.96MM, screw hole diameter 2MM, need to use a width of 2MM screwdriver for assembly;
• Use of environmentally friendly copper terminals, through IS0-9001.

Specifications:

• Colour: Green
• Screw Terminal: 9
• Mounting Hole(mm): 3 mm
• Length (mm): 40
• Width (mm): 37
• Height (mm): 15
• Weight (gm): 16

Package Includes :

• 1 x DB9 male screw terminal To RS232 RS485 Conversion Board.
