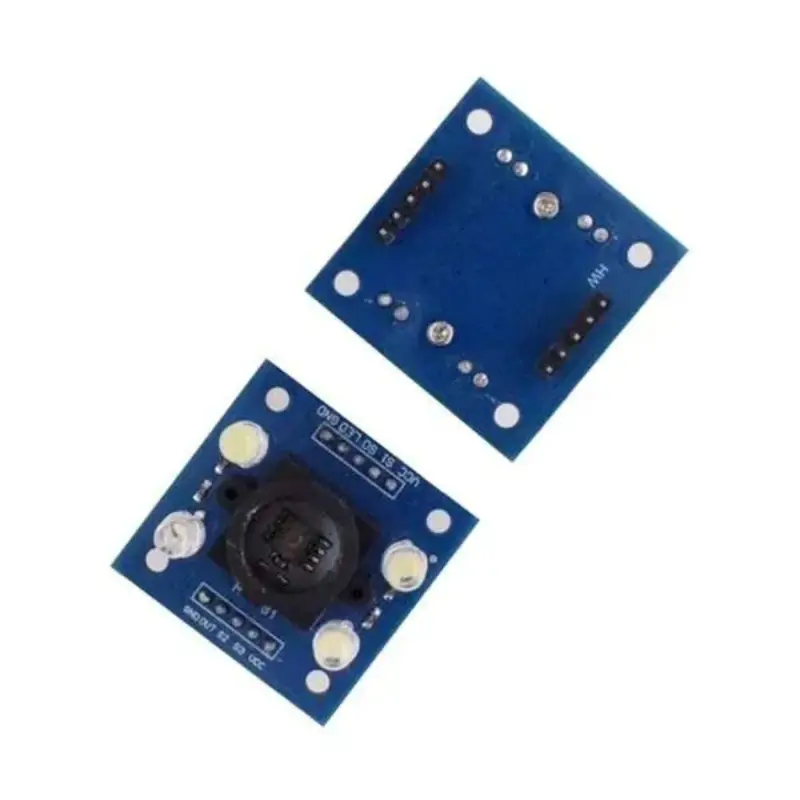

GY-31 TCS3200 Color Sensor Module

GY-31 TCS3200 Color Sensor Module is a complete color detector, including a TCS3200 RGB sensor chip and 4 white LEDs. The TCS3200 can detect nearly limitless range of visible colors. Applications include test strip reading, sorting by color, ambient light sensing and calibration, and color matching, to name just a few.

GY-31 Color Sensor Module is made using IC TCS3200, a programmable color light to frequency converter. It has configurable silicon photodiodes and a current to frequency converter in a single monolithic CMOS Integrated Circuit. Its output is square wave having 50% duty cycle with frequency directly proportional to irradiance (light intensity). This module can be directly interfaced with Microcontrollers, Arduino Boards, Raspberry Pi etc.

Features:

• High Resolution Conversion of Light Intensity to Frequency
• Programmable Color and Full Scale Output Frequency
• Power Down Feature
• Stable Temperature Coefficient
• Can be directly interfaced with a Microcontroller
• Communicates Directly to Microcontroller
• Support LED lamp light supplement control

Specifications:

• Model: GY-31 TCS3200 TCS230
• Operating Voltage: 2.7 ~ 5.5 VDC
• Operating Current (mA): 25mA @ 5V when LED is ON
• Operating Temperature: -45°C ~ 85°C
• Non-linearity Error: 0.2% at 50KHz typically
• Temperature Coefficient: 200 ppm/°C
• Length (mm): 28.4
• Width (mm): 28.4

Pin Out:

1. GND : Power Supply Ground
2. OUT : Output Frequency
3. S2 : Photodiode Type Selection Input
4. S3 : Photodiode Type Selection Input
5. Vcc : Supply Voltage
6. Vcc : Supply Voltage
7. S1 : Output Frequency Scaling Selection Input
8. S0 : Output Frequency Scaling Selection Input
9. LED : LED Control, 1 – LED ON & 0 – LED OFF
10. GND : Power Supply Ground

Package Includes:

• 1 x TCS3200 Color Sensor GY-31 TCS230 Module
