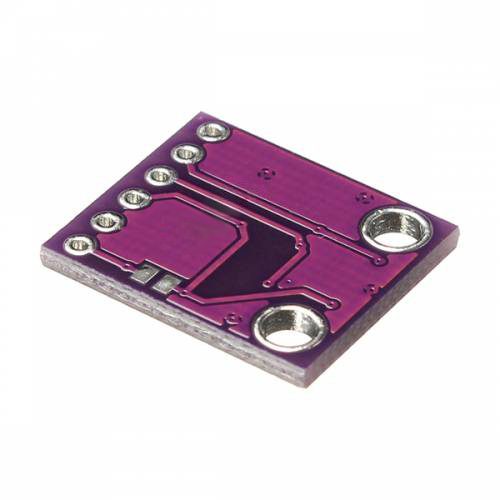

CJMCU 9930 APDS-9930 Digital Proximity And Ambient Light Sensor For Arduino

This is CJMCU 9930 APDS-9930 Digital Proximity And Ambient Light Sensor For Arduino. The APDS-9930 provides digital ambient light sensing (ALS), IR LED and a complete proximity detection system in a single 8 pin package. The proximity function offers plug and play detection to 100 mm (without front glass) thus eliminating the need for factory calibration of the end equipment or sub-assembly.

The proximity detection feature operates well from bright sunlight to dark rooms. The wide dynamic range also allows for operation in short distance detection behind dark glass such as a cell phone.

In addition, an internal state machine provides the ability to put the device into a low power mode in between ALS and proximity measurements providing very low average power consumption. The ALS provides a photonic response to light intensity in very low light condition or behind a dark faceplate.

Features :

> Optical modules integrated with ALS, infrared LEDs and proximity detectors

>Ambient Light Sensing (ALS)

• Approximate human visual response
• Programmable interrupt capability with upper and lower thresholds
• Up to 16-bit resolution
• High sensitivity operation behind dark glass
• 0.01lux low lumen performance

> Proximity detection

• Fully calibrated to 100 mm detection
• Integrated infrared LED and synchronous LED driver
• Eliminates factory calibration of the proximity sensor

> Programmable wait timer

• Wait for state power consumption – 90μA typical
• Programmable range from 2.7 ms to more than 8 seconds
• I2C interface compatible
• Up to 400kHz (I2C fast mode)
• Dedicated interrupt pin.

Specifications:

• Operating voltage (v): 2.8 ~ 3.8
• Resolution: 16-Bit
• Model: APDS-9930
• Wait State Power: 90 µA
• Operating frequency (KHz): 400
• Length (mm): 18.3
• Width (mm): 15
• Height (mm): 4
• Weight (gm): 2

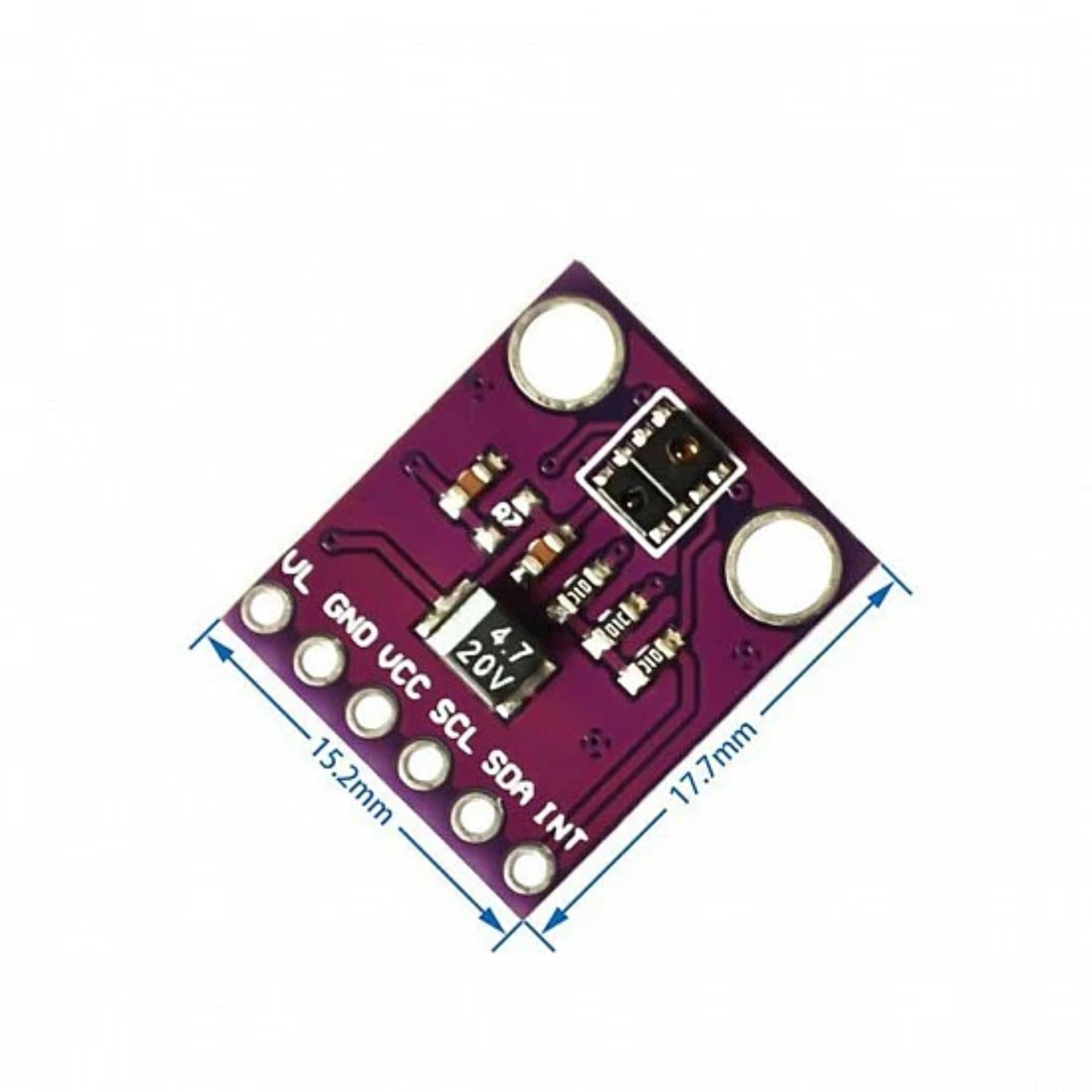

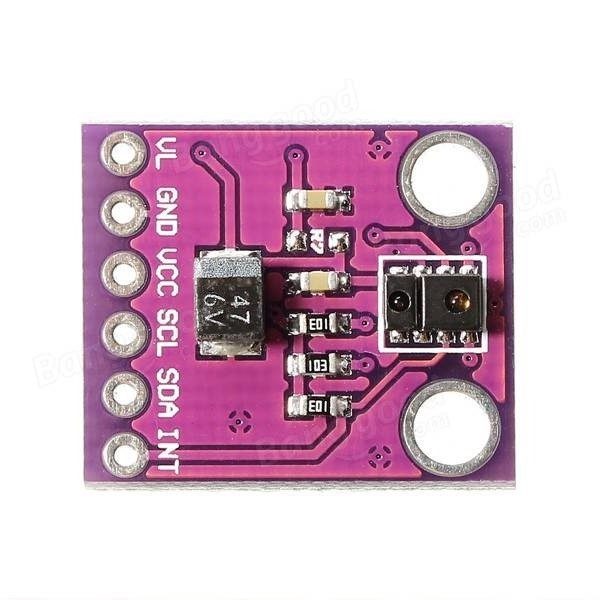

Pin Out Details:

• Pin Label: Description
• VL: Optional power to the IR LED. Must be 3.0 – 4.5V
• GND:  Ground.
• VCC: Must be 2.4 – 3.6V
• SDA: I2C data
• SCL: I2C clock
• INT: External interrupt pin.

Applications:

• Adjustable light mobile phone backlight
• Notebook / display security
• automatically enabled hands-free mode
• Automatic menu pop up
• Digital camera eye sensor.

Package Includes :

• 1 x CJMCU 9930 APDS-9930 Digital Proximity And Ambient Light Sensor.

Useful Links

• Arduino code and User Instructions.
