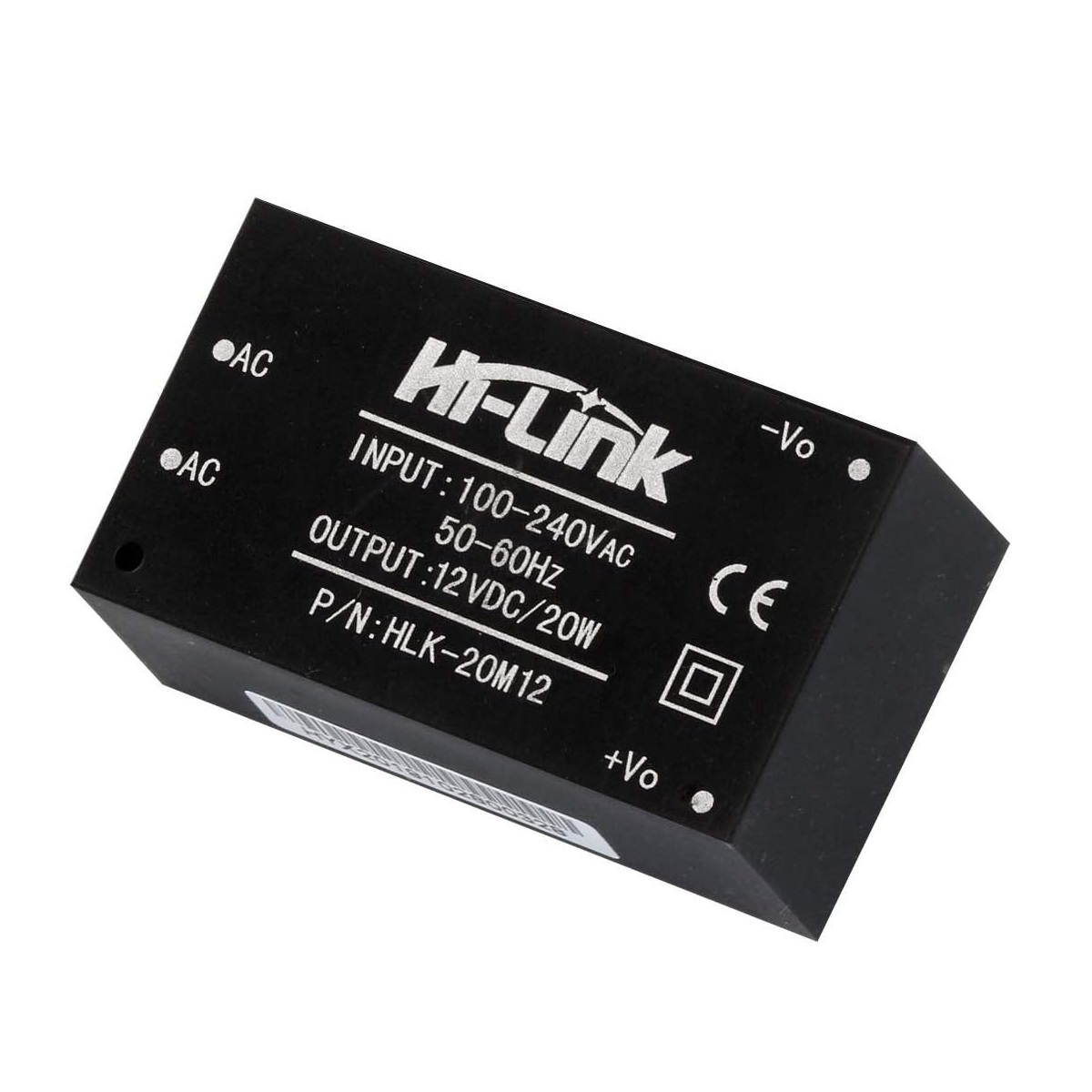

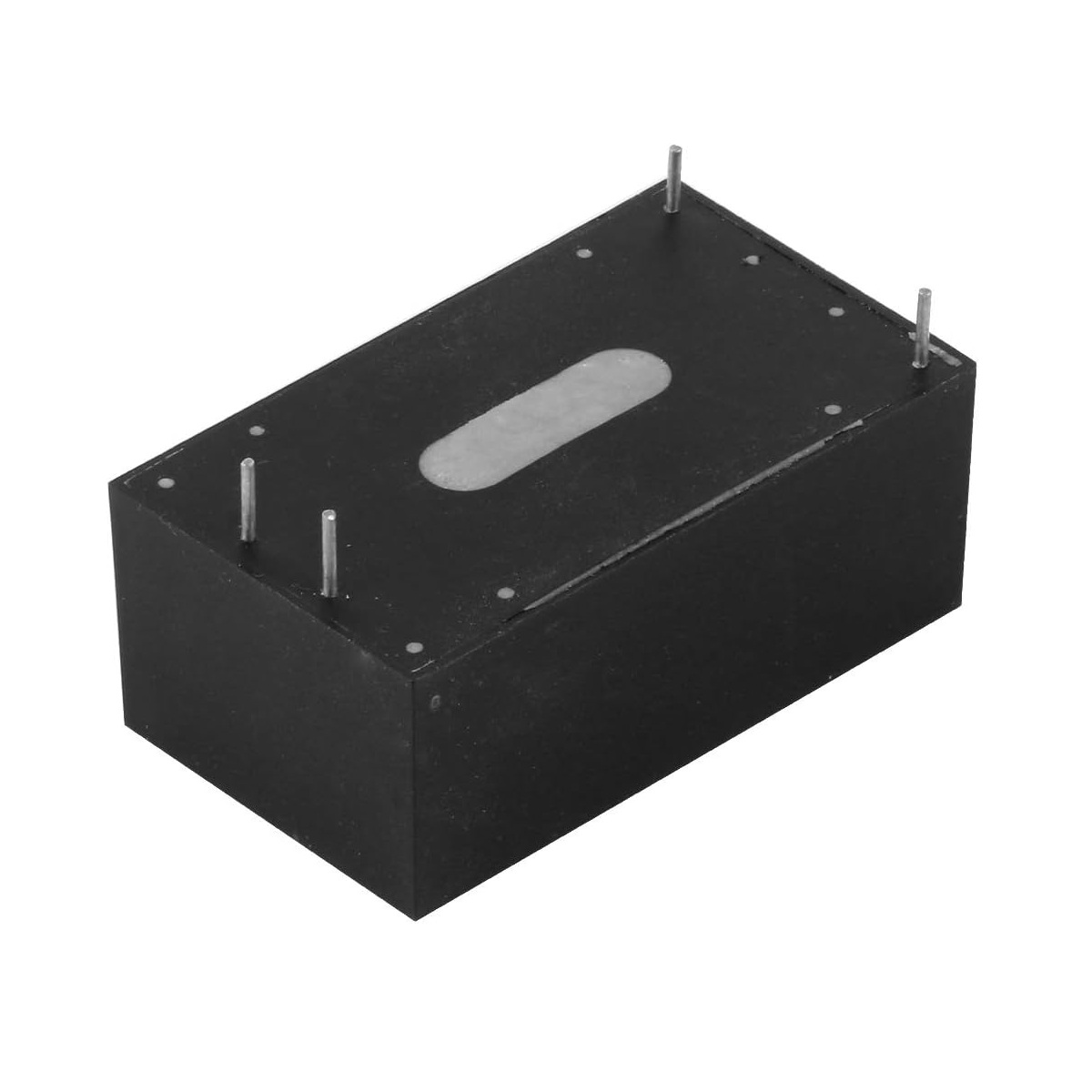

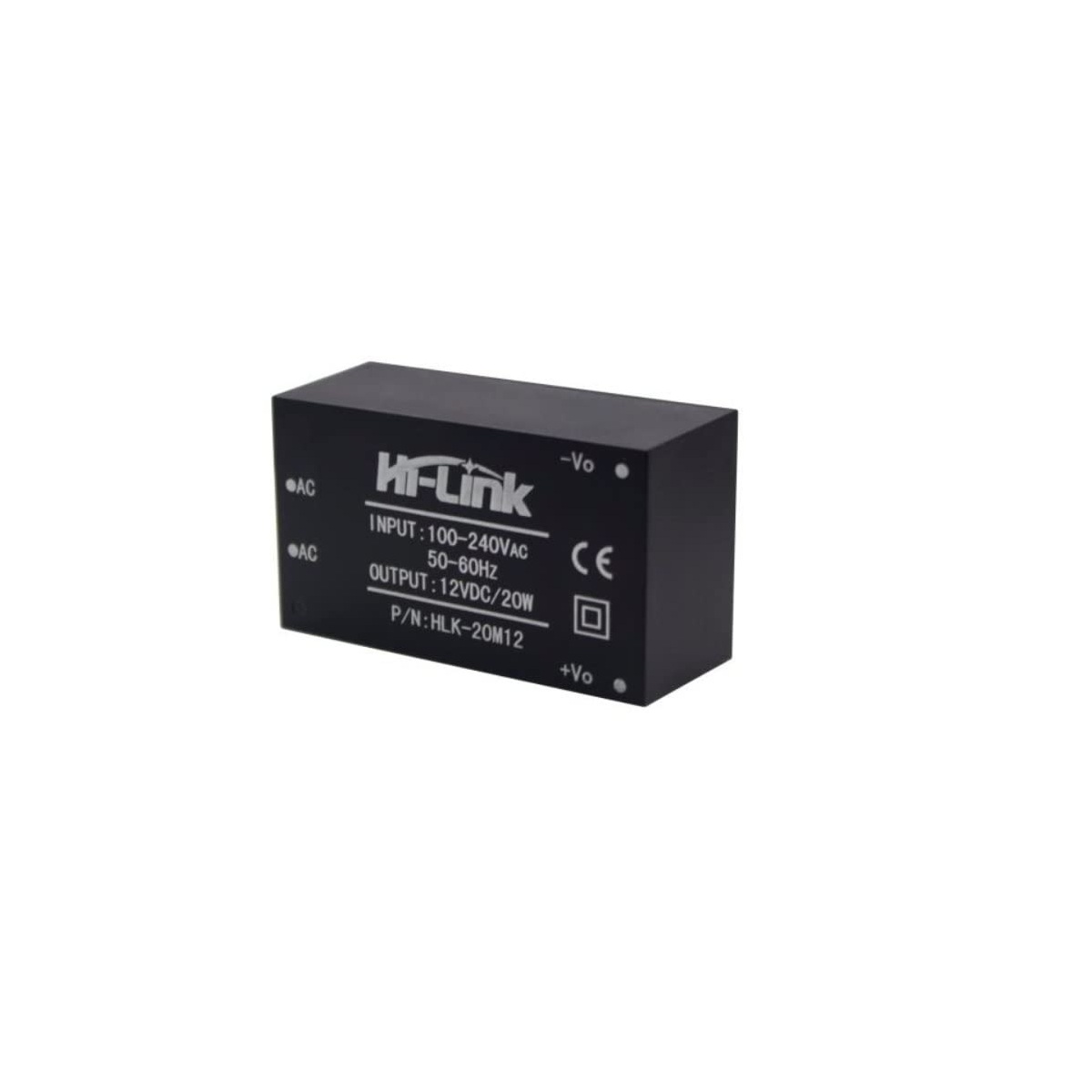

Hi-Link HLK-20M12 12V 20W Compact Switch Power Supply Module

The Hi-Link HLK-20M12 12V 20W is a high-quality AC-DC switch mode power supply module that provides a stable 12V DC output at up to 20W power. Designed for direct use with 85–265V AC mains input, this compact module is highly efficient, reliable, and safe for industrial as well as home automation projects. It features built-in protections against over-current, short-circuit, and over-temperature, making it a robust choice for powering electronic circuits, IoT devices, and embedded applications.

Features:

• Universal AC input range: 85V – 265V AC
• Provides 12V DC regulated output up to 20W
• High efficiency and low power consumption
• Compact PCB mountable module for easy integration
• Built-in over-current, short-circuit, and over-temperature protection
• Meets international safety and EMC standards
• Ideal for industrial, automation, IoT, and embedded projects

Specifications:

• Model: Hi-Link HLK-20M12
• Input Voltage: 85V – 265V AC (50/60Hz)
• Output Voltage: 12V DC
• Output Power: 20W
• Output Current: ~1.67A max
• Efficiency: Up to 80% (typical)
• Isolation Voltage: ≥ 3000 VAC
• Ripple & Noise: ≤ 120mVp-p
• Protection Features: Over-current, Short-circuit, Over-temperature
• Operating Temperature -20°C to +60°C
• Dimensions (Approx.): 70 × 48 × 23 mm
• Mounting Type: PCB Mount module

Applications:

• Embedded systems requiring 12V DC supply
• Industrial control equipment and automation devices
• IoT devices and smart home applications
• DIY electronics projects and hobby circuits
• Replacing bulky linear power supplies with compact SMPS

Package Includes:

• 1 × Hi-Link HLK-20M12 12V Power Supply Module
