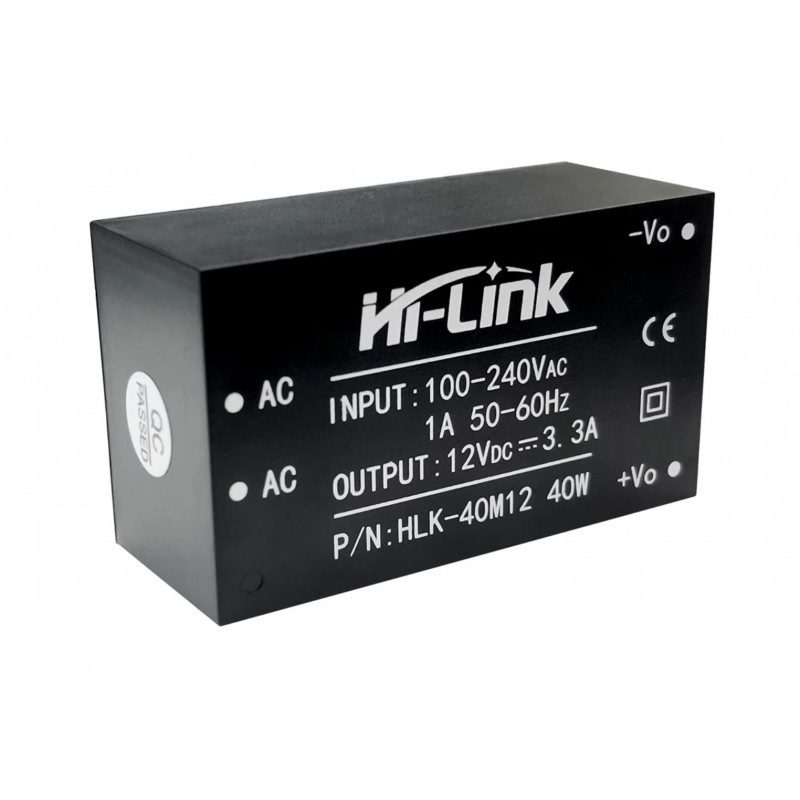

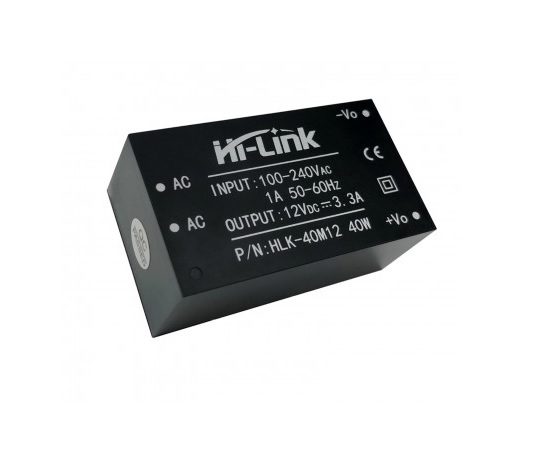

Hi Link HLK-40M12 12V/40W AC to DC Switch Power Supply Module

Hi Link HLK-40M12 12V/40W AC to DC Switch Power Supply Module is a plastic enclosed PCB mounted isolated power supply module. It can supply 12V DC from 90V AC to 265V AC and has a power rating of 40 Watt. This makes it perfect for small projects that need a 12 volt supply from mains. There are many advantages to these modules, such as low-temperature rise, low power, high efficiency, high reliability, high-security isolation, etc.

The 40W ultra-small series module power supply is a small-size, high-efficiency, power module designed by Hi-link Electronics for customers with advanced Gallium Nitride chipset. It has the advantages of global input voltage range, low temperature rise, low power consumption, high efficiency, high reliability, and high safety isolation. It has been widely used in smart home, automation control, communication equipment, instrumentation and other industries

You do not have to worry about fluctuations in the voltage grid. It is designed to be mounted on the PCB and is the ideal solution to power pads that you take.

Features:

• Global universal input voltage 90~265VAC
• Input and output isolation withstand voltage 3000VAC
• Low power consumption, environmental protection, no-load loss < 0.1W
• Can work without peripheral circuits
• High reliability, long life design, continuous working time> 100,000 hours
• Good output short circuit and over current protection and self-recovery
• International standard pin, PCB board in-line installation
• Potting and sealing with high-quality environmentally friendly waterproof thermal conductive glue, dustproof, moisture proof, shockproof and flame retardant
• Meet UL/CE/EMC and safety testing requirements
• Can be used in medical, industrial control, electric power, instrumentation, communication, railway and other fields

Specifications:

Environmental conditions:

• Operating temperature: -25~+60℃
• storage temperature: -40~+85℃
• Relative humidity: 5~95%RH
• Cooling method: Natural cooling
• Atmospheric pressure: 80~160Kpa
• Altitude: ≤2000m
• vibration: Vibration coefficient 10~500Hz, 2G10min./1cycle : 60min.each along X, Y, Z axes : Meet the requirements of secondary road transportation
• Input characteristics (normal temperature test):
• Rated input voltage: 100-240VAC
• Input voltage range: 85-264VAC/70-350VDC
• Maximum input current: ≤1A
• Input surge current: ≤50A(typical)
• Input slow start: ≤50mS
• Long-term reliability: MTBF≥100,000 H
• External fuse recommendation: 2A/250V (Slow blow)

Output characteristics:

• Output load: Load percentage 100%MAX


Package Includes:

• 1 x Hi Link HLK-40M12 12V/40W AC to DC Switch Power Supply Module
