Square Geared Motors

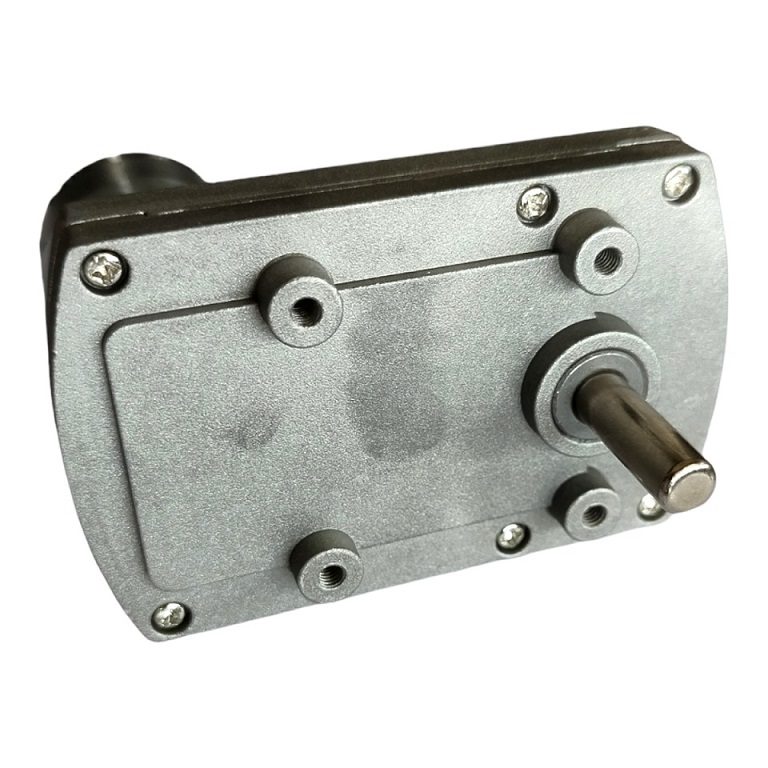

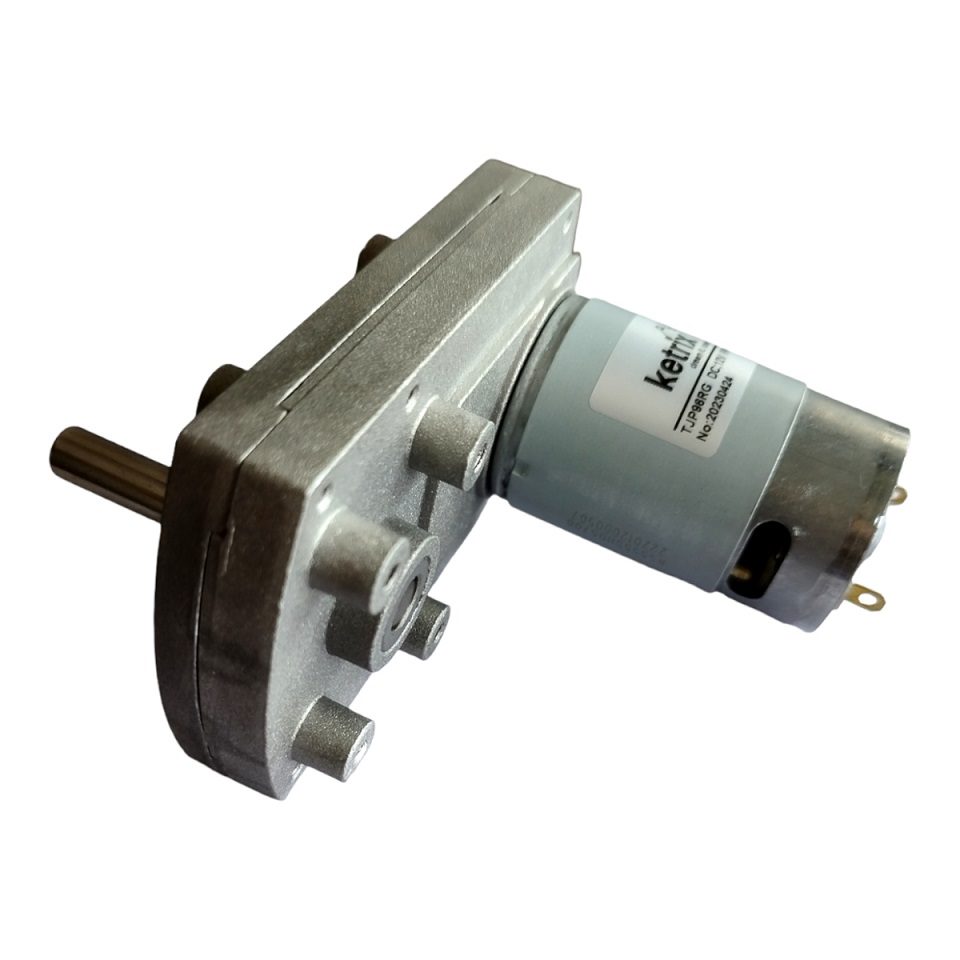

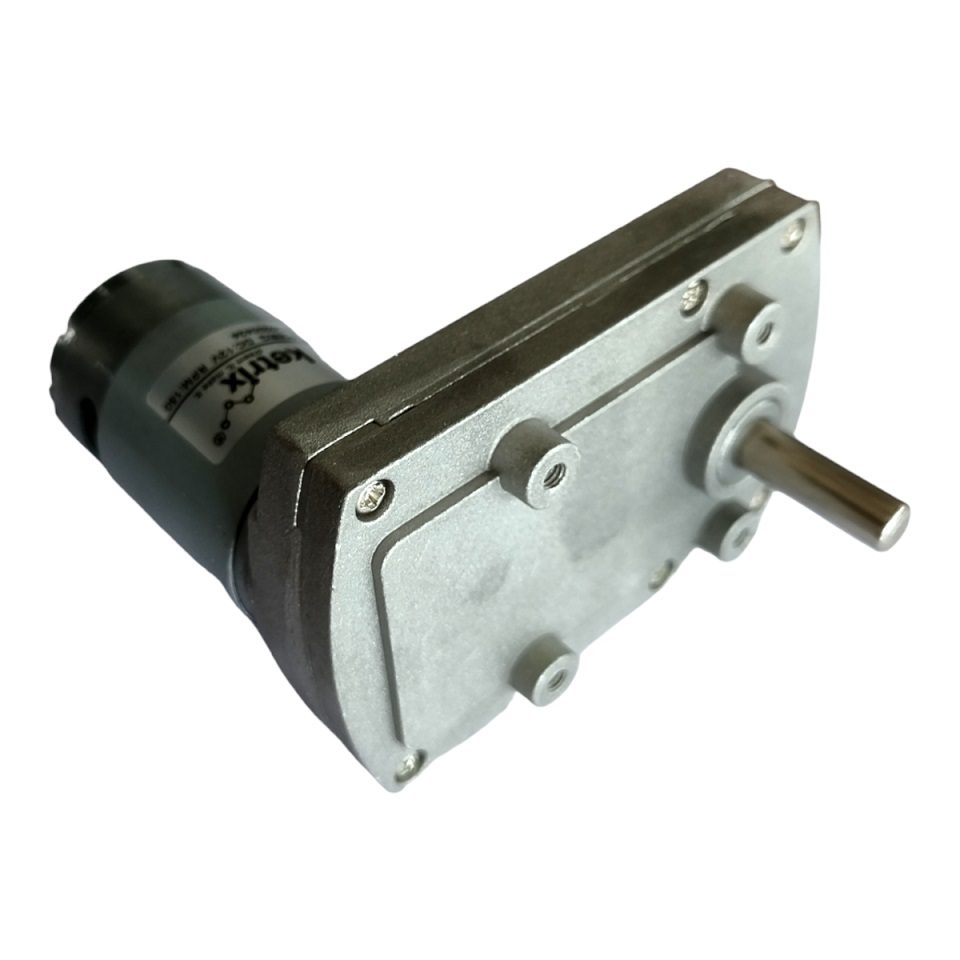

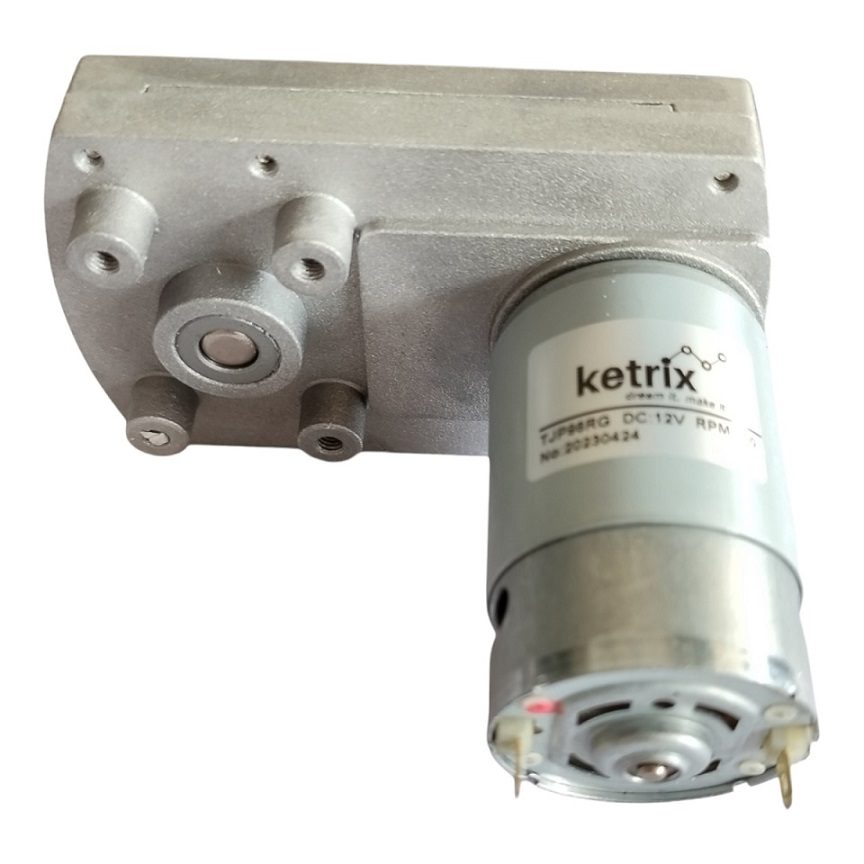

12V DC Rectangular Square Gear / Geared Motor 125 RPM – High Torque
star
star
star
star
star_half
109
rating
Just for you!
SKU:
ANIL3047
MRP: Rs.
1,323.00
Rs.
1,102.50
(Incl. Tax)
Rs.
992.25 / pack of 1 = Rs.
992.25 per piece
Quantity
12V DC Rectangular Square Gear / Geared Motor 125 RPM – High Torque is a very high torque motor which should be used to make big robots or robotized platform. Gear box is built to handle the stall torque produced by the motor. Drive shaft is supported from with metal bushes.
FEATURES:
- Heavy Duty Metal Gears.
- Uniformity of parts.
- Capability to absorb shock and vibration as a result of elastic compliance.
- Ability to operate with minimum or no lubrication, due to inherent lubricity.
- Relatively low coefficient of friction.
- Corrosion-resistance; elimination of plating, or protective coatings.
SPECIFICATIONS:
- Operating Voltage: 12 V DC
- No Load Current: 150 mA
- No load Speed: 125 RPM (at 12V)
- Full Load Current (A): 1.3
- Rated Current (A): 0.69
- Rated Torque (Kg-cm): 6.5
- Shaft Length (mm): 24.5
- Shaft Diameter (mm): 8
- Length (mm): 91

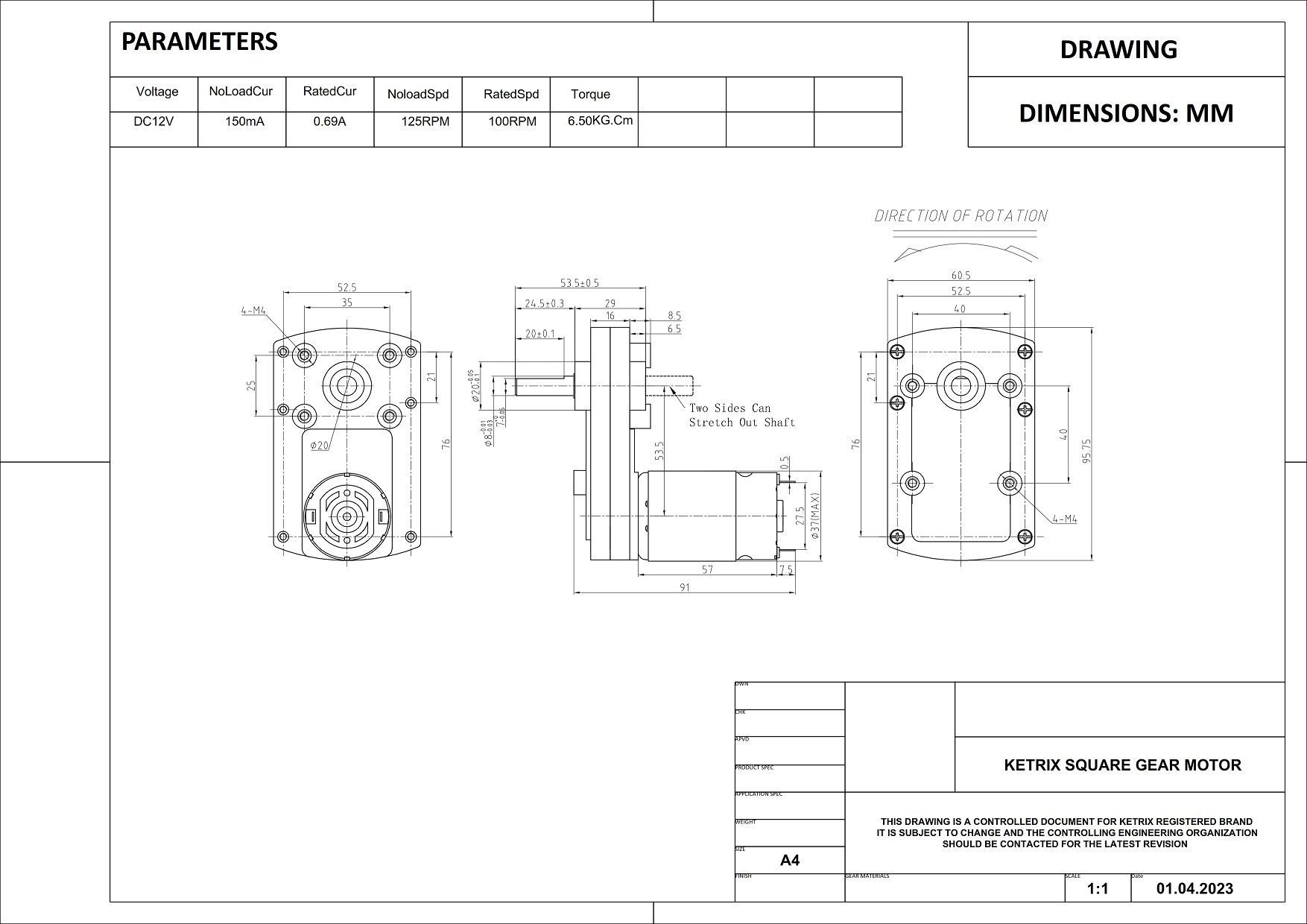

- Dimension Overall: 95.75 X 60.5 X 91 (Length)
- Mounting Holes: M4 threading
- Weight (gm): 490
Application:
- Robotic purposes.
- Central air – conditioning valve
- Coin refund devices
- Industrial applications.
Package Includes:
- 1 x 12V DC Rectangular Gearbox Motor 125 RPM – High Torque
rate_review
No reviews yet. Be the first to review this product!
People Also Bought
Related products
Square Geared Motors
12V DC Rectangular Square Gear / Geared Motor 60 RPM – High Torque
33% OFF
star
star
star
star
star
(150)
Rs. 1,560.00
Rs. 1,050.00
Square Geared Motors
12V DC Square Gear / Geared Motor 500 RPM - High Torque
22% OFF
star
star
star
star
star_half
(13)
Rs. 1,495.00
Rs. 1,160.00
Square Geared Motors
12V DC Rectangular Square Gear / Geared Motor 300 RPM – High Torque
33% OFF
star
star
star
star
star
(26)
Rs. 1,560.00
Rs. 1,050.00
Square Geared Motors
12V DC Rectangular Square Gear / Geared Motor 30 RPM – High Torque
36% OFF
star
star
star
star
star
(39)
Rs. 1,885.00
Rs. 1,199.00
Square Geared Motors
12V DC Rectangular Square Gear / Geared Motor 150 RPM – High Torque
30% OFF
star
star
star
star
star_half
(52)
Rs. 1,625.00
Rs. 1,140.00
Square Geared Motors
12V DC Rectangular Square Gear / Geared Motor 100 RPM – High Torque
38% OFF
star
star
star
star
star
(65)
Rs. 1,885.00
Rs. 1,160.00
Square Geared Motors
12V DC Rectangular Square Gear / Geared Motor 10 RPM – High Torque
38% OFF
star
star
star
star
star
(78)
Rs. 1,885.00
Rs. 1,160.00
Square Geared Motors
12V DC Rectangular Square Gear / Geared Motor 15 RPM – High Torque
star
star
star
star
star
(122)
Rs. 1,039.50
trending_up
Trending Products
A2212 1000KV BLDC Brushless DC Motor for Drone
Rs.
424.99
UBlox NEO-M8N GPS Module with Ceramic Active Antenna
Rs.
1,385.00
Single Touch Control Switch For Mirror Light for Two Colour LED 12VDC
Rs.
420.00
XBee USB Adapter FT232RL for Arduino with Cable
Rs.
450.00
Mini MP1584EN DC-DC 3A Adjustable Step down Buck Converter Module
Rs.
54.00
sell
Special Offers
Heat Shrink Sleeve 60mm Black 1meter Industrial Grade (HST)
Rs.
249.00
Rs.
310.70
SN390 Adjustable Printed Circuit Board Holder Frame PCB Soldering Assembly Stand Clamp
Rs.
1,075.00
Rs.
1,157.00
Multipurpose Precision Welding Soldering Machine Iron Stand with Magnifying Glass ( Helping Hands)
Rs.
635.00
Rs.
812.50
XH-M229 Desktop PC ATX Power Supply Transfer Module
Rs.
259.00
Rs.
323.70
Portronics Adapto 648 POR-648, 2.4A Quick Charging Dual USB Port with 1M Micro-USB Charging Cable (White)
Rs.
309.00
Rs.
388.70
Recently Viewed Products
48V36V24V to 19V12V9V5V3V Adjustable Synchronous Step down Module / Car Charging Power Supply
Rs.
367.50

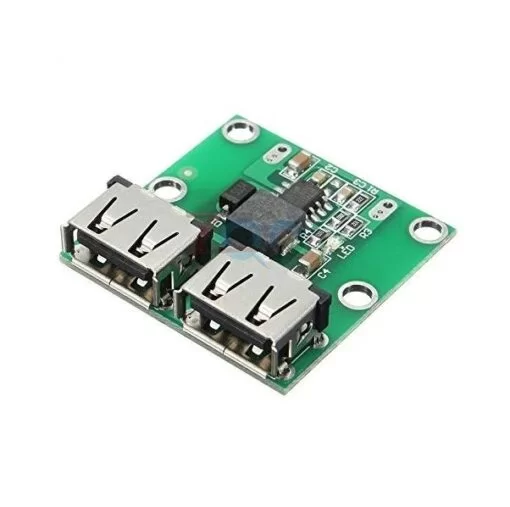

Dual USB Output 9V/12V/24V to 5V 3A DC-DC Car Charging Voltage-Stabilizer Module
