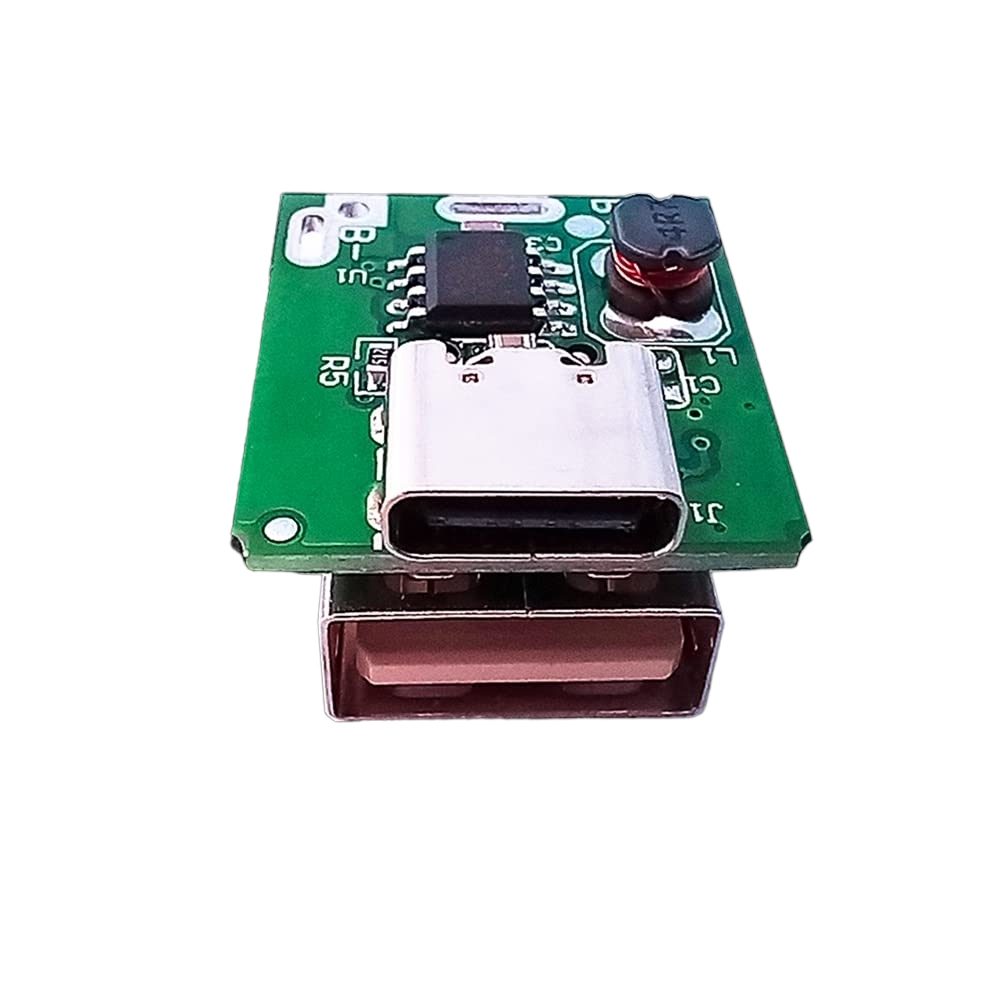

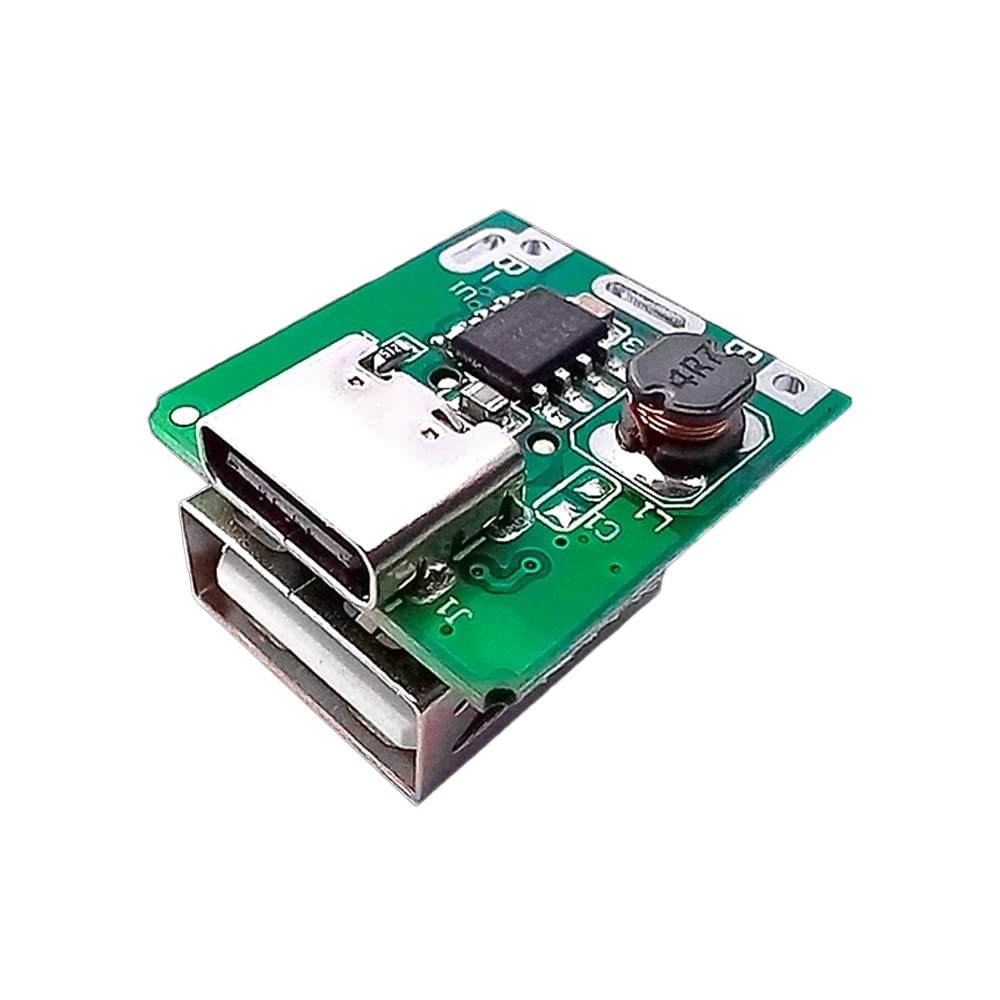

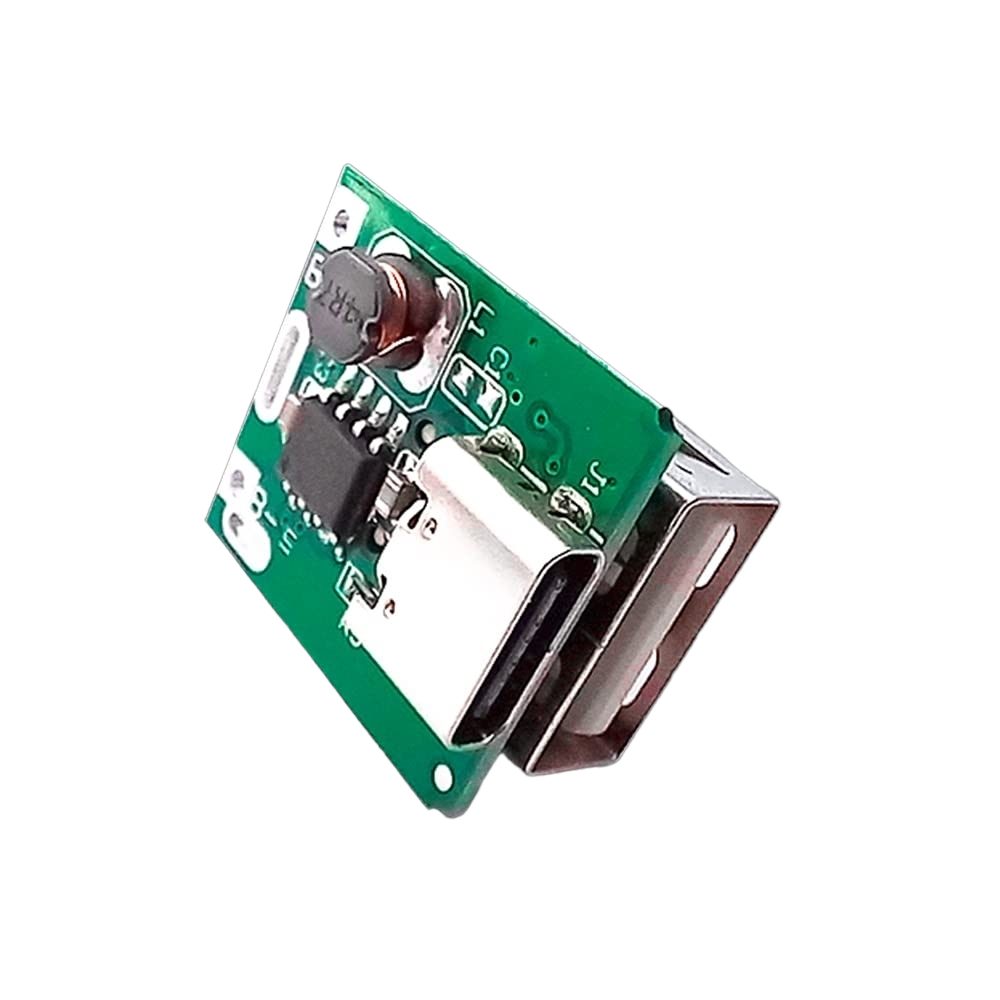

Type-C USB 5V 1A Step-Up Boost Converter Power Bank Charging Module with Charging Protection

This is a Type-C USB 5V 1A Step-Up Boost Converter Power Bank Charging Module with Charging Protection. Great Step-up Module with 5V input, and output 5V for many digital devices, so this is really a great module for designing a portable charger. Useful for your USB charger projects and onboard USB device supply solutions.

Features:

• It is 18650 Mobile power bank Battery Charge, Discharge, Protection & Boost Circuit board module.
• You can make your own power bank using this module. It can charge up to 4 batteries in parallel.
• Can show the battery charge & discharge status with an on-board LED.
• Module comes with protection function, Overcharge protection, Over-discharge protection, Over current protection.
• Intelligent Overcharge protection system automatically stops charging once the connected device is fully charged. Stable Output voltage and current.
• Integrated charge management and discharge management. Supports trickle mode and zero voltage charging.

Specifications:

• Input C-TYPE USB: 5V 1A
• USB Output: 5V 1A
• Batteries Type: Lithium-ion batteries (18650)
• Light function : On charging Red light blink , Full charge Red light glow continuous
• Battery Quantity: Can operate up-to 4 batteries in parallel

Applications:

• Compatible For major mobile Phone and tablet and other cellphones. Application – Suitable for various models of mobile phones that support wireless charging function. Also can be used in DIY project like flash light , torches, relays, buzzer, sensor, robotic projects, wireless and compatible with other modules also like tp4056, tpa 4056, lm2596, xl6009, mt3608, Peltier, bike phone charger.

Installation instructions:

• First connect all your batteries (maximum 4 nos.) in parallel to make a battery pack.
• Then connect a thick copper wire from -ve of battery pack to B-
• Now connect a thick copper wire from +ve of battery pack to B+
• *** DO NOT CONNECT IN REVERSE POLARITY ***
• Connecting the batteries in reverse will burn the board.
• Put an insulation between the battery pack & this module to avoid any short circuit.

Package includes:

• 1 x Mobile Power Bank 18650 Battery Charger PCB.
