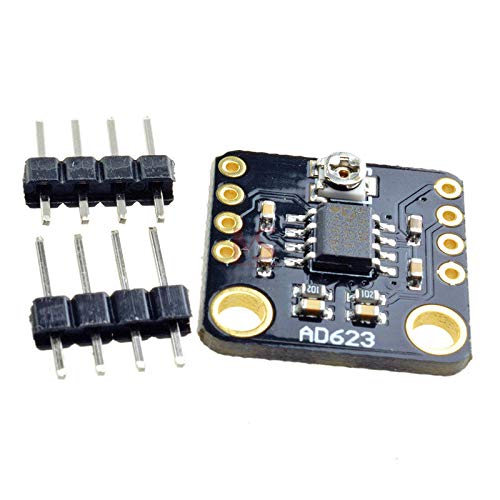

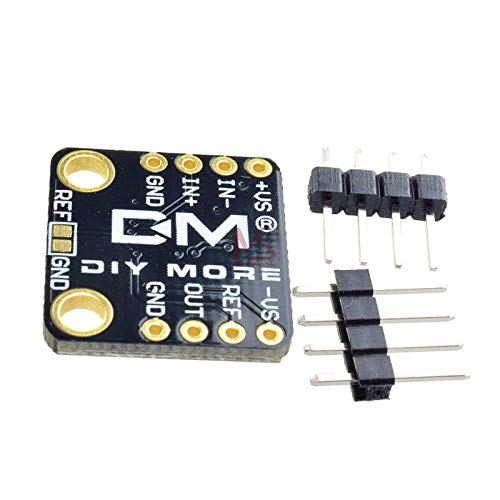

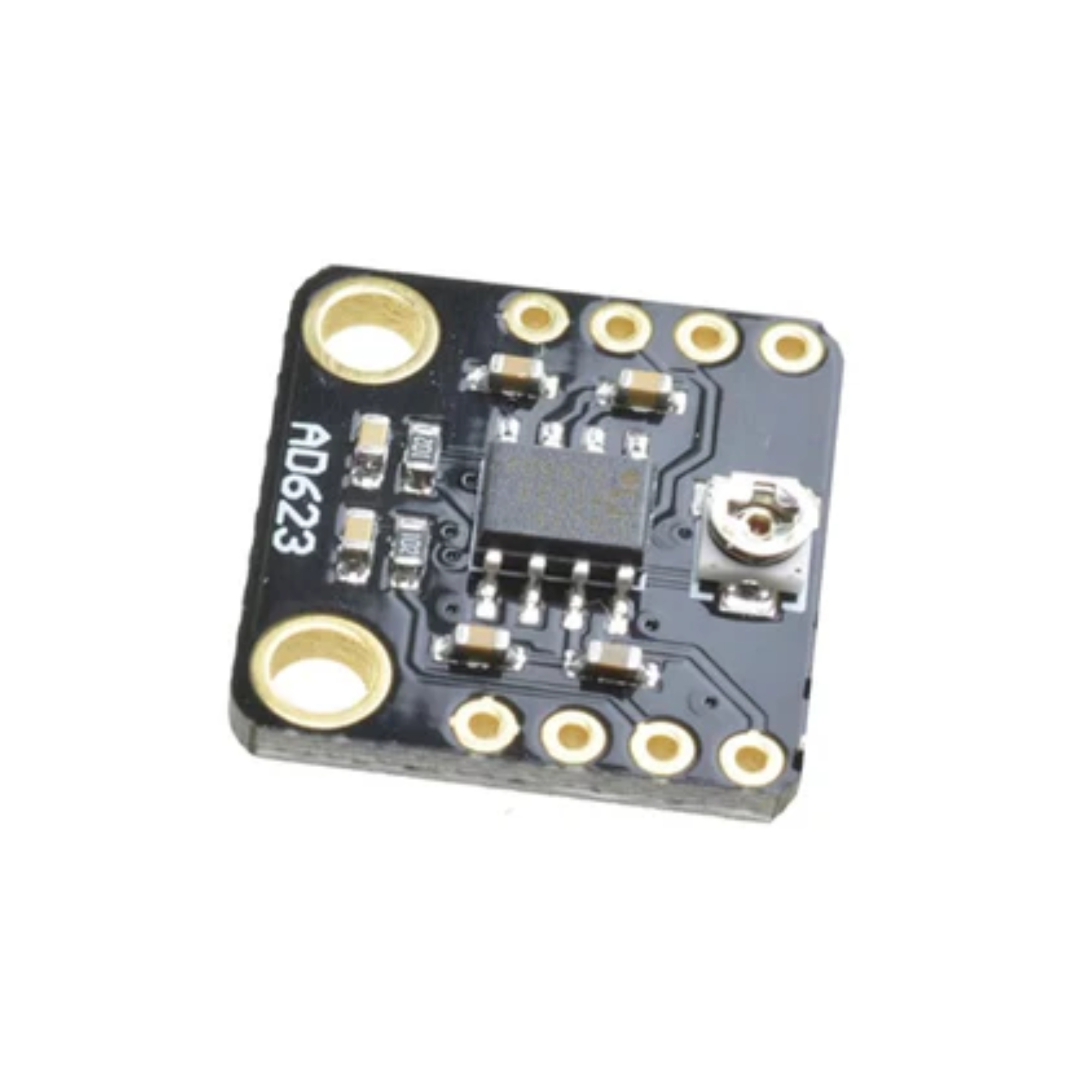

High Accuracy AD623 Programmable Gain Digital DC Instrument Amplifier Board Module

High Accuracy AD623 Programmable Gain Digital DC Instrument Amplifier Board Module is an integrated, single- or dual-supply instrumentation amplifier that delivers rail-to-rail output swing using supply voltages from 3 V to 12 V. The AD623 offers superior user flexibility by allowing single gain set resistor programming and by conforming to the 8-lead industry standard pinout configuration. With no external resistor, the AD623 is configured for unity gain (G = 1), and with an external resistor, the AD623 can be programmed for gains of up to 1000.

The superior accuracy of the AD623 is the result of increasing ac common-mode rejection ratio (CMRR) coincident with increasing gain; line noise harmonics are rejected due to constant CMRR up to 200 Hz. The AD623 has a wide input common-mode range and amplifies signals with common-mode voltages as low as 150 mV below ground. The AD623 maintains superior performance with dual and single polarity power supplies.

Features:

• Easy to use
• Rail-to-rail output swing
• Input voltage range extends 150 mV below ground
• Low power, 550 μA maximum supply current
• Gain set with one external resistor
• Excellent dynamic specification
• High accuracy dc performance

Specifications:

• Gain Range: 1 to 1000
• Gain Accuracy (G > 1): 0.0035
• Noise: 35 nV/√Hz RTI noise at 1 kHz
• Bandwidth (G = 1): 800 kHz
• Length (mm): 30
• Width (mm): 30
• Height (mm): 1
• Weight (gm): 10

Package Includes:

• 1 x High Accuracy AD623 Programmable Gain Digital DC Instrument Amplifier Board Module
