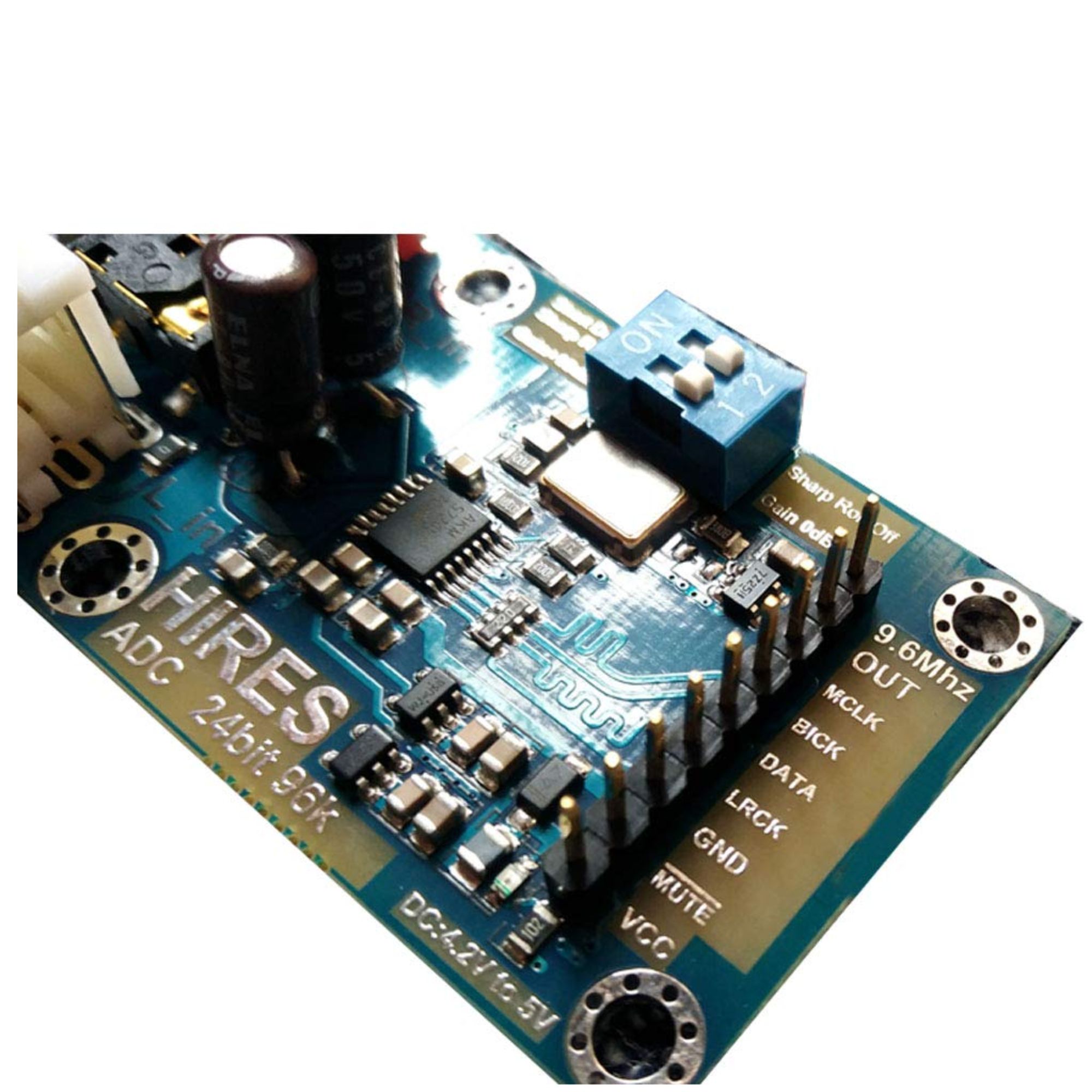

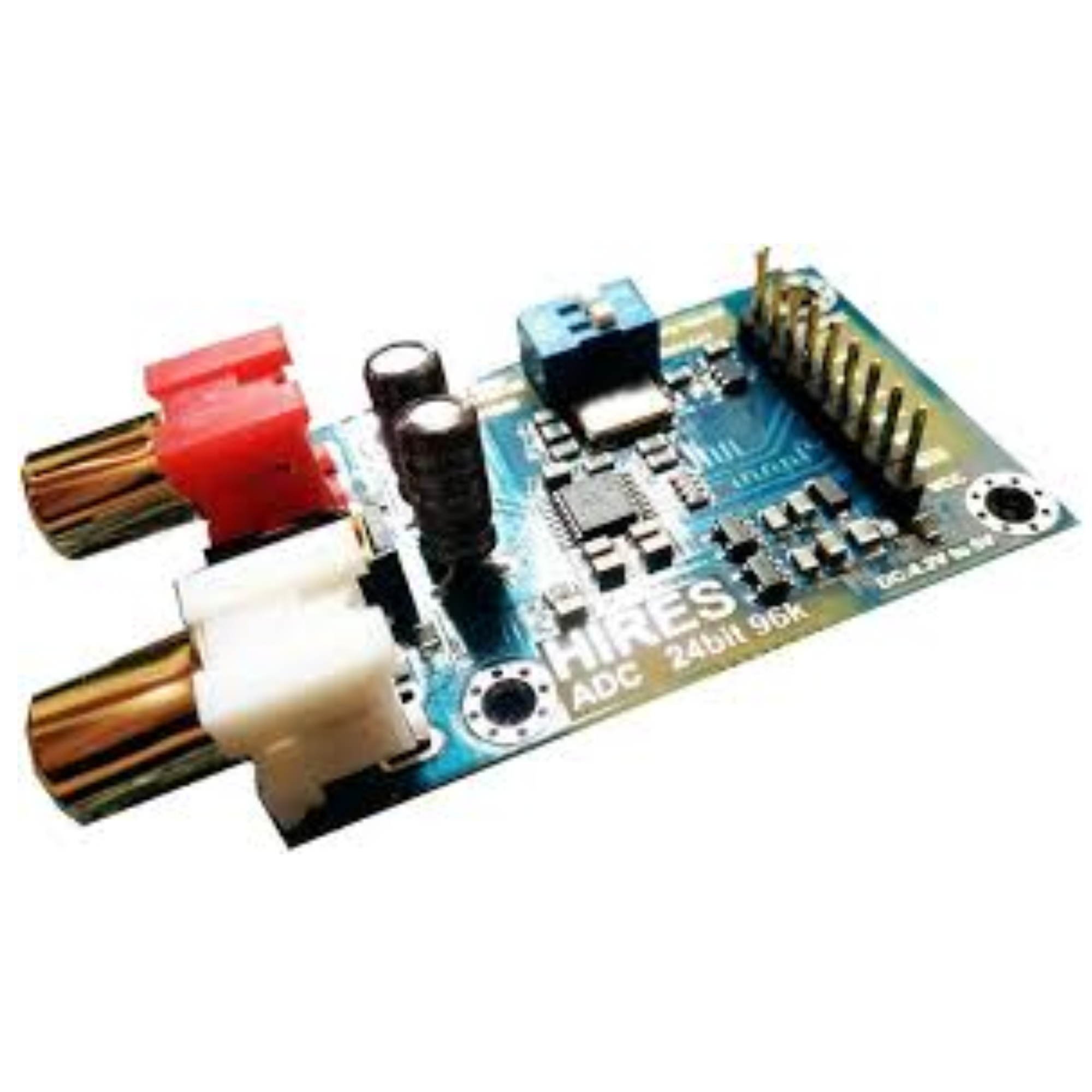

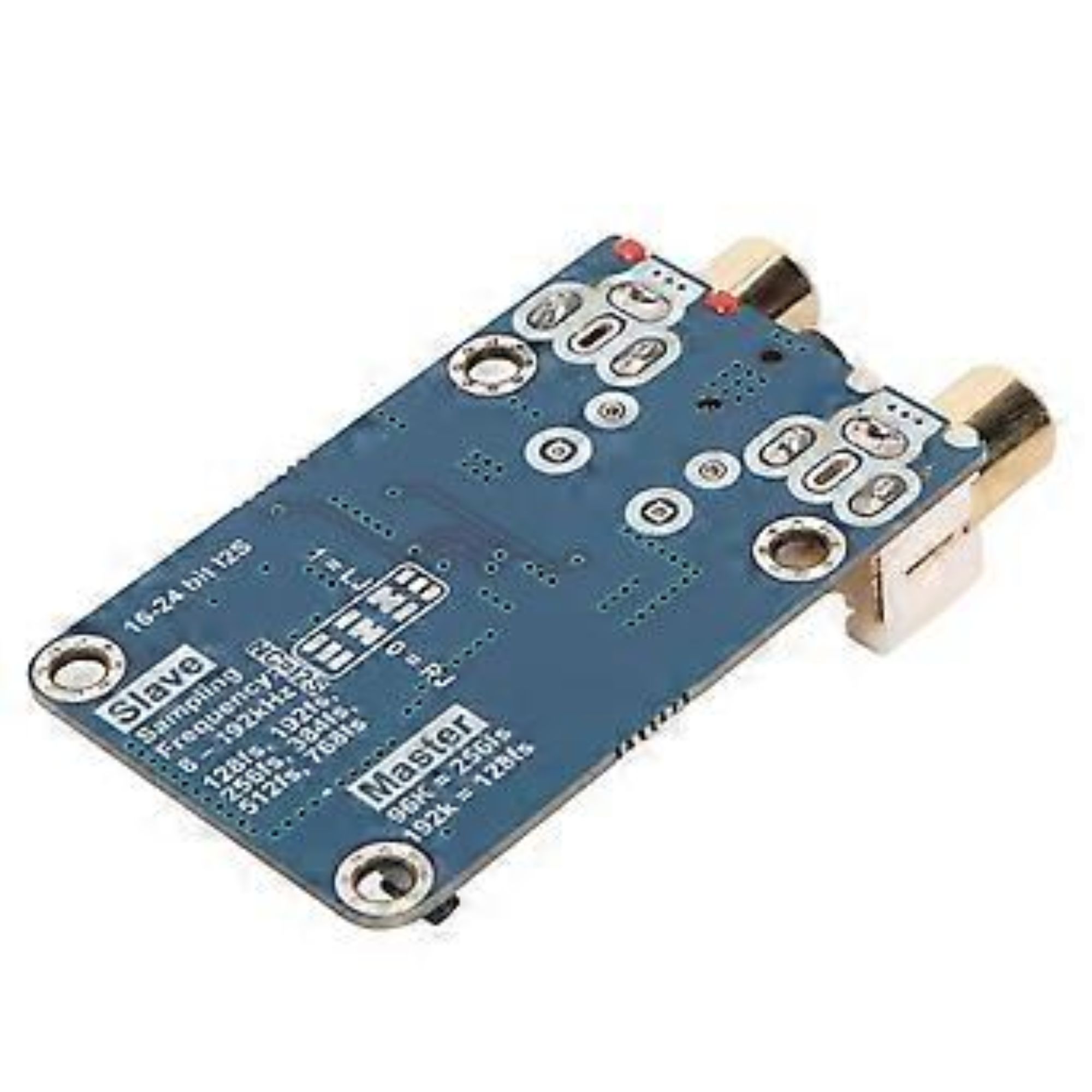

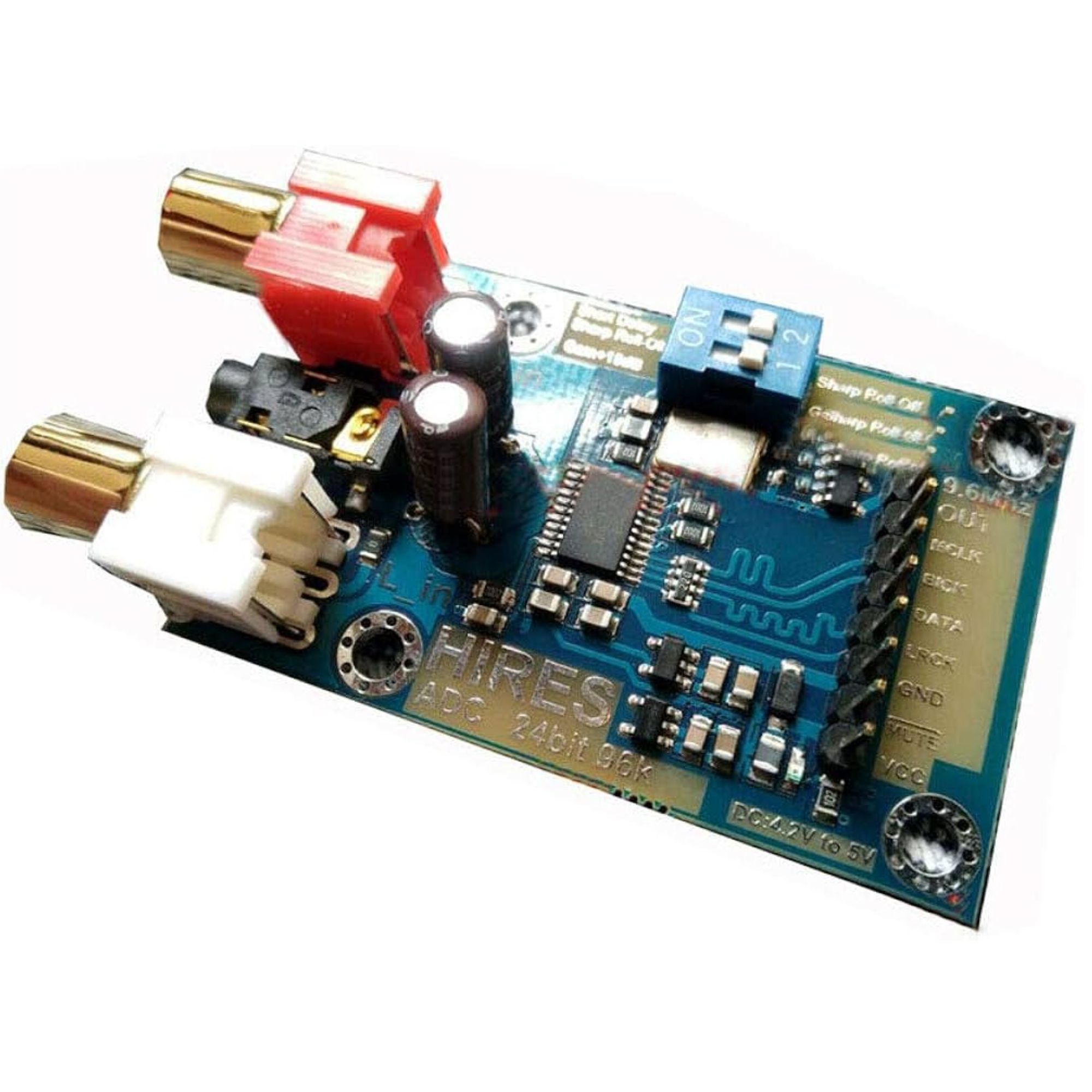

I2S ADC Audio I2S Capture Card Module Master Mode Development Board

The I2S ADC Audio I2S Capture Card Module Master Mode Development Board is a compact and versatile development board designed for audio signal processing and data capture. It utilizes the I2S (Inter-IC Sound) protocol, making it suitable for applications involving high-quality audio streaming and processing.

NOTE: Default host output mode, the audio input signal can be automatically converted to 24bit 192K/96K I2S signal for output after power on.

Features:

• I2S SIGNAL: I2S ADC audio capture card module supports host slave mode to turn analog signal into I2S signal.
• MASTER MODE: Audio 12S capture card module can be set to 24bit 192k and 24bit 96k master mode.
• SLAVE MODE: Audio capture card module can be set to 24bit 192K, 24bit 96K, 24bit 48K and 16bit 48K slave mode.
• INPUT MODELS: Audio capture card module development board supports 3.5mm or RCA input, default 6dB amplification effect.

Host Mode:

• 24bit 192k Host Mode Can Be Set Up.
• 24bit 96k Host Mode Can Be Set Up

Slave Mode:

• 24bit 192K Slave Mode Can Be Set.
• 24bit 96K Slave Mode Can Be Set.
• 24bit 48K Slave Mode Can Be Set.
• 16bit 48K Slave Mode Can Be Set.

Specifications:

• Protocol: I2S
• Operating Modes: Master Mode
• Input Signal Range: Analog audio (microphone or line-level)
• Output: Digital audio data
• Power Supply: 3.3V/5V (depending on the model)
• Dimensions: Small form factor for easy embedding

Package Includes:

• I2S ADC Audio Capture Card Module
