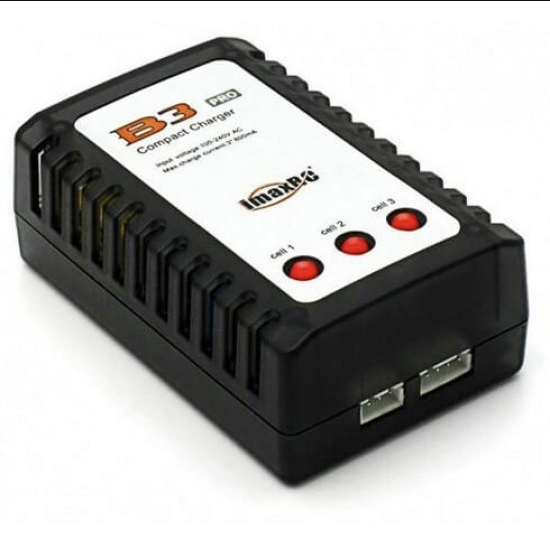

IMAX B3 Pro Lipo Balance Charger for 2-3S Lipo

IMAX B3 Pro Lipo Balance Charger for 2-3S Lipo is compact and light,which can charge 2s or 3s of battery. With the development of electric technology, we have a new design of easy compact balance charger for 2 and 3 cells LiPo battery fast charging with wide AC input. A internal 100-240V AC switch power is built in, and the high precision balance circuit can supply larger current up to 850 mA per cell. Double colour LED can display the process of charging (RED: charging; GREEN:full). This charger is compact and light, especially there is separated corresponding balance port for each battery pack.

Specification:

Operation:

• Please firstly connect the B3 Pro charger to power, while the three power LEDs will turn from red to green, which indicating that the charger works in good order.

• (Set 3s battery pack for example) Secondly, please connect the battery pack to 3s balance port , while the three power LEDs will all turn into red and charging begins. Please note once the charging of one cell is done, the corresponding power LED for it will turn green.

• When the three power LEDs all turn green, the charging for 3S battery pack is Finished.

Package Includes:

• 1 x IMAXRC B3 Compact Charger
• 1 x Power Cord
• 1 x Instruction manual

Warning:

• Please correctly connect the Imax B3 Compact charger to power and battery pack according to the procedure outlined in user manual.
• Please use this charger under supervision.
• Please place the charger in a dry environment and keep it away from fire.
• Please don't tightly pull and drag the power cord or replace it, or else the fire/electric shock will be caused.
• Please don't touch the charger and power with wet hands or it will bring in electric shock.
• To extend the working life of the charger, please remove it from power once charging is finished.
• Children must be watched by adults to use the charger.
