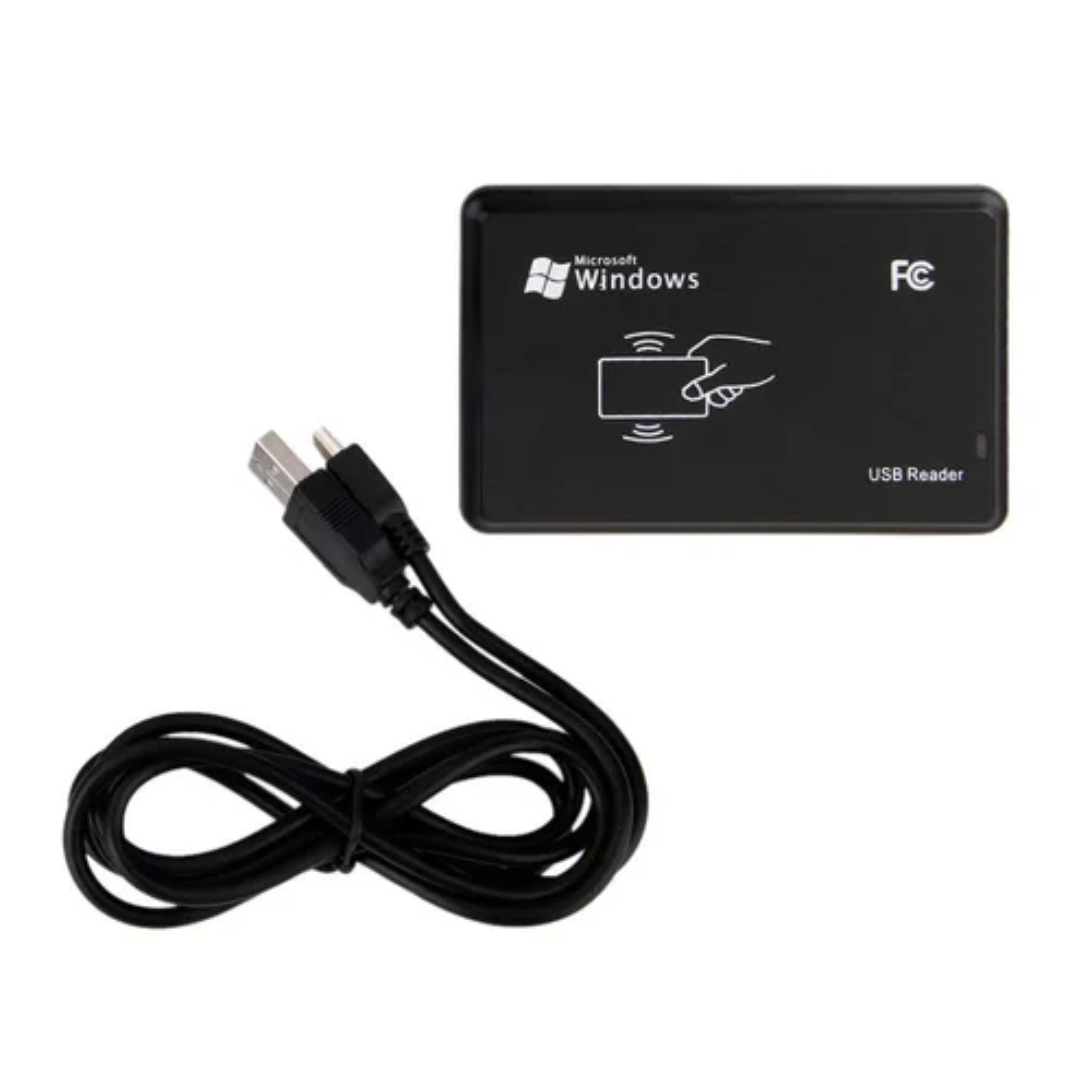

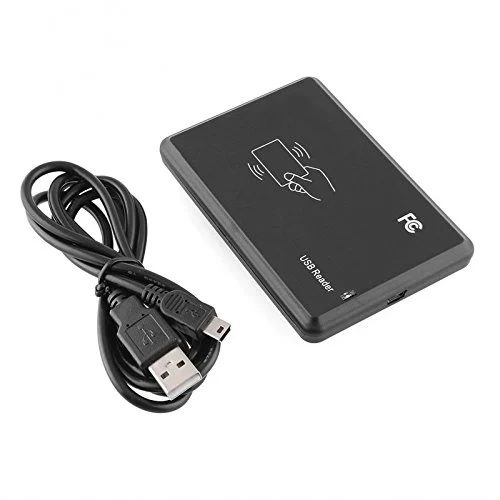

JT308 125KHz USB Proximity Sensor Smart RFID ID Card Reader

This is JT308 125KHz USB Proximity Sensor Smart RFID ID Card Reader. This RFID card reader can read RFID card serial number and output to your computer according to the specified format, then management software derives many more functions.

The JT308 series RFID card reader is simple, fast read card. Belong to standard HID devices do not need to install the driver, can be read in any number, this function is suitable for extended functionality in existing software, without any modification to the original software.

Features :

• Support μEM4001, 4100, or its compatible RFID, ID card.
• Read first 10 digits of the RFID/Proximity card.
• Support Windows 95/98/2000/XP/7/8.
• Plug and Play
• Reliable working condition
• Powered directly from USB, no need external power supply
• Diagnostic Power LED
• Built-in operating buzzer
• Easy usage
• Compact design.

Specifications:

• Frequency Range: 125KHz
• Communication Speed: 106Kbit/s
• Reading Distance: 5-8cm
• Operating Temperature (°C): -10 to 60
• Input Supply Voltage (VDC): 5
• Material: Plastic

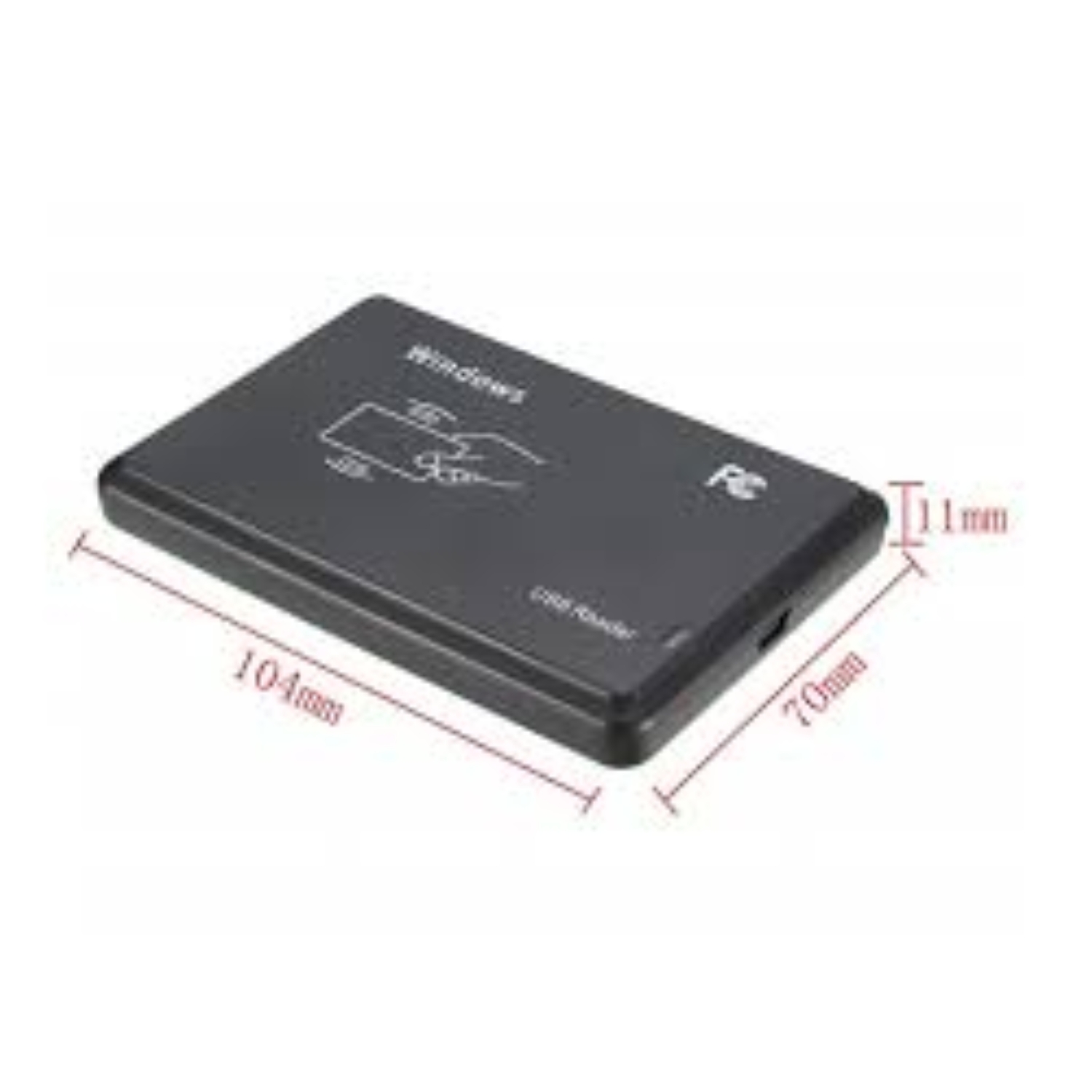

• Reader Dimensions(mm)(LxWxH): 105x70x12
• Cable Length (Meter): 1.5

Installation Instructions

• 1st Step: Connect the USB cable with the card reader to the computer USB port.
• 2nd Step: The reader will ‘drip’ sound and flash about that power successfully, and then half a second after the ‘drip’ sound and flash about that device self-test successfully, without Install any drivers, windows will automatically recognize it.
• 3rd Step: Open one EXCEL or WORLD, the card number would be input by self.

Package includes :

• 1 x USB interface RFID card reader.
• 1 x mini USB cable.
