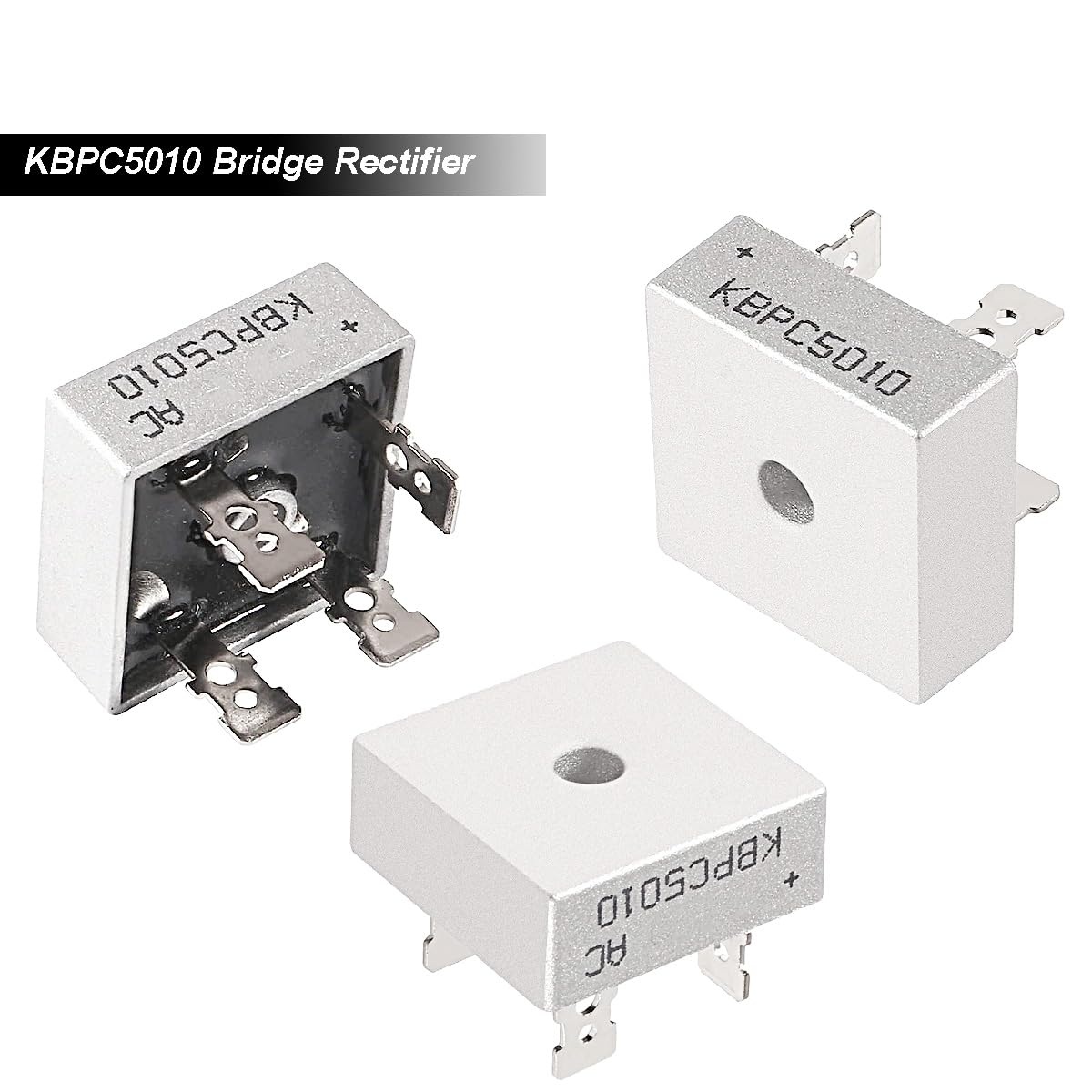

KBPC5010 50A 1000V Single Phase Diode Bridge Rectifier

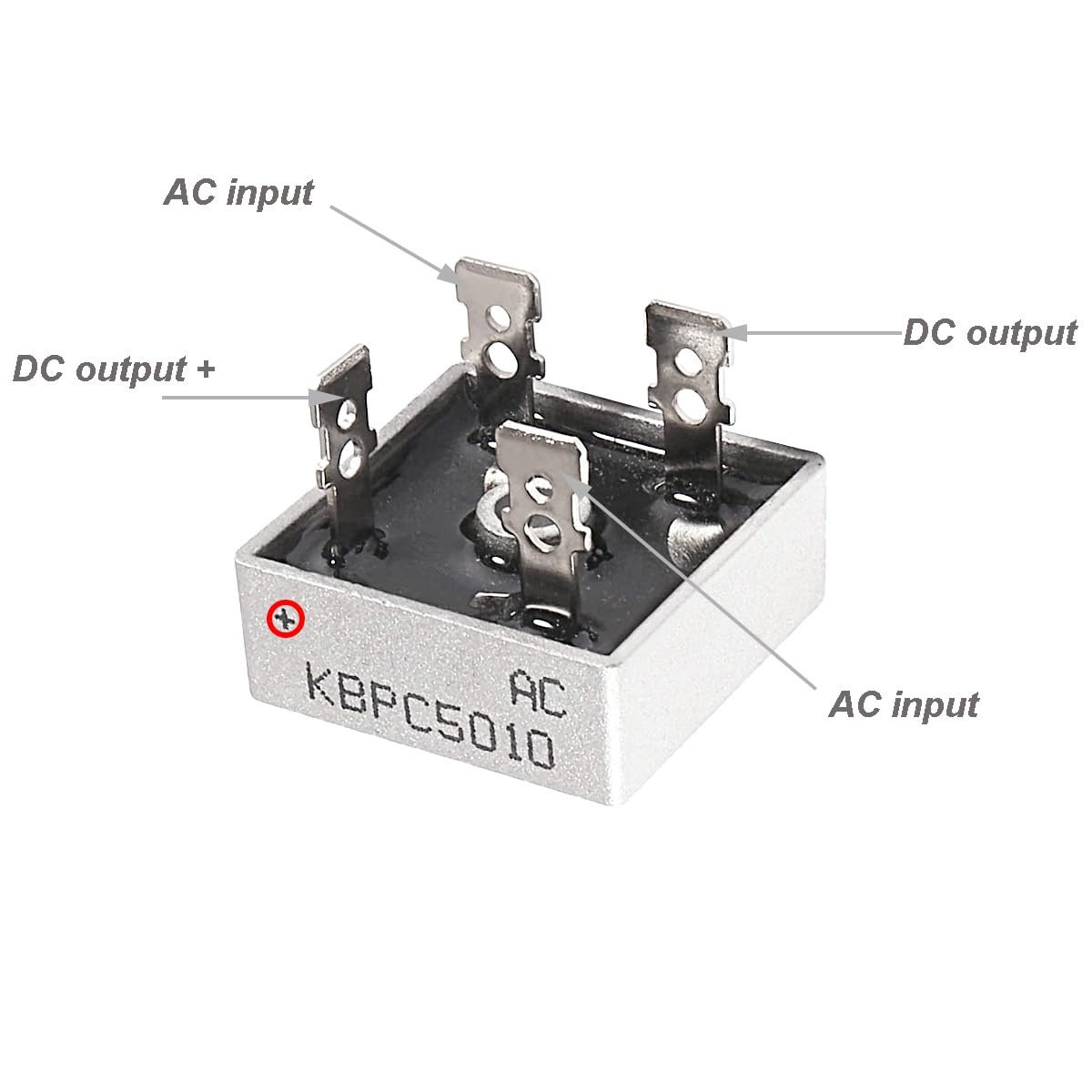

The KBPC5010 50A 1000V Single Phase Diode Bridge Rectifier is a robust single-phase silicon bridge rectifier designed for converting alternating current (AC) to direct current (DC) in high-current applications. With a peak reverse voltage rating of 1000V and a forward current capacity of 50 amperes, it is ideal for power supply circuits, motor drives, battery chargers, and industrial control systems. The KBPC5010 rectifier features an electrically isolated metal case with a mounting hole for efficient heat dissipation and reliable long-term performance.

Features:

• High surge overload current capability up to 400-450A peak
• Low forward voltage drop for high efficiency
• Diffused junction design ensures low reverse leakage current
• Electrically isolated metal case for superior heat dissipation
• High dielectric strength with case to terminal isolation voltage of 2500V

Specifications:

• Maximum average forward current (Io): 50A
• Maximum repetitive peak reverse voltage (VRRM): 1000V
• Maximum RMS voltage: 700V
• Forward voltage drop: ≤1.1V per diode
• Peak forward surge current (Ifsm): 400-450A (single half sine-wave)
• Reverse leakage current: 10μA at 25°C
• Thermal resistance junction-to-case: approx. 1.6 °C/W
• Operating temperature range: -55°C to +150°C

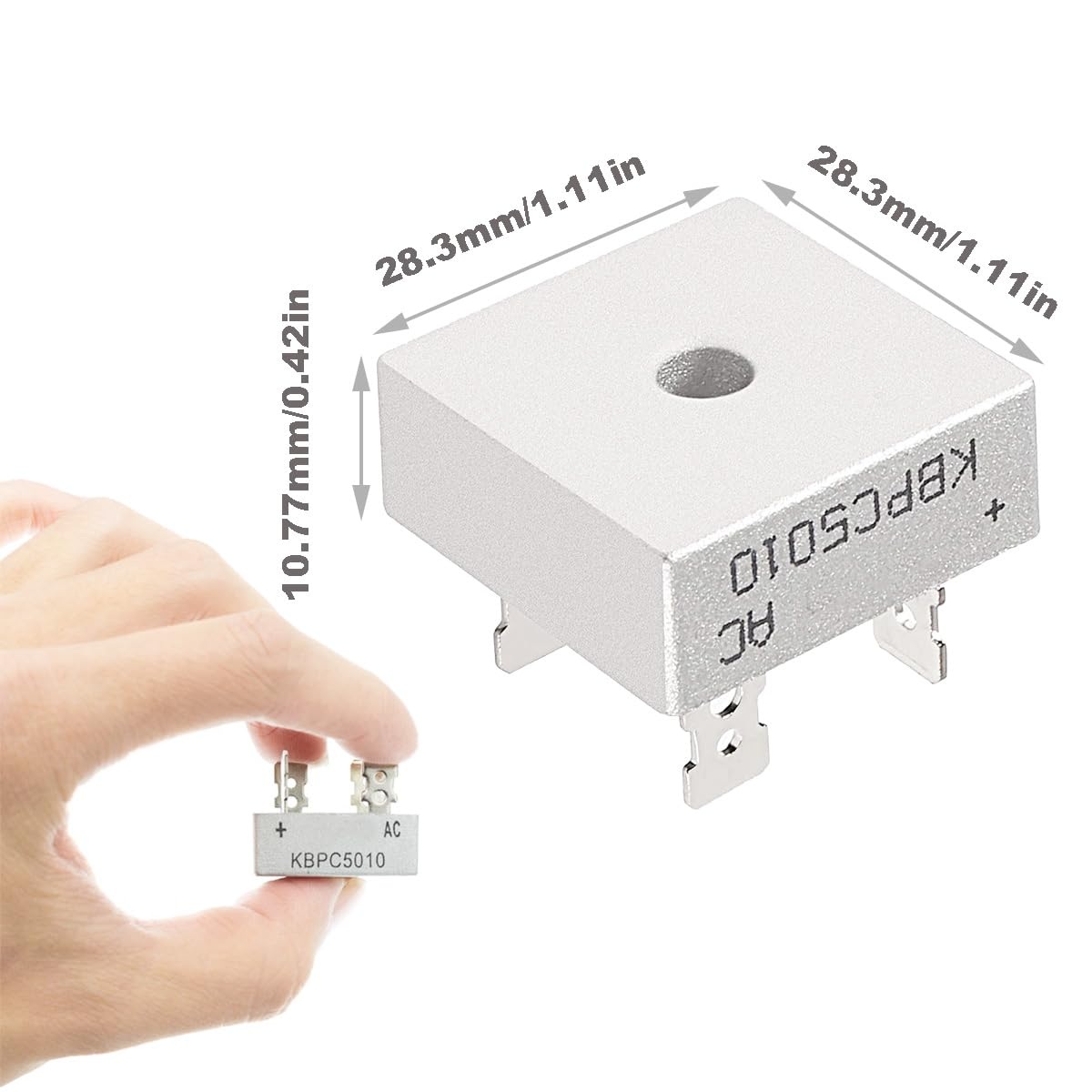

• Compact dimensions: approx. 28.9 x 28.5 x 22 mm
• Weight: ~30 grams
• Mounting type: Screw terminal with metal case

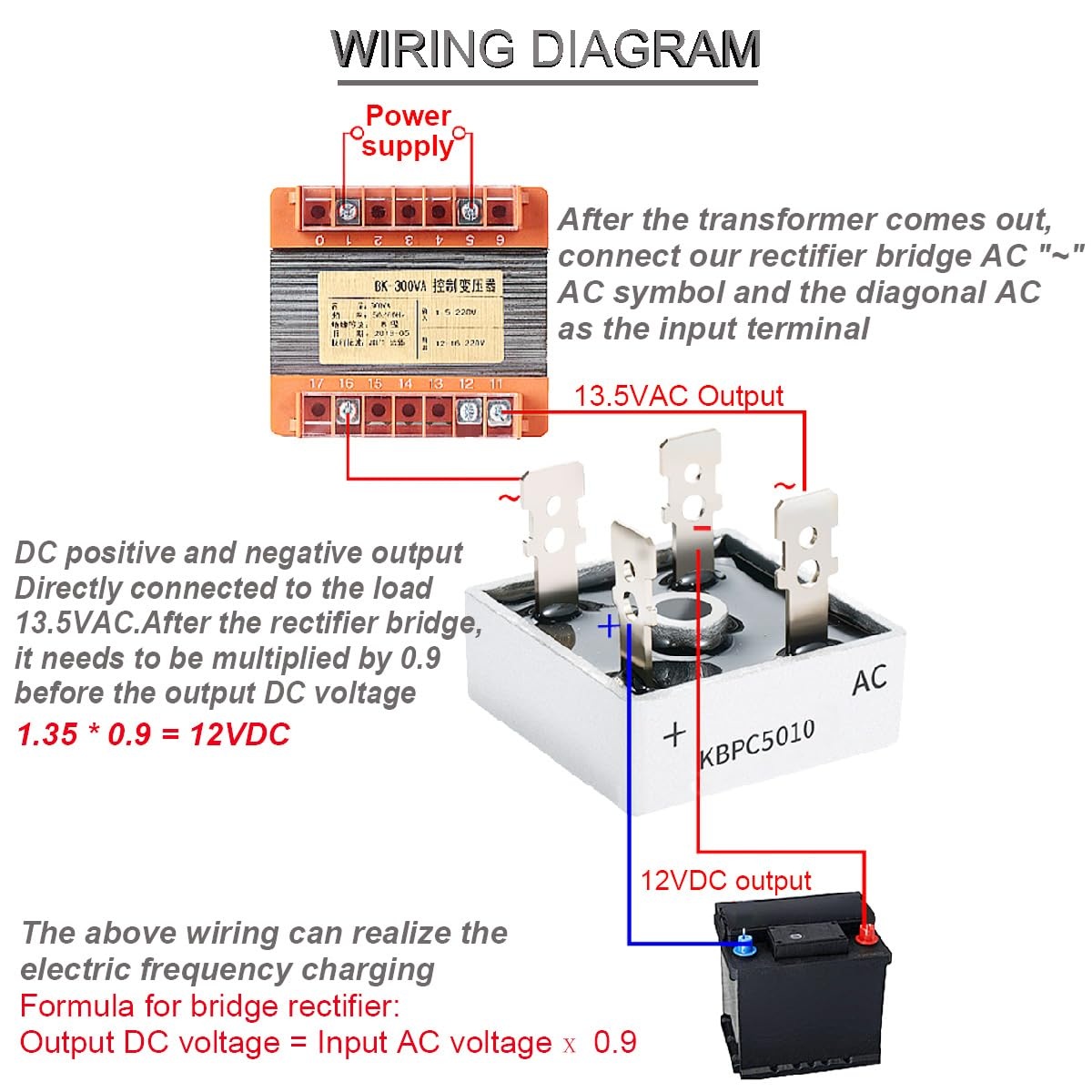

Applications:

• AC to DC conversion in power supplies
• Motor control and drives
• Battery charging circuits
• Industrial power rectification
• General rectification tasks requiring high current and voltage handling

Package Includes:

• 1 x KBPC5010 1000V Diode Bridge Rectifier 50A
