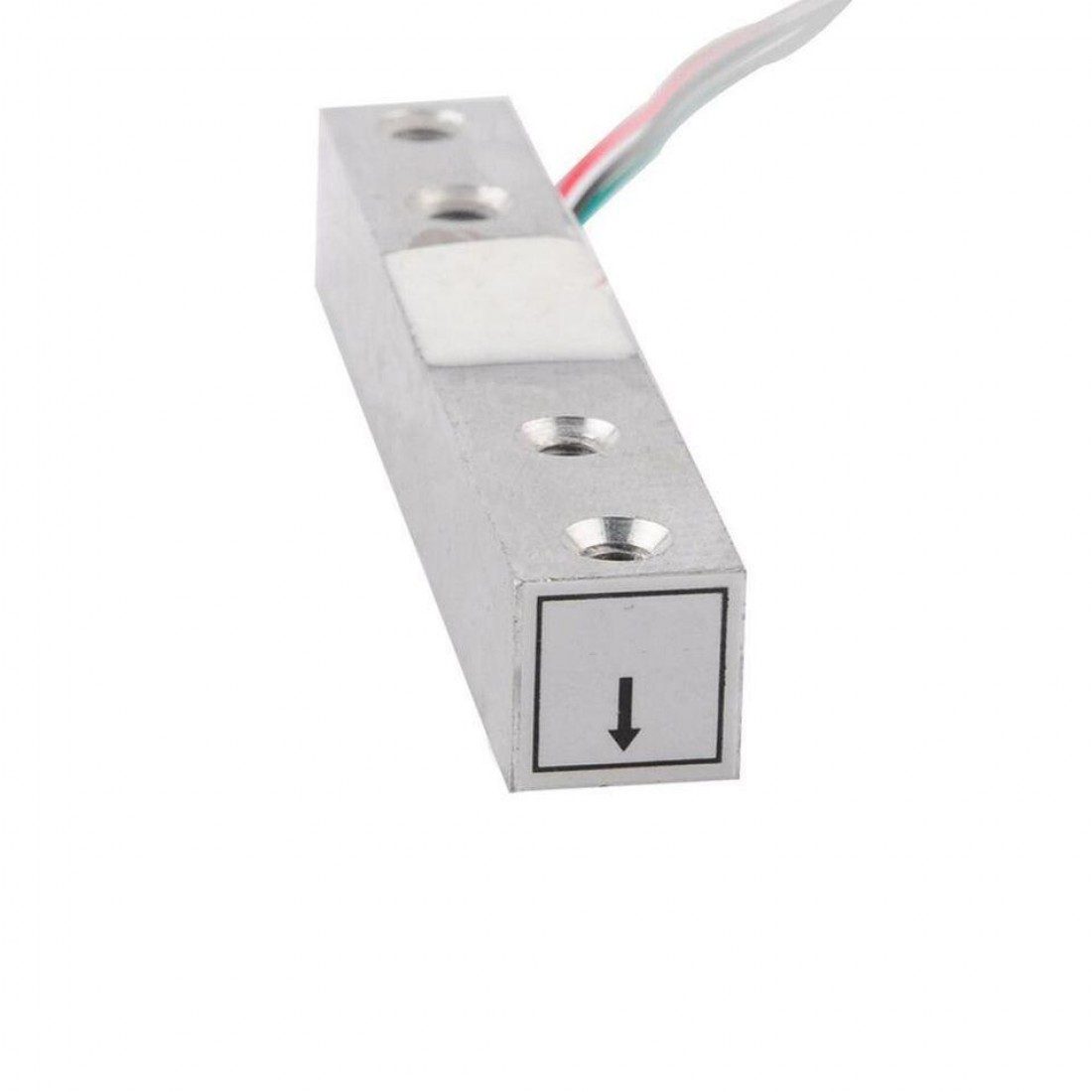

Load Cell Sensor 5kg For Electronic Weighing Scale YZC-131 With Wires

Load Cell Sensor 5kg For Electronic Weighing Scale YZC-131 With Wires is a transducer that is used to create an electrical signal whose magnitude is directly proportional to the force being measured. The various types of load cells include hydraulic load cells, pneumatic load cells and strain gauge load cells.

Load Cell Sensor 5kg For Electronic Weighing Scale is a standard load cell for measuring weight up to 5 Kg. The output of the load cell is in mili-volts and cannot be directly measured by a micro-controller. So an ADC with high resolution or an instrumentation amplifier is required to make the output of the load cell readable to a micro-controller.

The full-bridge structure, the four leads which can be connected to  HX711 A/D Pressure Sensor , easy to use, plus driving voltage 5-10V, force changes in the output voltage signal directly. The sensor is fixed at one end through the screw hole, and the other end left floating state, applied according to label directions direction of gravity. In particular, note that you must not directly push the white plastic cover part, in order to avoid damage of the sensor.

Wiring: Red voltage (E), Black line voltage (-E), Green line signals (S), White line signal (-S)

Specifications:

• Material: Aluminum
• Dimensions in mm (LxWxH): 75 x 12.7 x 12.7
• Weighing Range: 0~5 Kg
• Rated Output: 1.0 ± 0.1mV / V
• Non Linear Output: ± 0.03% F.S
• Hysteresis: 0.0% F.S
• Repeatability: 0.05% F.S
• Creep: (5 minutes) 0.05% F.S
• Cable Length: 26
• Zero Balance: ± 0.1 mV / V
• Input Impedance: 1066 ± 10% Ω
• Output Impedance: 1000 ± 10% Ω
• Temperature Effect on Output: 0.003% F.S / C
• Operating Temperature Range: -21º ~ 40º C
• Weight (gm): 29
• Insulation Resistance: 2000 MΩ

Applications:-

• Electronic platform scale
• Digital scale
• Parcel post scale
• Electronic balance

Package Includes:

• 1 x 5Kg Load cell – Electronic Weighing Scale Sensor
